New Release｜DK2210M-8T2X / DK2210M-8TP2X Layer 2+ Managed Switches, Upgrade for Full-Scenario High-Efficiency Networking

As enterprise digitalization, security surveillance, and campus office scenarios raise higher standards for network stability, scalability, security and intelligence, traditional unmanaged switches can no longer support complex networking environments. To meet diverse deployment demands for SMEs, intelligent security monitoring, weak-current engineering and smart buildings, we proudly launch the brand-new Layer 2+ Managed Switch DK2210M-8T2X & Layer 2+ Managed PoE Switch DK2210M-8TP2X. Featuring 10G uplink, full-featured management, robust security protection and stable PoE power supply, they deliver a high-cost-performance, high-performance integrated networking solution.

Dual Models for Universal & PoE Full-Scenario Coverage

These two newly released models come with fully upgraded hardware, balancing flexibility and practicality to fit various networking deployment requirements.

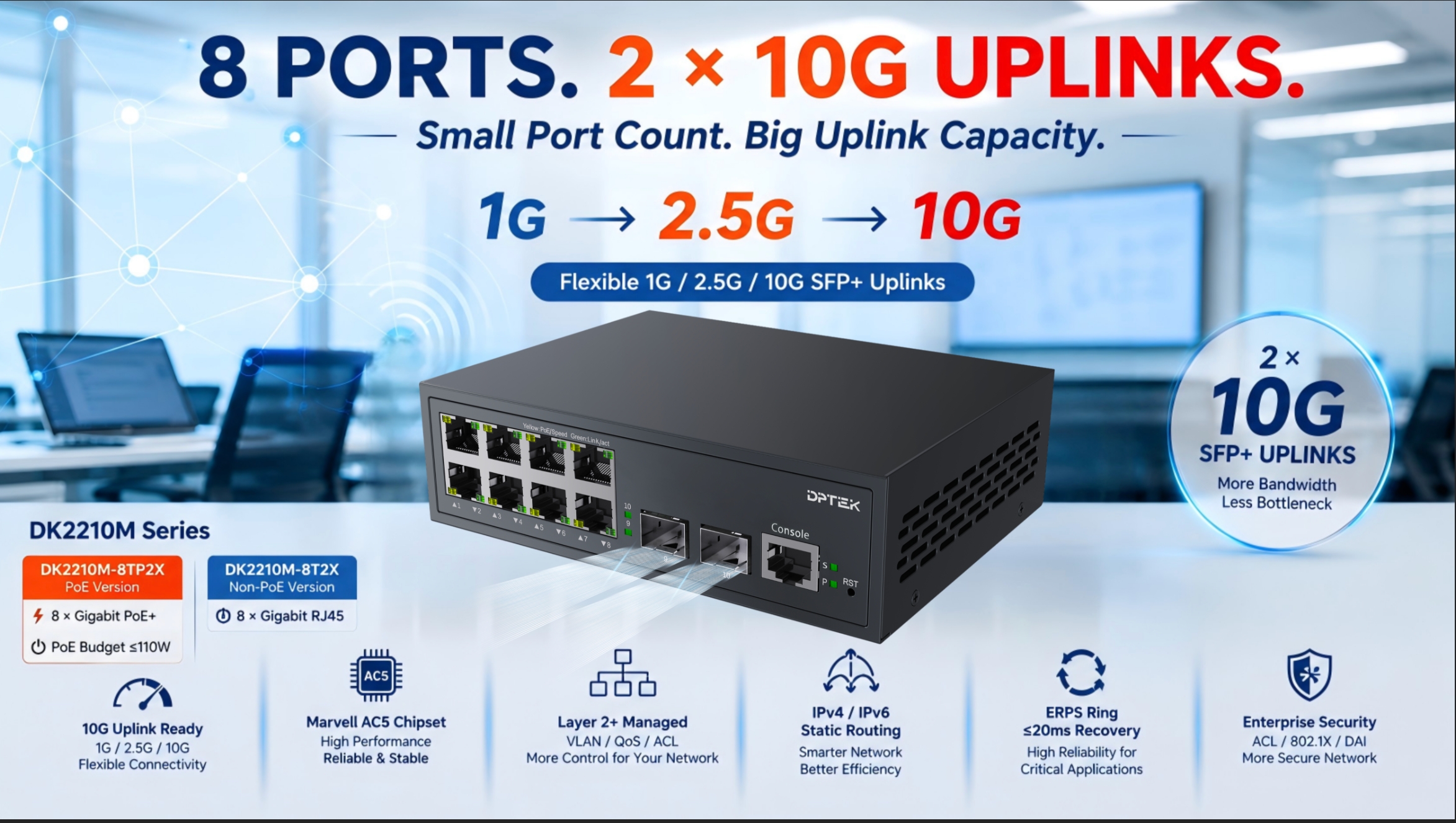

DK2210M-8T2X: Equipped with 8×10/100/1000Base-T Gigabit Ethernet ports + 2×1G/2.5G/10G adaptive SFP+ uplink ports.

DK2210M-8TP2X (PoE Version): Built with 8 Gigabit PoE ports + 2 10G SFP+ uplink ports. Equipped with an external 120W power adapter, the maximum full-load power consumption is ≤120W with an effective PoE budget up to 110W.

Beyond Layer 2+ Limits, Layer 3 Lite Capabilities Empower Efficient Networking

Both models adopt enhanced Layer 2+ management capabilities with built-in Layer 3 lite forwarding functions. They support IPv4/IPv6 dual-stack static routing, DHCP client and DHCP relay features. I

Full-Featured Network Management for Refined Traffic Control

Tailored for enterprise networking requirements, the switches integrate comprehensive port, VLAN, link and multicast management functions to adapt to complex network architectures:

• Intelligent Port Management: Supports port aggregation, IEEE802.3x flow control, port isolation, port mirroring, loop detection and broadcast storm suppression, eliminating network stuttering and loop paralysis issues.

• Multi-Dimensional VLAN Division: Compatible with IEEE802.1Q tagged VLAN, MAC-based VLAN, IP-based VLAN, protocol-based VLAN, voice VLAN and private VLAN. It also supports port-based, VLAN-based and flow-based QinQ stacking, isolating service traffic precisely and ensuring independent transmission for office, monitoring and voice services.

• Reliable Link Redundancy: Fully supports STP, RSTP, MSTP and G.8032 ERPS ring network protocols, compatible with single-ring and sub-ring networking. It achieves fast link switching, avoids network disconnection failures and improves network fault tolerance.

• Intelligent Multicast Forwarding: Supports full-version IGMP Snooping (v1/v2/v3) and PIM-SM multicast protocol, efficiently forwarding video surveillance and streaming media services while reducing bandwidth occupancy.

Enterprise-Grade Robust Protection to Secure Network Border

Equipped with comprehensive security mechanisms to defend against network attacks and unauthorized access. It supports ACL access control, 802.1X authentication, port security, IP source guard, ARP check and DAI, effectively preventing gateway ARP spoofing and DDoS attacks. In addition, it provides Telnet/SSH/HTTP/HTTPS multi-channel access control and AAA authentication, cooperating with GVRP, LLDP and DHCP Snooping to eliminate potential network risks at the access layer.

Intelligent QoS & Visualized O&M for Cost Reduction & Efficiency Improvement

Built with professional QoS scheduling mechanisms, supporting SP/WRR queue scheduling, ingress/egress port-based rate limiting and policy-based QoS remarking. It intelligently prioritizes bandwidth for voice, video and core office services to avoid stuttering of key business traffic.

For operation and management, it supports IPv4/IPv6 dual-stack management, web-based visualization management and CLI command-line management. Compatible with mainstream O&M protocols including SNMP, sFlow, RMON, MQTT, NTP and system log. Combined with dual-partition firmware management and automatic fault detection, it simplifies device debugging, maintenance and upgrades, greatly reducing manual operation costs.

✨ Core Product Highlights

✅ 10G flexible uplink, sufficient bandwidth without bottlenecks
✅ Layer 3 lite routing, optimal cost-performance for SME networking
✅ Full-function VLAN & QinQ for accurate complex service isolation
✅ Multiple ring network protocols for stable & uninterrupted links
✅ Comprehensive security protection against various network attacks
✅ Rich O&M protocols for effortless visualized management
✅ Stable PoE power supply for IoT and security scenarios
