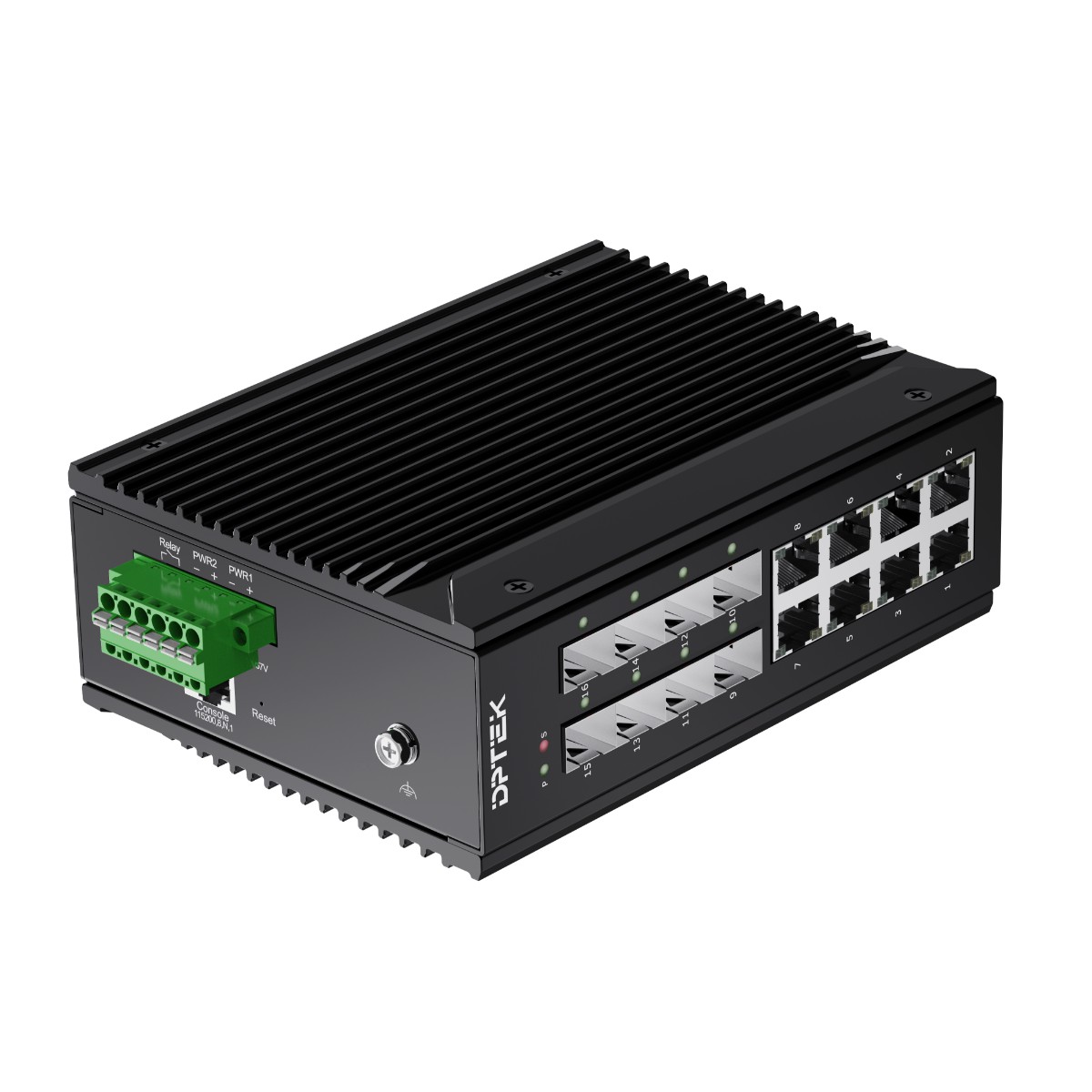

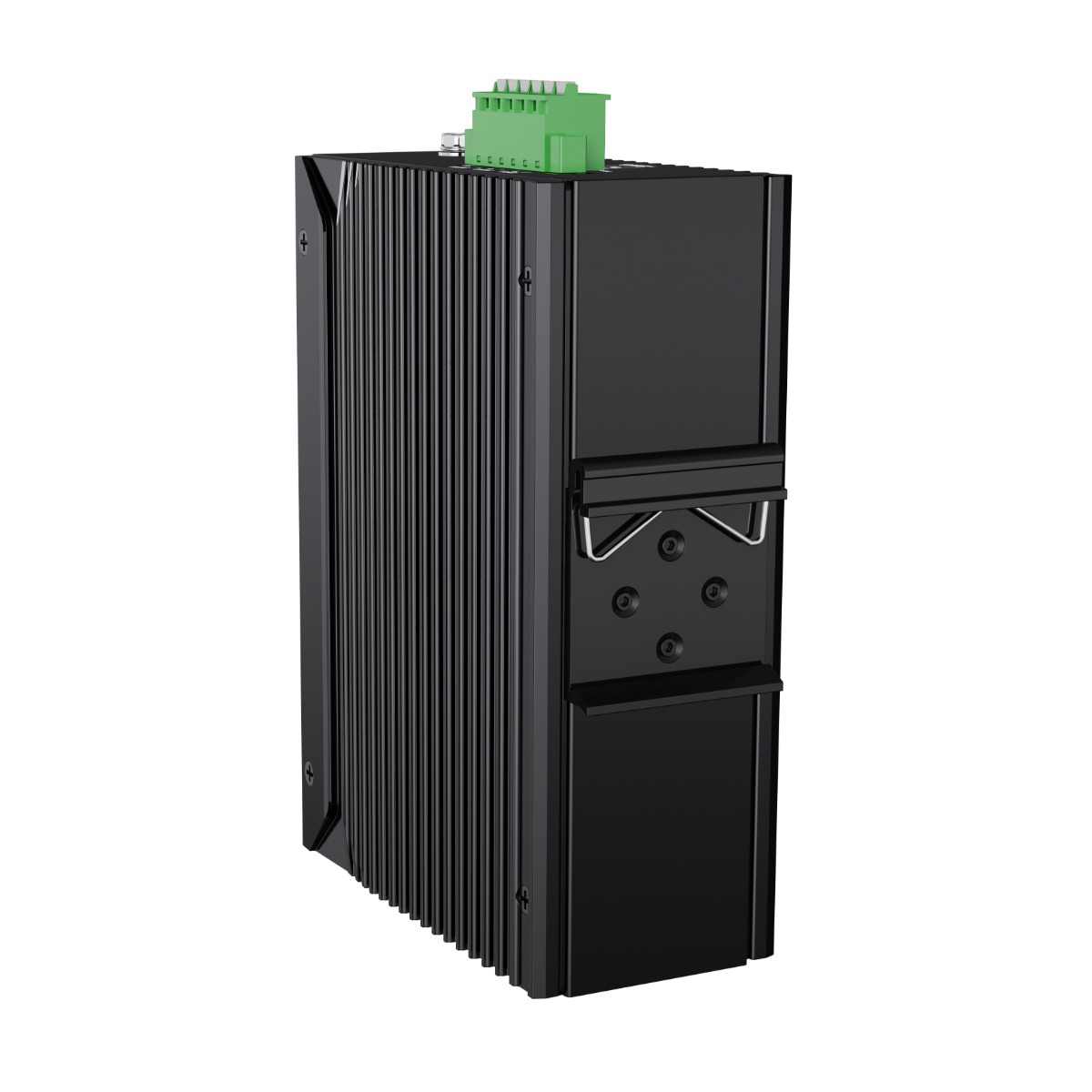

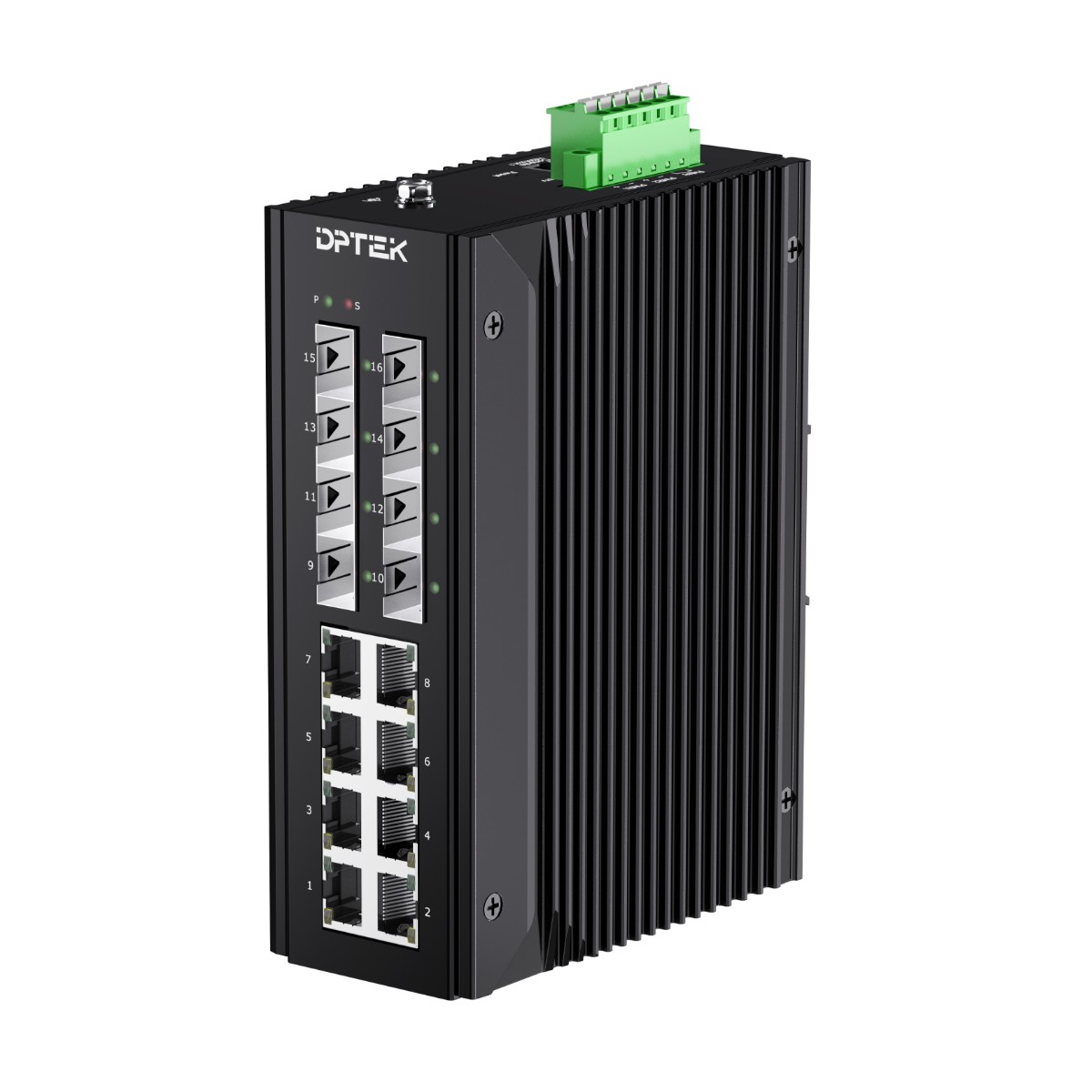

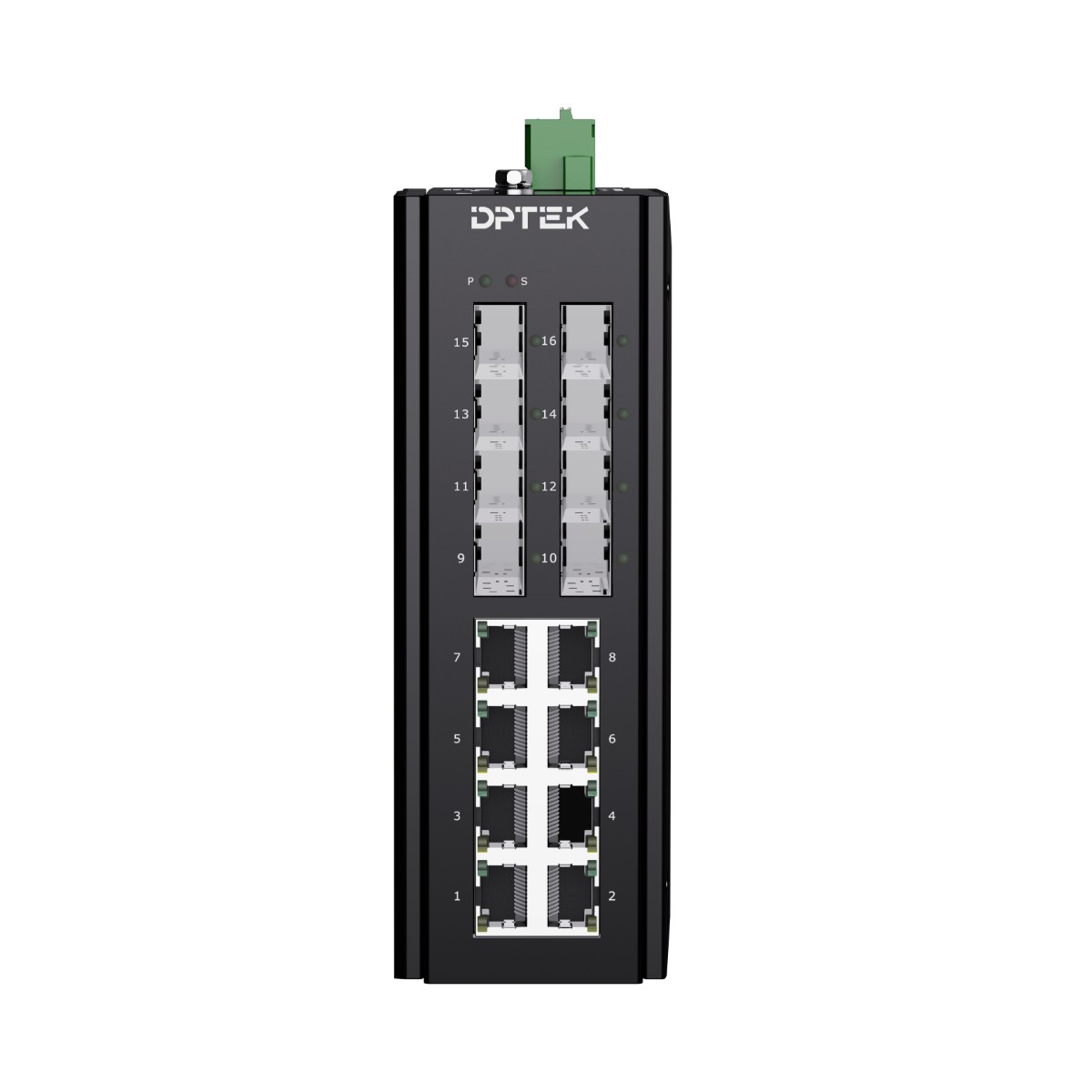

DK3510MI-8TP4GS4X
8*10/100/1000Base-T PoE + 4*100/1000Base-X + 4*1G/2.5G/10GBase-X SFP+
Layer 3 Managed Industrial PoE Switch
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Dual DC 44-57V input, Din-rail installation;
Operation temperature -40°C to 75°C
- Parameters
8*10/100/1000Base-T PoE + 4*100/1000Base-X + 4*1G/2.5G/10GBase-X SFP+
Layer 3 Managed Industrial PoE Switch
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Dual DC 44-57V input, Din-rail installation;
Operation temperature -40°C to 75°C
Overview
The DPTEK DK3510MI-8TP4GS4X is the highly reliable managed industrial PoE switch with 8-port 10/100/1000-T RJ45, 4-port 100/1000Base-X SFP and 4-port 1G/2.5G/10GBase-X SFP+ interfaces. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. It supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. DK3510MI-8TP4GS4X also supports Layer 3 static routing & dynamic routing features, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.
DK3510MI-8TP4GS4X is a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features
➢ 8*10/100/1000Base-T RJ45 PoE ports, 4*100/1000Base-X SFP, 4*1G/2.5G/10GBase-X SFP+ slots
➢ Redundant power 44-57V input with polarity reverse/over-voltage/over-current protection
➢ Support one digital output for relay alarm (terminal block Pin 5/6)
➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
➢ Layer 3 feature: Support static routing and dynamic routing
➢ Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP,
MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP
DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+75°C
Model No. | DK3510MI-8TP4GS4X | ||
Interface | Fiber ports | Copper RJ45 ports | |
8 | 8 | ||
Ethernet | 8*10/100/1000Base-T RJ45 PoE 4*100/1000Base-X SFP (13-16ports) 4*1G/2.5G/10GBase-X SFP+ (9-12 ports) | ||
Management port | 1*RJ45 Console port | ||
Alarm port | One digital output for relay alarm, alarm relay current carry ability: 1A@24VDC | ||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE 802.3ae 10Gb/s Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE+ | ||
LED Indicators | |||
P (Power indicator) | Off: the device is power off or failed | On: the device power on is normal | |
S(System status indicator) | Blinking: device initialization | On: device on normal operation | |
1-8 (Copper ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
1-8 (Port speed indicators) Yellow | Off: PoE not working | ||
On: PoE working | |||
9-16(Fiber ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameter | |||
Input voltage | 44-57VDC, redundant power input | ||
Input current | 5.9A Max | ||
Total power consumption | Full loading without PoE ≤20W PoE power budget≤ 240w | ||
Connector | Removable 6-pin terminal block, Pin 5/6 for relay alarm output | ||
Reverse polarity protection | Support | ||
Over-voltage protection | Support | ||
Over-current protection | Support | ||
Layer 2 function | |||
Port aggregation | Support GE port aggregation Support 2.5GE aggregation Support 10GE aggregation Support static aggregation Support dynamic aggregation | ||
Port features | Support IEEE802.3x flow control, Support port traffic statistics, Support port isolation Support network storm suppression based on port bandwidth percentage | ||
VLAN | Support access mode Support trunk mode Support hybrid mode | ||
VLAN Classification | Mac Based VLAN IP Based VLAN Protocol Based VLAN | ||
QinQ | Port-based QinQ VLAN-based QinQ Flow-based QinQ | ||
Port mirroring | Many to one port mirroring | ||
Ring network protocol | Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring Recovery time ≤20ms | ||
DHCP | Support DHCP Client Support DHCP Snooping | ||
Multicast | IGMP V1,V2,V3 IGMP snooping | ||
ACL | IP Standard ACL MAC extend ACL IP extend ACL | ||
QoS | Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS | ||
Security | Support Dot1x，port authentication，MAC authentication，RADIUS service Support port-security Support IP Source Guard，IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation | ||
Management & maintenance | Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping , TRACERT Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading | ||
Layer 3 function | |||
ARP | ARP table aging | ||
IPv4 / IPv6 | Static routing | ||
ECMP | ECMP; Support the configuration of ECMP Max next-hop; Support capacity balanced configuration; | ||
Route policy | IPv4 prefix-list | ||
VRRP | virtual router redundancy protocol | ||
Routing Entry | 13K | ||
IP routing protocol | RIPv1/v2; OSPFv2; BGP4; BGP supports Routing recursive ECMP; Support to view the number of neighbors and up/down state | ||
Switching features | |||
Switching capacity | 104Gbps | ||
Packet forwarding rate | 154.7Mpps | ||
MAC address table | 16K | ||
VLAN | 4K | ||
Buffer | 12Mbit | ||
Forwarding delay | <5us | ||
Jumbo Frame | Support 10Kbytes | ||
MDX/MIDX | Support | ||
Watchdog | Support | ||
Mechanical structure | |||
Case protection | IP40 | ||
Installation method | Din-rail | ||
Dimension(W*D*H)mm | 54*115*158mm | ||
Weight | 1.45 kg | ||
Operating environment | |||
Operating temperature | -40℃~+75℃ | ||
Storage/transportation temperature | -40℃~+85℃ | ||
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | ||
Industrial Standard | |||
EMS | Surge protection of power: IEC 61000-4-5 6KV/4KV（8/20us） Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV（10/700us） RS：IEC 61000-4-3 80 MHz-1 GHz：10 V/m EFT：IEC 61000-4-4 4K/2K CS：IEC 61000-4-6 10V ESD：IEC 61000-4-2 Contact: 8K；Air: 15K | ||
EMI | FCC Part 15B Class A | ||
Shock | IEC 60068-2-27 | ||
Free fall | IEC 60068-2-32 | ||
Vibration | IEC 60068-2-6 | ||
Certification | CE/FCC/RoHS | ||
Warranty | 5 years | ||
Model | Description |
DK3510MI-8TP4GS4X | Layer 3 Managed industrial PoE switch with 8*10/100/1000Base-T RJ45 PoE ports, 4*100/1000Base-X SFP and 4*1G/2.5G/10GBase-X SFP+ slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
