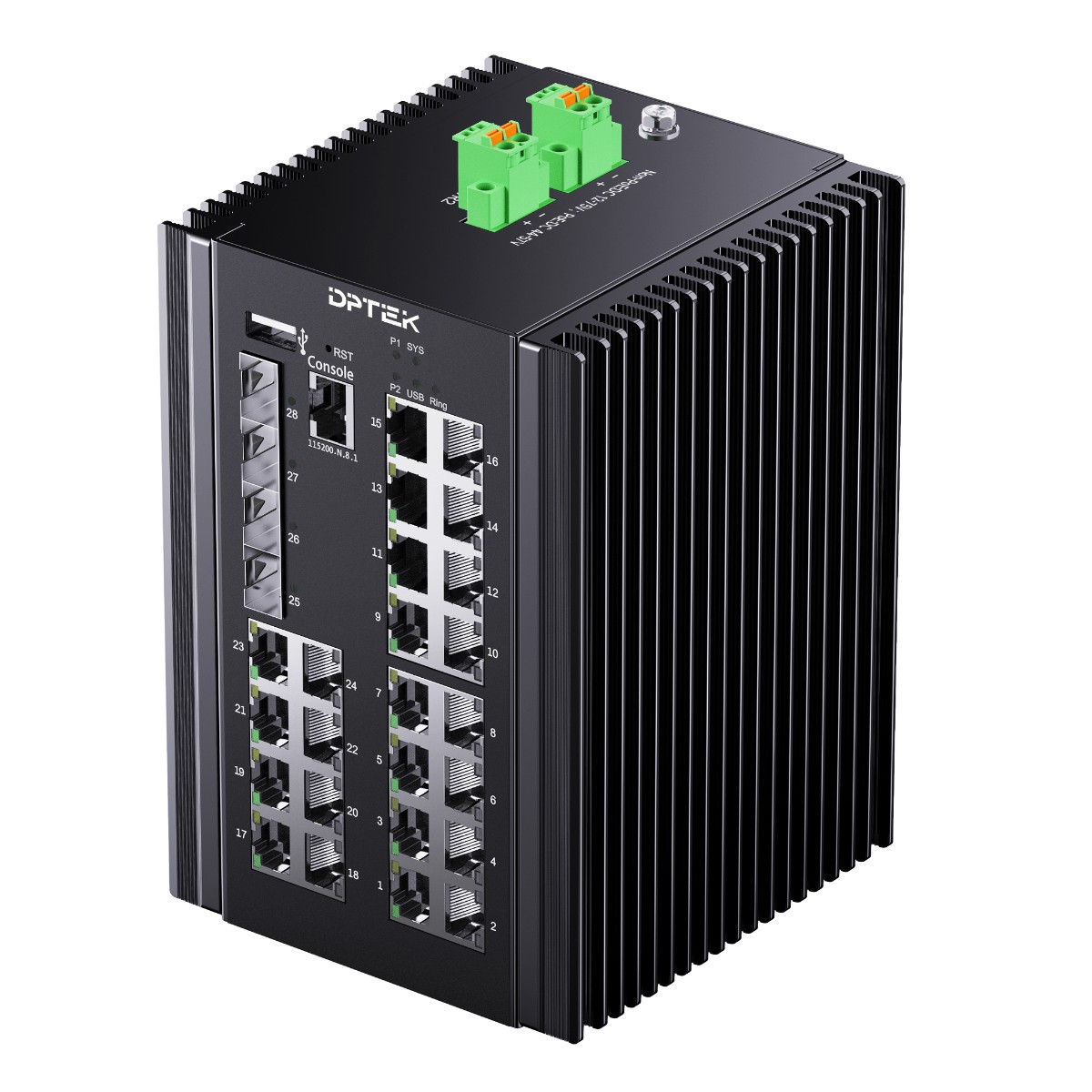

DK3510MI-24T4X

    24*10/100/1000Base-T + 4*1G/2.5/10GBase-X SFP+

    Layer 3 Managed Industrial Ethernet Switch



    DC12-75V input, redundant dual power supply

    Operation temperature: -40°C~+80°C

    Din-rail installation


  • Parameters

    24*10/100/1000Base-T + 4*1G/2.5/10GBase-X SFP+

    Layer 3 Managed Industrial Ethernet Switch



    DC12-75V input, redundant dual power supply

    Operation temperature: -40°C~+80°C

    Din-rail installation


Overview



The DPTEK DK3510MI-24T4X series are the highly reliable Layer 3 managed industrial Ethernet switches with 24-port 10/100/1000Base-T RJ45 and 4-port 1G/2.5G/10GBase-X SFP+. With full gigabit downlink and 10G uplink capability, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support DI/DO/RS485/Modbus data, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, Layer 3 static routing & dynamic routing features, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.



DK3510MI-24T4X series are also the high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including redundant power supply with DC12-75V input, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 80°C as well as high-level EMI/EMC capability. They are the best choices for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.



Features

 24*10/100/1000Base-T RJ45, 4*1G/2.5G/10GBase-X SFP+

 12-75V redundant DC power supply with polarity reverse/over-voltage/over-current protection

 Support USB one key configuration & upgrading

 DI/DO/RS485/Modbus data optional

 Layer 3 feature: Support static routing and dynamic routing

 Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function

 Management and maintenance: IPv4 and IPv6 management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB

 Support G.8032 ERPS protocol, recovery time ≤20ms

 Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

 IP40 fan-less and Din-rail hardware design

 Operation temperature: -40°C ~+ 80°C




Model No.

DK3510MI-24T4X / DK3510MI-24T4X-D

Interface

Fiber ports

Copper ports

4

24

Ethernet

24*10/100/1000Base-T RJ45

4*1G/2.5G/10GBase-X SFP+

Management port

1*RJ45 Console port1*USB 2.0 for configuration and firmware update

Data channel(optional)

1 channel RS485

1 channel DI(digital input)

1 channel DO(digital output)

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

IEEE 802.3ae 10GBase-X Ethernet

IEEE802.3x Flow Control and Back Pressure

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1Q VLAN

ITU-T G.8032 ERPS

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP

LED Indicators

P1/P2 (Power indicator) Green

Off: the device is power off or failed

On: the device power on is normal

SYS (System status indicator)

Blinking: device initialization

On: device on normal operation

USB (USB status indicator) Green

Off: USB flash drive not insert or not detected by device

On: USB flash drive is detected by device

Blinking: the device is reading and writing the data from USB flash drive

ALM(Fault status indicator) Red

Off: Device on normal working state

On: Fault alarm

Ring(Ring network indicator)

Off: Ring network disable

On: Ring network enable

1-24 (Copper ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

1-24(Copper speed indicators) Yellow

Off: ports on 10/100M

On: ports on 1000M

25-28 (Fiber ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameter

Input voltage

12-75VDC

redundant power input

Input current

2.5A DC/DC input Max

Total power consumption

Full loading 30W

Connector

Removable 2-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Layer 2 function

Port aggregation

Support GE port aggregation

Support 2.5GE aggregation

Support 10GE aggregation

Support static aggregation

Support dynamic aggregation

Port features

Support IEEE802.3x flow control,

Support port traffic statistics,

Support port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access mode

Support trunk mode

Support hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocol Based VLAN

QinQ

Port-based QinQ

VLAN-based QinQ

Flow-based QinQ

Port mirroring

Many to one port mirroring

Ring network protocol

Support STPRSTPMSTP

Support G.8032 ERPS protocolsingle ring, sub Ring and associated sub ring

Recovery time ≤20ms

DHCP

Support DHCP Client

Support DHCP Snooping

Multicast

IGMP V1,V2,V3

IGMP snooping

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

Support QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Support Policy-based QoS

Security

Support Dot1xport authenticationMAC authenticationRADIUS service

Support port-security

Support IP Source GuardIP/Port/MAC binding

Support ARP-check and ARP packet filtering for illegal users

Support port isolation

Management   & maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web management, HTTP1.1, HTTPS

Support Syslog and alarm grading

Support RMON(Remote Monitoring) alarm

Support NTP

Support temperature monitoring

Support Ping , TRACERT

Support optical transceiver DDM function

Support TFTP Client

Support Telnet Server

Support SSH Server

Support IPv6 Management

Support TFTP, web upgrading

Support USB upgrading

Support USB importing configuration

Layer 3 function

ARP

ARP table aging

IPv4 / IPv6

Static routing

ECMP

ECMP;

Support the configuration of ECMP Max next-hop;

Support capacity balanced configuration;

Route policy

IPv4 prefix-list

VRRP

virtual router redundancy protocol

Routing Entry

13K

IP routing protocol

RIPv1/v2;

OSPFv2;

BGP4;

BGP supports Routing recursive ECMP;

Support to view the number of neighbors and up/down state

IS-ISv4

Switching features

Switching capacity

128Gbps

Packet forwarding rate

190Mpps

MAC address table

16K

VLAN

4K

Buffer

12M bit

Forwarding delay

<5us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Mechanical structure

Case protection

IP40

Installation method

Din-rail

Dimension(W*D*H)mm

90*115*158mm

Weight

DK3510MI-24T4X: 1.9kg;  DK3510MI-24T4X-D: 2kg

Operating environment

Operating temperature

-40℃~+ 80

Storage/transportation temperature

-40℃~+ 85℃

Relative humidity

Operation humidity: 10%-90%RH

Storage humidity: 5%-95%RH

Industrial Standard

EMS

Surge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  6KV/2KV10/700us

RSIEC 61000-4-3 80 MHz-1 GHz10 V/m

EFTIEC 61000-4-4 power 4K, signal 2K

CSIEC 61000-4-6 10V

ESDIEC 61000-4-2  Contact: 8KAir: 15K

EMI

FCC Part 15B Class A

Shock

IEC 60068-2-27

Free fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years































































































































































































Model

Description

DK3510MI-24T4X

Layer 3 managed industrial Ethernet switch with 4*1G/2.5G/10GBase-X SFP+ ports and 24*10/100/1000Base-T RJ45 ports. Dual DC 12-75V input, Din-rail installation; Operation temperature -40°C to 80°C

DK3510MI-24T4X-D

Layer 3 managed industrial Ethernet switch with 4*1G/2.5G/10GBase-X SFP+ ports and 24*10/100/1000Base-T RJ45 ports. Support DI/DO/RS485/Modbus; Dual DC 12-75V input, Din-rail installation; Operation temperature -40°C to 80°C
