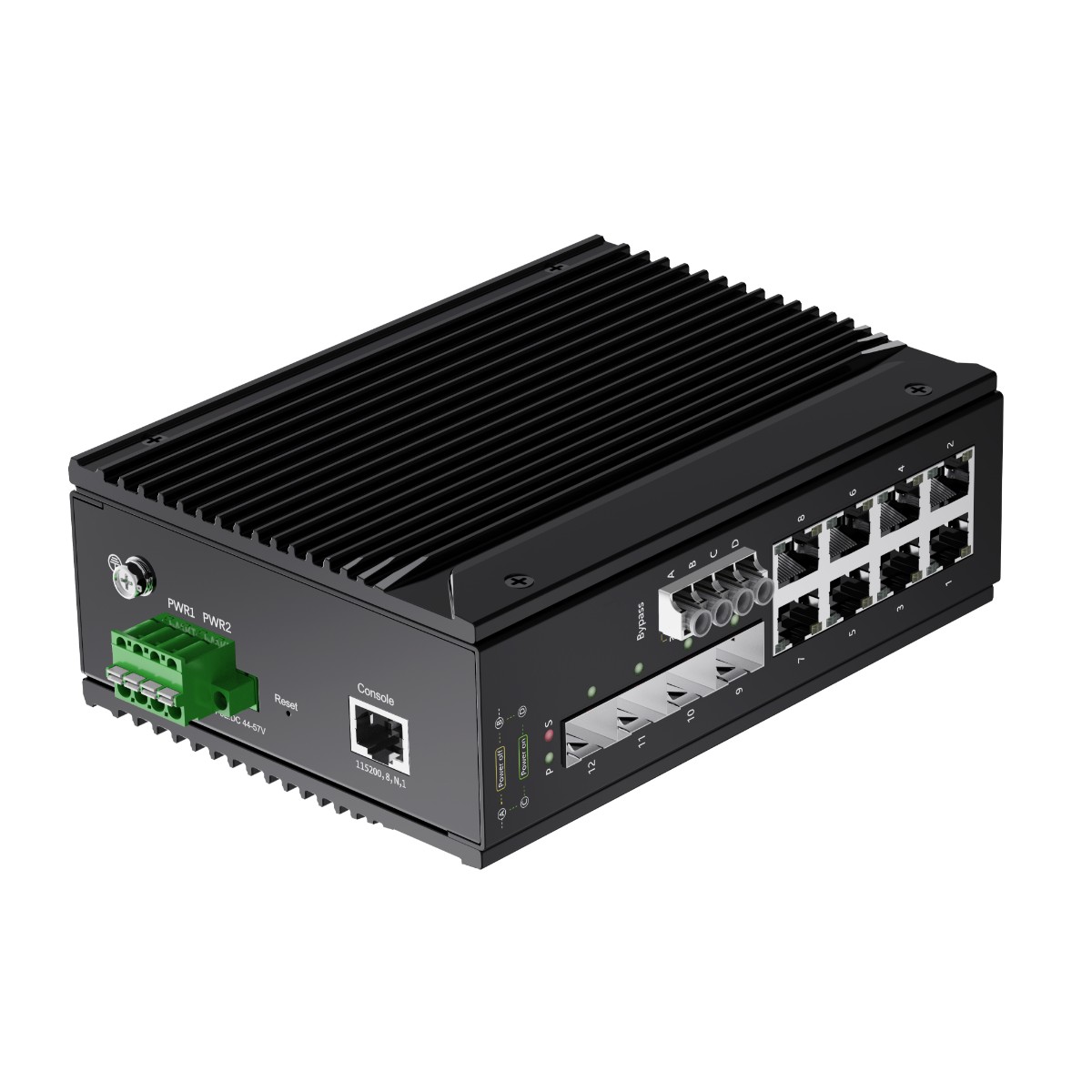

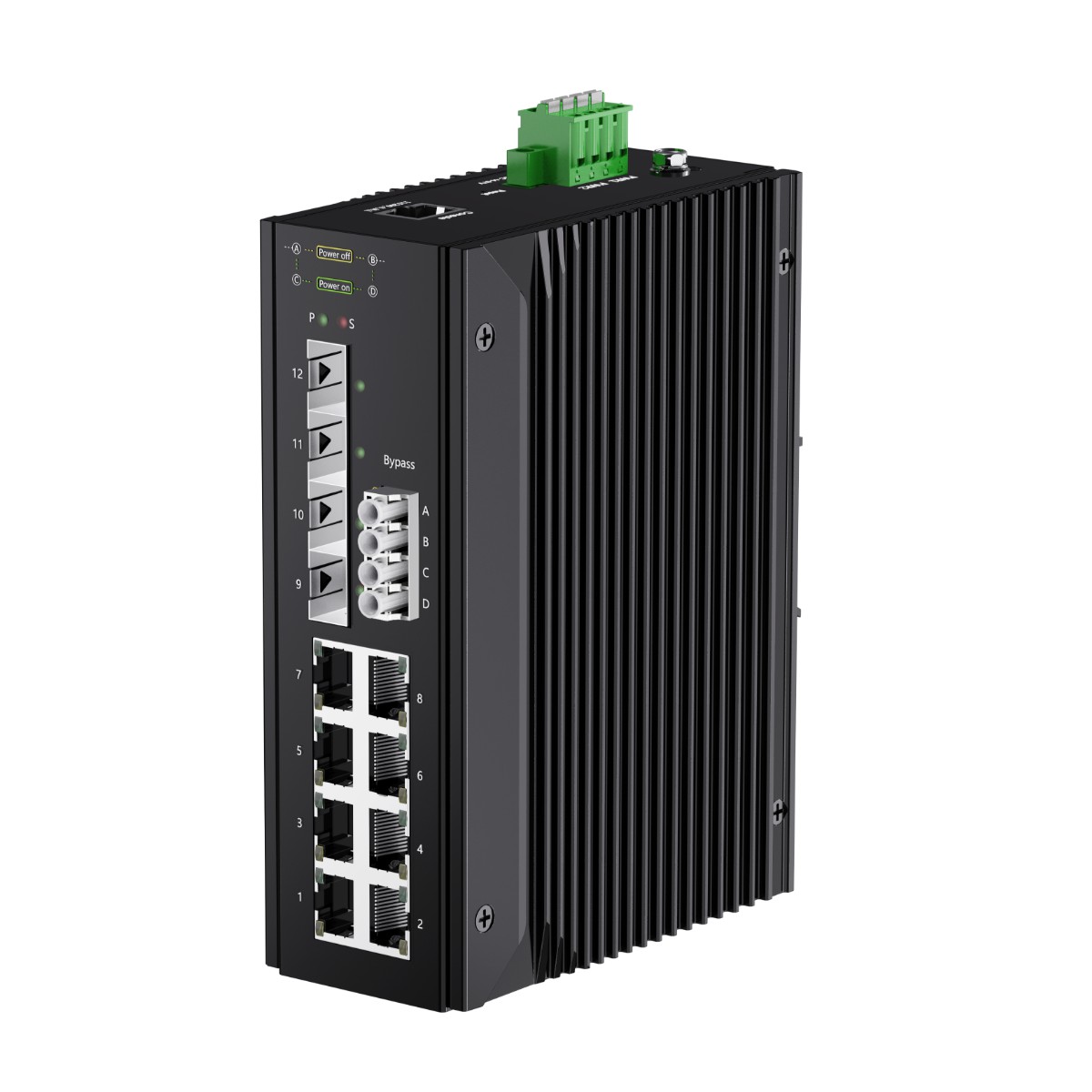

DK3310MI-8TP4S-FB
8*10/100/1000Base-T PoE + 4*1G/2.5GBase-X SFP
Layer 2+ Managed Industrial Bypass PoE Switch
CPU, RAM and FLASH：
Marvell AC5 series 1.2GHz CPU, RAM: 512MB 4Gbit, FLASH:512MB 4Gbit
1 channel single fiber bypass port
Complies with IEEE802.3af, IEEE802.3at standard
DC44-57V input, redundant dual power supply
Operation temperature: -40°C～+75°C

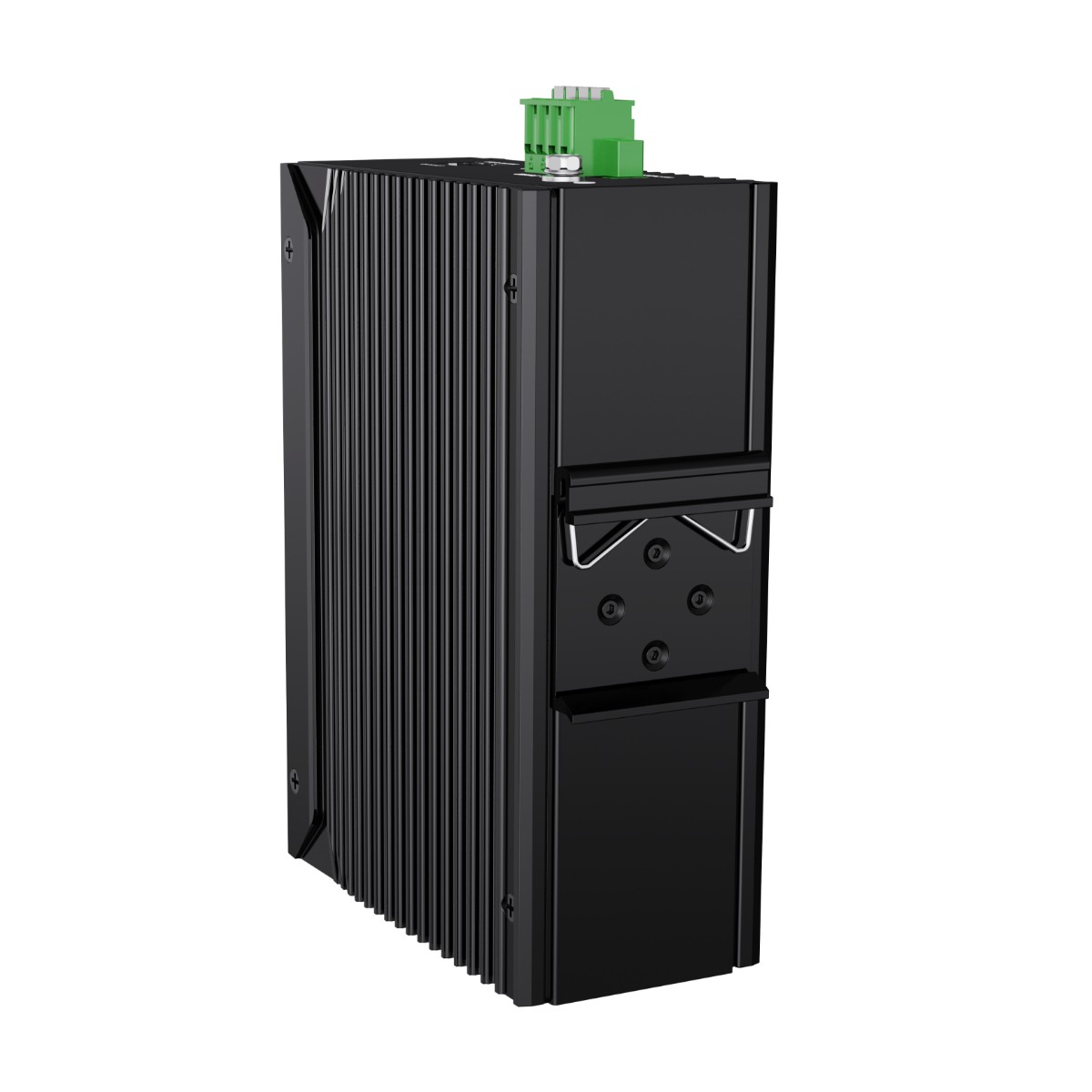

Din-rail installation
- Parameters
8*10/100/1000Base-T PoE + 4*1G/2.5GBase-X SFP
Layer 2+ Managed Industrial Bypass PoE Switch
CPU, RAM and FLASH：
Marvell AC5 series 1.2GHz CPU, RAM: 512MB 4Gbit, FLASH:512MB 4Gbit
1 channel single fiber bypass port
Complies with IEEE802.3af, IEEE802.3at standard
DC44-57V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DK3310MI-8TP4S-FB is the highly reliable managed industrial Bypass PoE switch with 8*10/100/1000Base-T PoE, 4*1G/2.5GBase-X SFP and 21 channel single LC Bypass. It complies with IEEE802.3af PoE, IEEE802.3at PoE standard protocol. In normal operation, it is a L2+ managed PoE switch. It supports ERPS redundant network and the self-recovery mechanism less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. IPv4/IPv6 static routing, DHCP server, robust Layer 2 management and secure functions can help users expand their networks quickly and efficiently. However, when it encounters a power failure or internal malfunction, the bypass function is activated through the integrated bypass optical switching module, which allows the network connections passing through the switch to remain uninterrupted, ensuring that the data can still flow directly between the connected devices, as if the switch were not in the path at all.
DK3310MI-8TP4S-FB is also the high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features:
- 8*10/100/1000Base-T RJ45 PoE, 4*1G/2.5GBase-X SFP, 1 channel single LC Bypass
- Fiber Bypass LC type, recovery time 10ms(max), maintain network continuity if power losses
- DC 44-57V input, redundant power supply with polarity reverse/over-current protection
- Complies with IEEE802.3af PoE, IEEE802.3at PoE+ standard
- Layer 3 features: Support IPv4/IPv6 static routing, DHCP server, DHCP relay
- Layer 2 features: VLAN/GVRP/QinQ/SPAN/RSPAN/STP, RSTP, MSTP/DHCP/Multicast/ACL/QoS/LLDP/802.1X/AAA/ Loop Detect/Dying Gasp/SFP DDM/IPV6 management/Dual Stack/ PoE management/sFlow/Web/SNMP/MQTT/ Telnet/TFTP/Web upgrading
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40 ℃ ~+75℃
Model No. | DK3310MI-8TP4S-FB | ||
Interface | Fiber ports | Copper RJ45 ports | |
4 | 8 | ||
Ethernet | 8*10/100/1000Base-T RJ45 PoE 4*1G/2.5GBase-X SFP | ||
CPU | Marvell AC5 series 1.2GHz | ||
Size of RAM | 512MB | ||
Size of Flash | 512MB | ||
Switch chip model | Marvell AC5 series | ||
Management port | 1*RJ45 Console port (115200,8,N,1) | ||
Bypass features | |||
Connector type | LC Female Connector | ||
Bypass Channels | 1 channel single LC | ||
Optical Switching Time | ≤10 ms, power failure<--->power normal | ||
Insertion Loss | 1.2 dB (max) | ||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE+ | ||

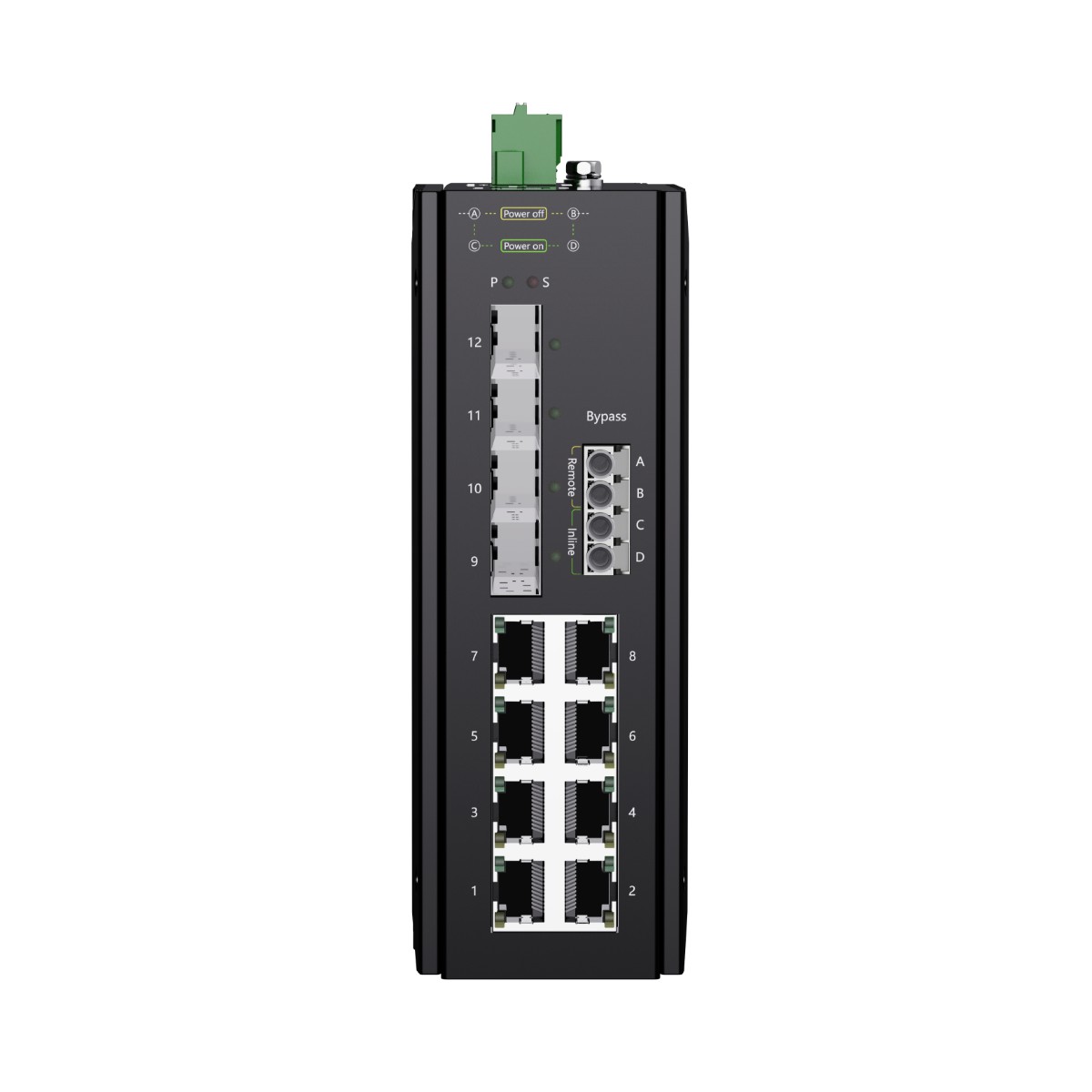

LED Indicators | |||
P (Power indicator) | Off: the device is power off or failed | On: the device power on is normal | |
S (System status indicator) | Blinking: device initialization | On: device on normal operation | |
1-8 (Copper ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
1-8 (PoE status indicators) Yellow | Off: PoE not working | ||
On: PoE working | |||
9-12 (Fiber ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameter | |||
Input voltage | 44-57VDC(802.3af) 52-57VDC(802.3at) redundant power input | ||
Input current | 5.8A Max | ||
Total power consumption | Full loading without PoE ≤15W PoE power budget ≤240W | ||
Connector | Removable 4-pin terminal block | ||
Reverse polarity protection | Support | ||
Over-current protection | Support | ||
Layer 2 switching | |||
Port aggregation | Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group | ||
Port features | Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection (Port-based; VLAN-based) Support broadcast storm suppression | ||
VLAN | IEEE802.1Q tagged VLAN Mac based VLAN IP based VLAN Protocol based VLAN Voice VLAN, specially divide VLAN for user voice data flow Private VLAN, divide a VLAN broadcast domain into multiple subdomains to form a double-layer VLAN structure VLAN range: 1-4094 Support access mode/trunk mode/hybrid mode | ||
Mac-address table management | Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN 16K Mac-address table size | ||
GVRP | Normal mode Fixed mode Forbidden mode | ||
QinQ | Port-based QinQ VLAN-based QinQ VLAN mapping Flow-based QinQ | ||
LLDP | Link Layer Discovery Protocol Med | ||
SPAN | Number of Sessions: 7 Many-to-one | ||
RSPAN | Remote Switch Port Analyzer | ||
MSTP | 802.1D STP 802.1W RSTP 802.1S MSTP BPDU Guard Number of Single Ring Device Connections: 20 | ||
ERPS G.8032 | Major ring Sub ring Recovery time ≤20ms Number of Single Ring Device Connections: No limit | ||
QoS | QoS Class, Remarking Support SP, WRR Queue Scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Egress port-queue shaper Policy-based QoS Port Queue Numbers: 8 | ||
DHCPv4 Snooping | DHCP snooping trust port DHCP snooping option-82 DHCP snooping circuit-id and remote-id customized | ||
L2 Multicast | |||
IGMP | IGMP v1, v2, v3 | ||
IGMP Snooping | Internet Group Management Protocol Snooping Fast Leave Multicast Table Size: 1K | ||
PIM-SM | Protocol Independent Multicast-Sparse Mode | ||
Security features | |||
ACL | IP Standard ACL IP Extended ACL MAC extend ACL IPv6 ACL Time Range ACL apply on VLAN ACL Entrys, include input and output | ||
802.1x | Port access control Mac-address access control RADIUS server | ||
Port-security | Port-security | ||
IP source guard | IP Source Guard, Port-based IP/Mac Binding Access | ||
ARP-check | Support ARP-check and ARP packet filtering for illegal users | ||
DAI | Dynamic ARP Inspection | ||
Anti-gateway ARP Spoofing | Prevent Gateway ARP Spoofing | ||
Ddos | Ddos attack protection | ||
Access control | Support Telnet/SSH/HTTP/HTTPS user access control | ||
AAA | RADIUS authentication access switch TACACS authentication access switch Authorization | ||
Reliability | |||
Loop Detect | Loop detect, based on port or VLAN | ||
EFM | The Ethernet in the first mile, 802.3ah | ||
Management & Maintenance functions | |||
Dual Stack | IPv4 and IPv6 Dual Stack Management | ||
System Log Management | Syslog Level 7 to 0 Corresponding Debug/Info/Notice/Warning/Err/Critical/Alert Support connecting up to 3 Servers For IPv4 and IPv6 | ||
User Management | Support password protection, support MD5/SHA256/SHA512 algorithm Local Management of User Privilege Remote authorization by RADIUS or TARCAS Enable privilege protection User password complexity requirements User login fail protection User Privilege Level 0 to 15 | ||
Login Service Management | Up to 8 users online simultaneously Access control based on IPv4 or IPv6 ACL | ||
Firmware Management | Firmware upgraded by WEB Firmware upgraded by CLI Dual partition | ||
Web Management | Web Management Support HTTP V1.1 Support HTTPS For IPv4 and IPv6 | ||
CLI management | Console/Telnet command line management | ||
Fault Detection | Ping/Traceroute, For IPv4 and IPv6 Dying gasp Optical transceiver DDM One click fault information collection Cable detection | ||
DNS | Domain Name System | ||
NTP | Network Time Protocol, For IPv4 and IPv6 Support domain name configuration | ||
Configuration Import /Export | FTP/TFTP based remote configuration import and export | ||
sFlow | Sampled flow | ||
SNMP | Version SNMPV2C/V3 | ||
MQTT | Message Queuing Telemetry Transport | ||
RMON | Support RMON (Remote Monitoring) alarm | ||
PoE management | Support 802.3af/802.3at Support PD watchdog Support PoE priority management Support Max PoE power configuration for each port Support alarm threshold configuration Support reserved power configuration Support PoE schedule Support POE legacy mode | ||
Dual partition management | Support dual partition switching | ||
Application Protocol Functions | |||
Telnet server | Support telnet server for IPv4 and IPv6 | ||
Telnet client | Support telnet client for IPv4 and IPv6 | ||
SCP (Secure Copy Protocol) | SCP client/server for IPv4 and IPv6 | ||
SFTP | sftp client/server for IPv4 and IPv6 | ||
SSH server | Support login based on user password-SSH2, support IPv4, IPv6 Support public key-based login | ||
TACACS | Support TACACS (the terminal access controller accesses the control system) | ||
TFTP | Support TFTP Client | ||
Layer 3 features | |||
Static Route | Support VLAN interface and route port IPv4 static routing table entry configuration ARP dynamic learning and static configuration IPv6 static routing table entry configuration Neighbor discovery and static configuration Routing prefix table size 4k for IPv4, for IPv6 divide by 4 | ||
DHCPv4 Client | Dynamic host configuration protocol for IPv4 | ||
DHCPv6 Client | Dynamic host configuration protocol for IPv6 | ||
DHCPv4 Relay | DHCP Relay for IPv4 | ||
DHCPv4 Server | DHCP Server for IPv4 | ||
Switching features | |||
Switching capacity | 36Gbps | ||
Packet forwarding rate | 26.784Mpps | ||
MAC address table | 16K | ||
VLAN | 4K | ||
Buffer | 12Mbit | ||
Forwarding delay | <5us | ||
Jumbo Frame | Support 10Kbytes | ||
MDI/MDIX | Support | ||
Watchdog | Support | ||
Mechanical structure | |||
Case protection | IP40 | ||
Installation method | Din-rail | ||
Dimension(W*D*H)mm | 54*115*158mm | ||
Weight | 1.60 kg | ||
Operating environment | |||
Operating temperature | -40℃~+75℃ | ||
Storage/transportation temperature | -40℃~+85℃ | ||
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | ||
Industrial Standard | |||
EMS | Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV (10/700us) RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m EFT: IEC 61000-4-4 4K/2K CS: IEC 61000-4-6 10V ESD: IEC 61000-4-2 Contact: 8K; Air: 15K | ||
EMI | FCC Part 15B Class A | ||
Shock | IEC 60068-2-27 | ||
Free fall | IEC 60068-2-32 | ||
Vibration | IEC 60068-2-6 | ||
Certification | CE/RoHS/FCC | ||
MTBF | ＞200,000 hours | ||
Warranty | 5 years | ||
Model | Description |
DK3310MI-8TP4S-FB | L2+ Managed industrial Bypass switch with 8*10/100/1000Base-T RJ45 ports, 4*1G/2.5GBase-X SFP slots and 1 channel single fiber bypass port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
