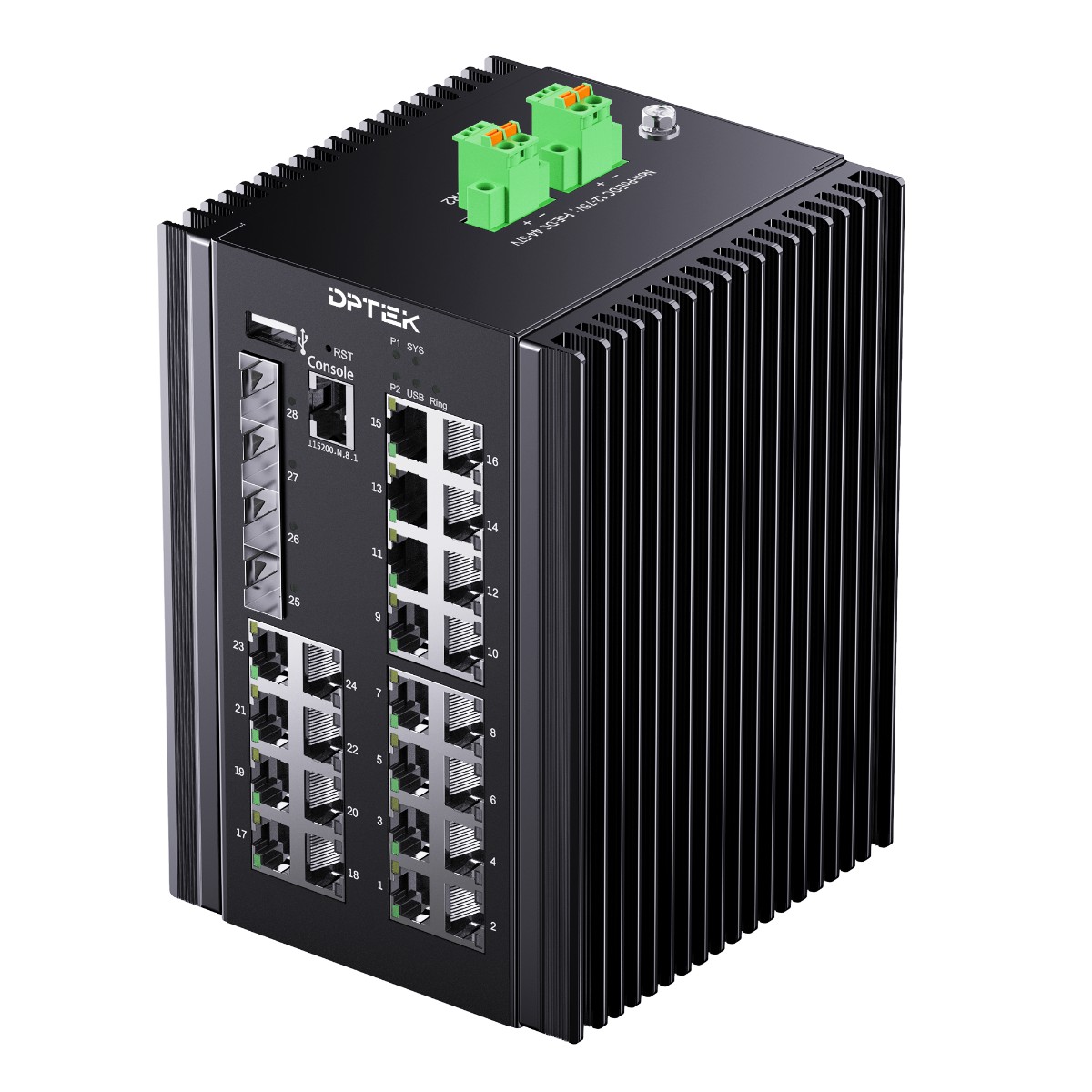

DK3310MI-24TP4X
24*10/100/1000Base-T PoE + 4*1G/2.5G/10GBase-X SFP+
Layer 2+ Managed Industrial PoE Switch
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Dual DC 44-57V input, Din-rail installation;
Operation temperature -40°C to 75°C
- Parameters
24*10/100/1000Base-T PoE + 4*1G/2.5G/10GBase-X SFP+
Layer 2+ Managed Industrial PoE Switch
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
Dual DC 44-57V input, Din-rail installation;
Operation temperature -40°C to 75°C
Overview
The DPTEK DK3310MI-24TP4X is the highly reliable Layer 2+ managed industrial PoE switches with 24-port 10/100/1000Base-T RJ45 PoE and 4-port 1G/2.5G/10GBase-X SFP+. They comply with IEEE802.3af PoE, IEEE802.3at PoE+ standard protocol, the Max power consumption can reach 30W per port, which are the idea solution for those high power consumption industrial networking PDs. With full gigabit capability and 10G uplink, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.
DK3310MI-24TP4X is also the high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including redundant power supply with DC44-57V input, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 70°C as well as high-level EMI/EMC capability. They are the best choices for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features
➢ 24*10/100/1000Base-T RJ45 PoE ports, 4*1G/2.5G/10GBase-X SFP+
➢ DC 44-57V input, redundant power supply with polarity reverse/over-voltage/over-current protection
➢ Complies with IEEE802.3af PoE, IEEE802.3at PoE+ standard
➢ Support USB one key configuration & upgrading
➢ Layer 3 feature: Support IPv4/IPv6 static routing, DHCP server
➢ Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
➢ Management and maintenance: IPv4/IPv6 management, PoE management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+ 70°C
Model No. | DK3310MI-24TP4X | ||
Interface | Fiber ports | Copper RJ45 ports | |
4 | 24 | ||
Ethernet | 24*10/100/1000Base-T RJ45 PoE/PoE+ 4*1G/2.5G/10GBase-X SFP+ | ||
Management port | 1*RJ45 Console port，1*USB 2.0 for configuration and firmware update | ||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE+ | ||
LED Indicators | |||
P1/P2 (Power indicator) | Off: the device is power off or failed | On: the device power on is normal | |
SYS(System status indicator) | Blinking: device initialization | On: device on normal operation | |
USB (USB status indicator) | Off: USB flash drive not insert or not detected by device | ||
On: USB flash drive is detected by device | |||
Blinking: the device is reading and writing the data from USB flash drive | |||
Ring(Ring network indicator) | Off: Ring network disable | On: Ring network enable | |
1-24 (Copper ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
1-24 (PoE status indicators) Yellow | Off: PoE not working | ||
On: PoE working | |||
25-28(Fiber ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameter | |||
Input voltage | 44-57VDC redundant power input | ||
Input current | 6.2A DC/DC input Max | ||
Total power consumption | Full loading ≤26W PoE power budget ≤240W (-40℃~+ 70℃) PoE power budget ≤370W (-40℃~+ 60℃) | ||
Connector | Removable 2* 2-pin terminal block | ||
Reverse polarity protection | Support | ||
Over-voltage protection | Support | ||
Over-current protection | Support | ||
Layer 2 function | |||
Port aggregation | Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support dynamic aggregation | ||
Port features | Support IEEE802.3x flow control, Support port traffic statistics, Support port isolation Support network storm suppression based on port bandwidth percentage | ||
VLAN | Support access mode Support trunk mode Support hybrid mode | ||
VLAN Classification | Mac Based VLAN IP Based VLAN Protocol Based VLAN | ||
GVRP | Normal mode Fixed mode forbidden mode | ||
QinQ | Port-based QinQ VLAN-based QinQ Flow-based QinQ | ||
Port mirroring | Many to one port mirroring | ||
Ring network protocol | Support STP、RSTP、MSTP Support G.8032 ERPS protocol，single ring, sub Ring and associated sub ring Recovery time ≤20ms | ||
Loop detect | Loop detect based on ports | ||
Loop detect based on ports and VLAN | |||
DHCP | Support DHCP Client Support DHCP Snooping | ||
Multicast | IGMP snooping | ||
ACL | IP Standard ACL MAC extend ACL IP extend ACL | ||
QoS | Support QoS Class, Remarking Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS | ||
Security | Support Dot1x，port authentication，MAC authentication，RADIUS service Support port-security Support IP Source Guard，IP/Port/MAC binding Support ARP-check and ARP packet filtering for illegal users Support port isolation | ||
Management & maintenance | Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping , TRACERT Support optical transceiver DDM function Support copper port cable detection Support TFTP Client Support Telnet Server,Telnet Client Support SSH Server Support IPv6 Management Support PoE Management Support TFTP, web upgrading Support USB upgrading Support USB importing configuration | ||
PoE Management | Support PoE watchdog Support PoE priority management Support Max PoE power configuration for each port Support alarm waterline configuration Support reserved power configuration | ||
Layer 3 function | |||
ARP | ARP table aging | ||
DHCP server | |||
IPv4 / IPv6 | Static routing | ||
Switching features | |||
Switching capacity | 128Gbps | ||
Packet forwarding rate | 190.4Mpps | ||
MAC address table | 16K | ||
VLAN | 4K | ||
Buffer | 12M bit | ||
Forwarding delay | <5us | ||
Jumbo Frame | Support 10Kbytes | ||
MDX/MIDX | Support | ||
Watchdog | Support | ||
Mechanical structure | |||
Case protection | IP40 | ||
Installation method | Din-rail | ||
Dimension(W*D*H)mm | 110*115*158mm | ||
Weight | 1.95kg | ||
Operating environment | |||
Operating temperature | -40℃~+ 70℃ | ||
Storage/transportation temperature | -40℃~+ 85℃ | ||
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | ||
Industrial Standard | |||
EMS | Surge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us) Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV（10/700us） RS：IEC 61000-4-3 80 MHz-1 GHz：10 V/m EFT：IEC 61000-4-4 power 4K, signal 2K CS：IEC 61000-4-6 10V ESD：IEC 61000-4-2 Contact: 8K；Air: 15K | ||
EMI | FCC Part 15B Class A | ||
Shock | IEC 60068-2-27 | ||
Free fall | IEC 60068-2-32 | ||
Vibration | IEC 60068-2-6 | ||
Certification | CE/FCC/RoHS | ||
Warranty | 5 years | ||
Model | Description |
DK3310MI-24TP4X | Layer 2+ managed industrial PoE switch with 4*1G/2.5G/10GBase-X SFP+ ports and 24*10/100/1000Base-T RJ45 PoE ports. Dual DC 44-57V input, Din-rail installation; Operation temperature -40°C to 70°C |
