DK3310MI-16TP4X


    16*10/100/1000Base-T PoE + 4*1G/2.5G/10GBase-X SFP+

    Layer 2+ Managed Industrial PoE Switch



    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

    Dual DC 44-57V input, Din-rail installation;

    Operation temperature -40°C to 75°C


  • Parameters


    16*10/100/1000Base-T PoE + 4*1G/2.5G/10GBase-X SFP+

    Layer 2+ Managed Industrial PoE Switch



    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

    Dual DC 44-57V input, Din-rail installation;

    Operation temperature -40°C to 75°C


Overview

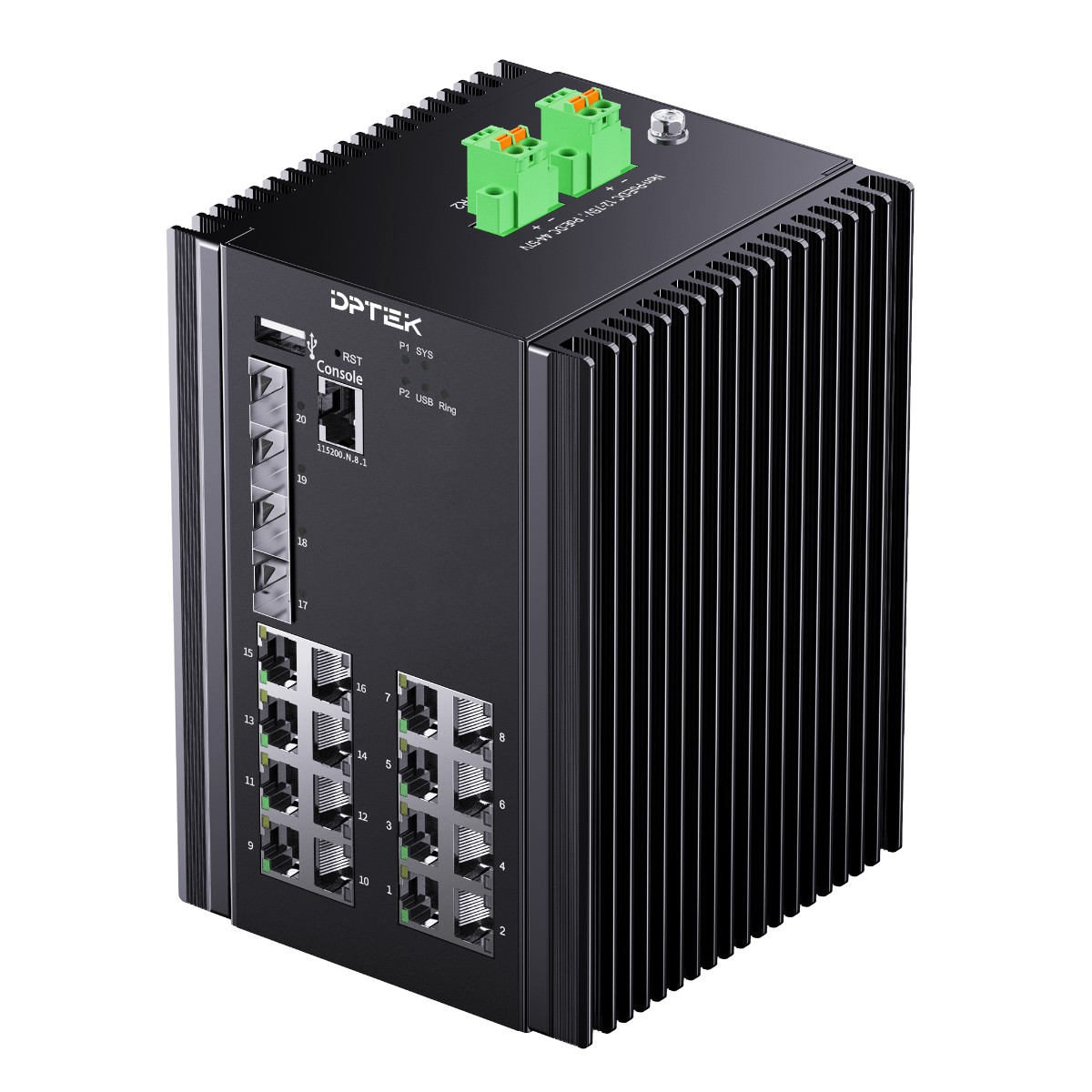

The DPTEK DK3310MI-16TP4X is the highly reliable Layer 2+ managed industrial PoE switches with 16-port 10/100/1000Base-T RJ45 PoE and 4-port 1G/2.5G/10GBase-X SFP+. They comply with IEEE802.3af PoE, IEEE802.3at PoE+ standard protocol, the Max power consumption can reach 30W per port, which are the idea solution for those high power consumption industrial networking PDs. With full gigabit capability and 10G uplink, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.



DK3310MI-16TP4X is also the high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including redundant power supply with DC44-57V input, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 70°C as well as high-level EMI/EMC capability. They are the best choices for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.



Features:

 16*10/100/1000Base-T RJ45 PoE ports, 4*1G/2.5G/10GBase-X SFP+

 DC 44-57V input, redundant power supply with polarity reverse/over-voltage/over-current protection

 Complies with IEEE802.3af PoE, IEEE802.3at PoE+ standard

 Support USB one key configuration & upgrading

 Layer 3 feature: Support IPv4/IPv6 static routing, DHCP server

 Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function

 Management and maintenance: IPv4/IPv6 management, PoE management; Support Web, SNMP, CLI, Telnet/SSH management; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB

 Support G.8032 ERPS protocol, recovery time ≤20ms

 Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

 IP40 fan-less and Din-rail hardware design

 Operation temperature: -40°C ~+ 70°C



Model No.

DK3310MI-16TP4X

Interface

Fiber ports

Copper RJ45 ports

4

16

Ethernet

16*10/100/1000Base-T RJ45 PoE/PoE+

4*1G/2.5G/10GBase-X SFP+

Management port

1*RJ45 Console port1*USB 2.0 for configuration and firmware update

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

IEEE802.3x Flow Control and Back Pressure

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1Q VLAN

ITU-T G.8032 ERPS

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP

IEEE802.3af PoE

IEEE802.3at PoE+

LED Indicators

P1/P2 (Power indicator)

Off: the device is power off or failed

On: the device power on is normal

SYS(System status indicator)

Blinking: device initialization

On: device on normal operation

USB (USB status indicator)

Off: USB flash drive not insert or not detected by device

On: USB flash drive is detected by device

Blinking: the device is reading and writing the data from USB flash drive

Ring(Ring network indicator)

Off: Ring network disable

On: Ring network enable

1-16 (Copper ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

1-16 (PoE status indicators) Yellow

Off: PoE not working

On: PoE working

17-20 (Fiber ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameter

Input voltage

44-57VDC

redundant power input

Input current

6A DC/DC input Max

Total power consumption

Full loading without PoE ≤24W

PoE power budget 240W (-40℃~+ 70)

PoE power budget 370W (-40℃~+ 60)

Connector

Removable 2* 2-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Layer 2 function

Port aggregation

Support GE port aggregation

Support 2.5GE aggregation

Support static aggregation

Support dynamic aggregation

Port features

Support IEEE802.3x flow control,

Support port traffic statistics,

Support port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access mode

Support trunk mode

Support hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocol Based VLAN

GVRP

Normal mode

Fixed mode

forbidden mode

QinQ

Port-based QinQ

VLAN-based QinQ

Flow-based QinQ

Port mirroring

Many to one port mirroring

Ring network protocol

Support STPRSTPMSTP

Support G.8032 ERPS protocolsingle ring, sub Ring and associated sub ring

Recovery time ≤20ms

Loop detect

Loop detect based on ports

Loop detect based on ports and VLAN

DHCP

Support DHCP Client

Support DHCP Snooping

Multicast

IGMP snooping

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

Support QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Support Policy-based QoS

Security

Support Dot1xport authenticationMAC authenticationRADIUS service

Support port-security

Support IP Source GuardIP/Port/MAC binding

Support ARP-check and ARP packet filtering for illegal users

Support port isolation

Management   & maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web management, HTTP1.1, HTTPS

Support Syslog and alarm grading

Support RMON(Remote Monitoring) alarm

Support NTP

Support temperature monitoring

Support Ping , TRACERT

Support optical transceiver DDM function

Support copper port cable detection

Support TFTP Client

Support Telnet Server,Telnet Client

Support SSH Server

Support IPv6 Management

Support PoE Management

Support TFTP, web upgrading

Support USB upgrading

Support USB importing configuration

PoE Management

Support PoE watchdog

Support PoE priority management

Support Max PoE power configuration for each port

Support alarm waterline configuration

Support reserved power configuration

Layer 3 function

ARP

ARP table aging

DHCP server

IPv4 / IPv6

Static routing

Switching features

Switching capacity

112Gbps

Packet forwarding rate

166.6Mpps

MAC address table

16K

VLAN

4K

Buffer

12M bit

Forwarding delay

<5us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Mechanical structure

Case protection

IP40

Installation method

Din-rail

Dimension(W*D*H)mm

110*115*158mm

Weight

1.85kg

Operating environment

Operating temperature

-40℃~+ 70

Storage/transportation temperature

-40℃~+ 85℃

Relative humidity

Operation humidity: 10%-90%RH

Storage humidity: 5%-95%RH

Industrial Standard

EMS

Surge protection of power: IEC 61000-4-5 DC:6KV/6KV (8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  6KV/2KV10/700us

RSIEC 61000-4-3 80 MHz-1 GHz10 V/m

EFTIEC 61000-4-4 power 4K, signal 2K

CSIEC 61000-4-6 10V

ESDIEC 61000-4-2  Contact: 8KAir: 15K

EMI

FCC Part 15B Class A

Shock

IEC 60068-2-27

Free fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years







































































































































































































Model

Description

DK3310MI-16TP4X

Layer 2+ managed industrial PoE switch with 4*1G/2.5G/10GBase-X SFP+ ports and 16*10/100/1000Base-T RJ45 PoE ports. Dual DC 44-57V input, Din-rail installation; Operation temperature -40°C to 70°C










DK3310MI-16TP4X
