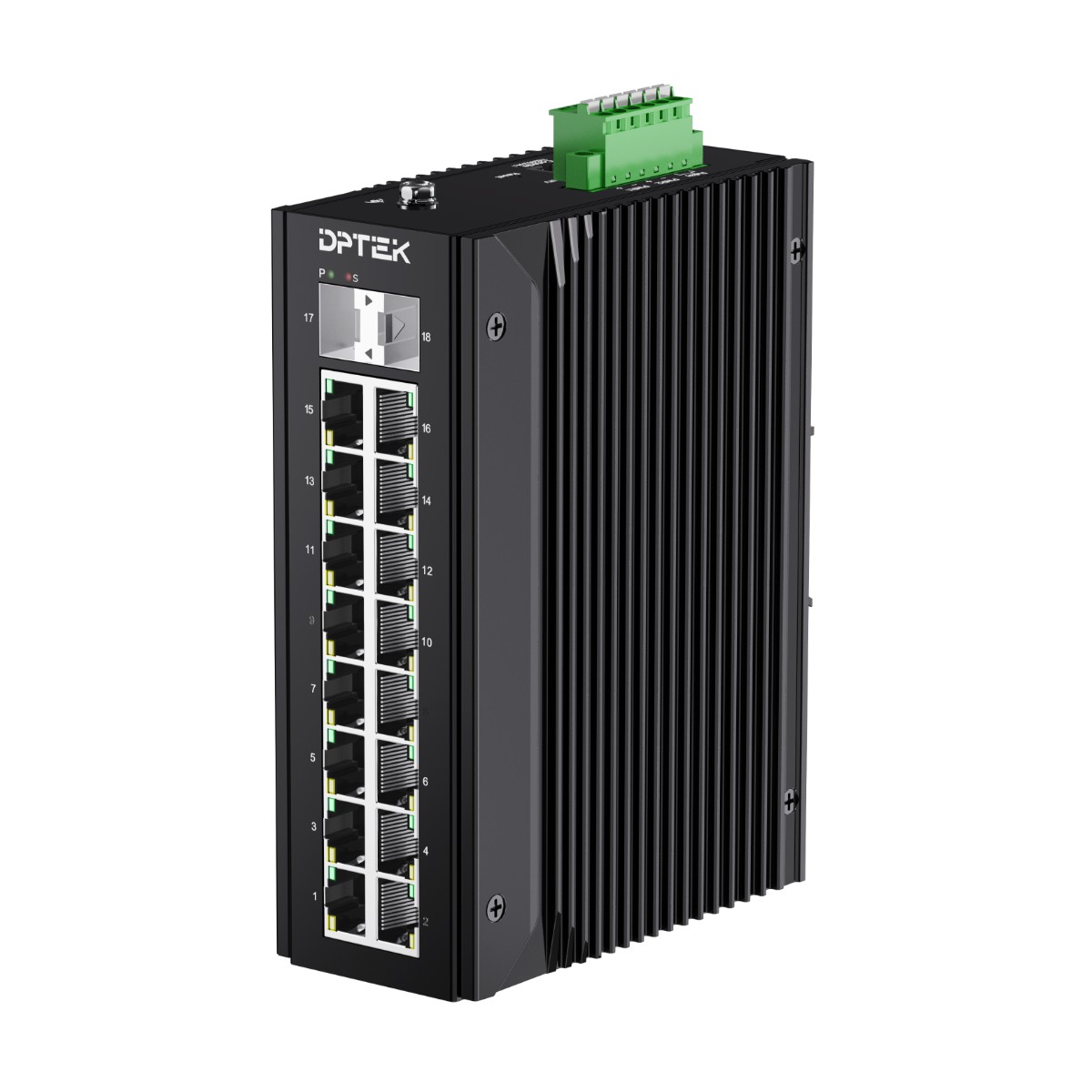

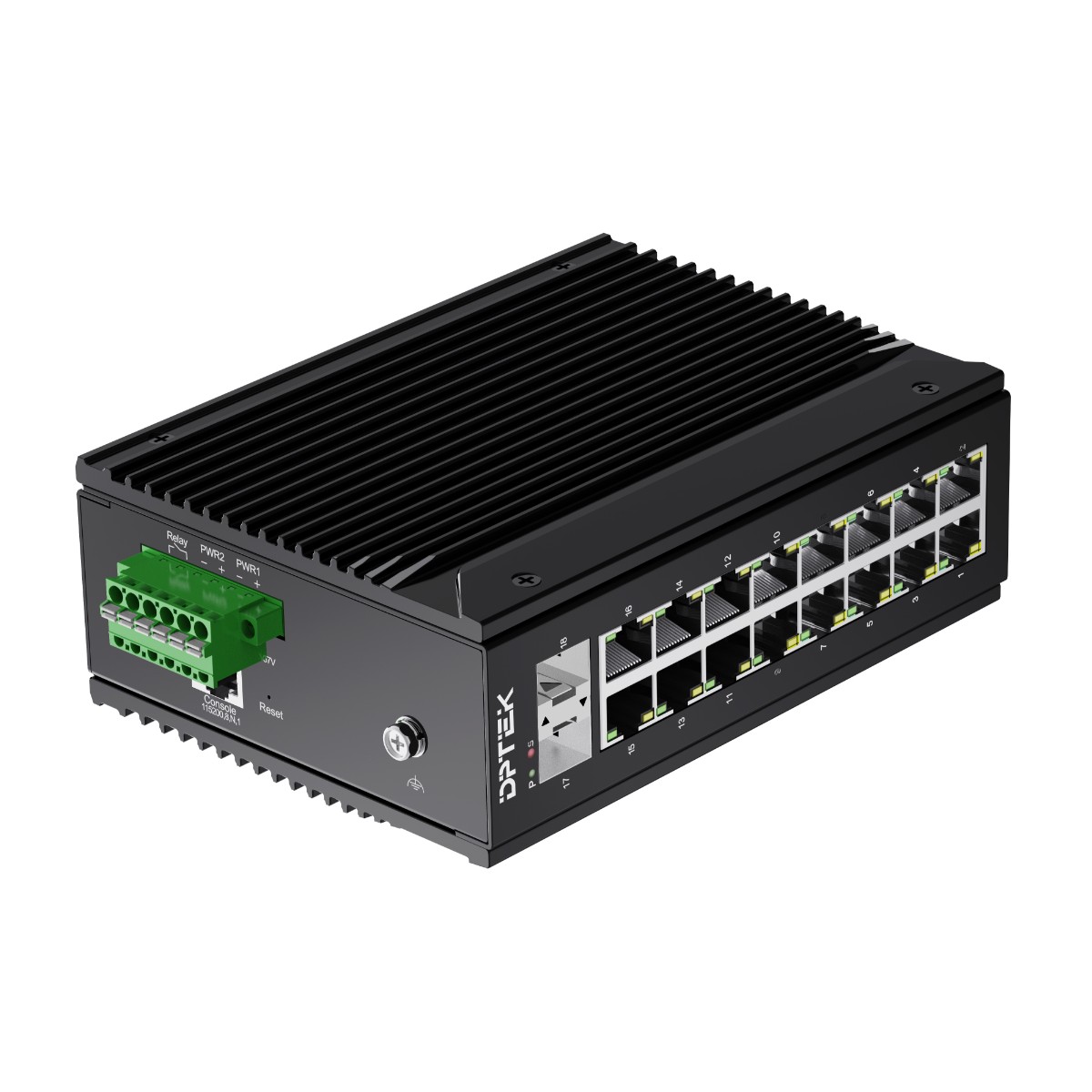

DK3310MI-16TP2S


    16*10/100/1000Base-T PoE + 2*1G/2.5GBase-X SFP

    Layer 2+ Managed Industrial PoE Switch


    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

    Dual DC 44-57V input, Din-rail installation;

    Operation temperature -40°C to 75°C


  • Parameters


    16*10/100/1000Base-T PoE + 2*1G/2.5GBase-X SFP

    Layer 2+ Managed Industrial PoE Switch


    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

    Dual DC 44-57V input, Din-rail installation;

    Operation temperature -40°C to 75°C


Overview



The DPTEK DK3310MI-16TP2S is the highly reliable layer 2+ managed industrial PoE switch with 16-port 10/100/1000-T PoE and 2-port 1G/2.5GBase-X SFP slots. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. It supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. It also supports Layer 3 IPv4/IPv6 static routing features and powerful Layer 2 management and secure function, which all making them ideal for large-scale industrial networks.



DK3310MI-16TP2S is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.



Features

 16*10/100/1000Base-T RJ45 PoE ports, 2*1G/2.5GBase-X SFP slots

 Redundant power DC 44-57V input with polarity reverse/over-voltage/over-current protection

 Support one digital output for relay alarm(terminal block Pin 5/6)

 Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

 Layer 3 feature: Support IPv4/IPv6 static routing

  Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP,

RSTP,MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP

DDM/PoE management/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading

 Support G.8032 ERPS protocol, recovery time ≤20ms

 Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

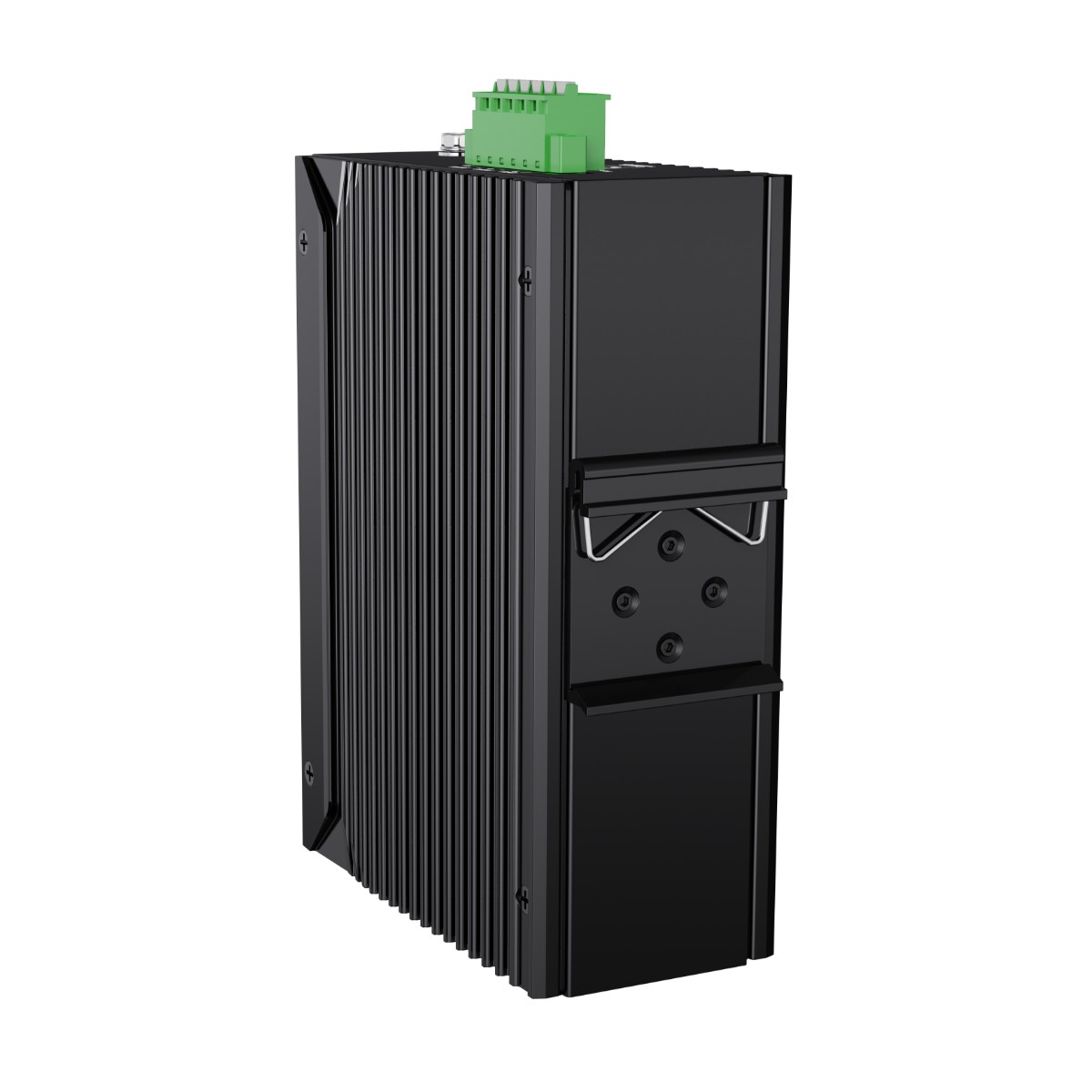

 IP40 fan-less and Din-rail hardware design

 Operation temperature: -40°C ~+75°C





Model No.

DK3310MI-16TP2S

Interface

Fiber ports

Copper RJ45 ports

2

16

Ethernet

16*10/100/1000Base-T RJ45 PoE

2*1G/2.5GBase-X SFP

Management port

1*RJ45 Console port

Alarm port

One digital output for relay alarm, alarm relay current carry ability: 1A@24VDC

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

IEEE802.3x Flow Control and Back Pressure

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1Q VLAN

ITU-T G.8032 ERPS

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP

IEEE802.3af PoE

IEEE802.3at PoE+

LED Indicators

P (Power indicator)

Off: the device is power off or failed

On: the device power on is normal

S(System status indicator)

Blinking: device initialization

On: device on normal operation

1-16 (Copper ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

1-16(PoE status indicators) Yellow

Off: PoE not working

On: PoE working

17-18 (Fiber ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameter

Input voltage

44-57VDC, redundant power input

Input current

5.8A Max

Total power consumption

Full loading without PoE ≤15W

PoE power budget ≤ 240W

Connector

Removable 6-pin terminal block, Pin 5-6 for relay alarm

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Layer 2 function

Port aggregation

Support GE port aggregation

Support 2.5GE aggregation

Support static aggregation

Support dynamic aggregation

Port features

Support IEEE802.3x flow control,

Support port traffic statistics,

Support port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access mode

Support trunk mode

Support hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocol Based VLAN

QinQ

Port-based QinQ

VLAN-based QinQ

Flow-based QinQ

Port mirroring

Many to one port mirroring

Ring network protocol

Support STPRSTPMSTP

Support G.8032 ERPS protocolsingle ring, sub Ring and associated sub ring

Recovery time ≤20ms

DHCP

Support DHCP Client

Support DHCP Snooping

Multicast

IGMP V1, V2, V3

IGMP snooping

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

Support QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Support Policy-based QoS

Security

Support Dot1xport authenticationMAC authenticationRADIUS service

Support port-security

Support IP Source GuardIP/Port/MAC binding

Support ARP-check and ARP packet filtering for illegal users

Support port isolation

Management   & maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web management, HTTP1.1, HTTPS

Support Syslog and alarm grading

Support RMON(Remote Monitoring) alarm

Support NTP

Support temperature monitoring

Support Ping, TRACERT

Support optical transceiver DDM function

Support TFTP Client

Support Telnet Server

Support SSH Server

Support IPv6 Management

Support PoE management

Support TFTP, web upgrading

Layer 3 function

ARP

ARP table aging

IPv4 / IPv6

Static routing

Switching features

Switching capacity

42Gbps

Packet forwarding rate

62.5Mpps

MAC address table

16K

VLAN

4K

Buffer

12M bit

Forwarding delay

<5us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Mechanical structure

Case protection

IP40

Installation method

Din-rail

Dimension(W*D*H)mm

54*115*158mm

Weight

1.43 kg

Operating environment

Operating temperature

-40℃~+75℃

Storage/transportation temperature

-40℃~+85℃

Relative humidity

Operation humidity: 10%-90%RH

Storage humidity: 5%-95%RH

Industrial Standard

EMS

Surge protection of power: IEC 61000-4-5  6KV/4KV8/20us

Surge protection of Ethernet ports: IEC 61000-4-5  6KV/2KV10/700us

RSIEC 61000-4-3 80 MHz-1 GHz10 V/m

EFTIEC 61000-4-4  4K/2K

CSIEC 61000-4-6 10V

ESDIEC 61000-4-2  Contact: 8KAir: 15K

EMI

FCC Part 15B Class A

Shock

IEC 60068-2-27

Free fall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years



Model

Description

DK3310MI-16TP2S

Layer 2+ Managed industrial PoE switch with 16*10/100/1000Base-T RJ45 PoE ports and 2*1G/2.5GBase-X SFP slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C+75°C
