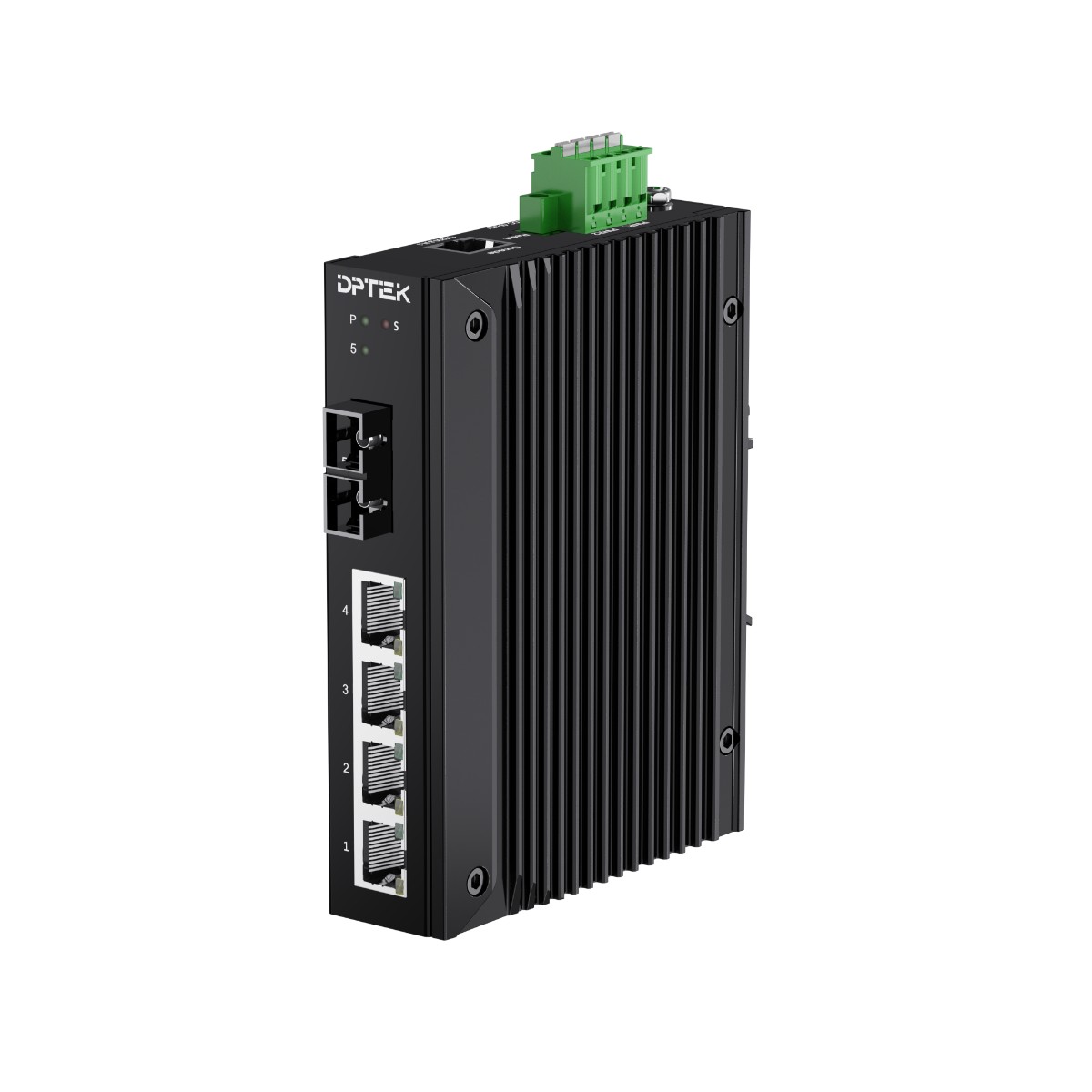

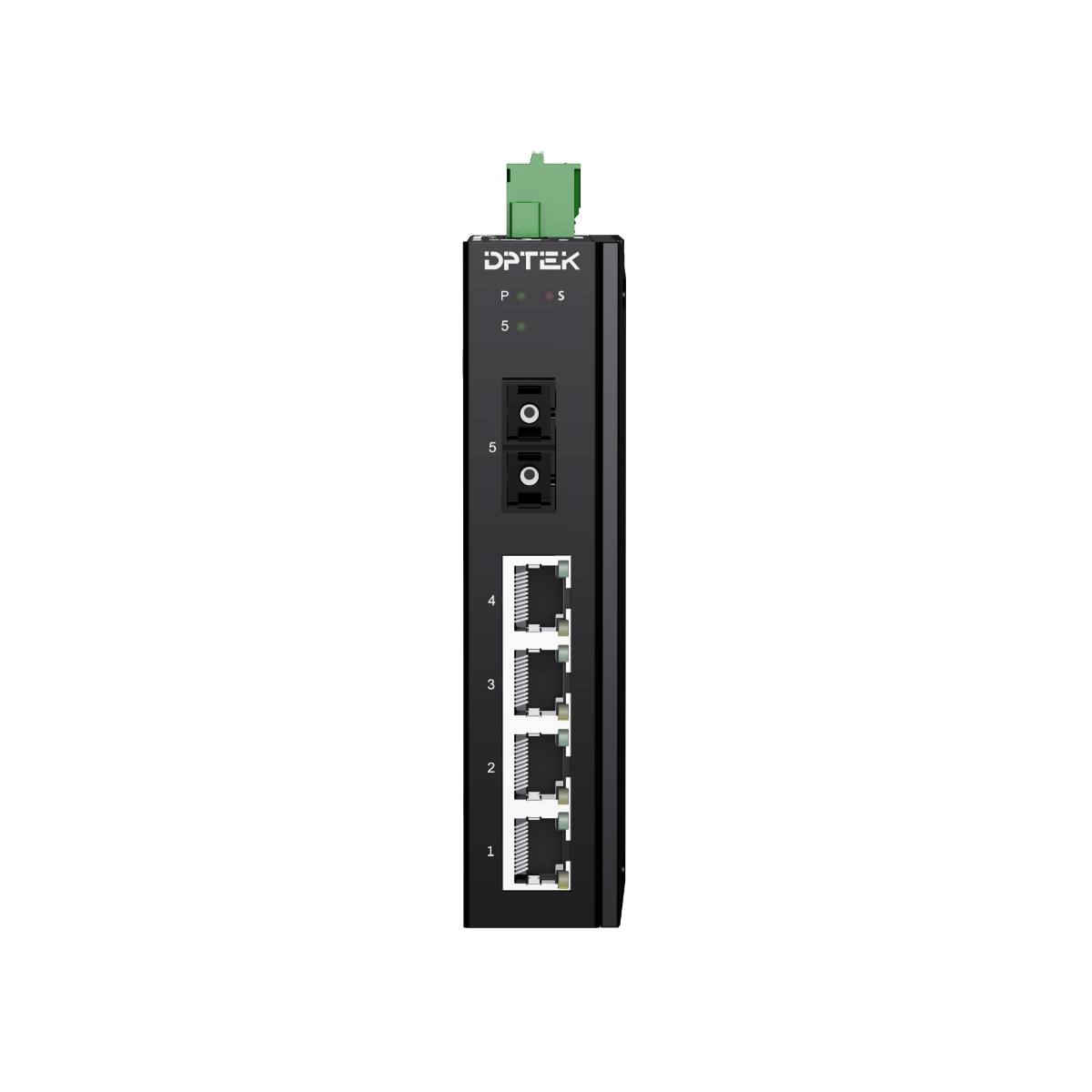

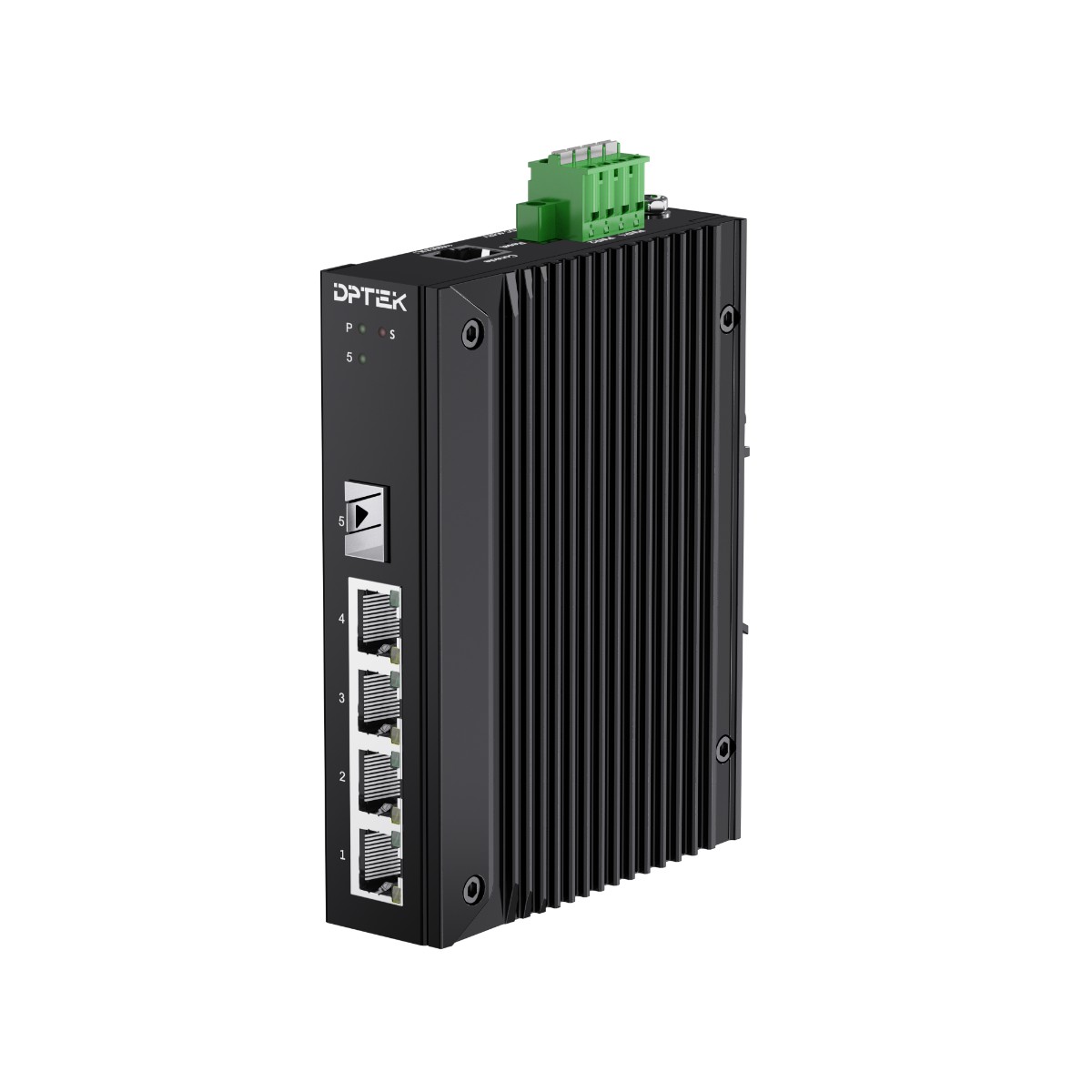

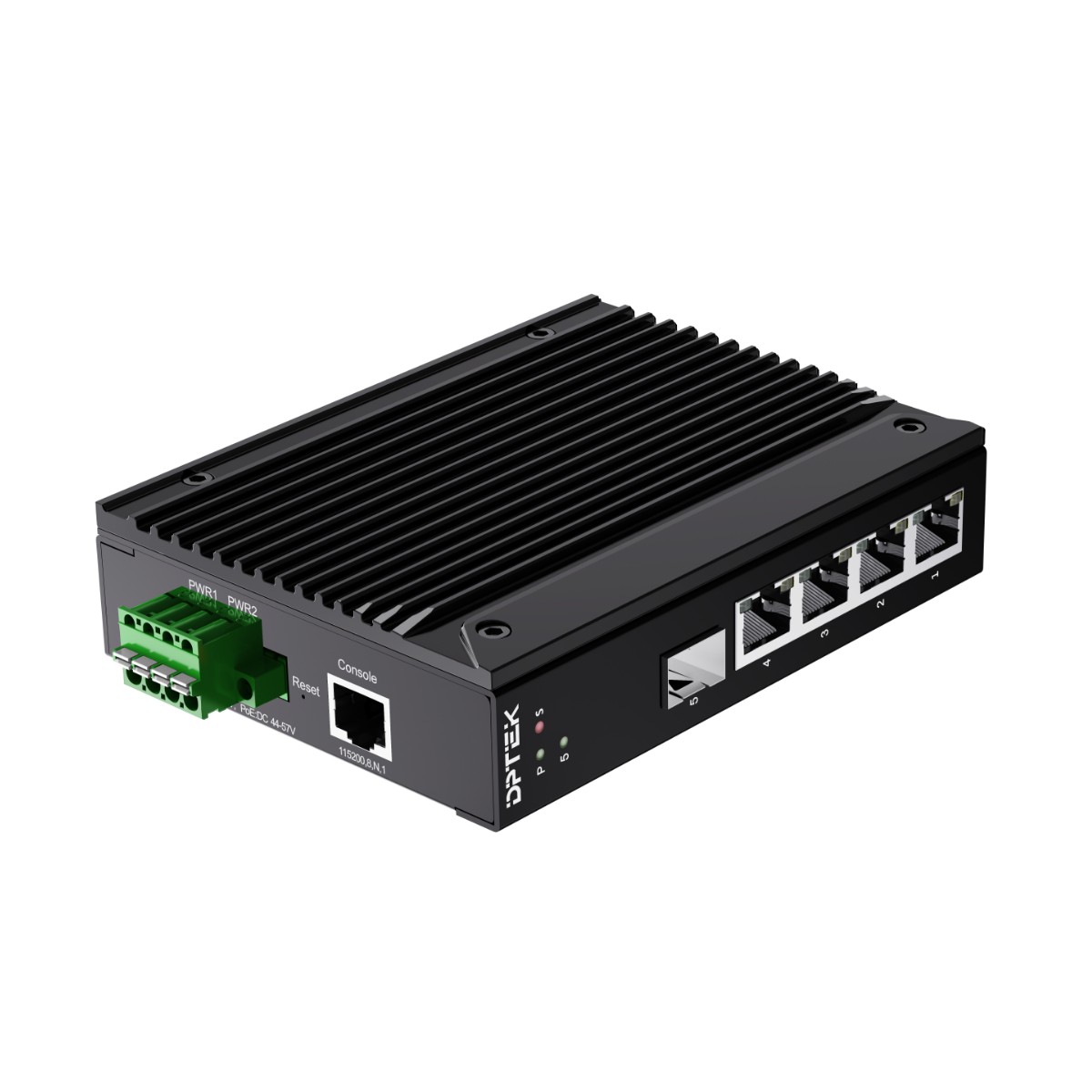

DK3211MI-4TP1S
4*10/100/1000Base-T PoE + 1*100/1000Base-X Fiber Port
Layer 2 Lite Managed Industrial PoE Switch
RAM and FLASH：
1*128MB DDR3 RAM, 1*128M NAND FLASH
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
DC44-57V input, redundant dual power supply，
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
4*10/100/1000Base-T PoE + 1*100/1000Base-X Fiber Port
Layer 2 Lite Managed Industrial PoE Switch
RAM and FLASH：
1*128MB DDR3 RAM, 1*128M NAND FLASH
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
DC44-57V input, redundant dual power supply，
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3211MI-4TP1S series are highly reliable managed industrial PoE switch with 4-port 10/100/1000-T PoE and 1-port 100/1000Base-X fiber optical interface. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. They support ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. DK3211MI-4TP1S support Web/SNMP/Telnet management, the managed features are such as QoS, VLAN, IGMP, Port mirroring, 802.1X, LLDP, Fiber transceiver DDM, PoE management, IPV6 management and so on.
DK3211MI-4TP1S series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
Features:
- 4*10/100/1000Base-T RJ45 PoE ports, 1*100/1000Base-X SFP port
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- Support Layer 2 management function: VLAN/Port Mirroring/IGMP/QoS/LLDP/802.1X/Fiber transceiver DDM/
PoE management/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3211MI-4TP1S | |
Interface | Fiber port | Copper RJ45 ports |
1 | 4 | |
Ethernet | 4*10/100/1000Base-T RJ45 PoE 1*100/1000Base-X SFP (SC/ST/FC optional) | |
Management port | 1*RJ45 Console | |
Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x flow control and back pressure IEEE 802.1D spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1Q VLAN tagging ITU-T G.8032 ERPS IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af Power Over Ethernet IEEE802.3at Power Over Ethernet plus PSE | |
LED Indicators | ||
P (Power indicator) | Off: the device is power off or failed | Off: the device is power off or failed |
S (System status indicator) | Blinking: device initialization | On: device on normal operation |
1-4 (Copper ports) | Green | Yellow |
Off: ports link down | Off: PoE not working | |
On: ports link up | On: PoE working | |
Blinking: data on TX/RX | ||
5 (fiber ports) | Off: ports link down | |
On: ports link up | ||
Blinking: data on TX/RX | ||
Power parameter | ||
Input voltage | 44-57VDC, redundant power input | |
Input current | 3A Max | |
Total consumption | Full loading without PoE ≤ 6 W PoE power budget ≤120 W | |
Connector | Removable 4-pin terminal block | |
Reverse polarity protection | Support | |
Over-voltage protection | Support | |
Layer 2 function | ||
Port aggregation | Support static aggregation Support dynamic aggregation | |
Port features | Support IEEE802.3x flow control, Support Port traffic statistics Support port isolation Support network storm suppression based on port bandwidth percentage | |
VLAN | Support access mode Support trunk mode Support hybrid mode | |
Port mirroring | Support many to one port mirroring | |
Ring network protocol | Support STP, RSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms | |
Multicast | IGMP V1,V2,V3 IGMP snooping | |
QoS | Ingress Port-based Rate-limit Egress Port-based Rate-limit | |
Security features | Support 802.1x, port authentication, MAC authentication, RADIUS service Support port isolation | |
Management and maintenance | Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON(Remote Monitoring) alarm Support NTP Support Ping , Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support PoE management Support TFTP, web upgrading | |
Switching features | ||
Switching capacity | 10Gbps | |
Packet forwarding rate | 7.440Mpps | |
MAC address table | 8K | |
VLAN | 4K | |
Buffer | 1M bit | |
Forwarding delay | <5us | |
Jumbo Frame | Support 10Kbytes | |
MDI/MDIX | Support | |
Watchdog | Support | |
Mechanical structure | ||
Case protection | IP40 | |

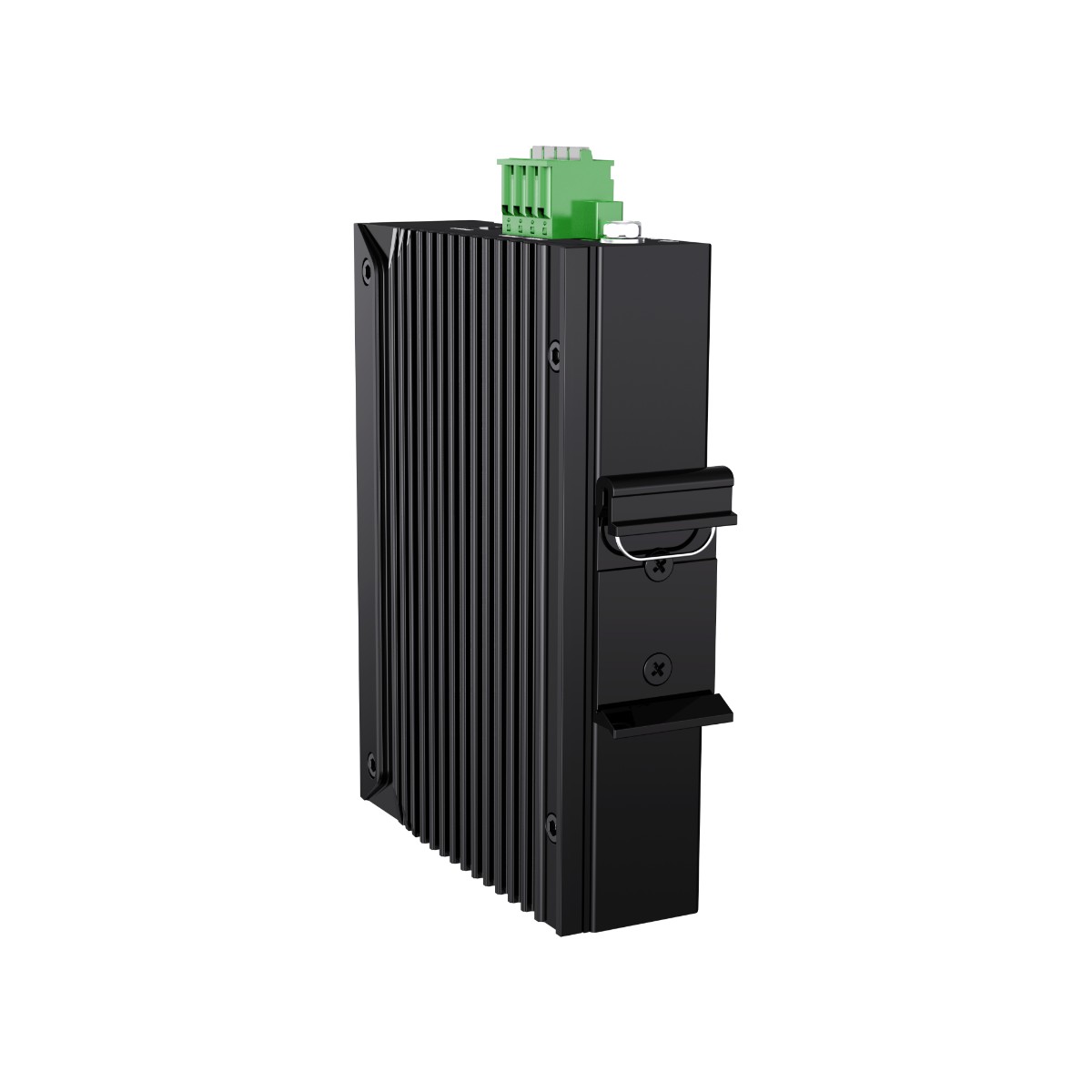

Installation method | Din-rail | |
Dimension(W*D*H)mm | 30*98*130mm | |
Weight | 0.55 kg | |
Operating environment | ||
Operating temperature | -40℃~+75℃ | |
Storage/transportation temperature) | -40℃~+85℃ | |
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | |
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | |
Surge protection of Ethernet ports: | ||
DIP: IEC 61000-4-11 Level 3 (10V) | ||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | ||
Shock: IEC 60068-2-27 | ||
Free fall: IEC 60068-2-32 | ||
Vibration: IEC 60068-2-6 | ||
Certification | CE/FCC/RoHS | |
Warranty | 5 years | |
Model | Description |
DK3211MI-4TP1S | Layer 2 Managed industrial Ethernet switch with 4*10/100/1000Base-T RJ45 PoE ports and 1*100/1000Base-X SFP slot, complies with IEEE802.3af/at standard, DC44-57V input, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; |
DK3211MI-4TP1S-SC | Layer 2 Managed industrial Ethernet switch with 4*10/100/1000Base-T RJ45 PoE ports and 1*100/1000Base-X SC (FC/ST optional) port, complies with IEEE802.3af/at standard, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; |
