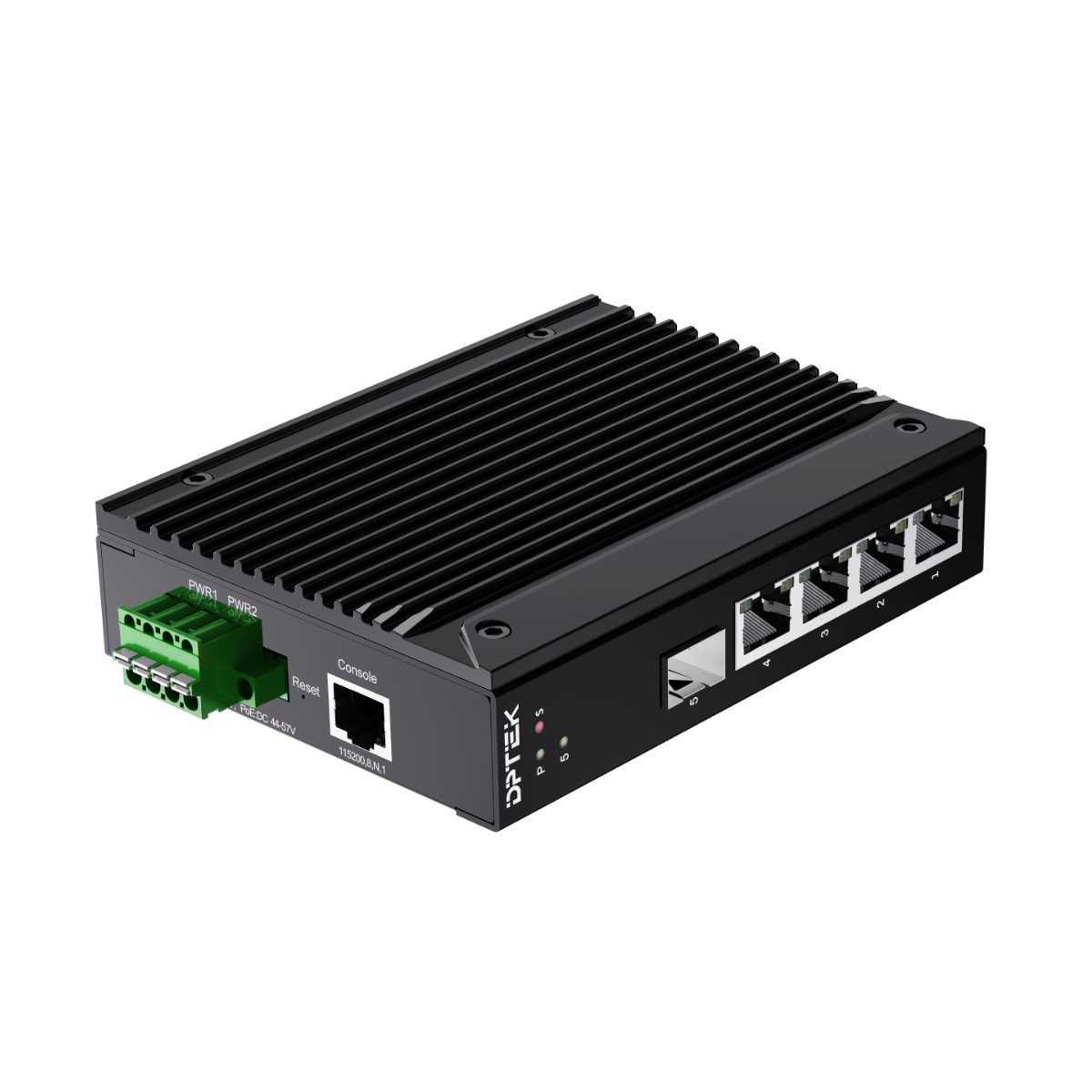

DK3211MI-4T1S
4*10/100/1000Base-T + 1*100/1000Base-X SFP
Layer 2 Lite Managed Industrial Ethernet Switch
RAM and FLASH：
1*128MB DDR3 RAM, 1*128M NAND FLASH
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
4*10/100/1000Base-T + 1*100/1000Base-X SFP
Layer 2 Lite Managed Industrial Ethernet Switch
RAM and FLASH：
1*128MB DDR3 RAM, 1*128M NAND FLASH
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3211MI-4T1S series are highly reliable managed industrial Ethernet Switch with 4-port 10/100/1000Base-T and 1-port 100/1000Base-X fiber optical interface. They support ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. DK3211MI-4T1S series support Web/SNMP/Telnet management, the managed features are such as QoS, VLAN, IGMP, Port mirroring, 802.1X, LLDP, Fiber transceiver DDM, IPV6 management and so on.
DK3211MI-4T1S series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
Features:
- 4*10/100/1000Base-T RJ45 ports, 1*100/1000Base-X SFP(SC/FC/ST optional) ports
- DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
- Support Layer 2 management function: VLAN/Port Mirroring/IGMP/QoS/LLDP/802.1X/Fiber transceiver DDM /
IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
- Support G.8032 ERPS protocol, recovery time ≤20ms
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3211MI-4T1S | ||
Interface | Fiber port | Copper RJ45 ports | |
1 | 4 | ||
Ethernet | 4*10/100/1000Base-T RJ45 1*100/1000Base-X SFP (SC/ST/FC optional) | ||
Management port | 1*RJ45 Console | ||
Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-X IEEE 802.3x flow control and back pressure IEEE 802.1D spanning tree protocol IEEE 802.1w rapid spanning tree protocol IEEE 802.1Q VLAN tagging ITU-T G.8032 ERPS IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3ad LACP | ||
LED Indicators | |||
P (Power indicator) | Off: the device is power off or failed | Off: the device is power off or failed | |
S (System status indicator) | Blinking: device initialization | On: device on normal operation | |
1-4 (Copper ports) | Green | Yellow | |
Off: ports link down | Off: port speed on 10/100M | ||
On: ports link up | On: port speed on 1000M | ||
Blinking: data on TX/RX | |||
5 (fiber port) | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameter | |||
Input voltage | 12-58VDC, redundant power input | ||
Input current | 0.5A Max | ||
Total consumption | Full loading ≤ 6 W | ||
Connector | Removable 4-pin terminal block | ||
Reverse polarity protection | Support | ||
Over-voltage protection | Support | ||
Layer 2 function | |||
Port aggregation | Support static aggregation Support dynamic aggregation | ||
Port features | Support IEEE802.3x flow control, Support Port traffic statistics Support port isolation Support network storm suppression based on port bandwidth percentage | ||
VLAN | Support access mode Support trunk mode Support hybrid mode | ||
Port mirroring | Support many to one port mirroring | ||
Ring network protocol | Support STP, RSTP Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤20ms | ||
Multicast | IGMP V1,V2,V3 IGMP snooping | ||
QoS | Ingress Port-based Rate-limit Egress Port-based Rate-limit | ||
Security features | Support 802.1x, port authentication, MAC authentication, RADIUS service Support port isolation | ||
Management and maintenance | Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management, HTTP1.1, HTTPS Support Syslog and alarm grading Support RMON (Remote Monitoring) alarm Support NTP Support Ping, Tracert Support optical transceiver DDM function Support TFTP Client Support Telnet Server Support SSH Server Support IPv6 Management Support TFTP, web upgrading | ||
Switching features | |||
Switching capacity | 10Gbps | ||
Packet forwarding rate | 7.440Mpps | ||
MAC address table | 8K | ||
VLAN | 4K | ||
Buffer | 1M bit | ||
Forwarding delay | <5us | ||
Jumbo Frame | Support 10Kbytes | ||
MDI/MDIX | Support | ||
Watchdog | Support | ||
Mechanical structure | |||
Case protection | IP40 | ||
Installation method | Din-rail | ||
Dimension(W*D*H)mm | 30*98*130mm | ||
Weight | 0.55 kg | ||
Operating environment | |||
Operating temperature | -40℃~+75℃ | ||
Storage/transportation temperature) | -40℃~+85℃ | ||
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | ||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | ||
Surge protection of Ethernet ports: | |||
DIP: IEC 61000-4-11 Level 3 (10V) | |||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | |||
Shock: IEC 60068-2-27 | |||
Free fall: IEC 60068-2-32 | |||
Vibration: IEC 60068-2-6 | |||
Certification | CE/FCC/RoHS | ||
Warranty | 5 years | ||
Model | Description |

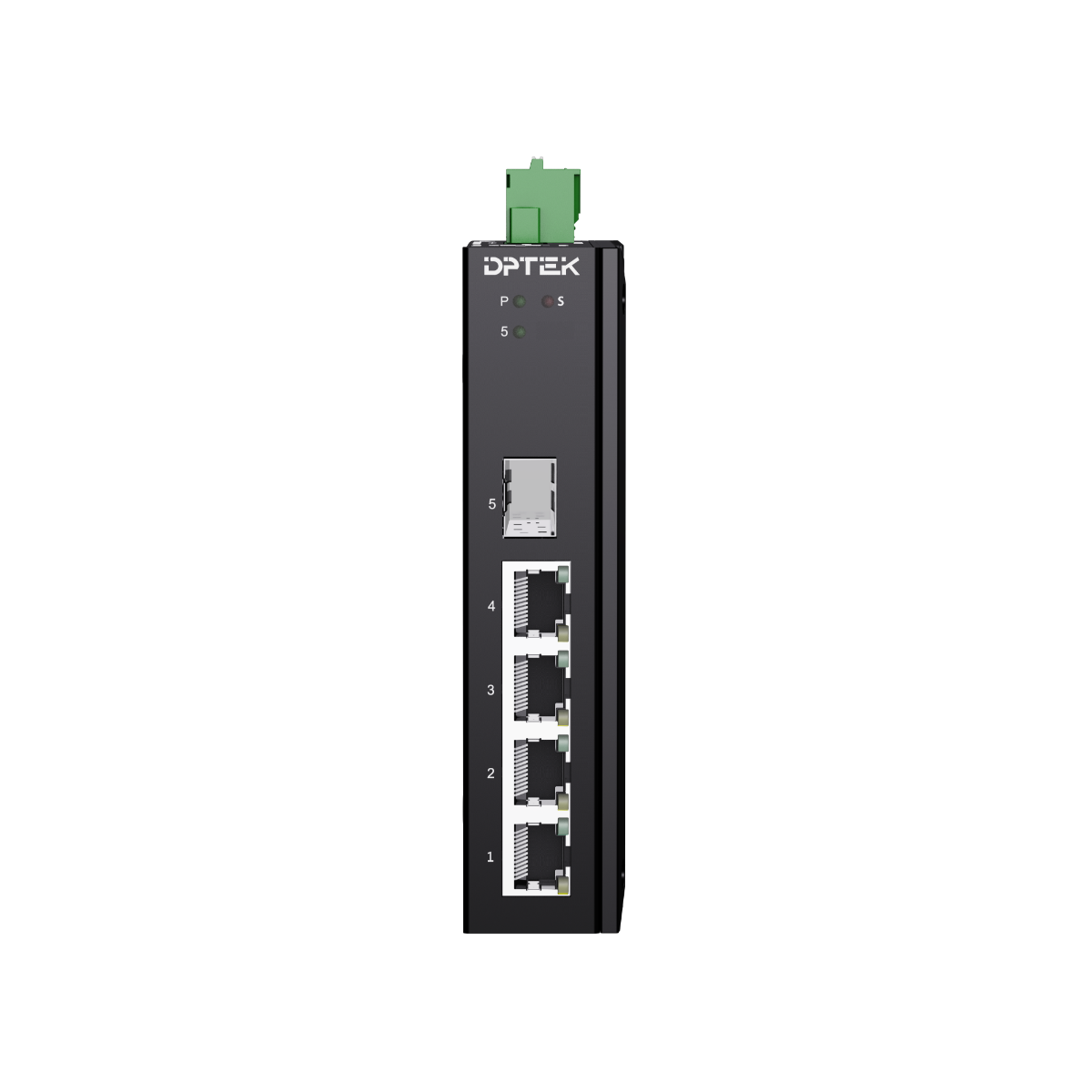

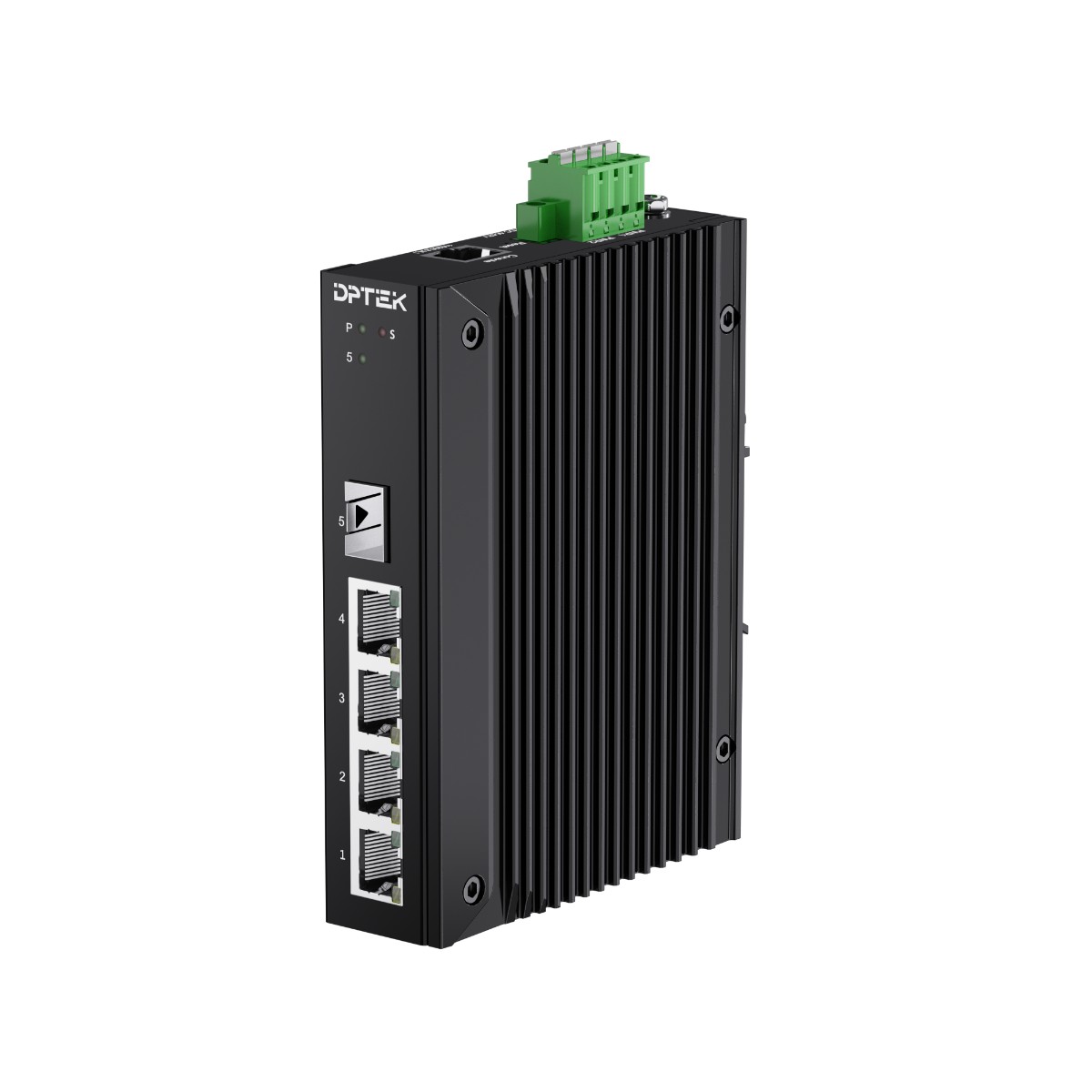

DK3211MI-4T1S | Layer 2 Managed industrial Ethernet switch with 4*10/100/1000Base-T RJ45 ports and 1*100/1000Base-X SFP slot, DC12-58V input, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C～+75°C |

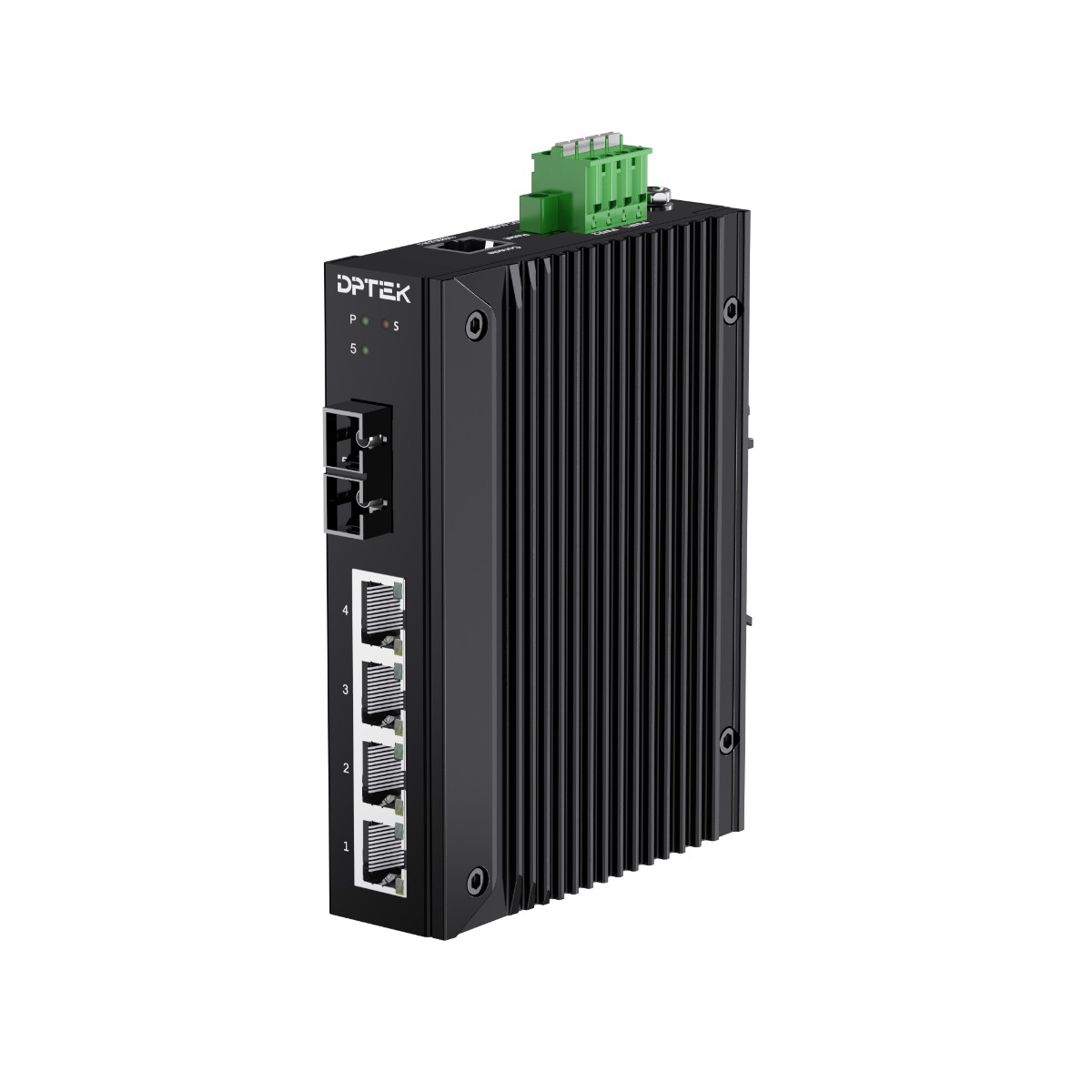

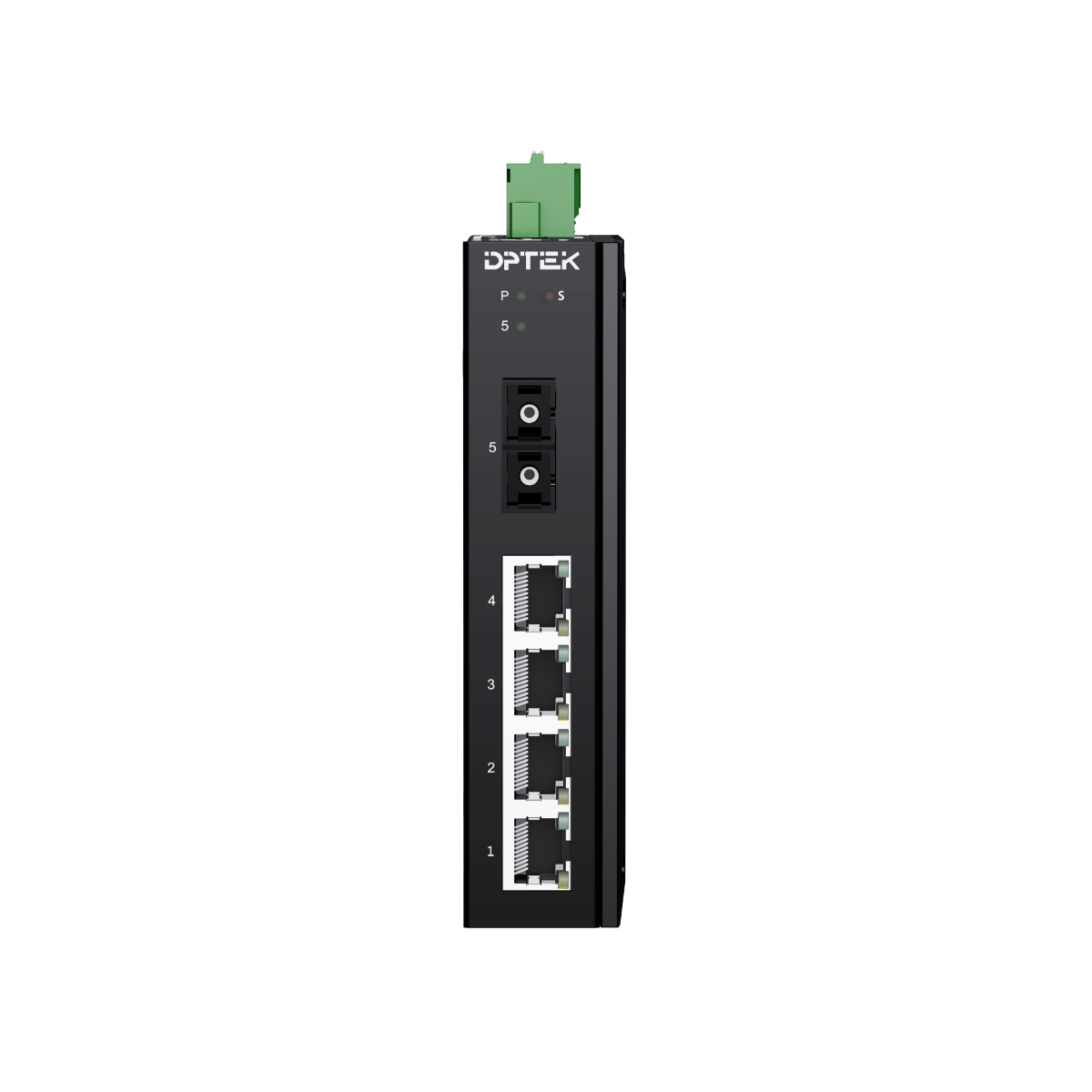

DK3211MI-4T1S-SC | Layer 2 Managed industrial Ethernet switch with 4*10/100/1000Base-T RJ45 ports and 1*100/1000Base-X SC (FC/ST optional) port, DC12-58V input, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m-100KM optional; Operation temperature: -40°C～+75°C |
