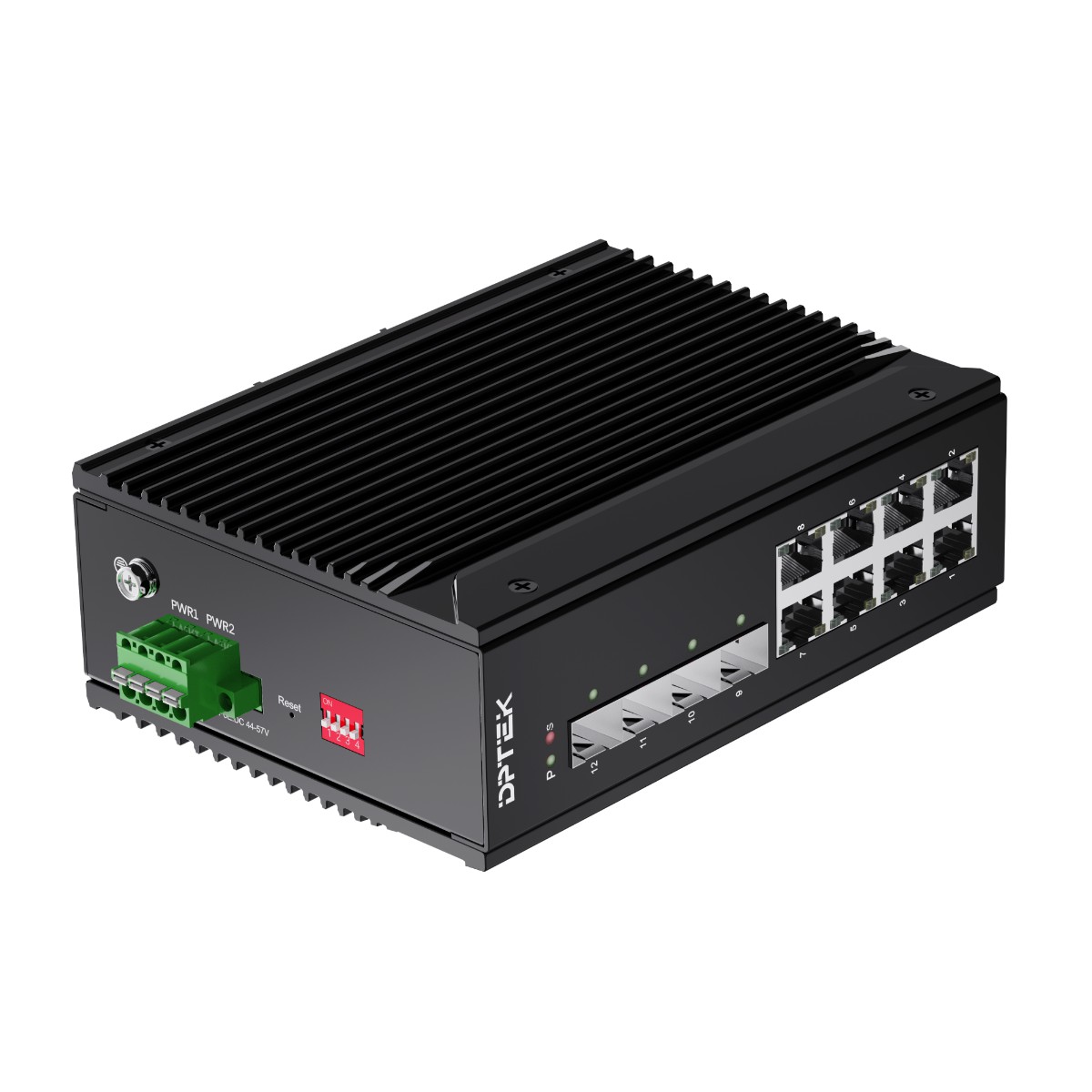

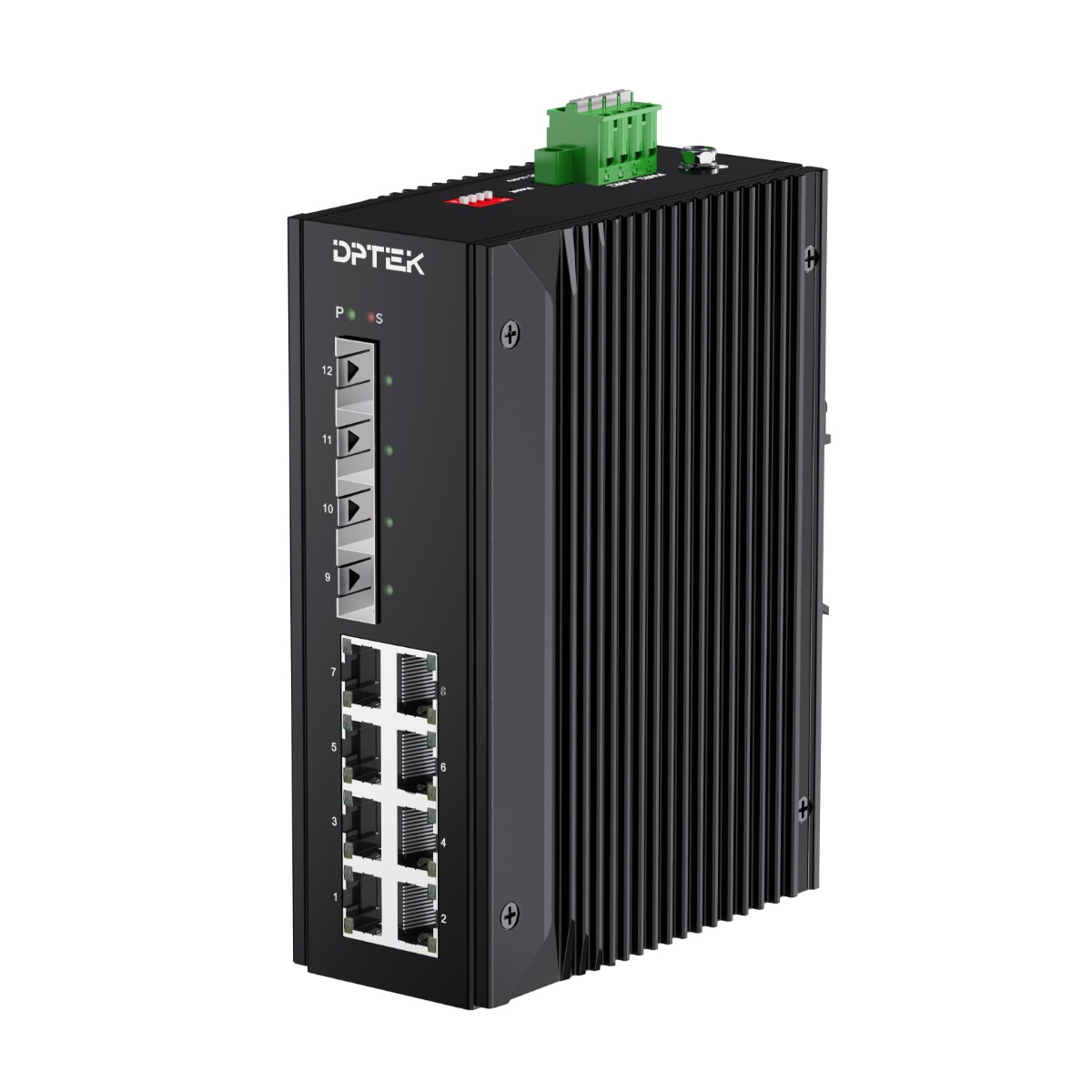

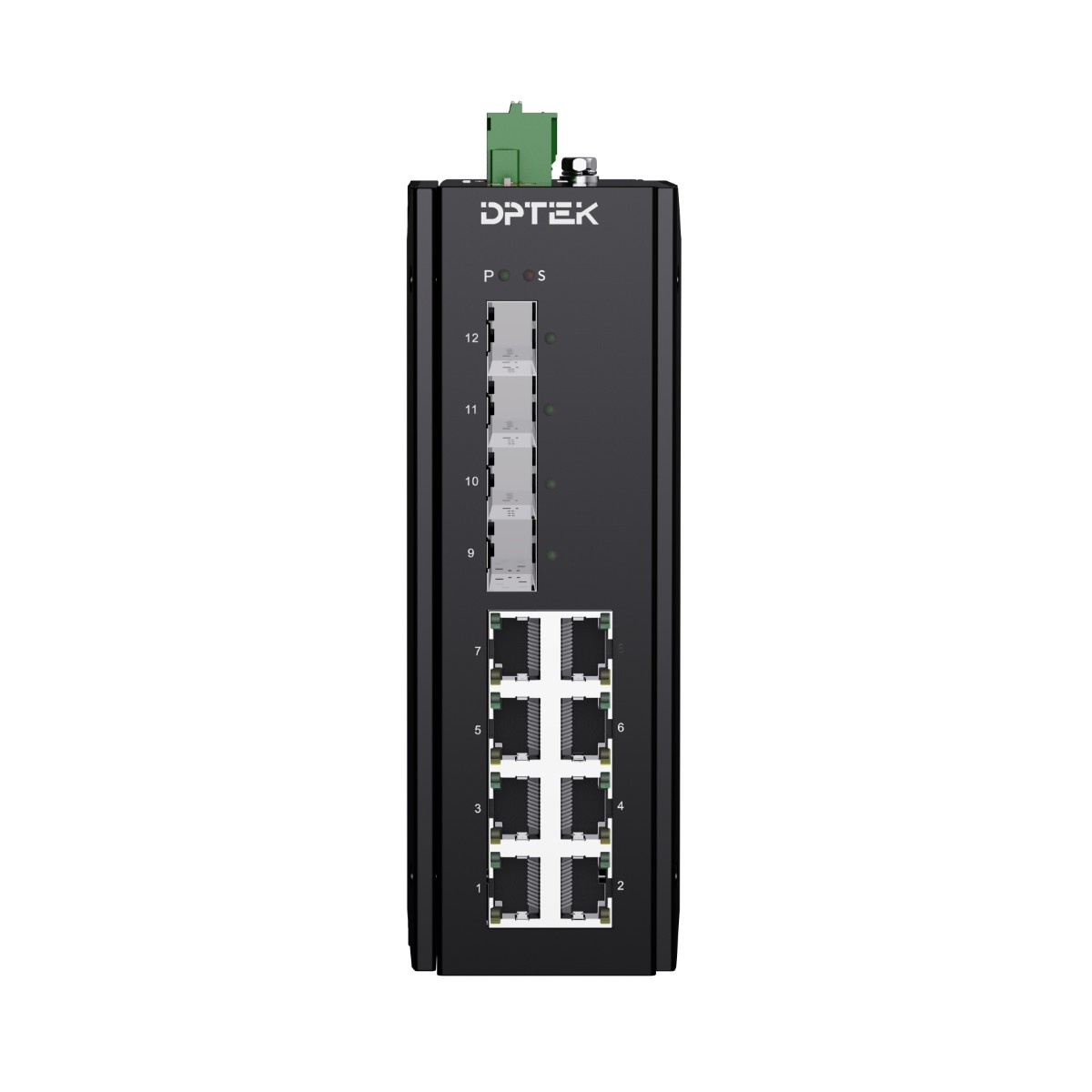

DK3110I-8TP4S


    8*10/100/1000Base-T PoE + 4*1000Base-X SFP

    Unmanaged Industrial PoE Switch



    Complies with IEEE802.3af, IEEE802.3at standard,

    DC44-57V, redundant dual power supply, Din-rail installation.

    Fiber port transmission distance depending on the SFP module;

    Operation temperature: -40℃~+75℃


  • Parameters


    8*10/100/1000Base-T PoE + 4*1000Base-X SFP

    Unmanaged Industrial PoE Switch



    Complies with IEEE802.3af, IEEE802.3at standard,

    DC44-57V, redundant dual power supply, Din-rail installation.

    Fiber port transmission distance depending on the SFP module;

    Operation temperature: -40℃~+75℃


Overview



The DPTEK DK3110I-8TP4S is the highly reliable industrial PoE switch with 8-port 10/100/1000-T PoE and 4-port 1000Base-X SFP slots. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, it is also featuring with port isolation, 250m long distance transmission mode(1-4 ports), QoS(1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel



DK3110I-8TP4S is a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.



Features

 8*10/100/1000Base-T RJ45 PoE ports, 4*1000Base-X SFP slots

 DC 44-57V input, redundant power supply with polarity reverse/over-voltage protection

 Support one channel output relay alarm(terminal block Pin 5/6)

 Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

  Support powerful Dip switch function:

1. Link aggregation; 2. 250m long distance(1-4 ports); 3. QoS(1-2 ports) ; 4.PoE watchdog

 Support 10K Bytes Jumbo frame

 Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection

 IP40 fan-less and Din-rail hardware design

 Operation temperature: -40°C ~+75°C




Model No.

DK3110I-8TP4S

Interface

Fiber ports

Copper RJ45 ports

4

8

Ethernet

8*10/100/1000Base-T PoE

4*1000Base-X SFP

Alarm port

One relay output for power failure. Alarm relay current carry ability: 1A@24VDC

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3af Power-Over-Ethernet

IEEE 802.3at Power Over Ethernet plus PSE

Dip Switch

1. Link aggregation

2. 250m long distance mode(1-4 ports)

3. QoS(1-2 ports

4. PoE watchdog

LED Indicators

P(Power indicator) Green

Off: the device is power off or failed

On: the device power on is normal

S(PoE usage indicator) Red

Off: total PoE usage rated 50%

Blinking: rated 50%total PoE usagerated 90%

Normal on: total PoE usage≥rated 90%

1-8 (Copper ports)

Green indicators

Yellow indicators

Off: ports link down

Off: PoE not working

On: ports link up

On: PoE working

Blinking: data on TX/RX


9-12 (Fiber ports) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameters

Input voltage

44-57VDC, redundant power input

Input current

5.7A Max

Total power consumption

Full loading without PoE ≤10W

PoE power budget ≤240W

Connector

Removable 4-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Over-current protection

Support

Switching features

Switching capacity

24G

Packet forwarding rate

35.7 Mpps

MAC address table

8K

VLAN

4K

Buffer

2M

Forwarding delay

<5us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Network Topology

Star topology

Support

Bus topology

Support

Tree Topology

Support

Mechanical structure

Case protection

IP40

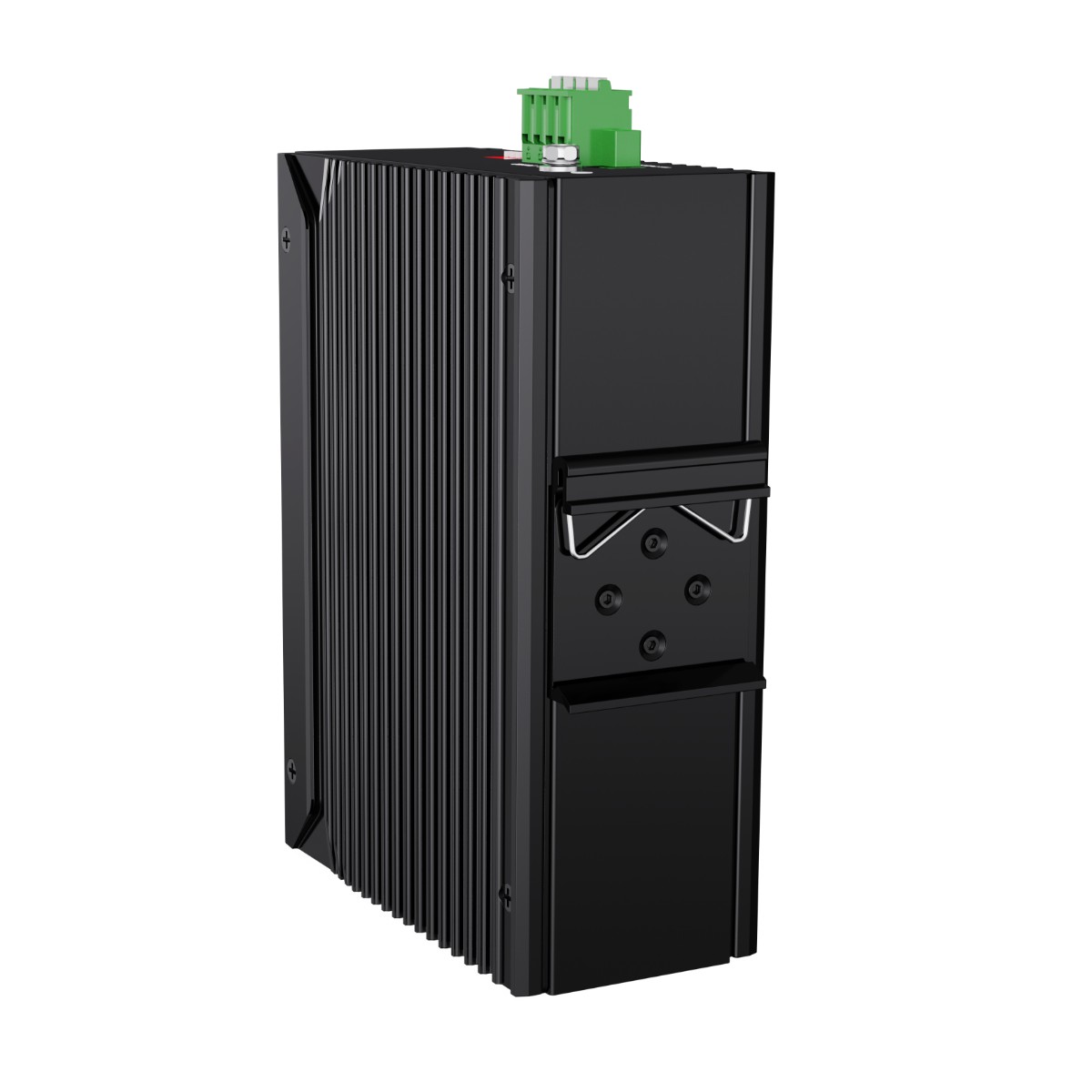

Installation method

Din-rail

Dimension(W*D*H)mm

54*115*158mm

Weight

1.15 kg

Operating environment

Operating temperature

-40℃~+75℃

Storage/transportation temperature

-40℃~+85℃

Relative humidity

5%~95%non-condensing

Industry standard

EMIFCC Part 15B Class A

Surge protection of power: IEC 61000-4-5  6KV/4KV8/20us

Surge protection of Ethernet portsIEC 61000-4-5  6KV/2KV10/700us

RS: IEC 61000-4-3 80 MHz-1 GHz10 V/m

EFT: IEC 61000-4-4  power interface: 4KEthernet ports: 2K

CS: IEC 61000-4-6 10V

ESD: IEC 61000-4-2  Level 48K/15K

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years





















































































































Model

Description

DK3110I-8TP4S

Unmanaged Industrial PoE switch with 8*10/100/1000Base-T RJ45 PoE ports and 4*1000Base-X SFP slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C+75°C
