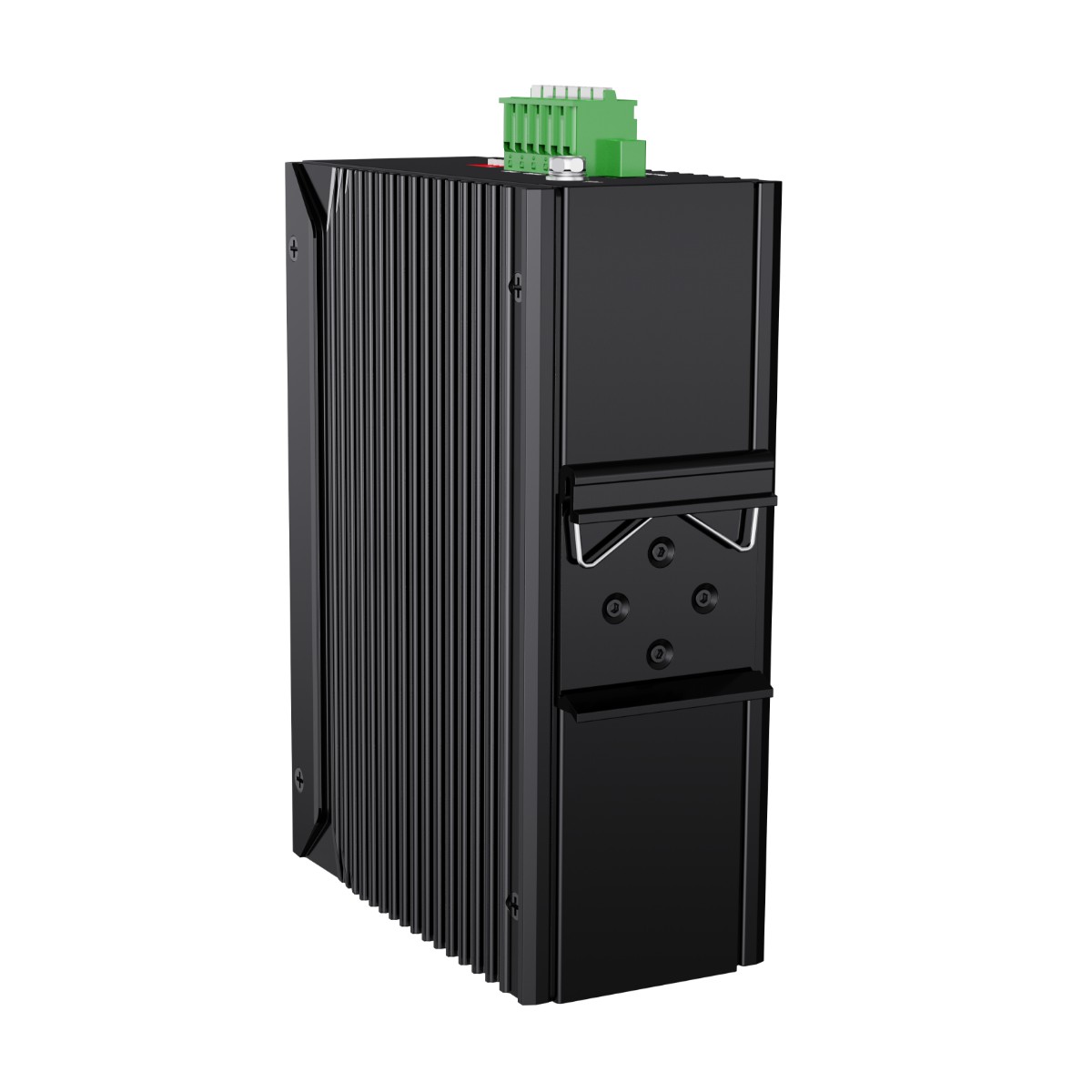

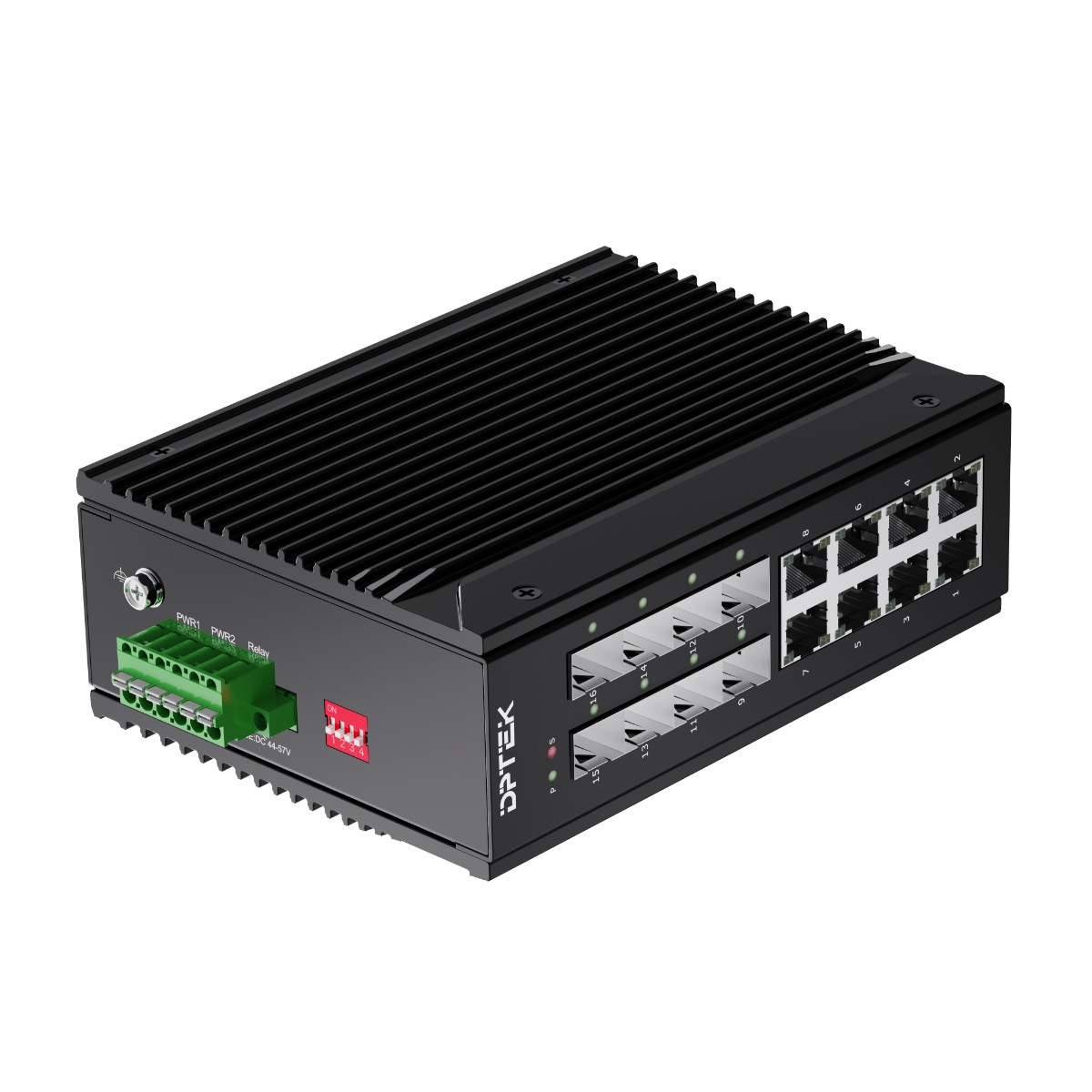

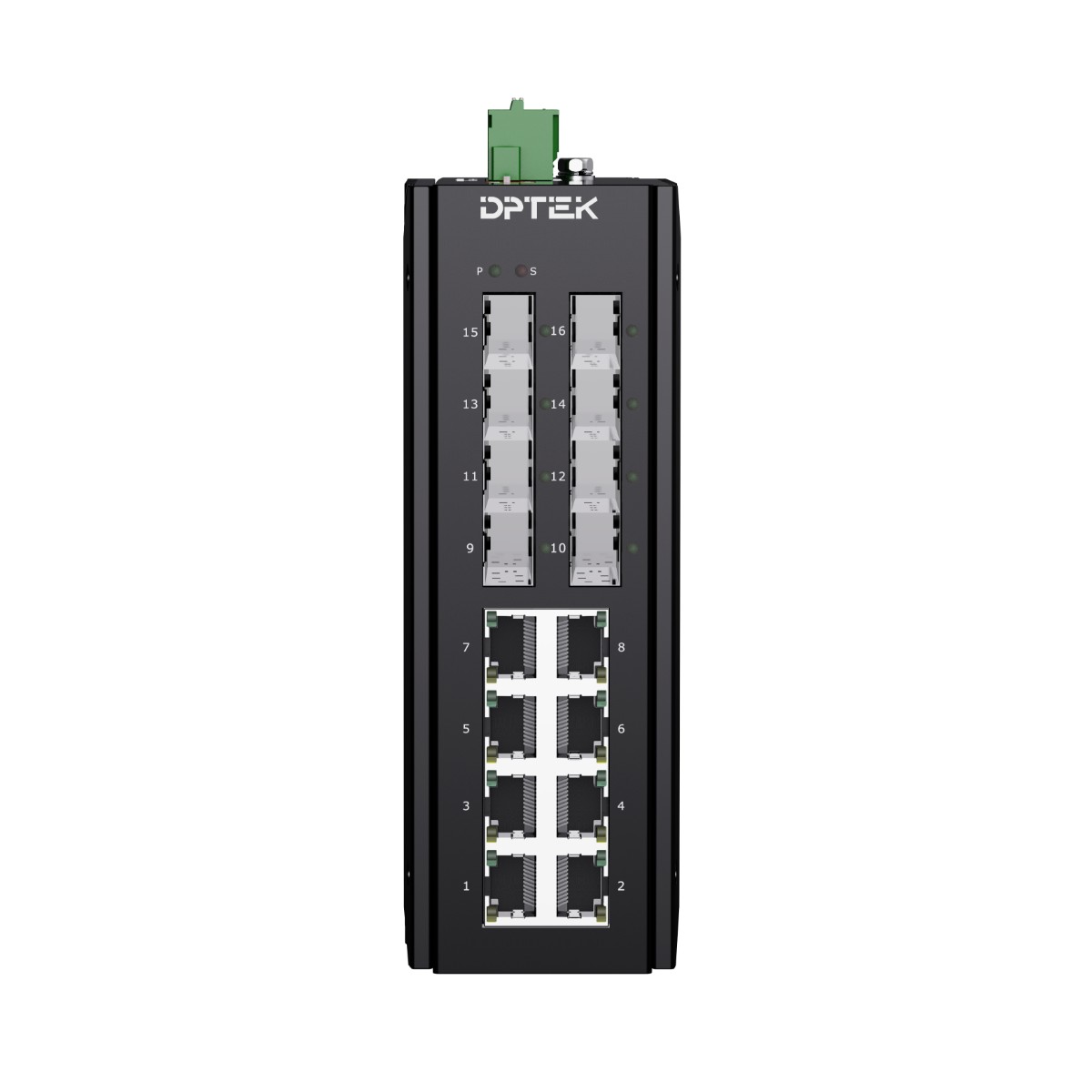

DK3110I-8T8S
8*10/100/1000Base-T + 8*1000Base-X SFP
Unmanaged Industrial Ethernet Switch
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
8*10/100/1000Base-T + 8*1000Base-X SFP
Unmanaged Industrial Ethernet Switch
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3110I-8T8S is the highly reliable industrial Ethernet switch with 8-port 10/100/1000-T RJ45 and 8-port 1000Base-X SFP slots. It is featuring with port isolation, flow control, QoS (1-2 ports) and broadcast storm function, which all can be configured by the Dip switch on the top panel.
DK3110I-8T8S is a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features:
- 8*10/100/1000Base-T RJ45 ports, 8*1000Base-X SFP slots
- DC 12-58V input, redundant power supply with polarity reverse/over-voltage/over current protection
- Support one channel output relay alarm(terminal block Pin 5/6)
- Dip switch function: 1. Port isolation; 2. Flow control; 3. QoS(1-2 ports) ; 4. Broadcast storm restrain
- Support 10K Bytes Jumbo frame
- Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3110I-8T8S | |
Interface | Fiber ports | Copper RJ45 ports |
8 | 8 | |
Ethernet | 8*10/100/1000Base-T 8*1000Base-X SFP | |
Alarm port | One relay output for power failure. Alarm relay current carry ability: | |
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | |
Dip Switch | 1. Port Isolation 2. Flow control 3. QoS(1-2 ports) 4. Broadcast storm restrain | |
LED Indicators | ||
P (Power indicator) | Off: the device is power off or failed | |
On: the device power on is normal | ||
S (System indicator) | Off: the chip is normal | |
On: the chip read/write is unnormal | ||
1-8 (Copper ports) | Green indicators | Yellow indicators |
Off: ports link down | Off: Port on 10/100M | |
On: ports link up | On: Port on 1000M | |
Blinking: data on TX/RX | ||
9-16 (Fiber ports) | Off: ports link down | |
On: ports link up | ||
Blinking: data on TX/RX | ||
Power parameters | ||
Input voltage | 12-58 VDC, redundant power input | |
Input current | 1A Max | |
Total power consumption | Full loading ≤12W | |
Connector | Removable 6-pin terminal block, pin 5/6 for relay alarm output | |
Reverse polarity protection | Support | |
Over-voltage protection | Support | |
Over-current protection | Support | |
Switching features | ||
Switching capacity | 32G | |
Packet forwarding rate | 23.808Mpps | |
MAC address table | 8K | |
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | |
Buffer | 2M | |
Forwarding delay | <5us | |
Jumbo Frame | Support 10Kbytes | |
MDI/MDIX | Support | |
Watchdog | Support | |
Network Topology | ||
Star topology | Support | |
Bus topology | Support | |
Tree Topology | Support | |
Mechanical structure | ||
Case protection | IP40 | |
Installation method | Din-rail | |
Dimension(W*D*H)mm | 54*115*158mm | |
Weight | 1.30 kg | |
Operating environment | ||
Operating temperature | -40℃~+75℃ | |
Storage/transportation temperature | -40℃~+85℃ | |
Relative humidity | 5%~95% (non-condensing) | |
Industry standard | EMI: FCC Part 15B Class A | |
Surge protection of power: IEC 61000-4-5 6KV/4KV (8/20us) | ||
Surge protection of Ethernet ports: | ||
RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m | ||
EFT: IEC 61000-4-4 power interface: 4K；Ethernet ports: 2K | ||
CS: IEC 61000-4-6 10V | ||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | ||
Shock: IEC 60068-2-27 | ||
Free fall: IEC 60068-2-32 | ||
Vibration: IEC 60068-2-6 | ||
Certification | CE/FCC/RoHS | |
Warranty | 5 years | |
Model | Description |
DK3110I-8T8S | Unmanaged Industrial Ethernet switch with 8*10/100/1000Base-T RJ45 ports and 8*1000Base-X SFP slots, DC12-58V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C ~+75°C |
