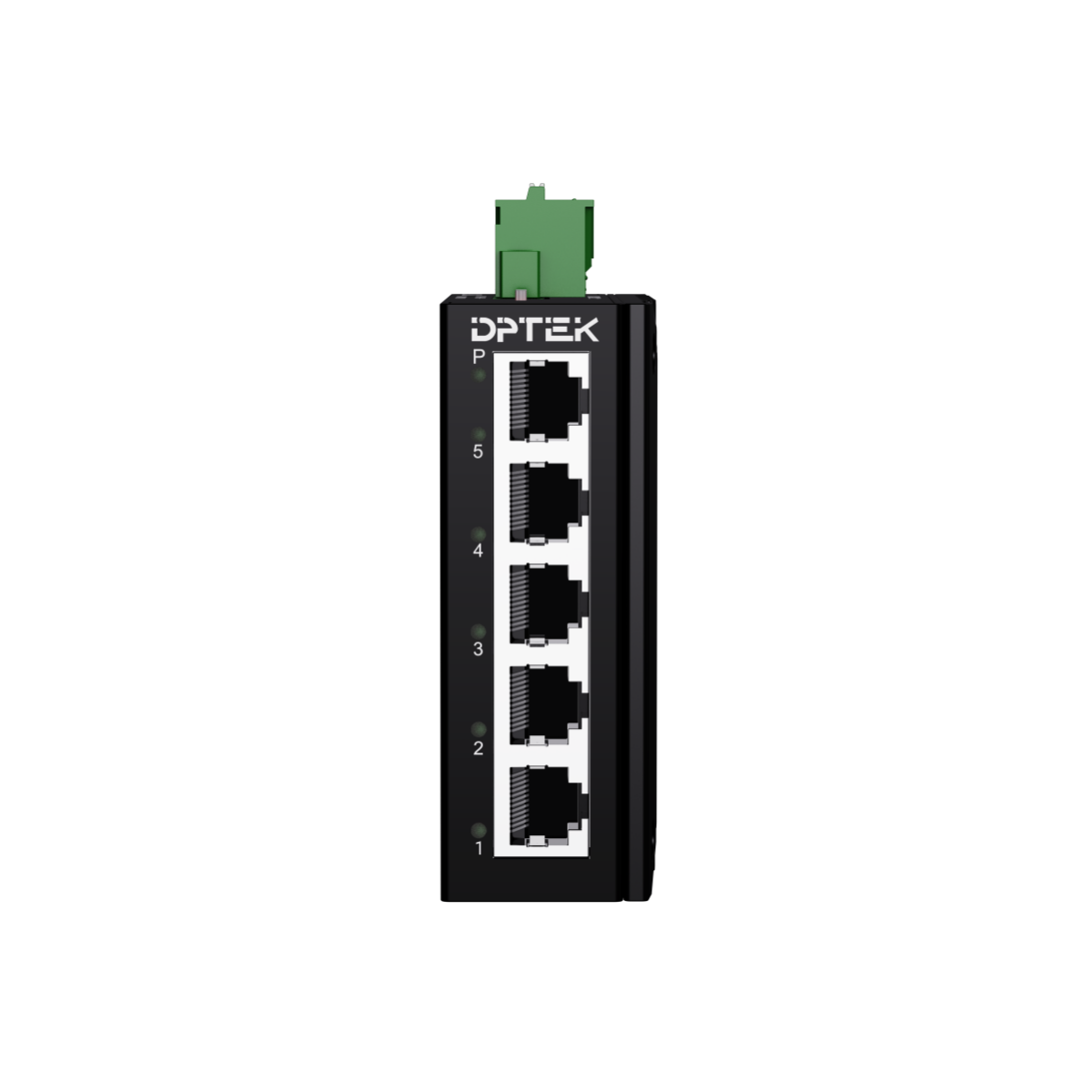

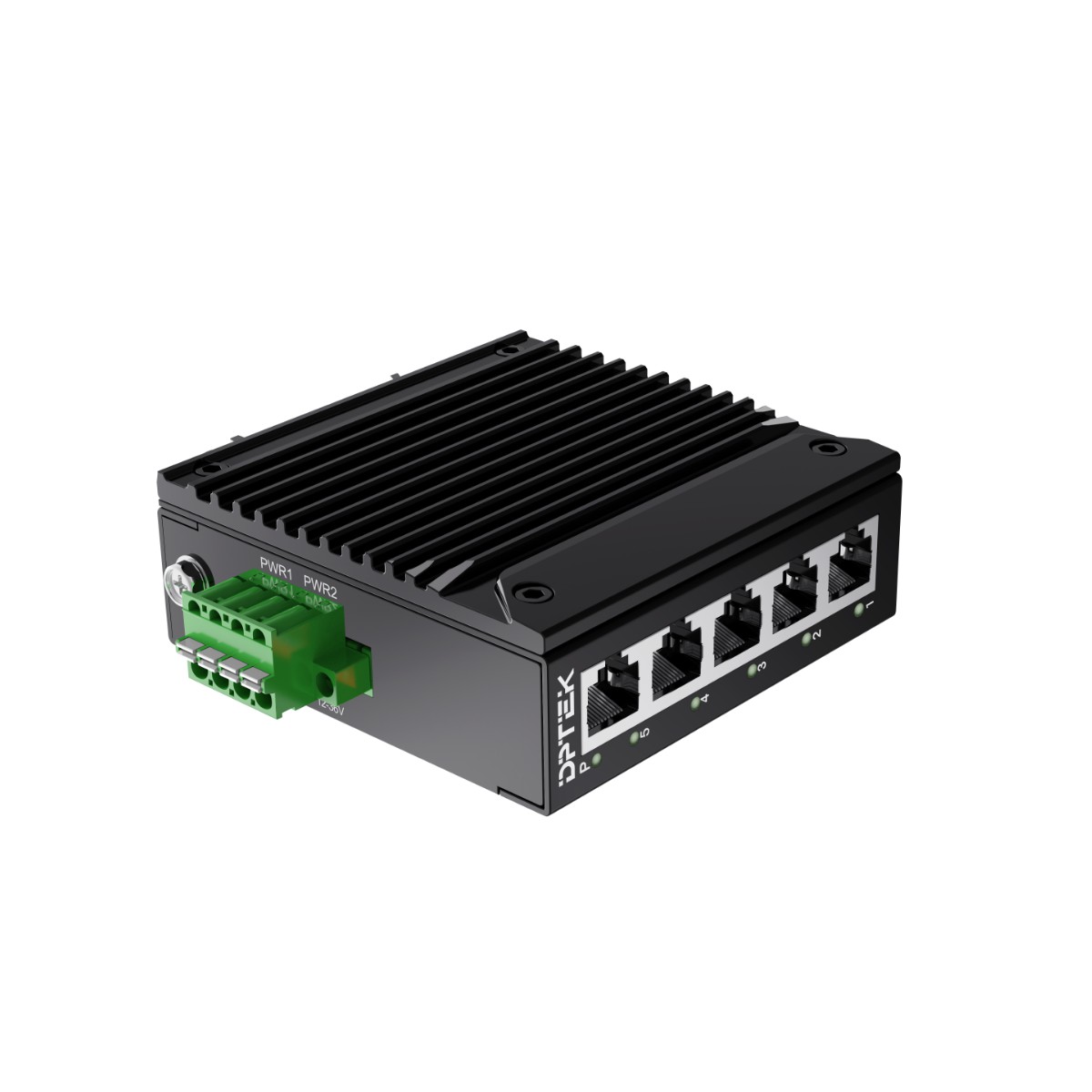

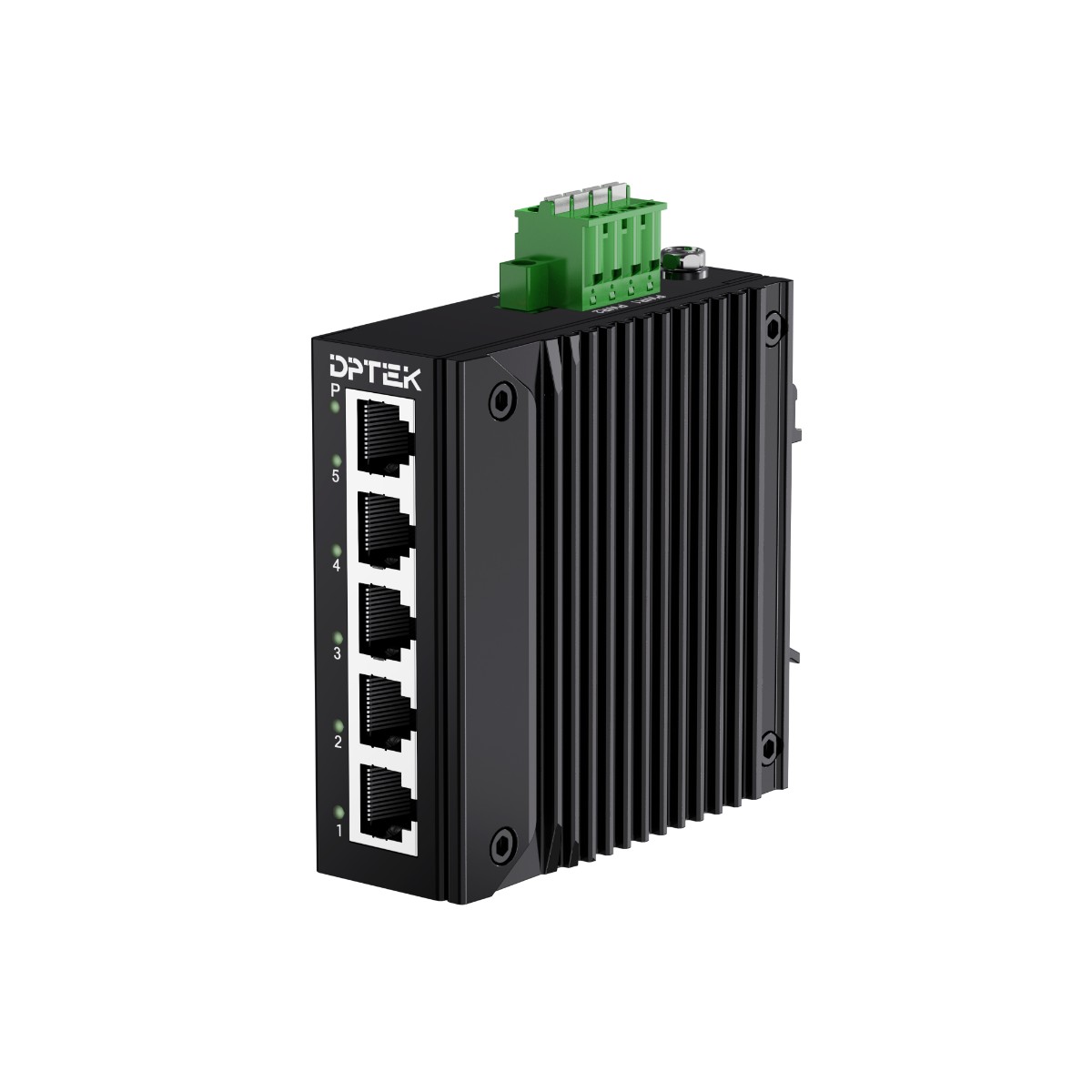

DK3110I-5T-M
5*10/100/1000Base-T
Unmanaged Industrial Ethernet Switch-Compact size
DC12-36V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
5*10/100/1000Base-T
Unmanaged Industrial Ethernet Switch-Compact size
DC12-36V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3110I-5T-M is the compact size unmanaged industrial grade Ethernet switch with 5-port 10/100/1000Base-TX RJ45. It is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-36VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial field where installation space are limited and restricted.
Features:
- 5*10/100/1000Base-TX RJ45 ports
- DC 12~36V input, redundant power supply with polarity reverse/over-voltage protection
- Support 10K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3110I-5T-M | |||
Interface | Fiber port | Copper RJ45 ports | ||
0 | 5 | |||
Ethernet | 5*10/100/1000Base-T RJ45 ports | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | |||
LED Indicators | P (Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
1-5 (Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: port speed is 10/100M | |||
On: ports link up | On: port speed is 1000M | |||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 12-36VDC, redundant power input | |||
Input current | 0.5A Max | |||
Total power consumption | Full loading ≤4W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 10G | |||
Packet forwarding rate | 7.440Mpps | |||
MAC address table | 2K | |||
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | |||
Buffer | 2K | |||
Forwarding delay | <5us | |||
Jumbo Frame | Support 2Kbytes | |||
MDI/MDIX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||

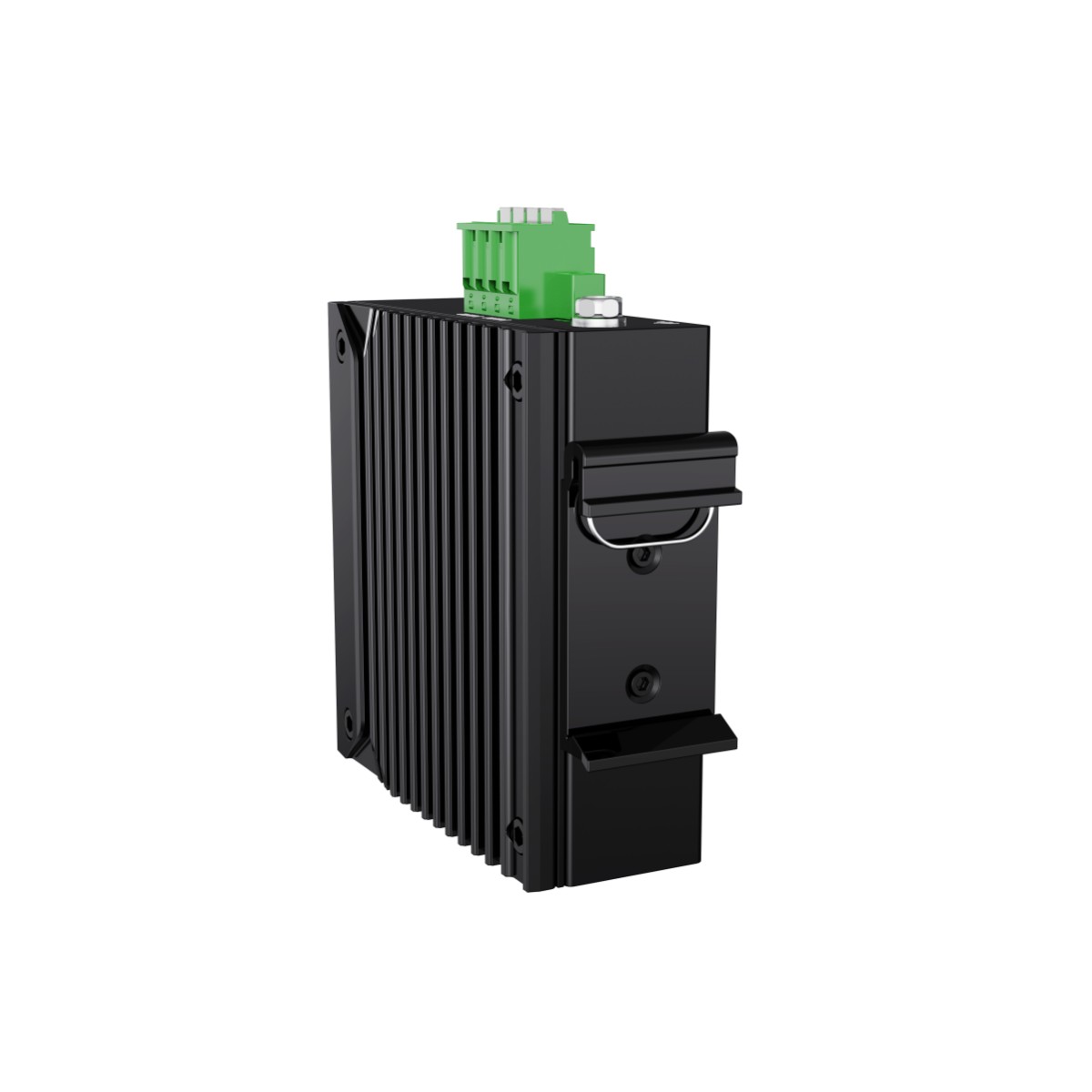

Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*85*85mm | |||
Weight | 0.4 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95% (non-condensing) | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 | ||||
DIP: IEC 61000-4-11 Level 3 (10V) | ||||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | ||||
Shock: IEC 60068-2-27 | ||||
Free fall: IEC 60068-2-32 | ||||
Vibration: IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |
DK3110I-5T-M | Compact size 5-port 10/100/1000Base-TX RJ45 unmanaged industrial Ethernet switch, DC12-36V input, redundant dual power supply. Operation temperature: -40°C～+75°C |
