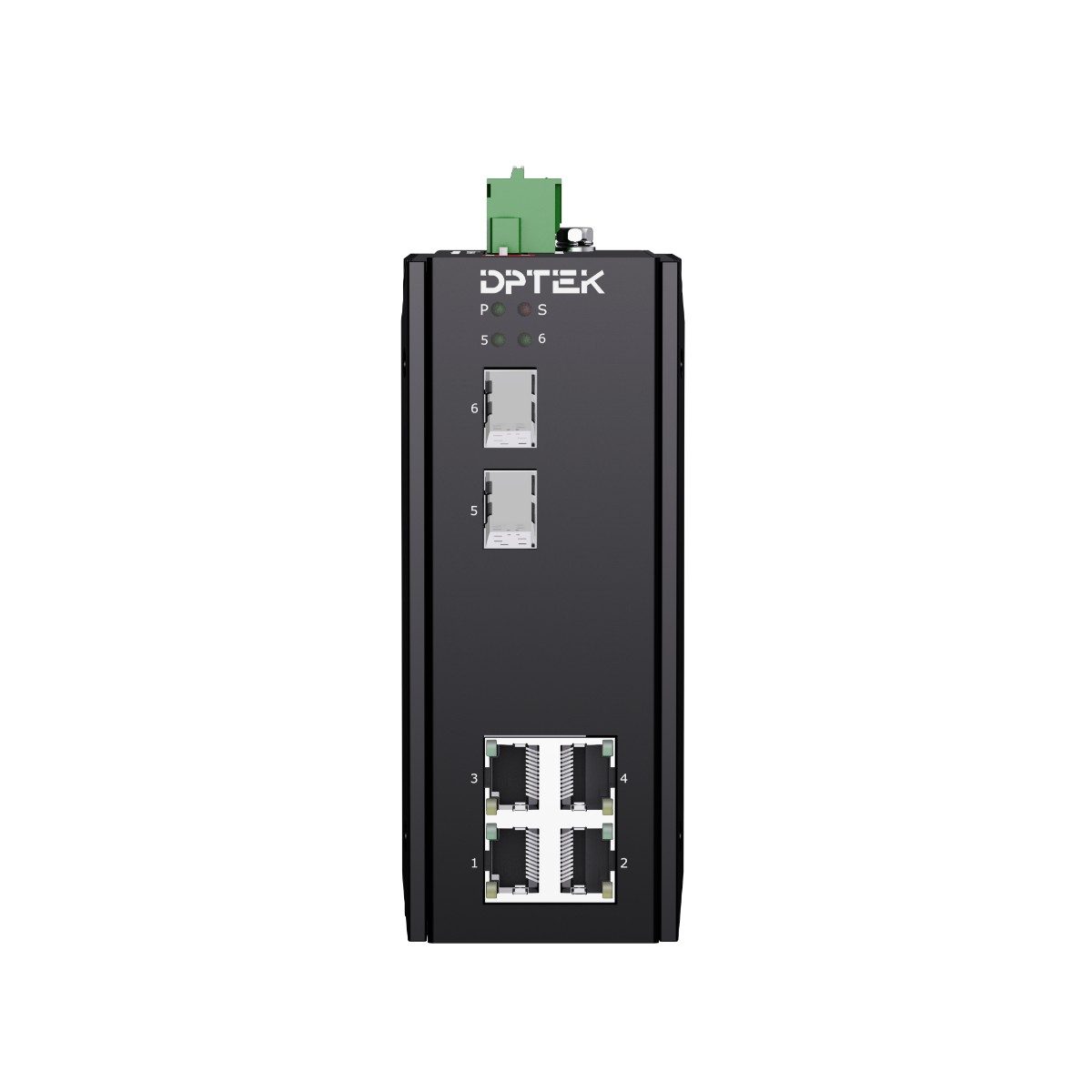

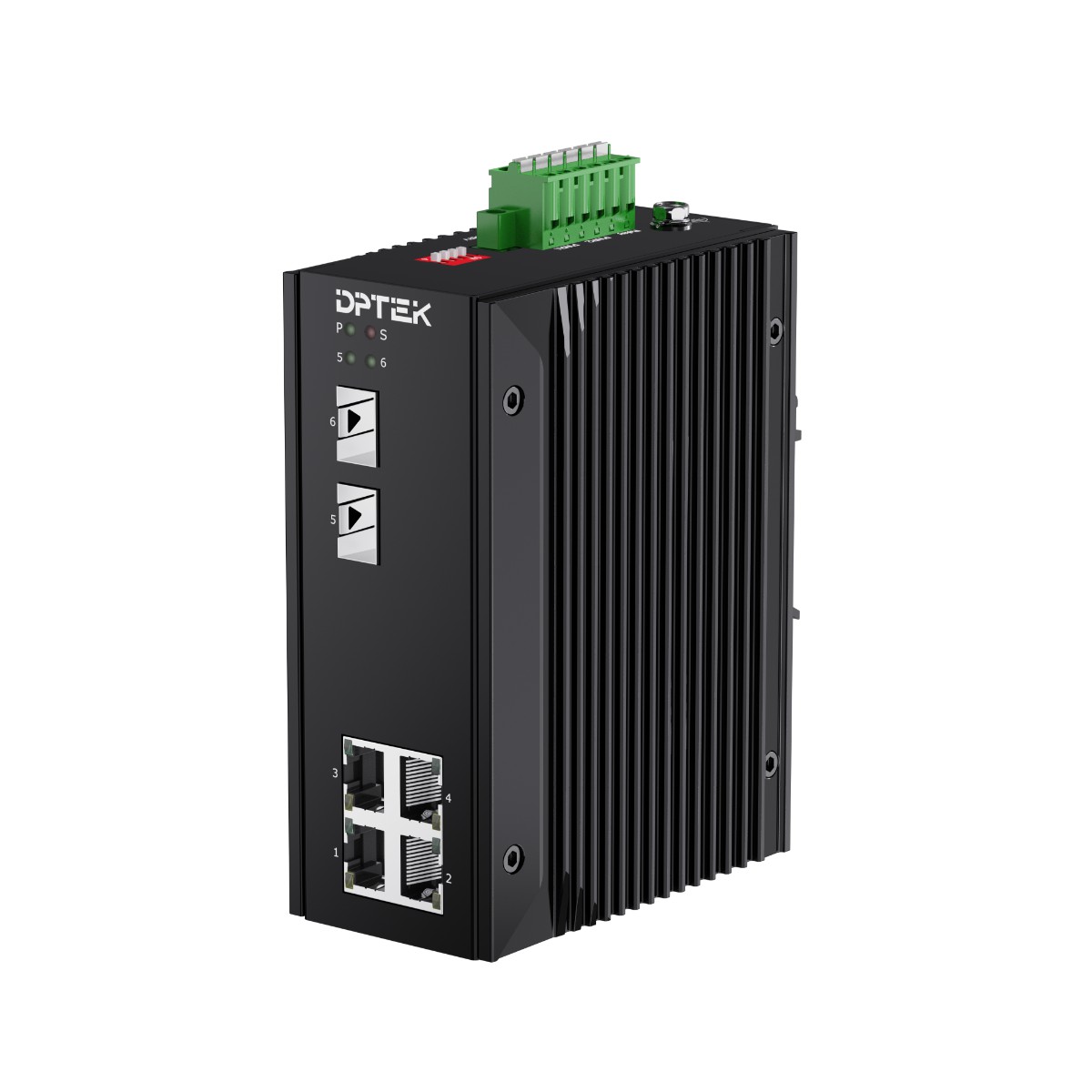

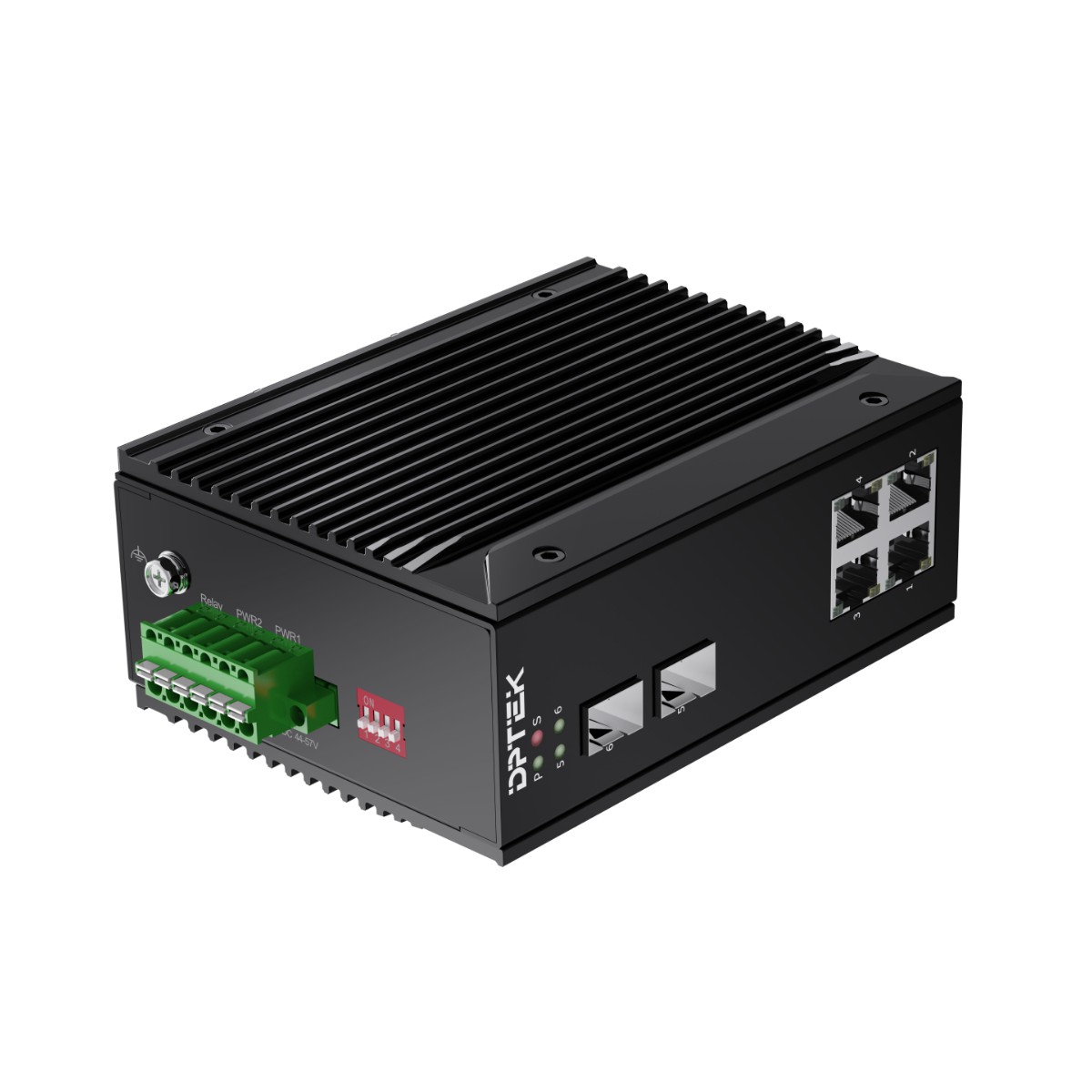

DK3110I-4TP2S-4BT
4*10/100/1000Base-T PoE + 2*1000Base-X SFP
Unmanaged Industrial PoE++ Switch
Complies with IEEE802.3af, IEEE802.3at and IEEE802.3bt standard
DC44-57V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
4*10/100/1000Base-T PoE + 2*1000Base-X SFP
Unmanaged Industrial PoE++ Switch
Complies with IEEE802.3af, IEEE802.3at and IEEE802.3bt standard
DC44-57V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3110I-4TP2S-4BT is the highly reliable industrial PoE switch with 4-port 10/100/1000-T PoE and 2-port 1000Base-X SFP slots. It complies with IEEE802.3af, IEEE802.3at and IEEE802.3bt standard PoE protocol, the Max power consumption can reach 90W per port, which are the idea solution for those high power consumption industrial networking PDs. Moreover, it is also featuring with port isolation, 250m long distance transmission mode(1-2 ports), QoS (1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK3110I-4TP2S-4BT is a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and crucial.
Features:
- 4*10/100/1000Base-T RJ45 PoE ports, 2*1000Base-X SFP slots
- DC 44-57V input, redundant power supply with polarity reverse/over-voltage/over-current protection
- Support one channel output relay alarm(terminal block Pin 5/6) for DC power failure
- Complies with IEEE802.3af PoE, IEEE802.3at PoE+ and IEEE802.3bt PoE++ standard
- Support powerful Dip switch function: 1. Port isolation; 2. 250m long distance(1-2 ports); 3. QoS(1-2 ports); 4. PoE watchdog
- Support 10K Bytes Jumbo frame
- Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3110I-4TP2S-4BT | |
Interface | Fiber ports | Copper RJ45 ports |
2 | 4 | |
Ethernet | 4*10/100/1000Base-T PoE 2*1000Base-X SFP | |
Alarm port | One relay output for power failure. Alarm relay current carry ability: | |
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af IEEE 802.3at IEEE 802.3bt | |
Dip Switch | 1. Port isolation 2. 250m long distance mode(1-2 ports) 3. QoS(1-2 ports) 4. PoE watchdog | |
LED Indicators | ||
P (Power indicator) Green | Off: the device is power off or failed | |
On: the device power on is normal | ||
S (PoE usage indicator) Red | Off: total PoE usage ＜rated 50% | |
Blinking: rated 50%＜total PoE usage＜rated 90% | ||
Normal on: total PoE usage≥rated 90% | ||
1-4 (Copper ports) | Green indicators | Yellow indicators |
Off: ports link down | Off: PoE not working | |
On: ports link up | On: PoE working on af/at state | |
Blinking: data on TX/RX | Blinking: PoE working on bt state | |
5-6 (Fiber ports) Green | Off: ports link down | |
On: ports link up | ||
Blinking: data on TX/RX | ||
Power parameters | ||
Input voltage | 44-57VDC(802.3af) 52-57VDC(802.3at/802.3bt) redundant power input | |
Input current | 5.7A Max | |
Total power consumption | Full loading without PoE ≤8W PoE power budget ≤240W | |
Connector | Removable 6-pin terminal block | |
Reverse polarity protection | Support | |
Over-voltage protection | Support | |
Over-current protection | Support | |
Switching features | ||
Switching capacity | 12G | |
Packet forwarding rate | 8.928Mpps | |
MAC address table | 16K | |
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | |
Buffer | 2M | |
Forwarding delay | <5us | |
Jumbo Frame | Support 10Kbytes | |
MDI/MDIX | Support | |
Watchdog | Support | |
Network Topology | ||
Star topology | Support | |
Bus topology | Support | |
Tree Topology | Support | |
Mechanical structure | ||
Case protection | IP40 | |
Installation method | Din-rail | |
Dimension(W*D*H)mm | 54*98*130mm | |
Weight | 0.85 kg | |
Operating environment | ||
Operating temperature | -40℃~+75℃ | |
Storage/transportation temperature | -40℃~+85℃ | |
Relative humidity | 5%~95%(non-condensing) | |
Industry standard | EMI: FCC Part 15B Class A | |
Surge protection of power: IEC 61000-4-5 6KV/4KV(8/20us) | ||
Surge protection of Ethernet ports: IEC 61000-4-5 6KV/2KV(10/700us) | ||
RS: IEC 61000-4-3 80 MHz-1 GHz: 10 V/m | ||
EFT: IEC 61000-4-4 power interface: 4K；Ethernet ports: 2K | ||
CS: IEC 61000-4-6 10V | ||
ESD: IEC 61000-4-2 Level 4(8K/15K) | ||
Shock: IEC 60068-2-27 | ||
Free fall: IEC 60068-2-32 | ||
Vibration: IEC 60068-2-6 | ||
Certification | CE/FCC/RoHS | |
Warranty | 5 years | |
Model | Description |
DK3110I-4TP2S-4BT | Unmanaged Industrial PoE switch with 4*10/100/1000Base-T RJ45 PoE ports and 2*1000Base-X SFP slots, complies with IEEE802.3af, IEEE802.3at and IEEE802.3bt standard, DC44-57V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
