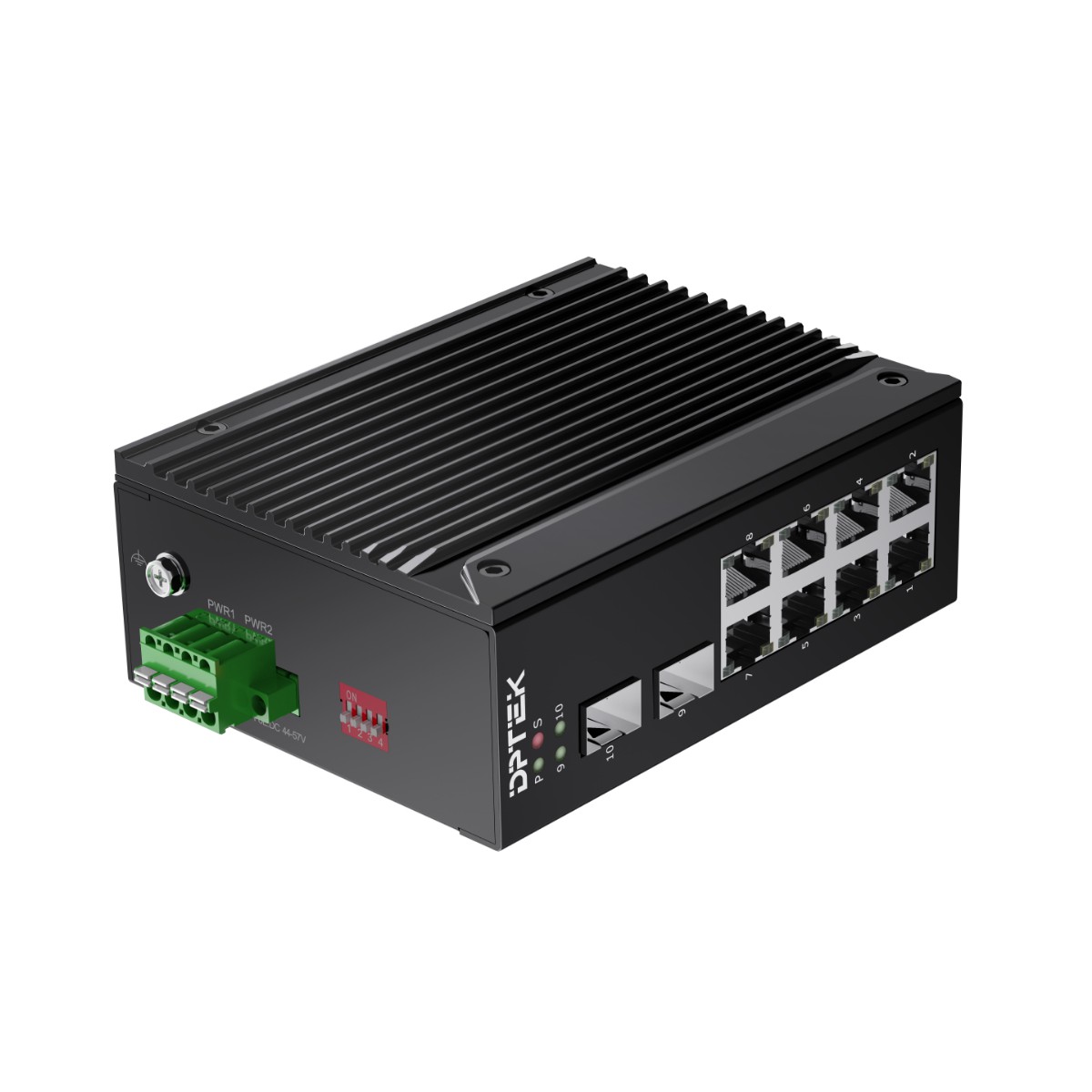

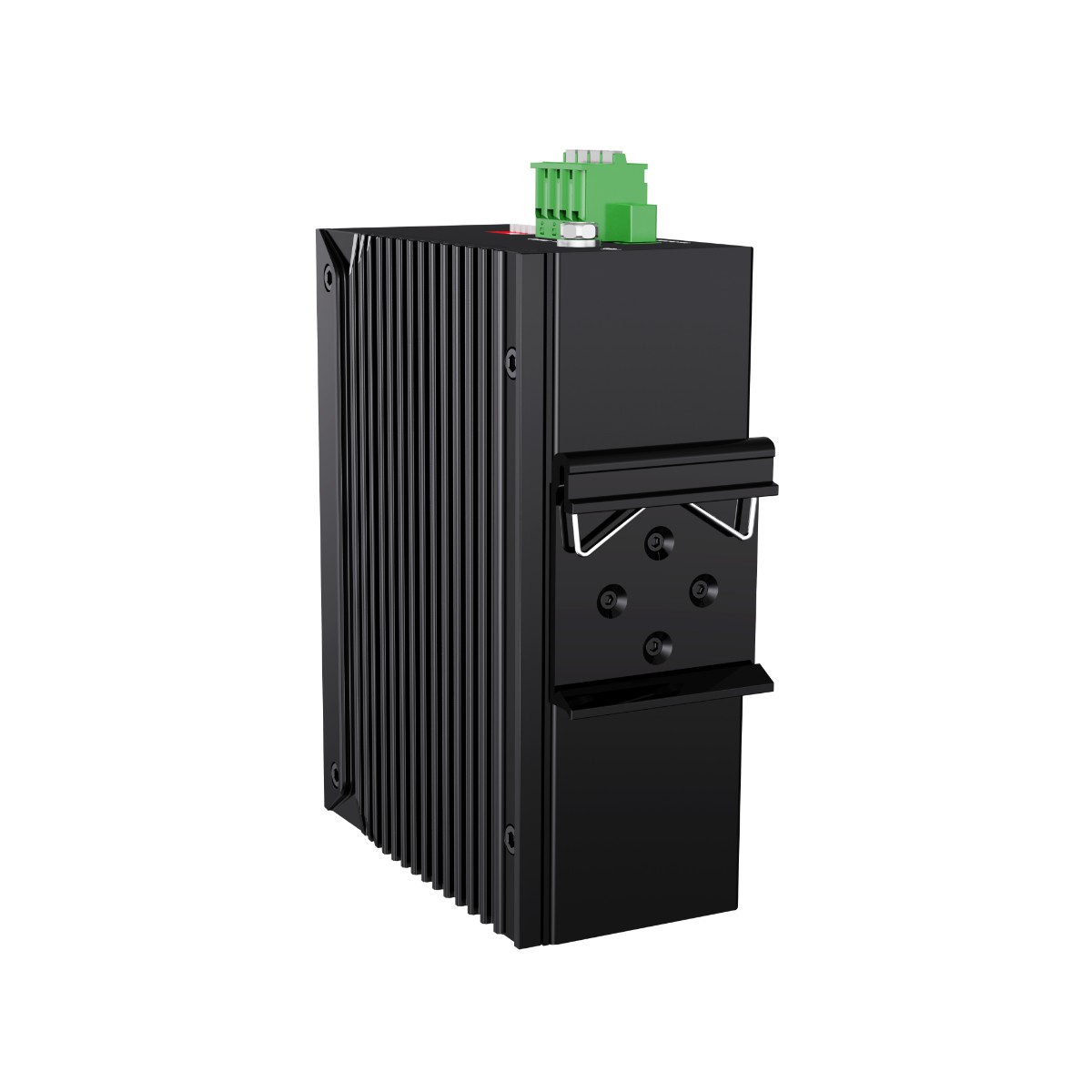

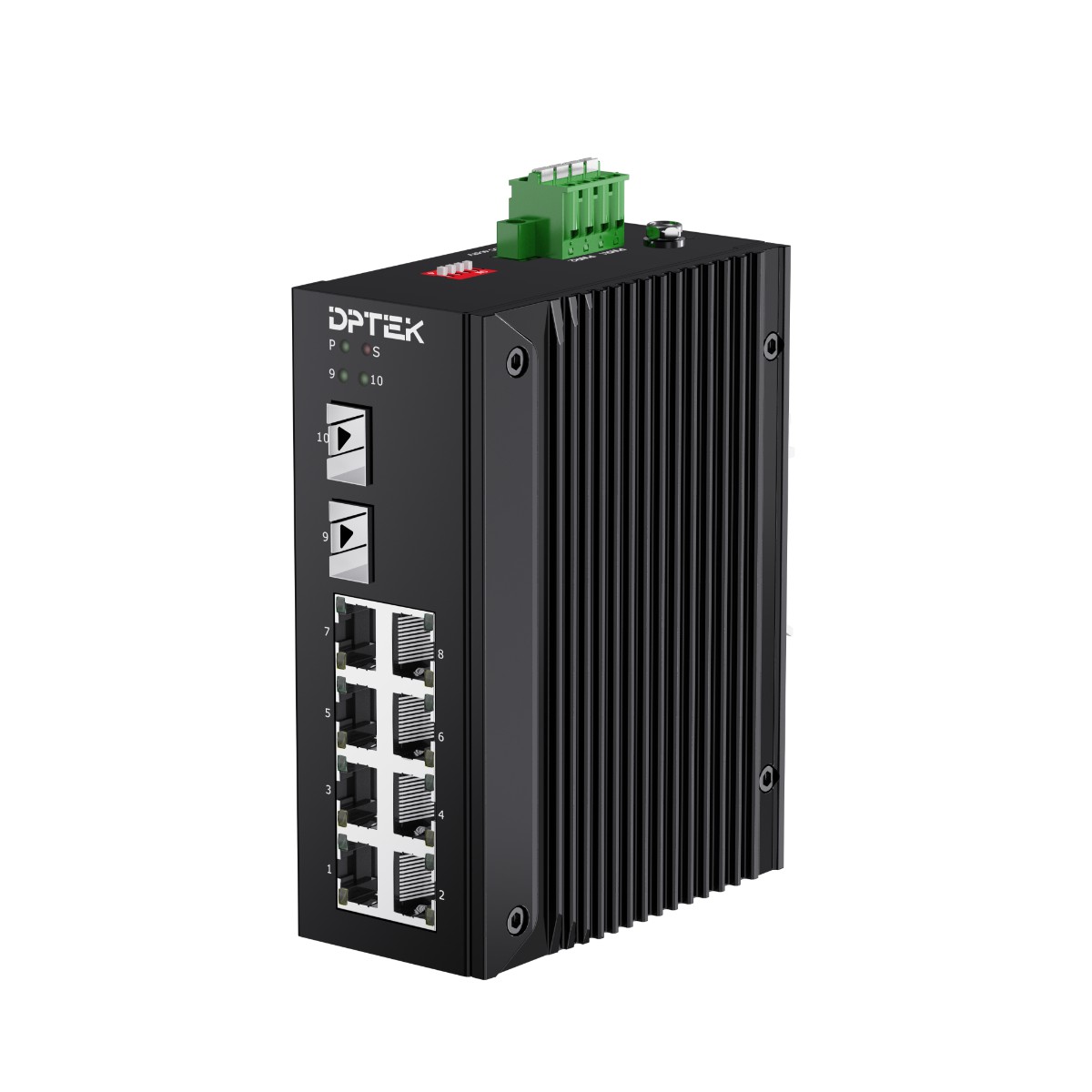

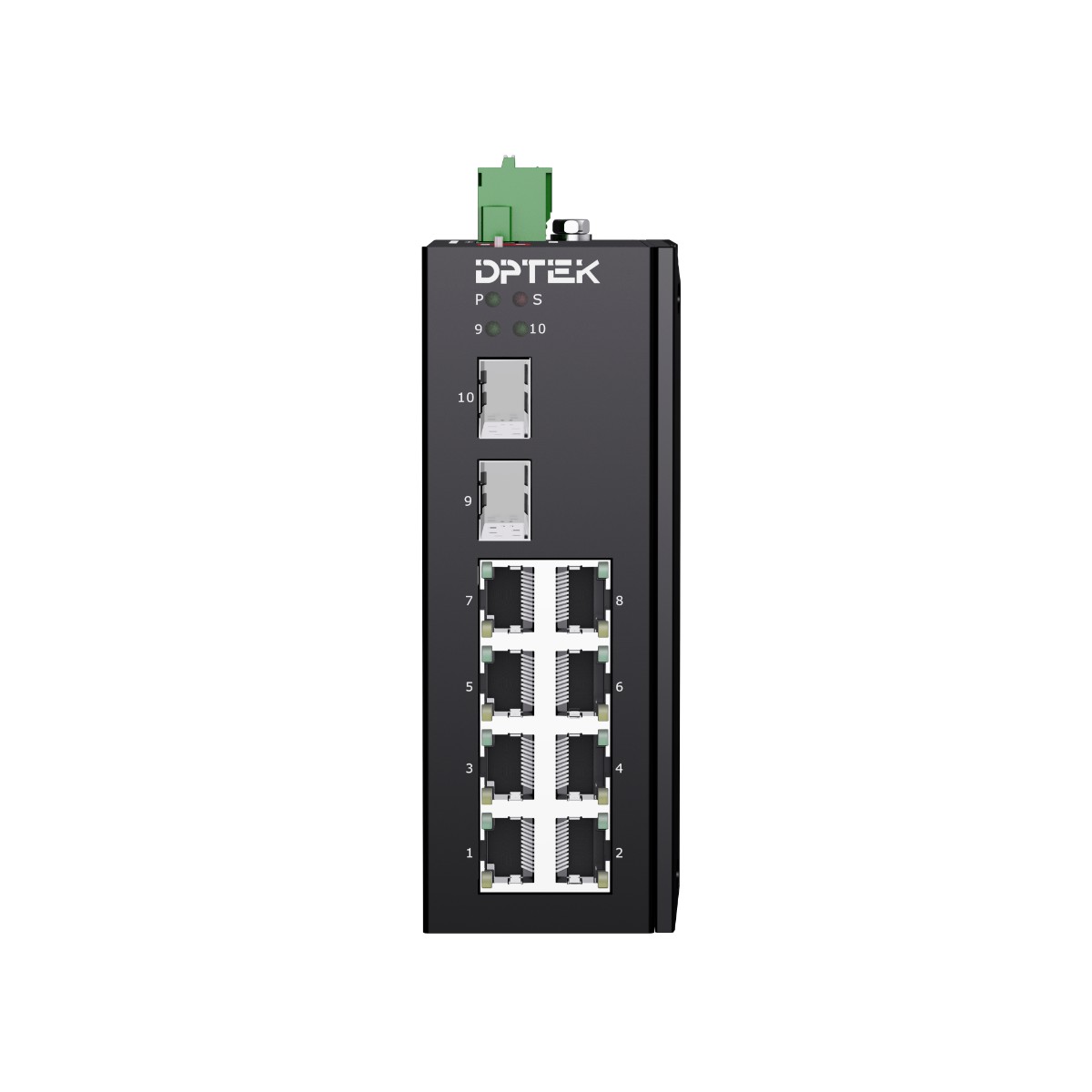

DK3100I-8FP2S
8*10/100Base-TX PoE + 2*1000Base-X
Unmanaged Industrial PoE Ethernet Switch
DC12-58V input, redundant dual power supply;
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
8*10/100Base-TX PoE + 2*1000Base-X
Unmanaged Industrial PoE Ethernet Switch
DC12-58V input, redundant dual power supply;
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3100I-8FP2S series are the unmanaged industrial grade PoE switch with 8-port 10/100Base-TX PoE and 2-port 1000Base-X fiber optical interfaces. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, they are featuring with port isolation, 250m long distance transmission mode, QoS(1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK3100I-8FP2S series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 8*10/100Base-TX RJ45 PoE ports, 2*1000Base-X SFP(/SC/ST/FC optional) fiber ports
➢ DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
➢ Dip switch function: 1.Port isolation; 2. 250m long distance; 3. QoS; 4.PoE watchdog
➢ Support 10K Bytes Jumbo frame
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+75°C
Model No. | DK3100I-8FP2S | |||
Interface | Fiber ports | Copper RJ45 ports | ||
2 | 8 | |||
Ethernet | 8*10/100Base-TX PoE 2*1000Base-X SFP (SC/ST/FC are optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE | |||
Dip Switch | 1. Port Isolation 2. 250m long distance mode(1-8 ports) 3. QoS(1-2 ports） 4. PoE watchdog | |||
LED Indicators | P(Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S(PoE usage indicator) Red | Off: total PoE usage ＜rated 50% | |||
Blinking: rated 50%＜total PoE usage＜rated 90% | ||||
On: total PoE usage≥rated 90% | ||||
1-8 (Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: PoE not working | |||
On: ports link up | On: PoE working | |||
Blinking: data on TX/RX | ||||
9-10 ( Fiber ports) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 44-57VDC, redundant power input | |||
Input current | 5.6A Max | |||
Total power consumption | Full loading without PoE ≤6W PoE power budget ≤ 240W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 5.6G | |||
Packet forwarding rate | 8.3Mpps | |||
MAC address table | 8K | |||
VLAN | 8K | |||
Buffer | 2Kbits | |||
Forwarding delay | <5us | |||
Jumbo Frame | Support 10Kbytes | |||
MDX/MIDX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 48*98*130mm | |||
Weight | 0.72 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95%（non-condensing） | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) | ||||
DIP: IEC 61000-4-11 Level 3（10V） | ||||
ESD: IEC 61000-4-2 Level 4（8K/15K） | ||||
Shock：IEC 60068-2-27 | ||||
Free fall：IEC 60068-2-32 | ||||
Vibration：IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |
DK3100I-8FP2S | 10/100Base-TX to 1000Base-X unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 2*1000Base-X SFP slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C～+75°C |
DK3100I-8FP2S-SC | 10/100Base-TX to 1000Base-X unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 2*1000Base-X SC ports, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m-100KM optional; Operation temperature: -40°C～+75°C |
DK3100I-8FP2S-FC | 10/100Base-TX to 1000Base-X unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 2*1000Base-X FC ports, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m-100KM optional; Operation temperature: -40°C～+75°C |
DK3100I-8FP2S-ST | 10/100Base-TX to 1000Base-X unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 2*1000Base-X ST ports, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m-100KM optional; Operation temperature: -40°C～+75°C |
