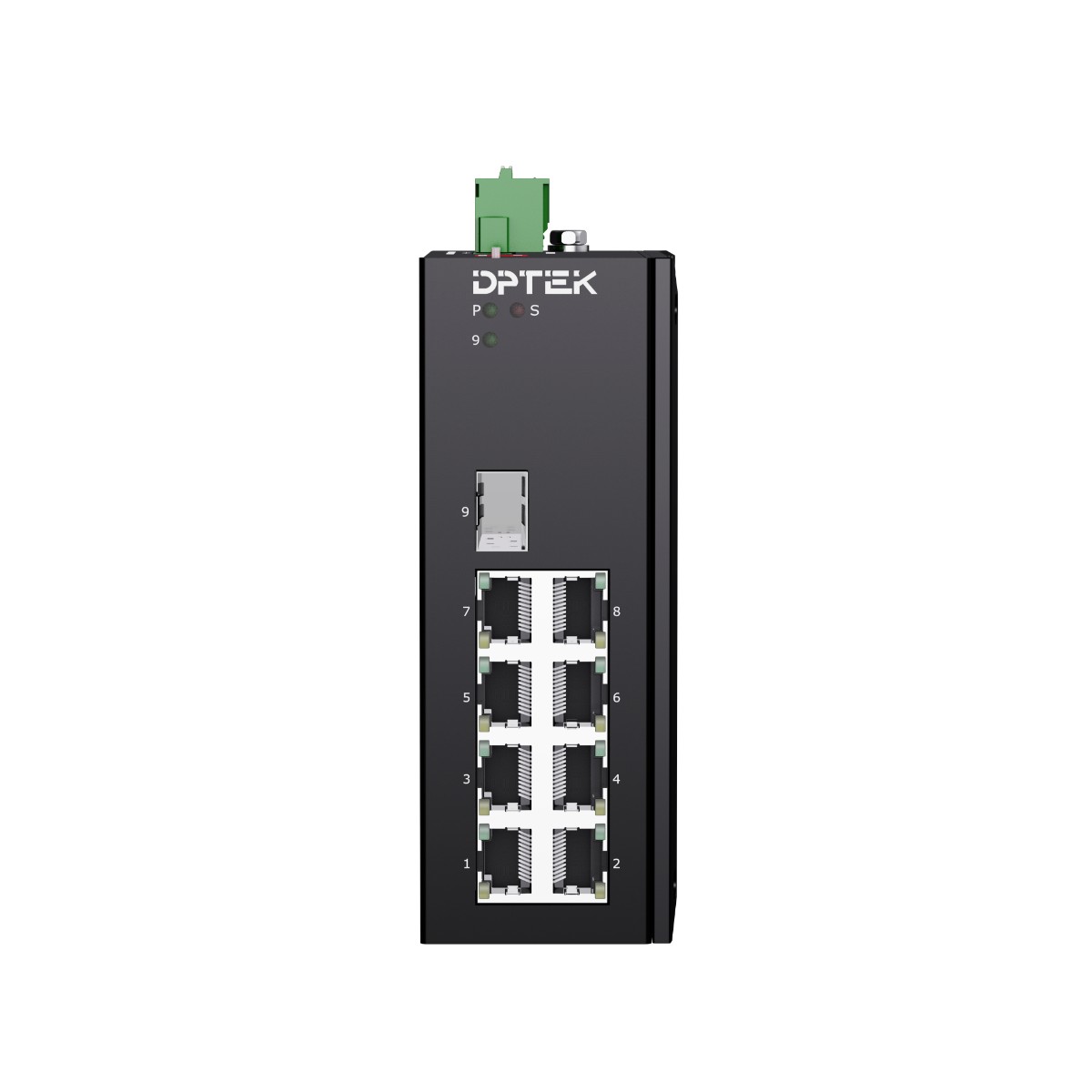

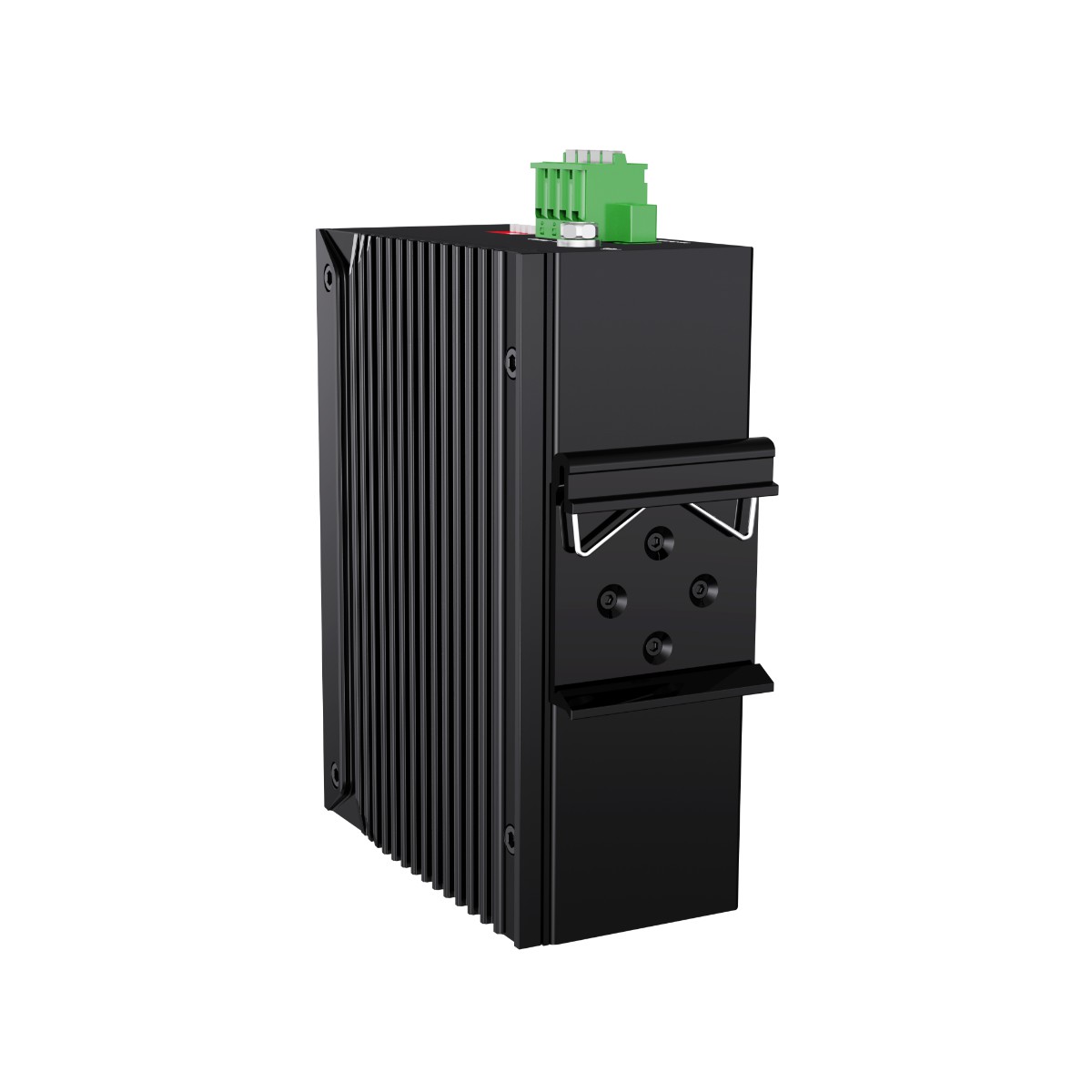

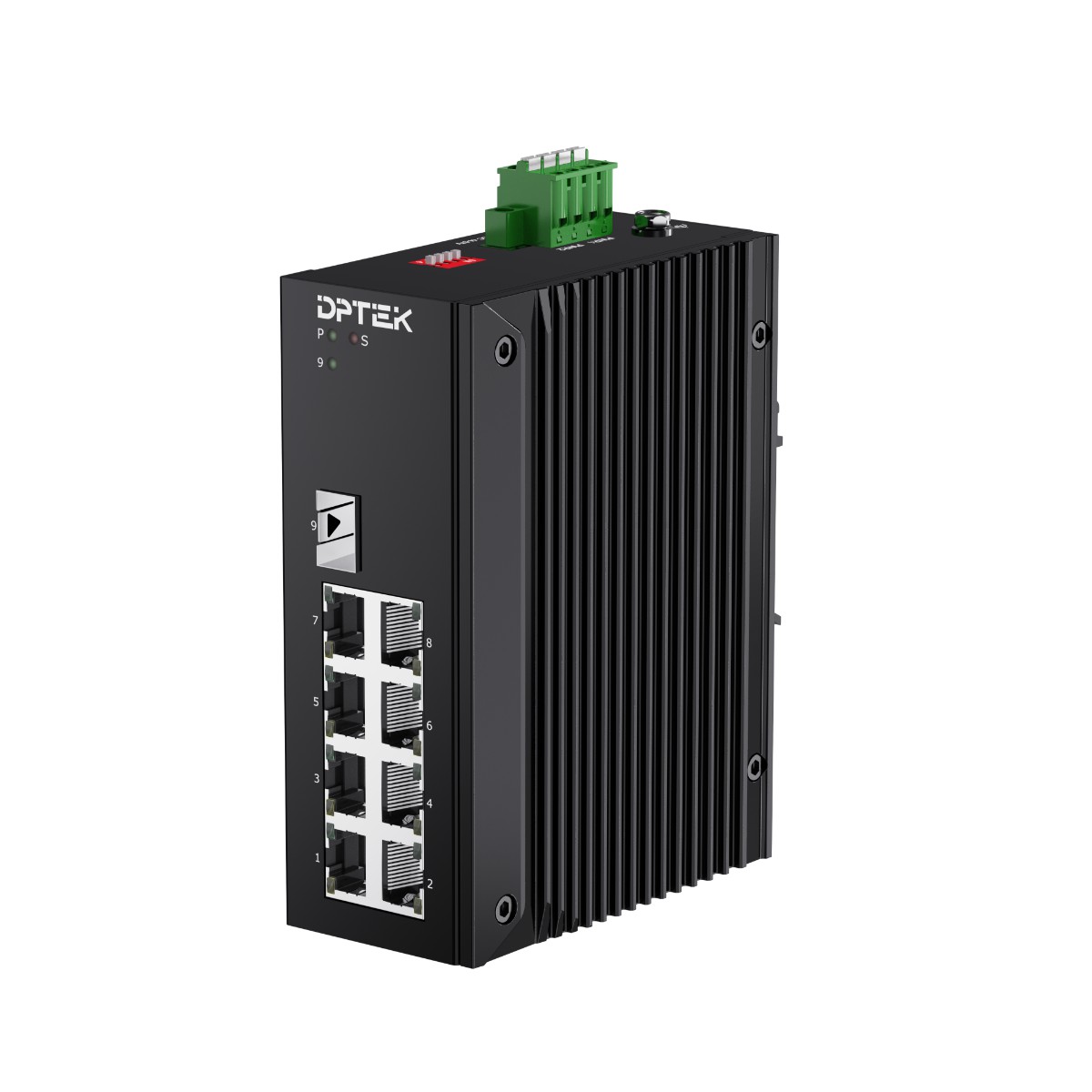

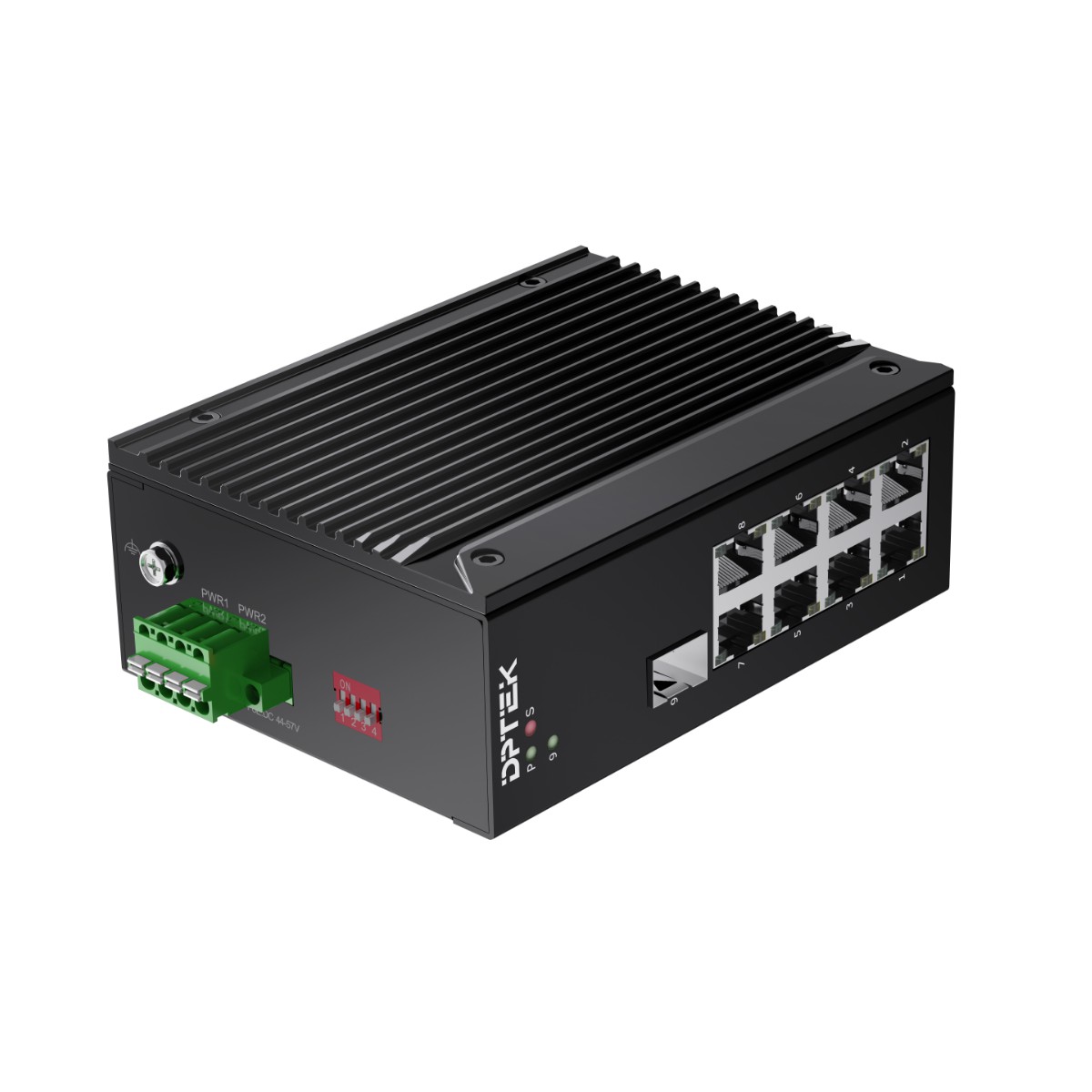

DK3100I-8FP1FS


    8*10/100Base-TX PoE + 1*100Base-FX

    Unmanaged Industrial PoE Ethernet Switch



    DC12-58V input, redundant dual power supply;

    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;

    Operation temperature: -40°C~+75°C

    Din-rail installation


  • Parameters


    8*10/100Base-TX PoE + 1*100Base-FX

    Unmanaged Industrial PoE Ethernet Switch



    DC12-58V input, redundant dual power supply;

    Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;

    Operation temperature: -40°C~+75°C

    Din-rail installation


Overview



The DPTEK DK3100I-8FP1FS series are unmanaged industrial grade PoE switches with 8-port 10/100Base-TX PoE and 1-port 100Base-FX fiber optical interface. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, they are featuring with port isolation, 250m long distance transmission mode(1-8 ports), QoS(1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel.



DK3100I-8FP1FS series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.



Features

 8*10/100Base-TX RJ45 PoE ports, 1*100Base-FX SFP(/SC/ST/FC optional) fiber port

 DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection

 Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

  Dip switch function: 1.Port isolation; 2. 250m long distance; 3. QoS; 4.PoE watchdog

 Support 9K Bytes Jumbo frame

 Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

 IP40 fan-less and Din-rail hardware design

 Operation temperature: -40°C ~+75°C



Model No.

DK3100I-8FP1FS

Interface

Fiber port

Copper RJ45 ports

1

8

Ethernet

8*10/100Base-TX PoE

1*100Base-FX SFP (SC/ST/FC optional)

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3af Power-Over-Ethernet

IEEE 802.3at Power Over Ethernet plus PSE

Dip Switch

1. Port Isolation

2. 250m long distance mode(1-8 ports)

3. QoS(1-2 ports

4. PoE watchdog

LED Indicators

P(Power indicator) Green

Off: the device is power off or failed

On: the device power on is normal

S(PoE usage indicator) Red

Off: total PoE usage rated 50%

Blinking: rated 50%total PoE usagerated 90%

On: total PoE usage≥rated 90%

1-8(Copper ports)

Green indicators

Yellow indicators

Off: ports link down

Off: PoE not working

On: ports link up

On: PoE working

Blinking: data on TX/RX

9 ( Fiber port) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameters

Input voltage

44-57VDC, redundant power input

Input current

5.6A Max

Total power consumption

Full loading without PoE ≤5W

PoE power budget  240W

Connector

Removable 4-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Switching features

Switching capacity

1.8G

Packet forwarding rate

2.67 Mpps

MAC address table

2K

VLAN

2K

Buffer

2Kbits

Forwarding delay

<100us

Jumbo Frame

Support 9Kbytes

MDX/MIDX

Support

Watchdog

Support

Network Topology

Star topology

Support

Bus topology

Support

Tree Topology

Support

Mechanical structure

Case protection

IP40

Installation method

Din-rail

Dimension(W*D*H)mm

48*98*130mm

Weight

0.70 kg

Operating environment

Operating temperature

-40℃~+75℃

Storage/transportation temperature

-40℃~+85℃

Relative humidity

5%~95%non-condensing

Industrial Standard

Surge protection of power: IEC 61000-4-5  Level 3 (4KV/2KV)(8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  Level 3 (4KV/2KV)(10/700us)

DIP: IEC 61000-4-11  Level 310V

ESD: IEC 61000-4-2  Level 48K/15K

ShockIEC 60068-2-27

Free fallIEC 60068-2-32

VibrationIEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years












































































































Model

Description

DK3100I-8FP1FS

10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 1*100Base-FX SFP slot, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C+75°C

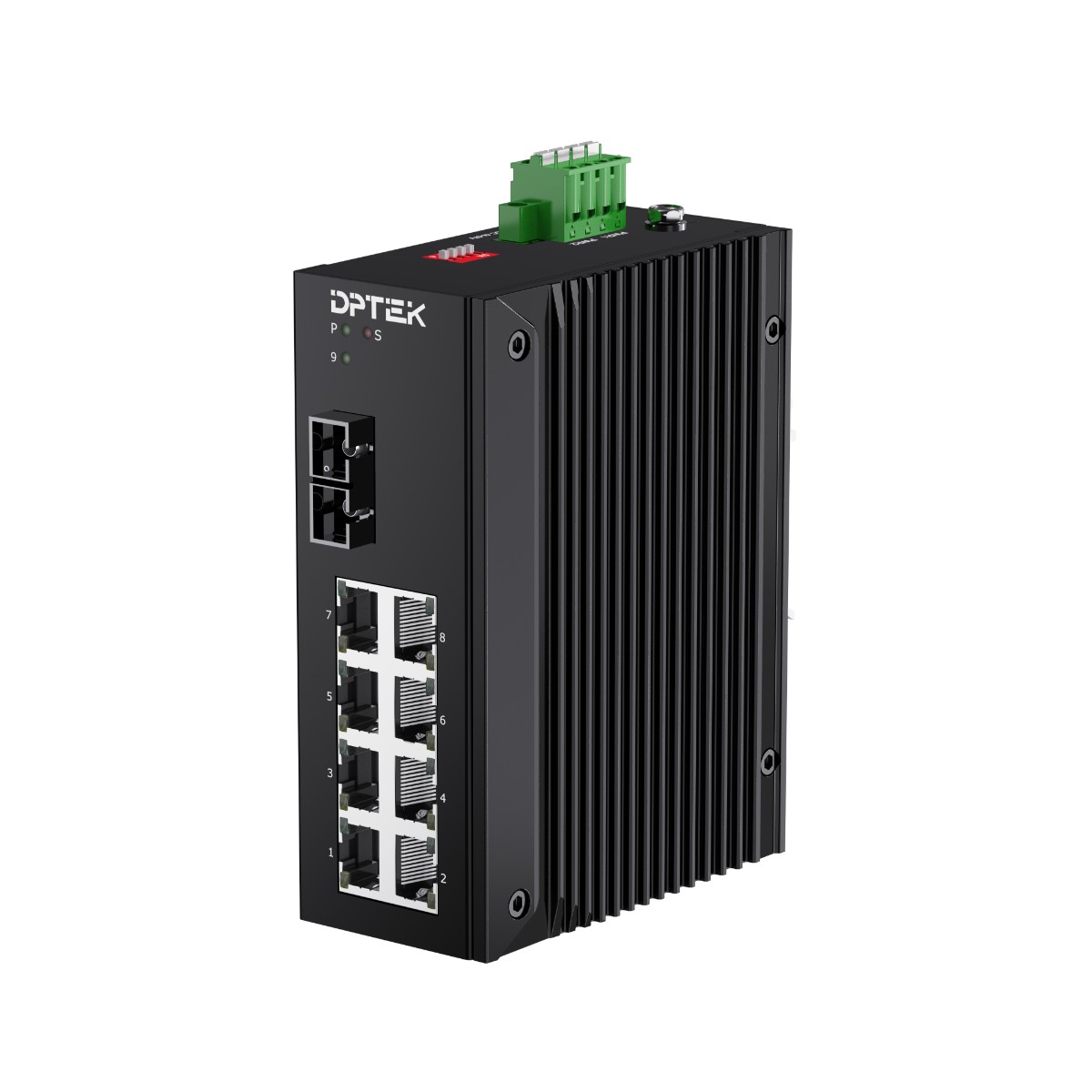

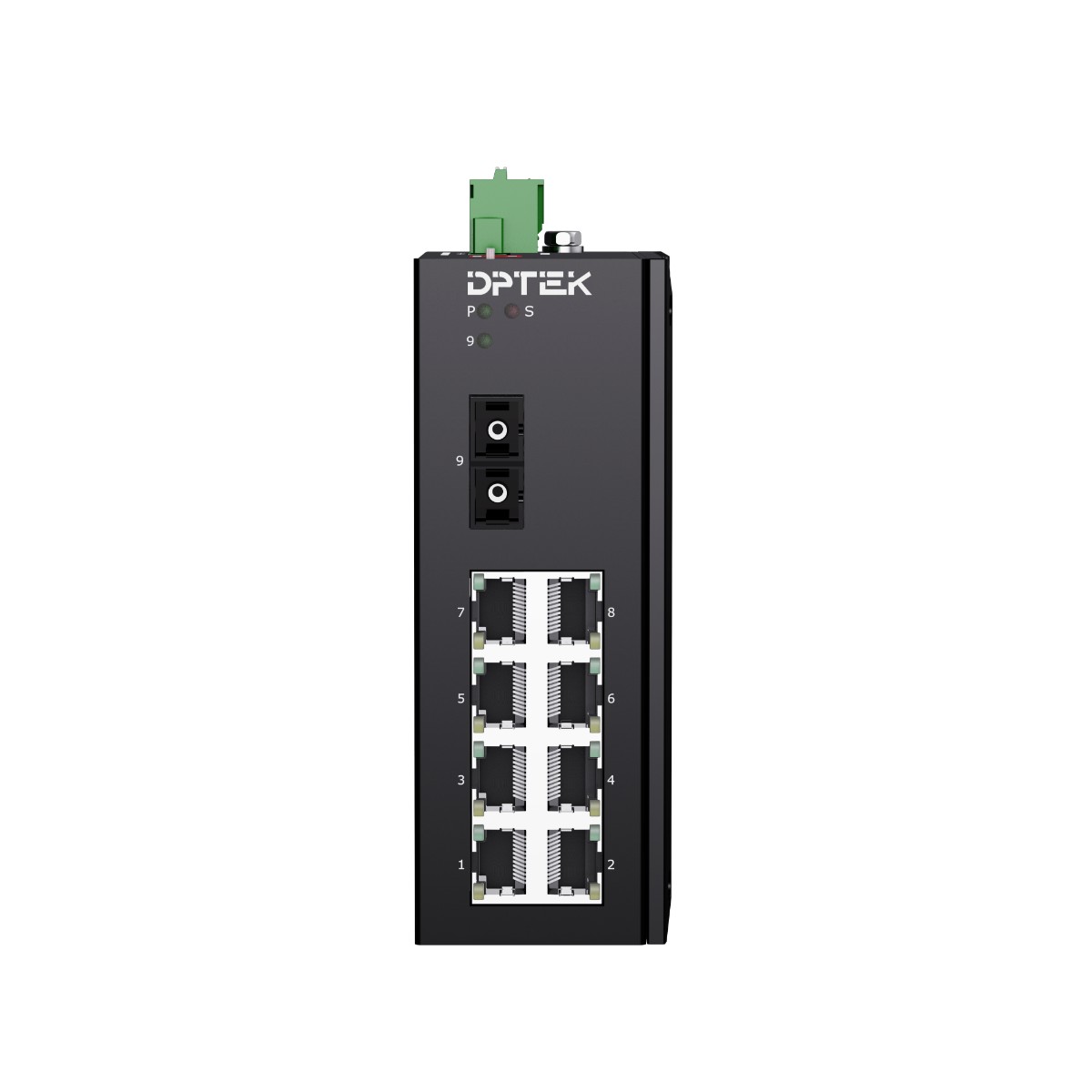

DK3100I-8FP1FS-SC

10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 1*100Base-FX SC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C+75°C

DK3100I-8FP1FS-FC

10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 1*100Base-FX FC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C+75°C

DK3100I-8FP1FS-ST

10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 8*10/100Base-TX PoE ports and 1*100Base-FX ST port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C+75°C






















DK3100I-8FP1FS
