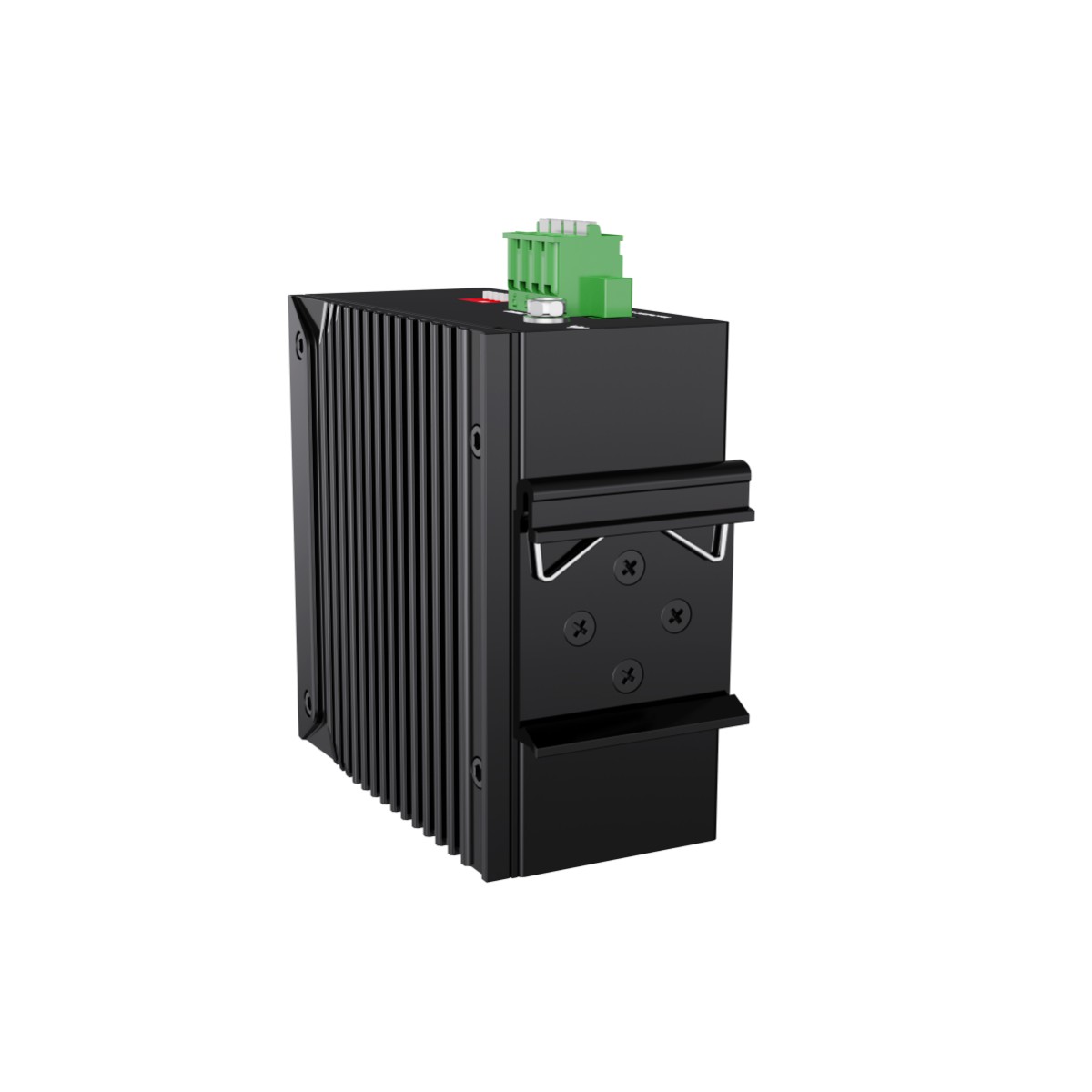

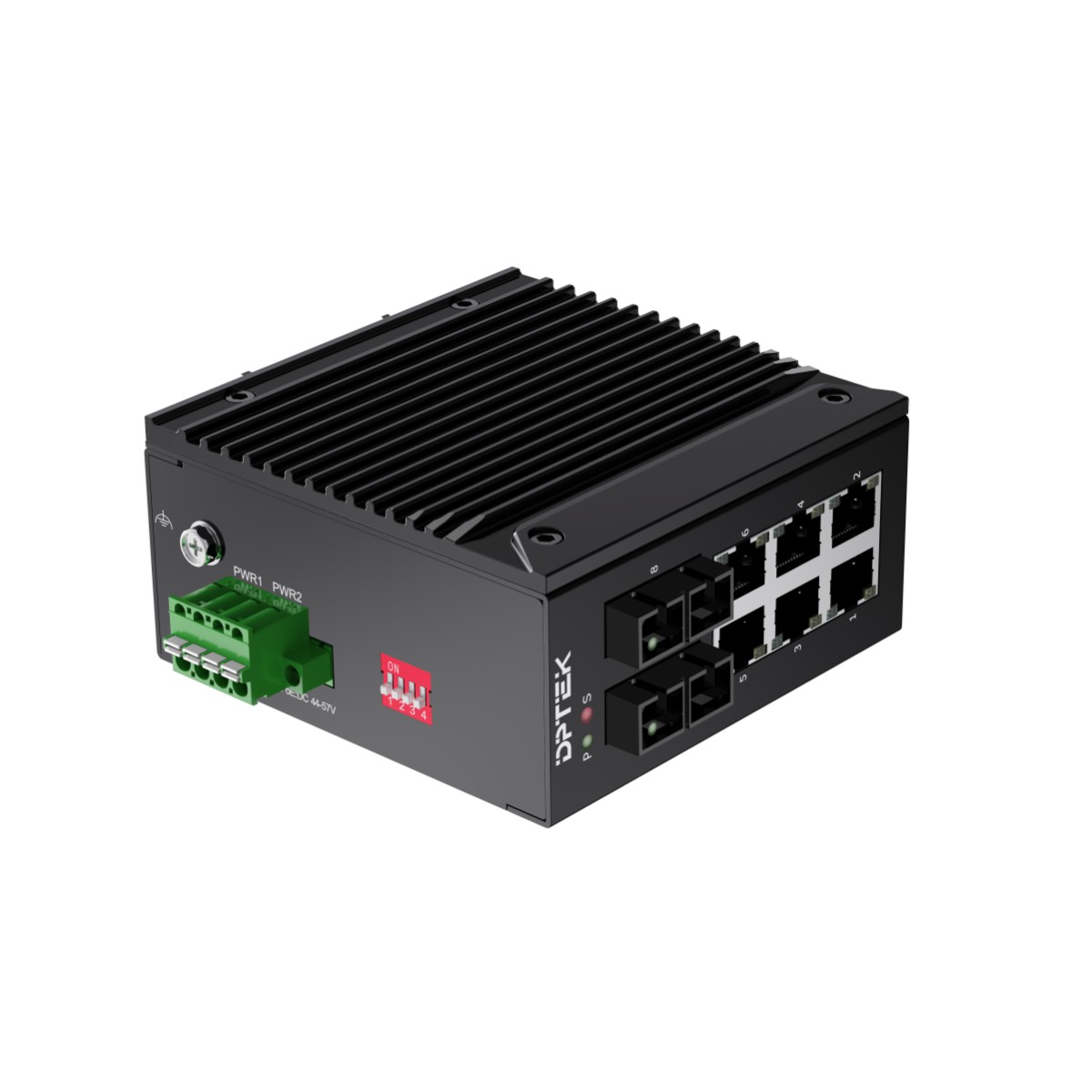

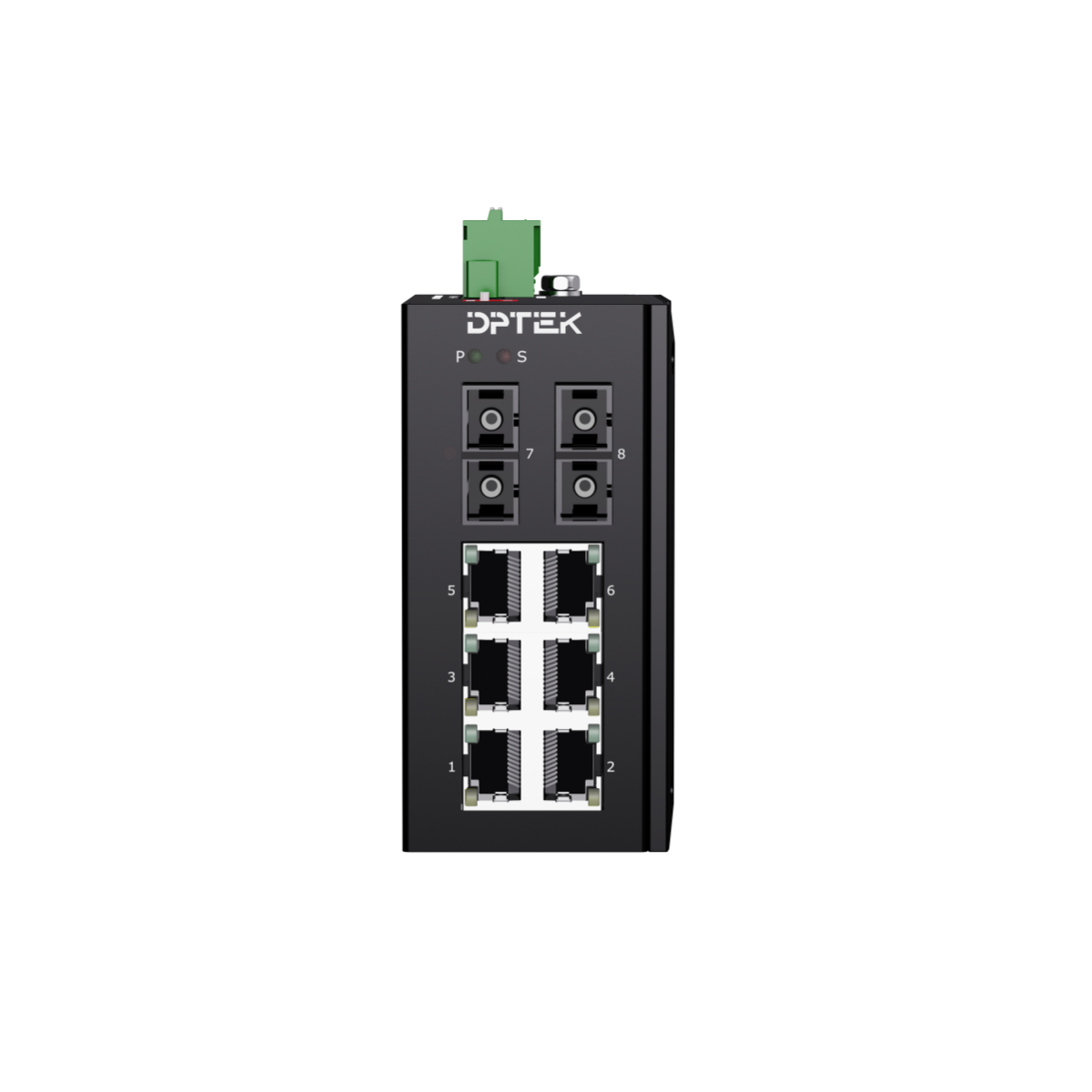

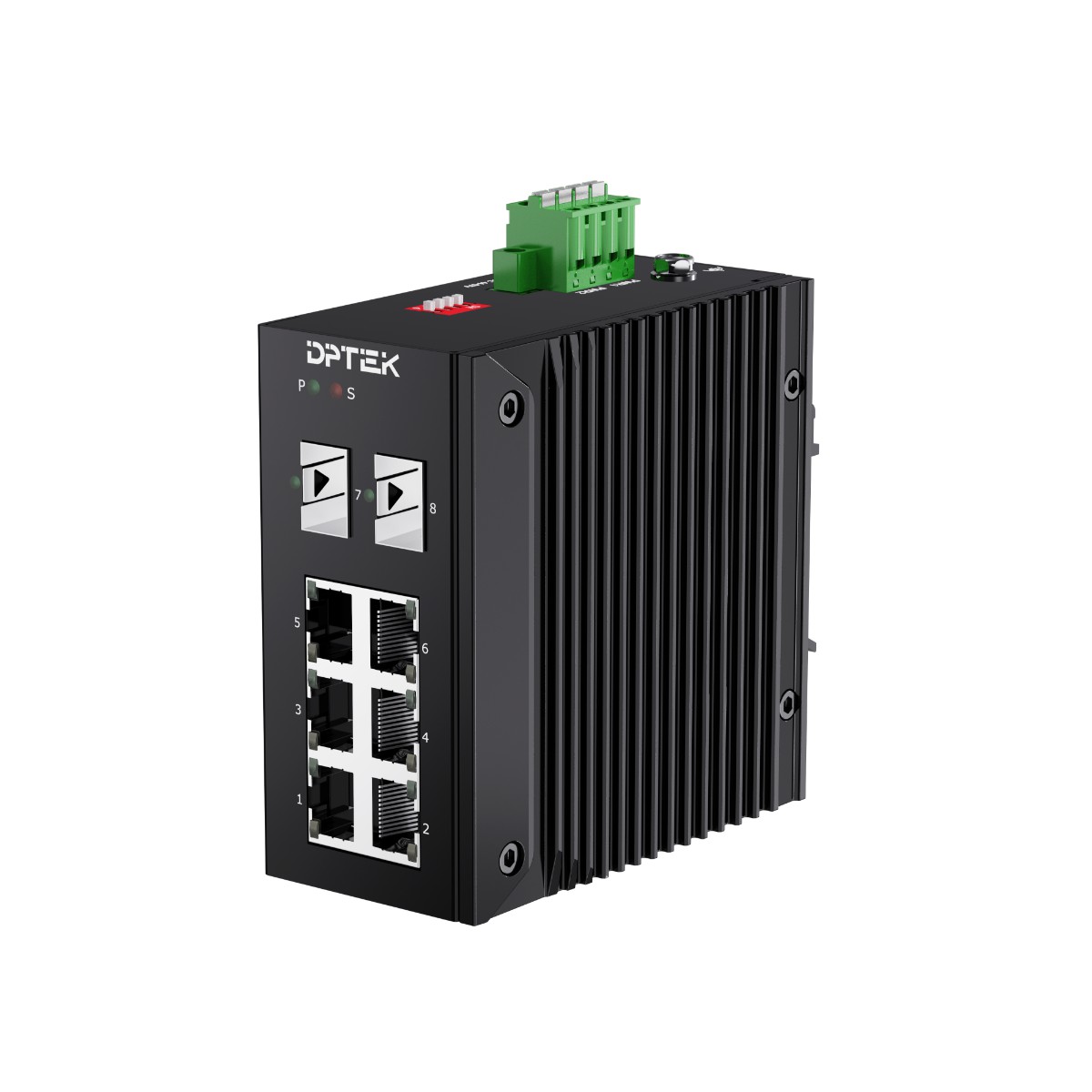

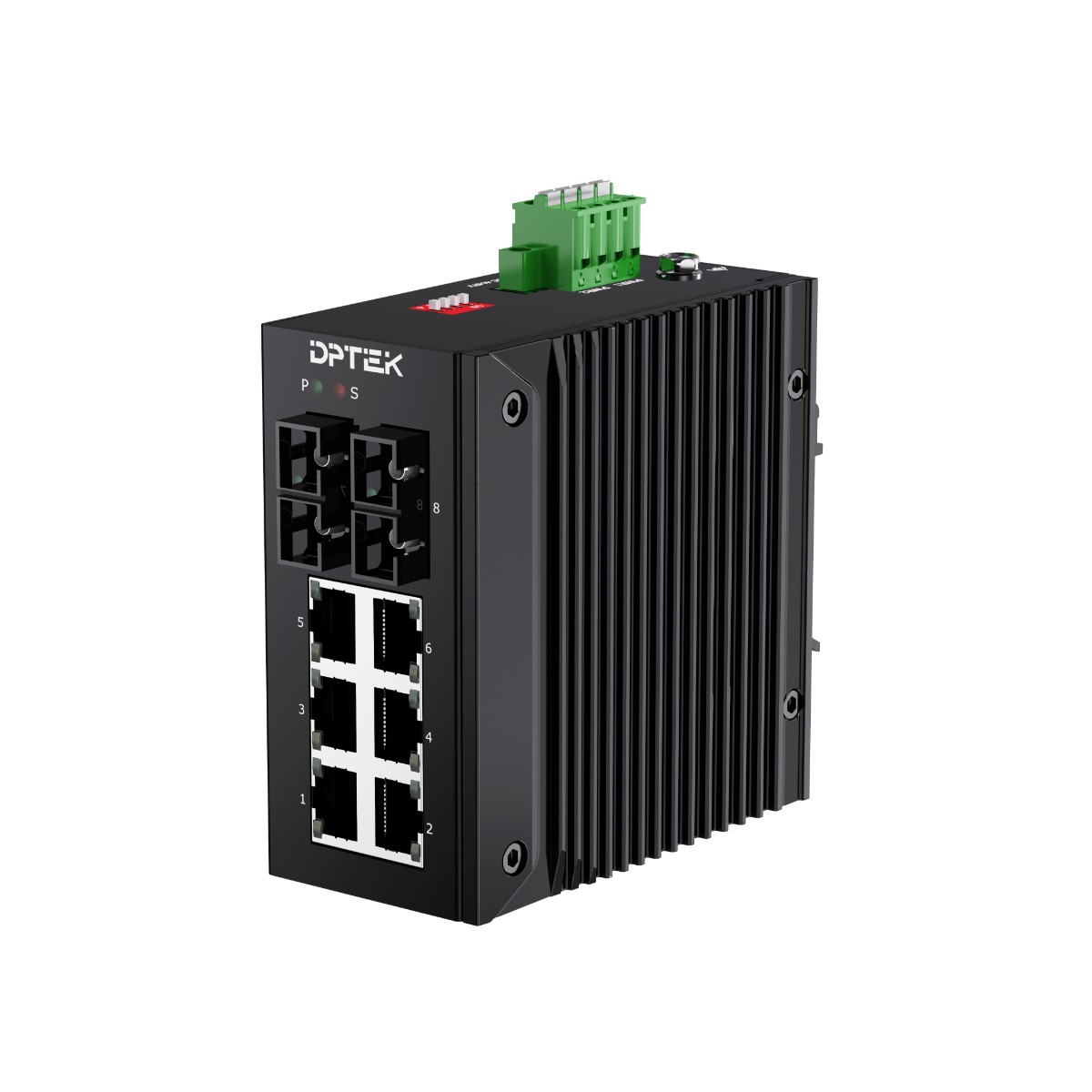

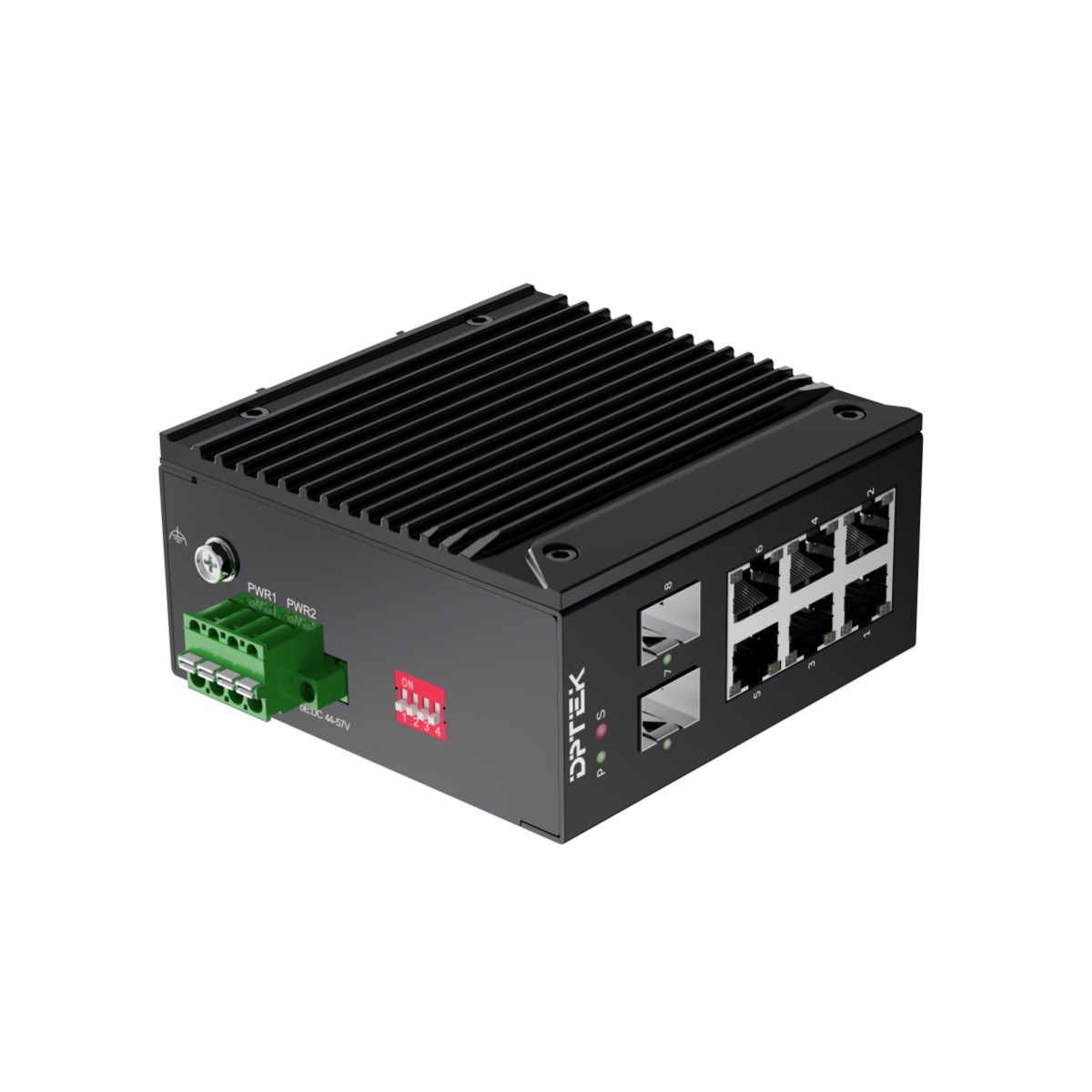

DK3100I-6FP2FS
6*10/100Base-TX PoE + 2*100Base-FX
Unmanaged Industrial PoE Ethernet Switch
DC44-57V input, redundant dual power supply;
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
6*10/100Base-TX PoE + 2*100Base-FX
Unmanaged Industrial PoE Ethernet Switch
DC44-57V input, redundant dual power supply;
Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard;
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3100I-6FP2FS is the unmanaged industrial grade PoE switch with 6-port 10/100Base-TX PoE and 2-port 100Base-FX fiber optical interfaces. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, it is featuring with port isolation, 250m long distance transmission mode, QoS (1-2 ports) and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK3100I-6FP2FS is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C ~+75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features:
- 6*10/100Base-TX RJ45 PoE ports, 2*100Base-FX SFP ports(SC/ST/FC optional)
- DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
- Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
- Dip switch function: 1. Port isolation; 2. 250m long distance; 3. QoS; 4. PoE watchdog
- Support 9K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3100I-6FP2FS | |||
Interface | Fiber ports | Copper RJ45 ports | ||
2 | 6 | |||
Ethernet | 6*10/100Base-TX PoE 2*100Base-FX SFP (SC/ST/FC optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE | |||
Dip Switch | 1. Port Isolation 2. 250m long distance mode 3. QoS(1-2 ports) 4. PoE watchdog | |||
LED Indicators | P (Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S (PoE usage indicator) Red | Off: total PoE usage ＜rated 50% | |||
Blinking: rated 50%＜total PoE usage＜rated 90% | ||||
On: total PoE usage≥rated 90% | ||||
1-6 (Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: PoE not working | |||
On: ports link up | On: PoE working | |||
Blinking: data on TX/RX | ||||
7-8 (Fiber ports) | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 44-57VDC, redundant power input | |||
Input current | 4.5A Max | |||
Total power consumption | Full loading without PoE ≤4W PoE power budget ≤ 180W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 1.6G | |||
Packet forwarding rate | 1.190Mpps | |||
MAC address table | 2K | |||
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | |||
Buffer | 2Kbits | |||
Forwarding delay | <100us | |||
Jumbo Frame | Support 9Kbytes | |||
MDI/MDIX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*98*98mm | |||
Weight | 0.6 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95% (non-condensing) | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | |||
Surge protection of Ethernet ports: | ||||
DIP: IEC 61000-4-11 Level 3 (10V) | ||||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | ||||
Shock: IEC 60068-2-27 | ||||
Free fall: IEC 60068-2-32 | ||||
Vibration: IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |
DK3100I-6FP2FS | 10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 6*10/100Base-TX PoE ports and 2*100Base-FX SFP slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
DK3100I-6FP2FS-SC | 10/100Base-TX to 100Base-FX unmanaged industrial PoE switch with 6*10/100Base-TX PoE ports and 2*100Base-FX SC (FC/ST optional) ports, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
