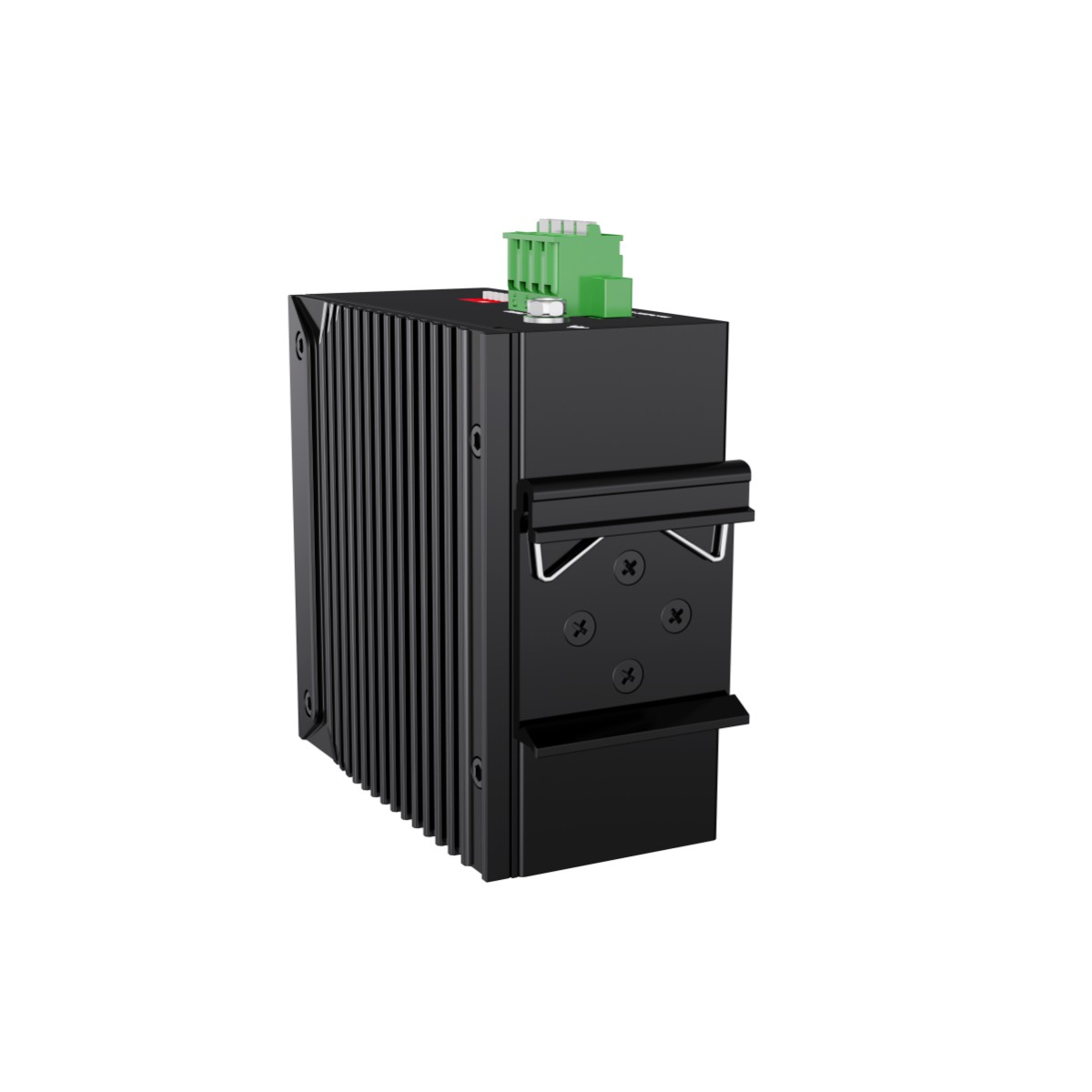

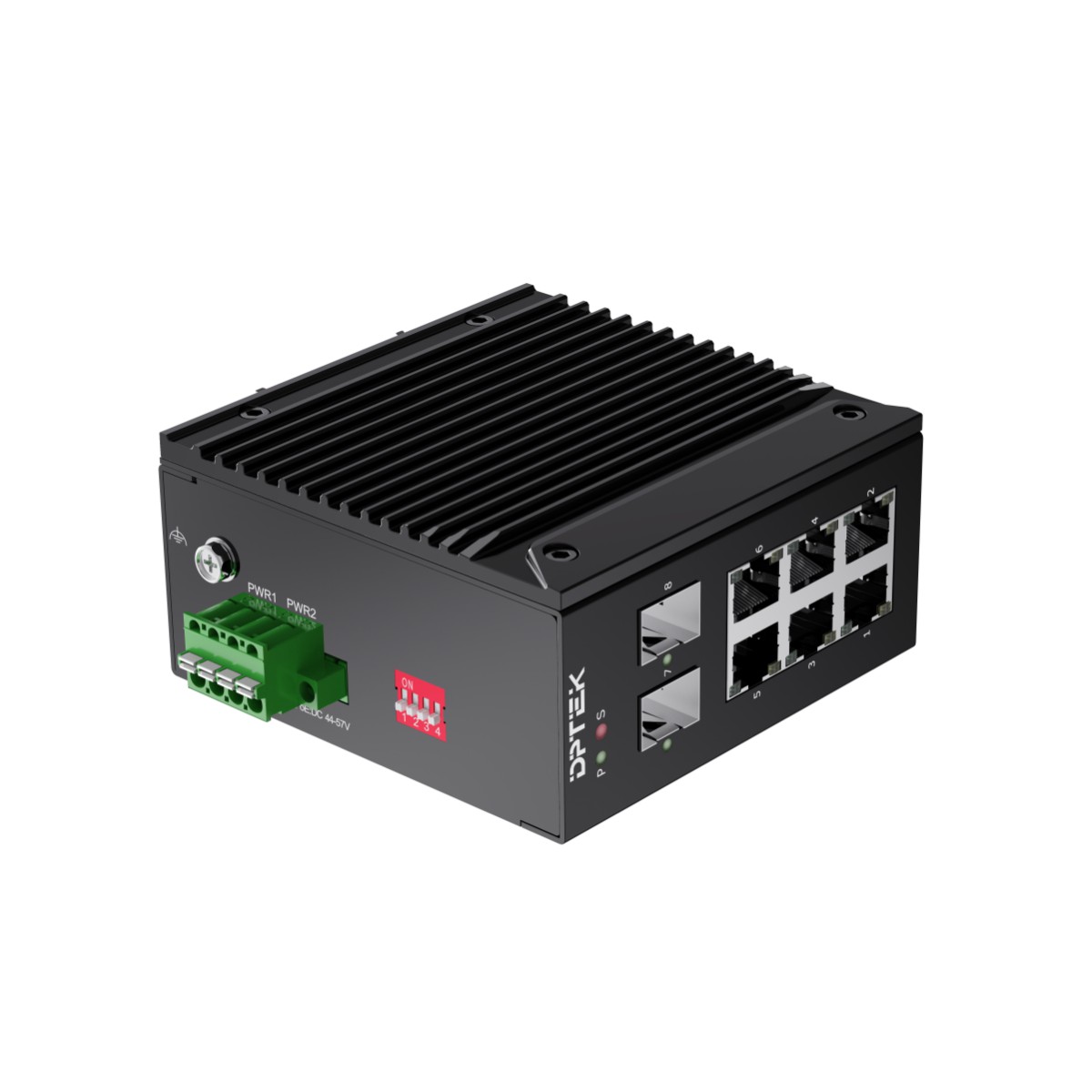

DK3100I-6F2FS
6*10/100Base-T + 2*100Base-FX
Unmanaged Industrial Ethernet Switch
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
6*10/100Base-T + 2*100Base-FX
Unmanaged Industrial Ethernet Switch
DC12-58V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3100I-6F2FS is the unmanaged industrial grade Ethernet switch with 6-port 10/100Base-TX RJ45 and 2-port 100Base-FX fiber optical interfaces. It is featuring with port isolation, flow control, QoS (1-2 ports) and broadcast storm restrain function, which all can be configured by the Dip switch on the top panel.
DK3100I-6F2FS is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features:
- 6*10/100Base-TX RJ45 ports, 2*100Base-FX SFP fiber ports(SC/ST/FC optional)
- DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
- Dip switch function: 1. Port isolation; 2. Flow control; 3. QoS; 4. Broadcast storm restrain
- Support 9K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3100I-6F2FS | |||
Interface | Fiber ports | Copper RJ45 ports | ||
2 | 6 | |||
Ethernet | 6*10/100Base-TX RJ45 2*100Base-FX SFP (SC/ST/FC optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | |||
Dip Switch | 1. Port Isolation 2. Flow control 3. QoS(1-2 ports) 4. Broadcast storm restrain | |||
LED Indicators | P (Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S (System indicator) Red | Off: the chip is normal | |||
On: the chip read/write is unnormal | ||||
1-6 (Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: port speed is 10M | |||
On: ports link up | On: port speed is 100M | |||
Blinking: data on TX/RX | ||||
7-8 (Fiber ports) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 12-58VDC, redundant power input | |||
Input current | 0.5A Max | |||
Total power consumption | Full loading ≤5W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 1.6G | |||
Packet forwarding rate | 1.190Mpps | |||
MAC address table | 2K | |||
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | |||
Buffer | 2Kbits | |||
Forwarding delay | <100us | |||
Jumbo Frame | Support 9Kbytes | |||
MDI/MDIX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*98*98mm | |||
Weight | 0.58 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95% (non-condensing) | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | |||
Surge protection of Ethernet ports: | ||||
DIP: IEC 61000-4-11 Level 3 (10V) | ||||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | ||||
Shock: IEC 60068-2-27 | ||||
Free fall: IEC 60068-2-32 | ||||
Vibration: IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |

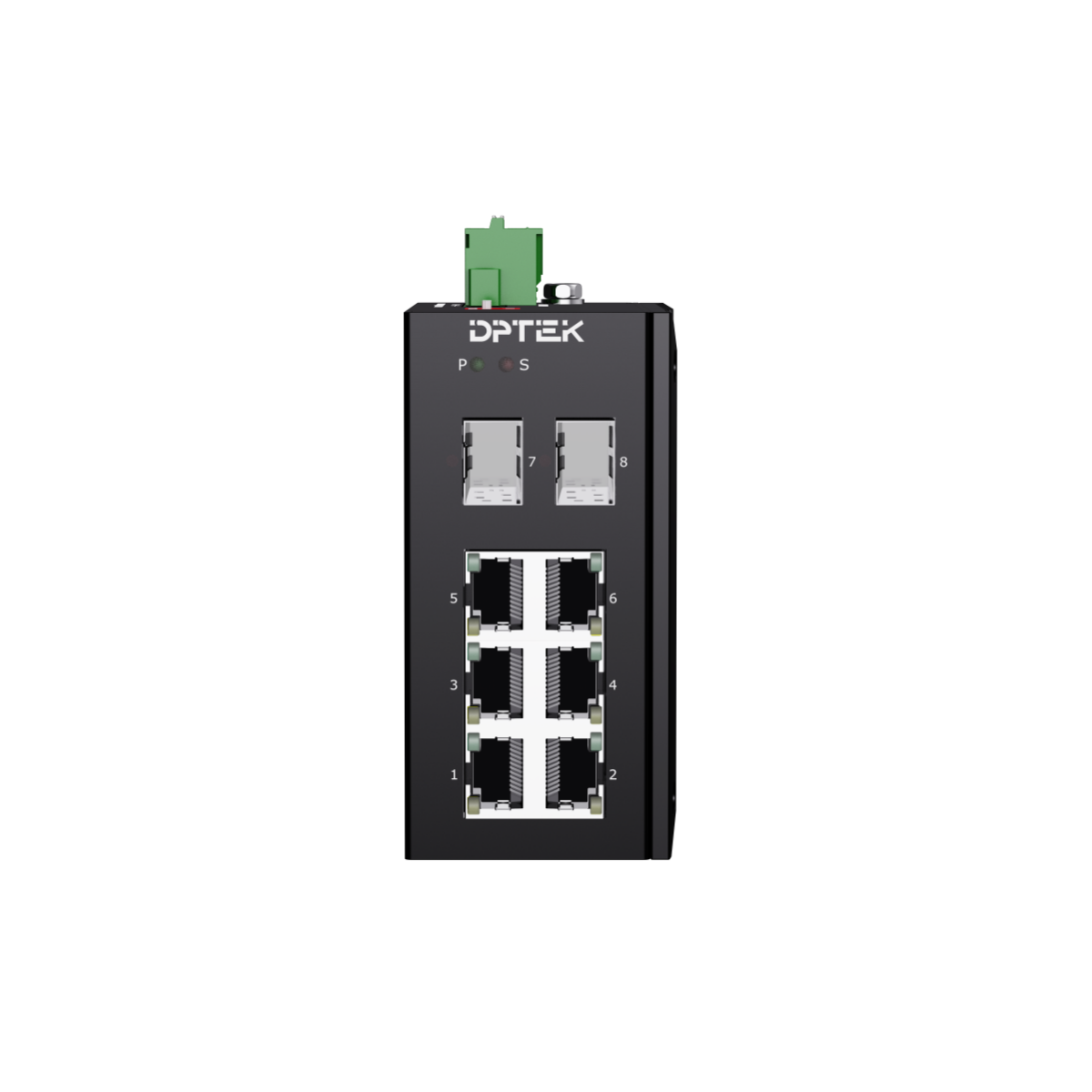

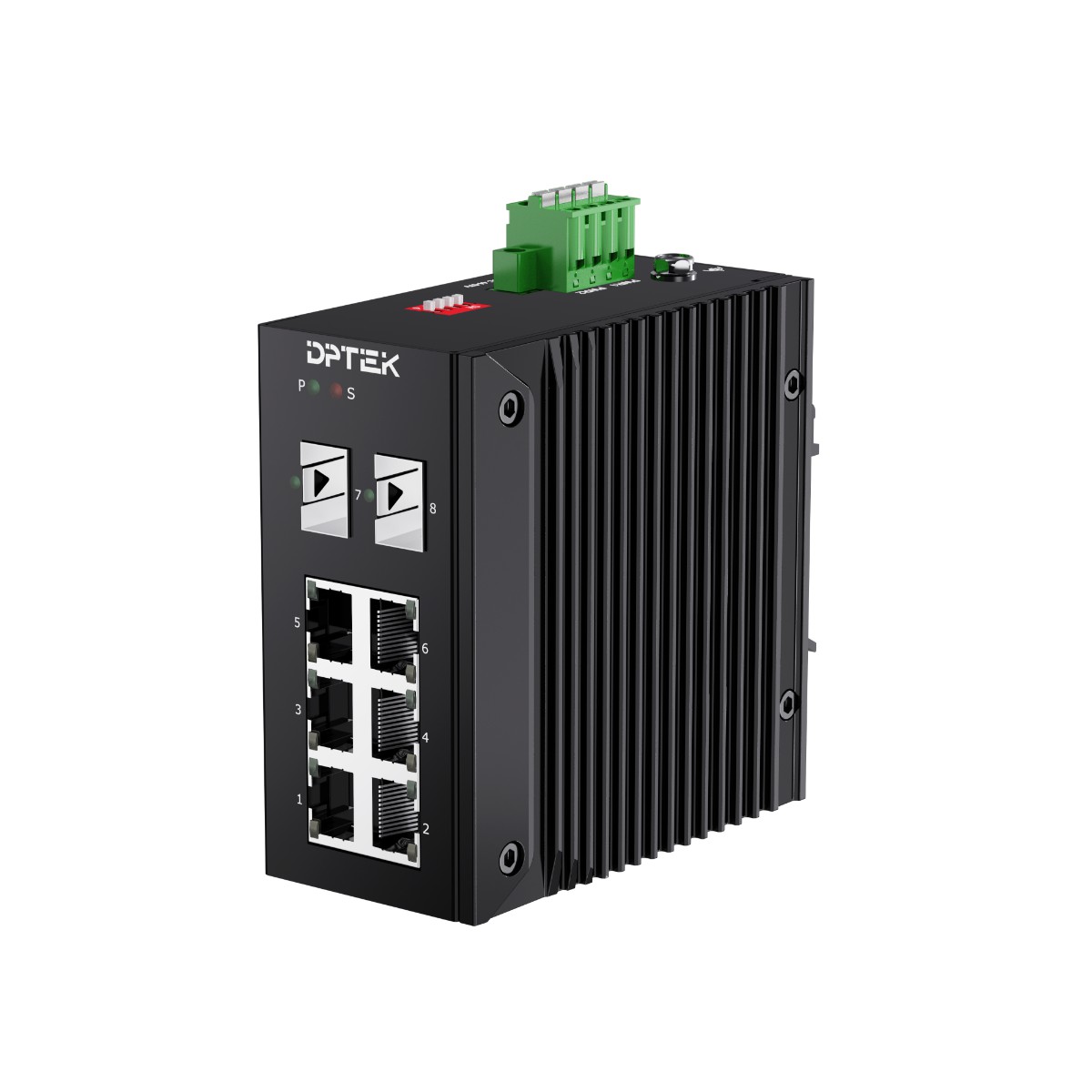

DK3100I-6F2FS | 10/100Base-TX to 100Base-FX unmanaged industrial Ethernet switch with 6*10/100Base-TX RJ45 ports and 2*100Base-FX SFP slots, DC12-58V input, redundant dual power supply, Din-rail installation. |

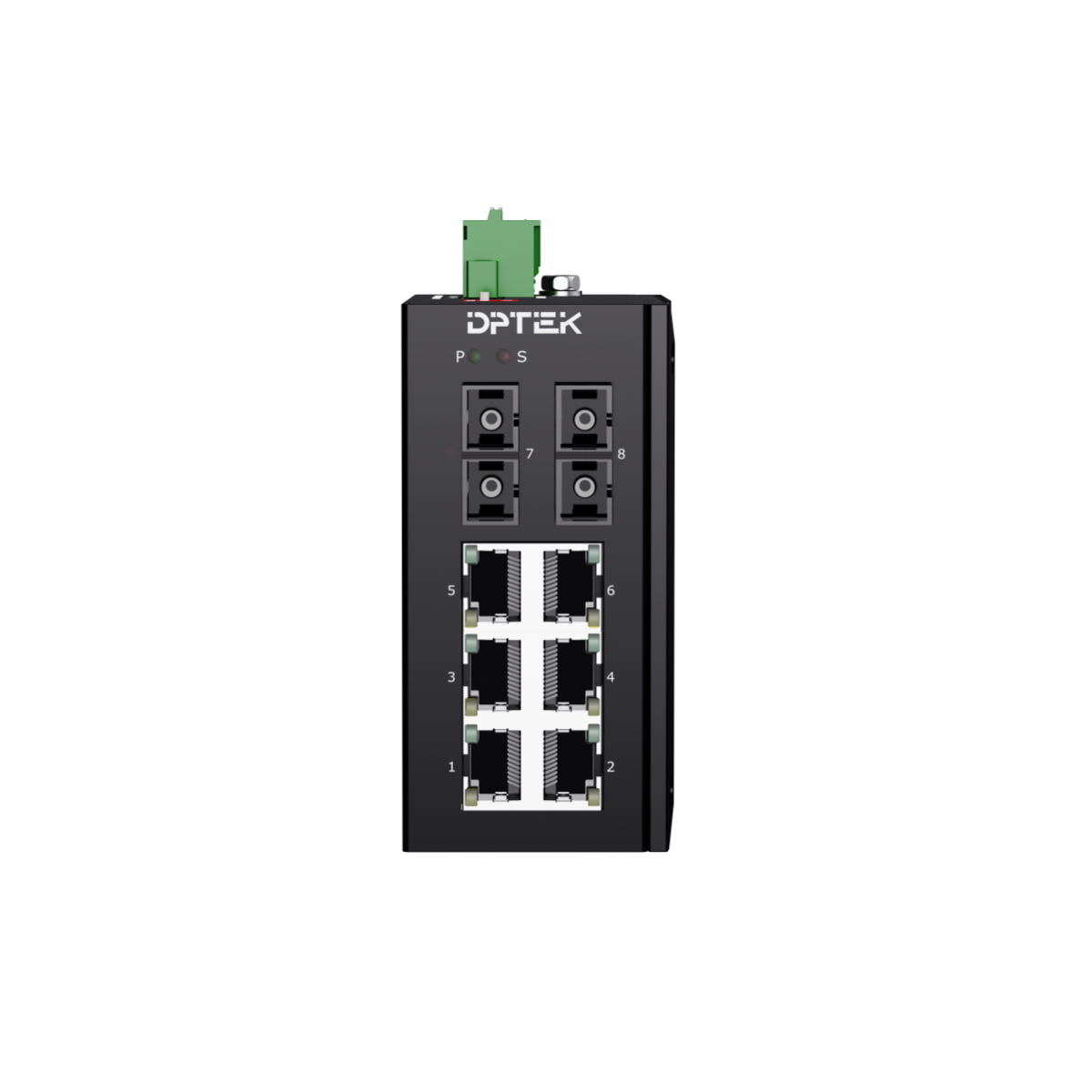

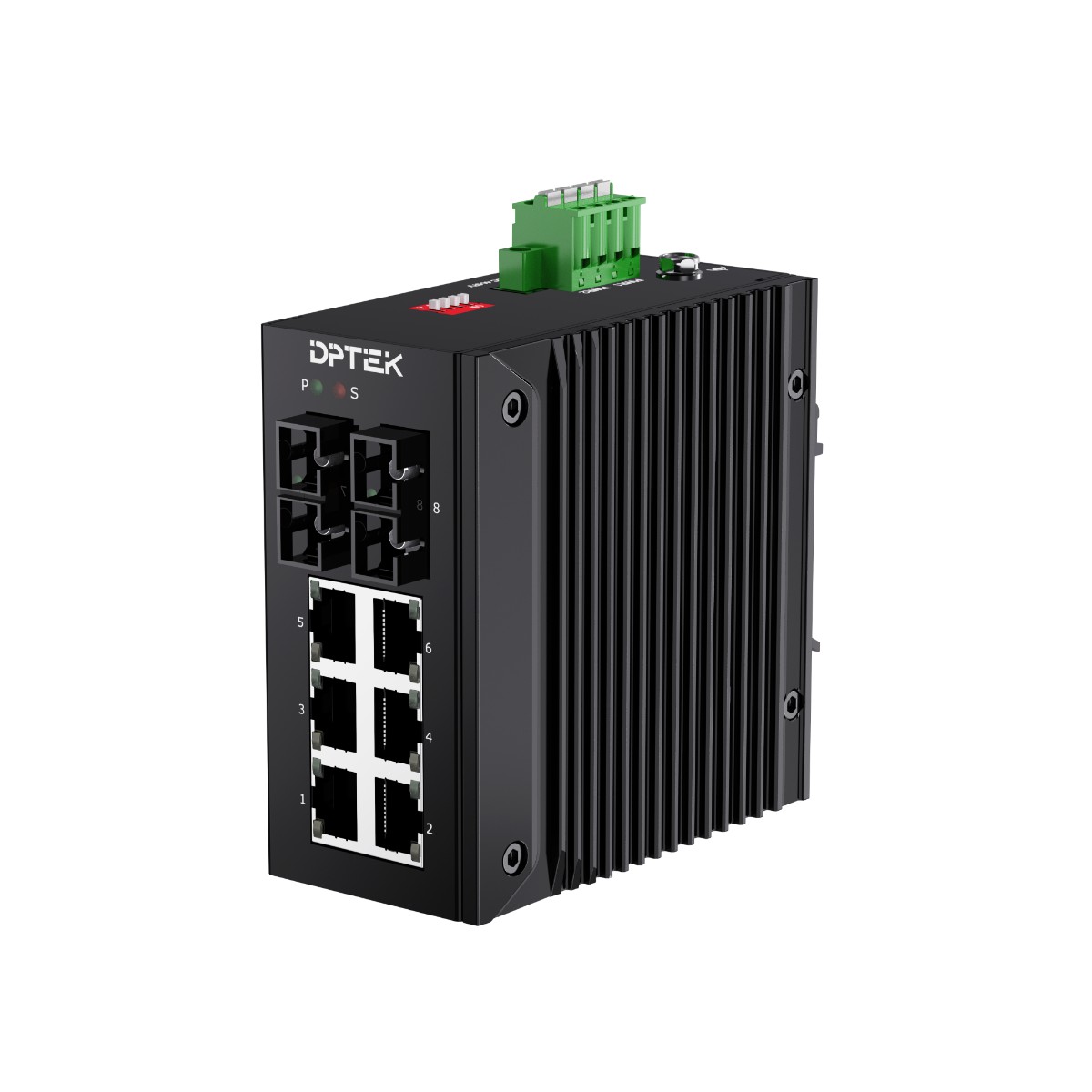

DK3100I-6F2FS-SC | 10/100Base-TX to 100Base-FX unmanaged industrial Ethernet switch with 6*10/100Base-TX RJ45 ports and 2*100Base-FX SC (FC/ST optional) ports, DC12-58V input, redundant dual power supply, Din-rail installation. Operation temperature: -40°C～+75°C |
