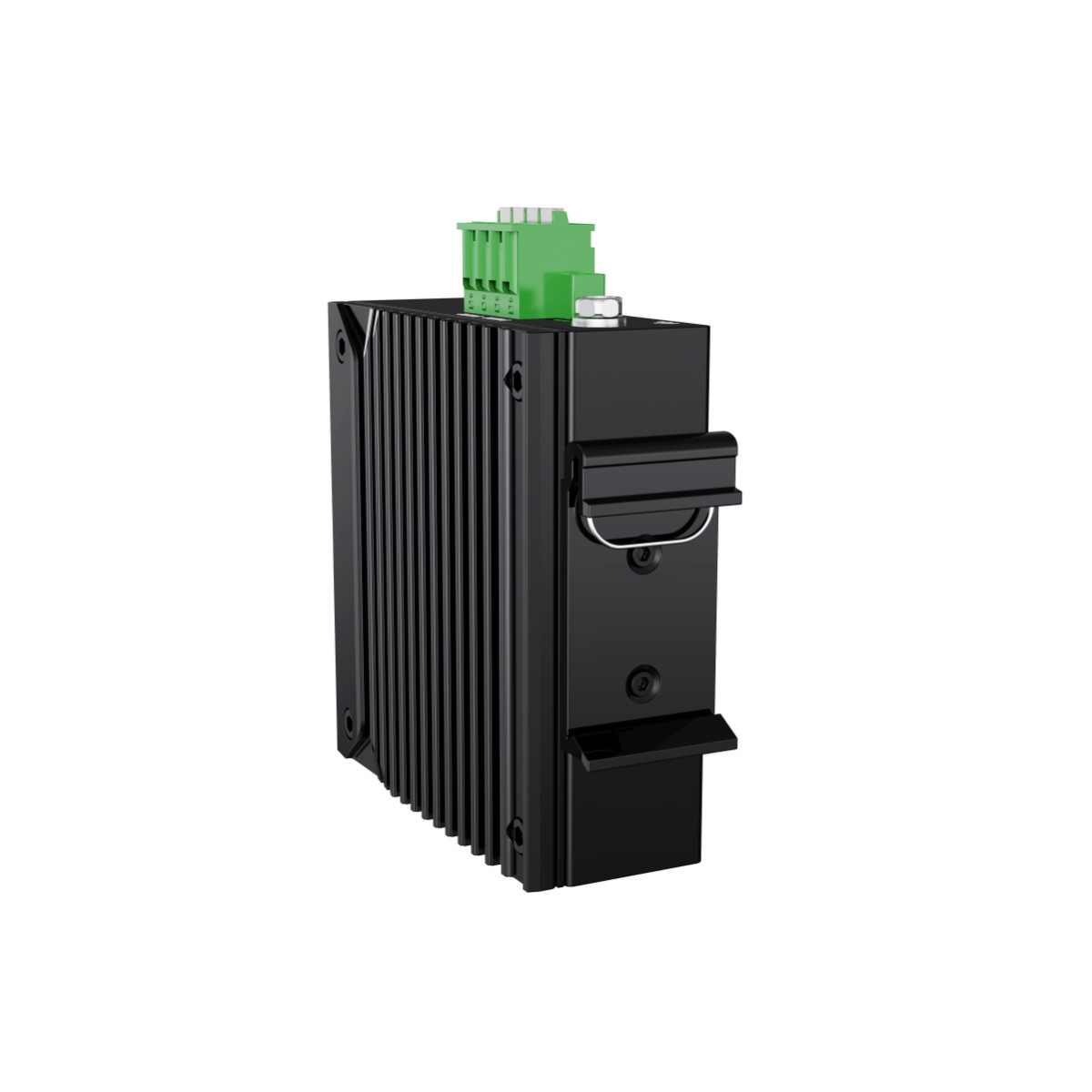

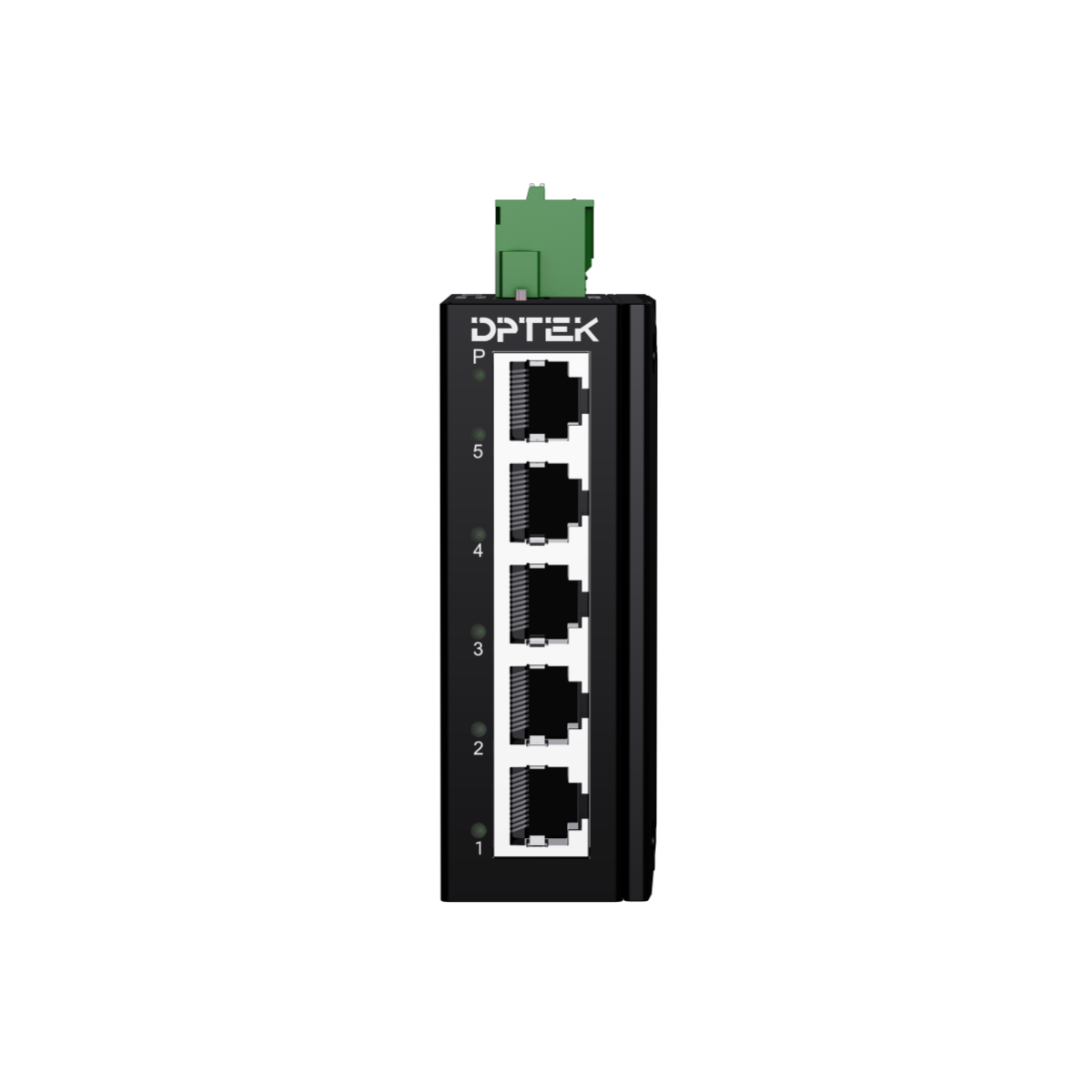

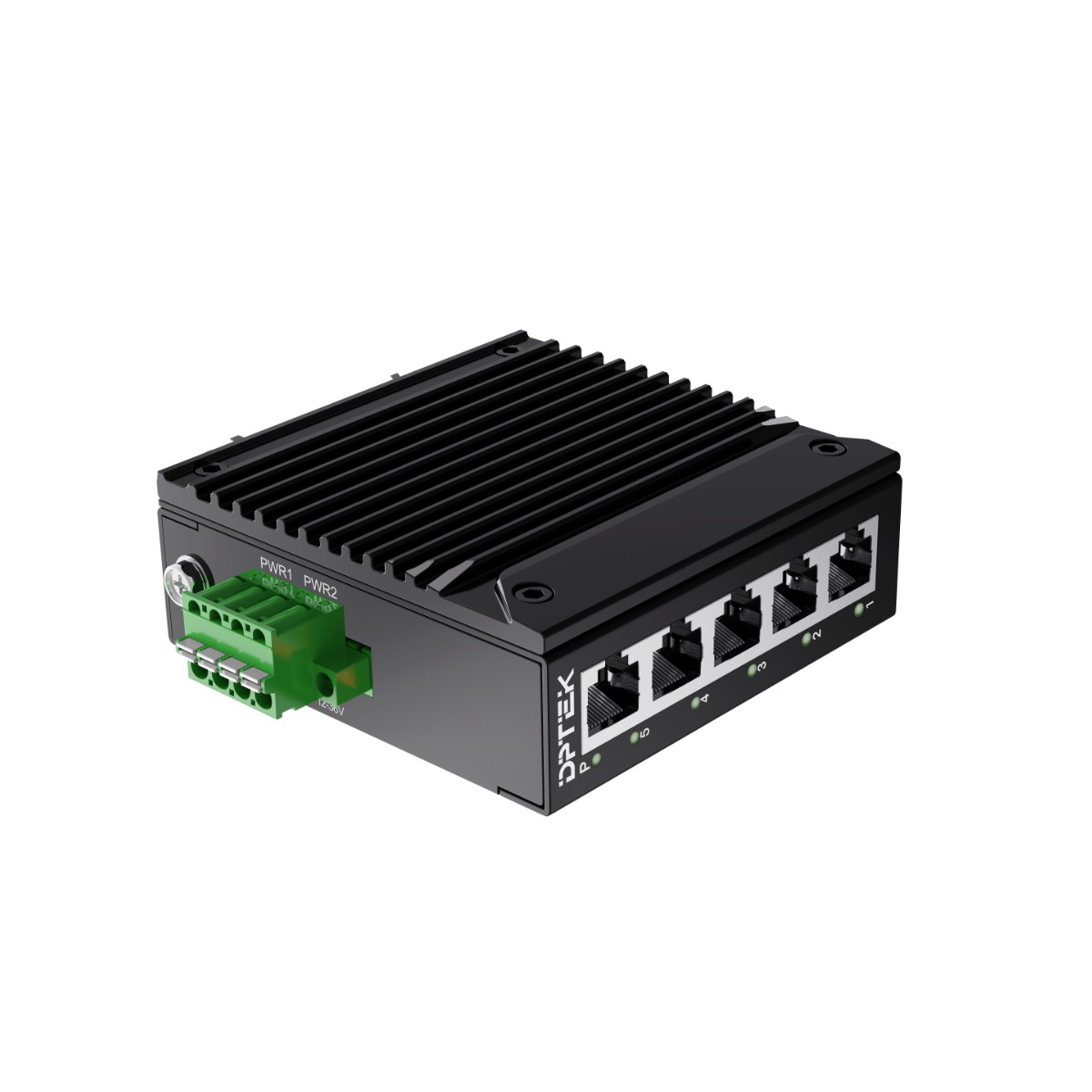

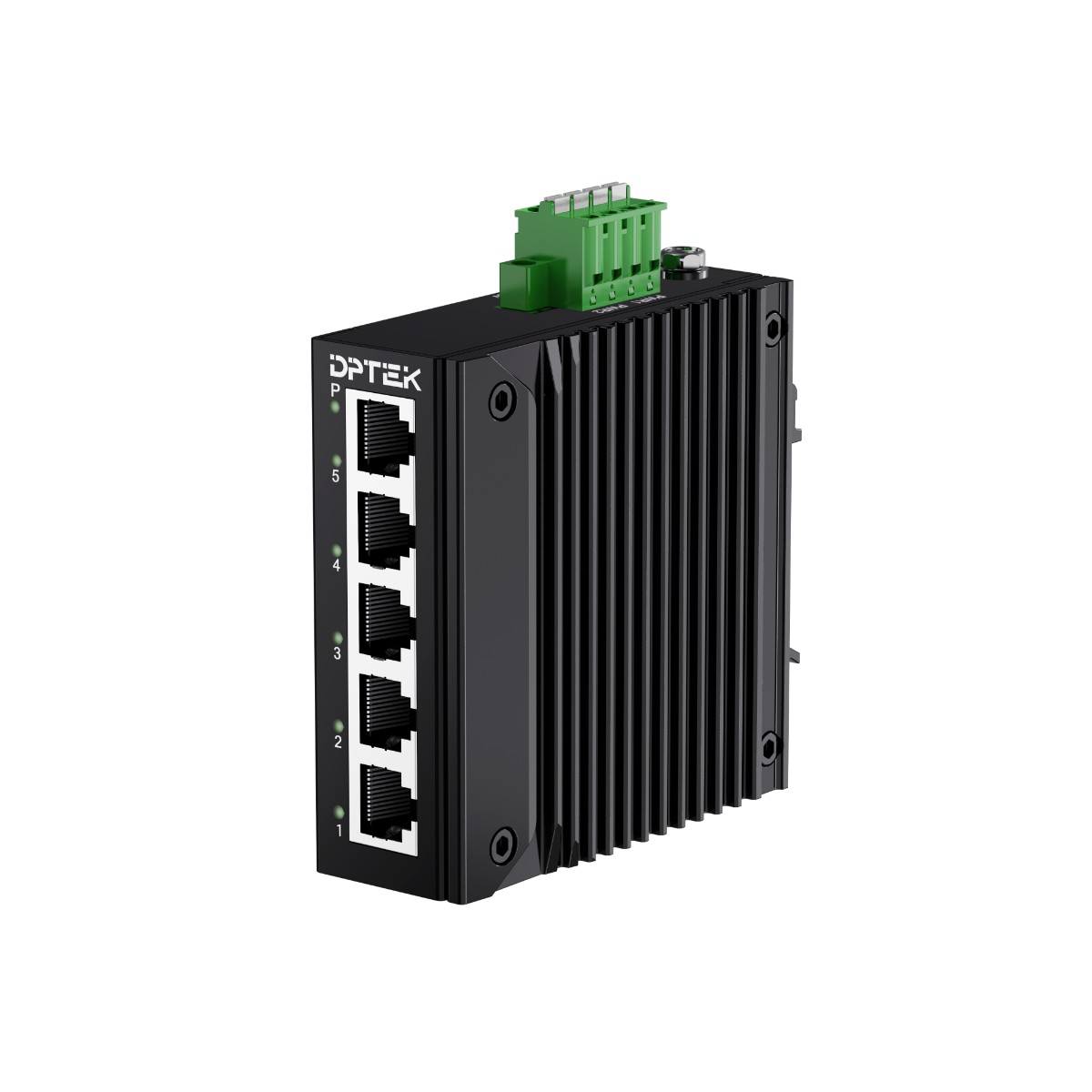

DK3100I-5F-M
5*10/100/1000Base-T
Unmanaged Industrial Ethernet Switch-Compact size
DC12-36V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
- Parameters
5*10/100/1000Base-T
Unmanaged Industrial Ethernet Switch-Compact size
DC12-36V input, redundant dual power supply
Operation temperature: -40°C～+75°C
Din-rail installation
Overview
The DPTEK DK3100I-5F-M is the compact size unmanaged industrial grade Ethernet switch with 5-port 10/100Base-TX RJ45. It is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-36VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial field where installation space are limited and restricted.
Features:
- 5*10/100Base-TX RJ45 ports
- DC 12~36V input, redundant power supply with polarity reverse/over-voltage protection
- Support 10K Bytes Jumbo frame
- Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
- IP40 fan-less and Din-rail hardware design
- Operation temperature: -40°C ~+75°C
Model No. | DK3100I-5F-M | ||
Interface | Fiber port | Copper RJ45 ports | |
0 | 5 | ||
Ethernet | 5*10/100Base-TX RJ45 | ||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | ||
LED Indicators | P (Power indicator) Green | Off: the device is power off or failed | |
On: the device power on is normal | |||
1-5 (Copper ports) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameters | |||
Input voltage | 12-36VDC, redundant power input | ||
Input current | 0.5A Max | ||
Total power consumption | Full loading ≤4W | ||
Connector | Removable 4-pin terminal block | ||
Reverse polarity protection | Support | ||
Over-voltage protection | Support | ||
Switching features | |||
Switching capacity | 1G | ||
Packet forwarding rate | 0.744Mpps | ||
MAC address table | 2K | ||
VLAN | Support the transmission of the packets with VLAN tags ranging from 1 to 4096 | ||
Buffer | 2K | ||
Forwarding delay | <10us | ||
Jumbo Frame | Support 2Kbytes | ||
MDI/MDIX | Support | ||
Watchdog | Support | ||
Network Topology | |||
Star topology | Support | ||
Bus topology | Support | ||
Tree Topology | Support | ||
Mechanical structure | |||
Case protection | IP40 | ||
Installation method | Din-rail | ||
Dimension(W*D*H)mm | 30*85*85mm | ||
Weight | 0.4 kg | ||
Operating environment | |||
Operating temperature | -40℃~+ 75℃ | ||
Storage/transportation temperature | -40℃~+85℃ | ||
Relative humidity | 5%~95% (non-condensing) | ||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20us) | ||
Surge protection of Ethernet ports: | |||
ESD: IEC 61000-4-2 Level 4 (8K/15K) | |||
Shock: IEC 60068-2-27 | |||
Free fall: IEC 60068-2-32 | |||
Vibration: IEC 60068-2-6 | |||
Certification | CE/FCC/RoHS | ||
Warranty | 5 years | ||
Model | Description |
DK3100I-5F-M | Compact size 5-port 10/100Base-TX RJ45 unmanaged industrial Ethernet switch, DC12-36V input, redundant dual power supply. Operation temperature: -40°C～+75°C |
