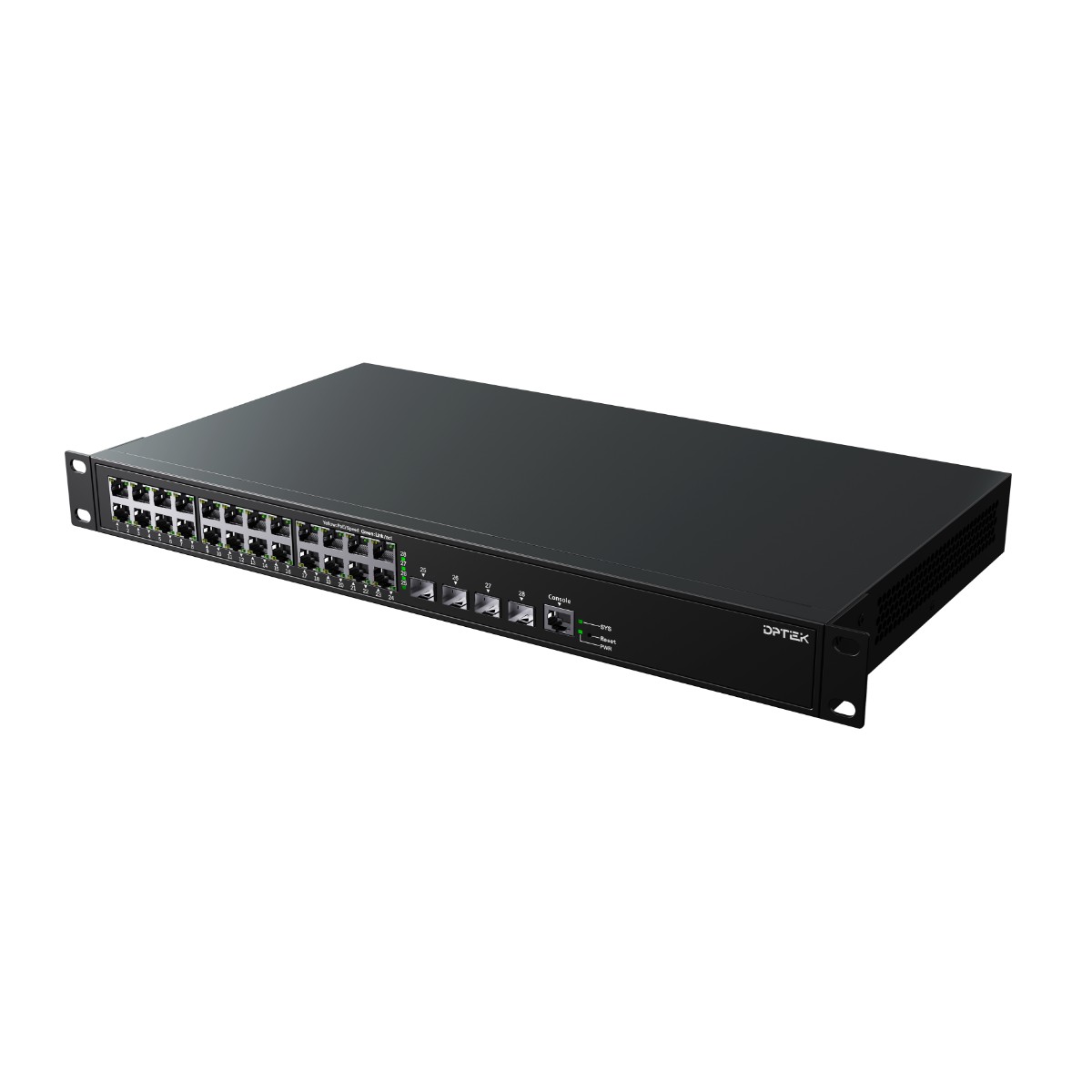

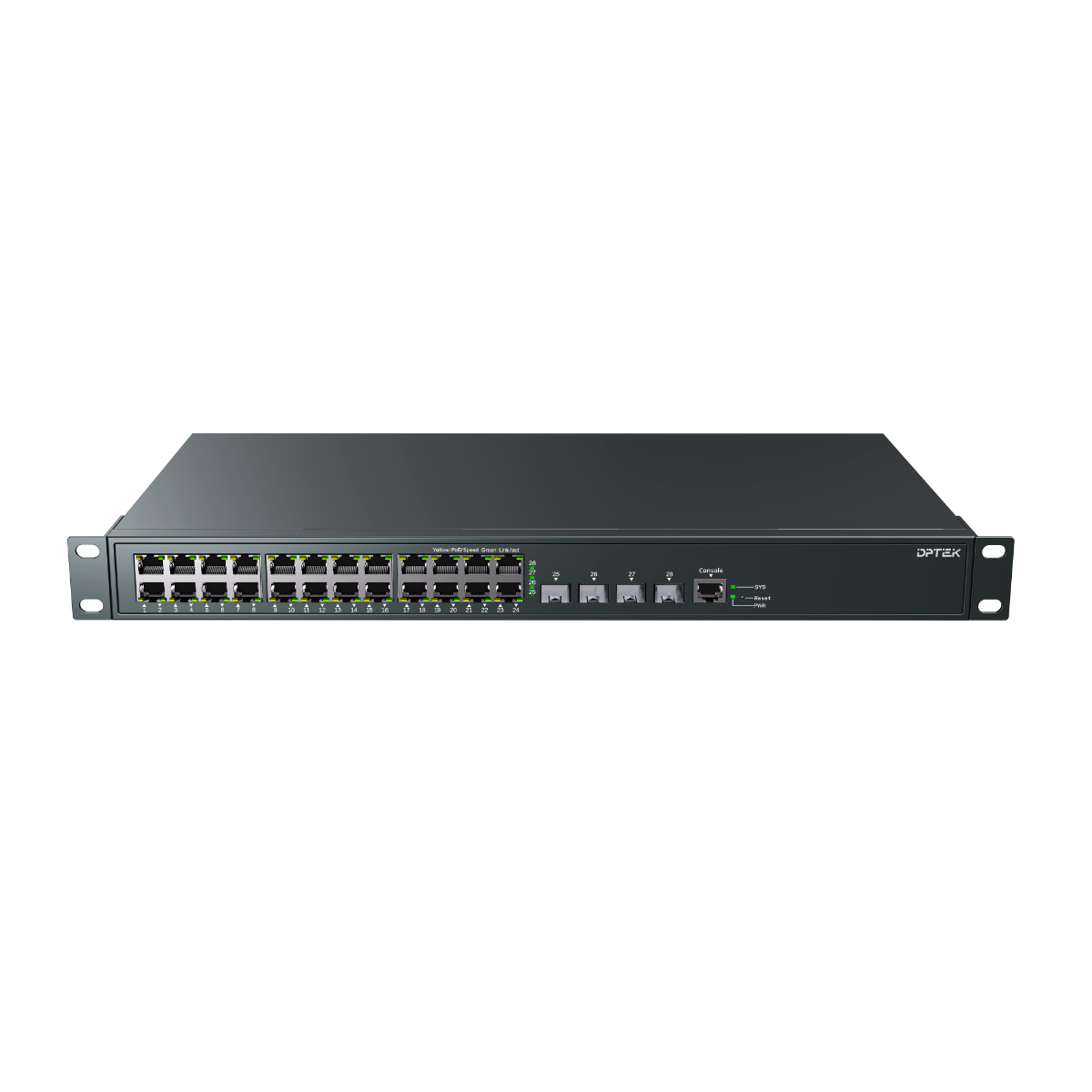

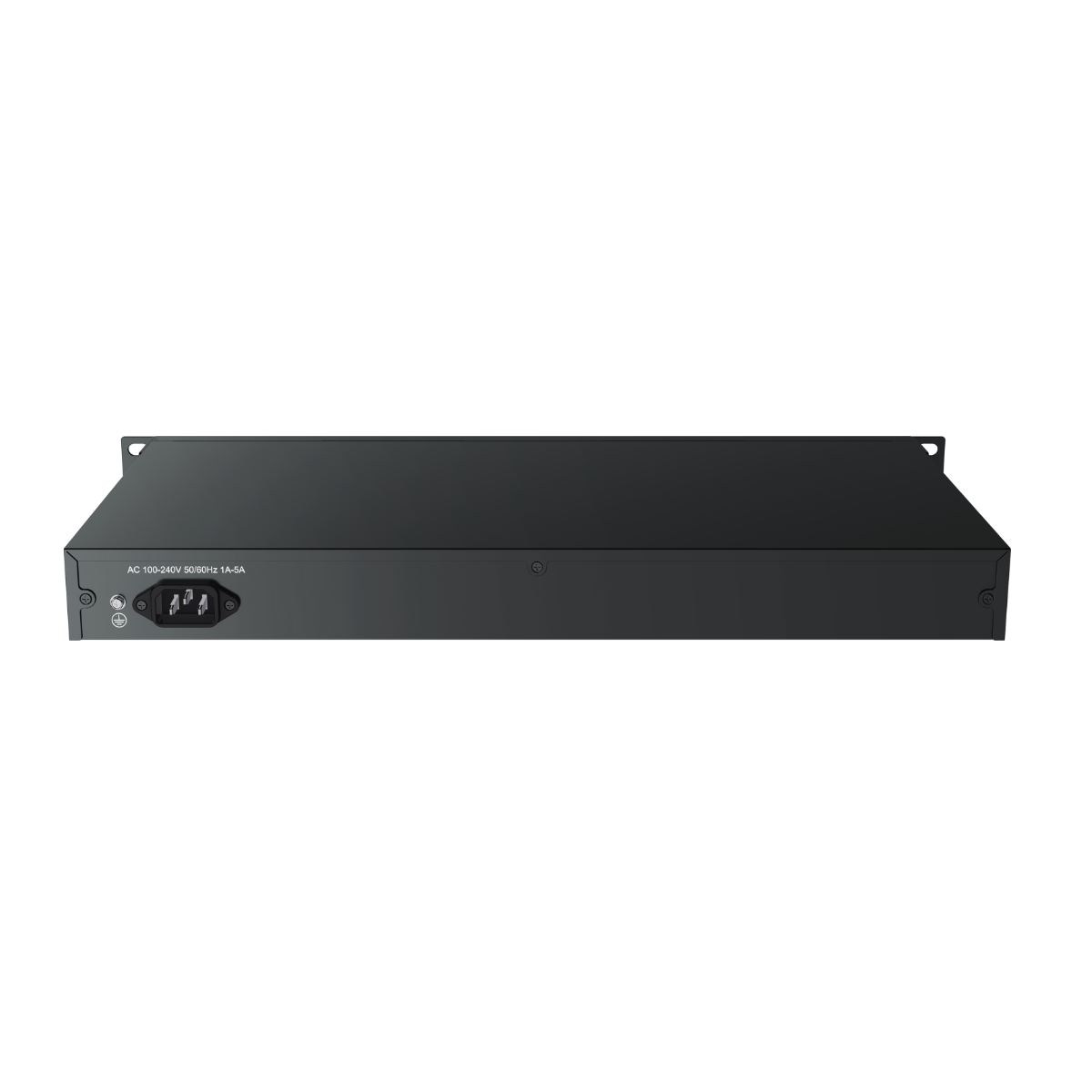

DK2310M-24TP4X


    4*1G/2.5G/10G SFP+ + 24*10/100/1000Base-T

    Layer 3 Managed PoE Switch


    AC 100-240V 50/60Hz, total power consumption 440W


  • Parameters


    4*1G/2.5G/10G SFP+ + 24*10/100/1000Base-T

    Layer 3 Managed PoE Switch


    AC 100-240V 50/60Hz, total power consumption 440W


Overview



The DPTEK DK2310M-24TP4X is the Layer 3 Managed PoE Switch that provides high-density performance, Layer 3 static and dynamic routing, RIP (Routing Information Protocol) and OSPF (Open Shortest Path First). With 128 Gbps switching capacity and 4*1G/2.5G/10Gbps flexible and high performance uplink capability. The DK2310M-24TP4X provides comprehensive end to end QoS as well as flexible and rich management, security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks based on cost effective price. With total power consumption up to 440 watts, they offer a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.



Features



 4*1G/2.5G/10G SFP+ slots, 24*10/100/1000M RJ45 PoE ports

 Complies with IEEE 802.3at, IEEE802.3af standard. Max output power consumption per port can reach 30W(PoE+)

 Smart and standard PoE chipset to detect the PD equipments automatically, never burn the PD equipments

 Layer 3 routing features: Supports static and dynamic routing, RIP, OSPF, BGP4,ECMP, VRRP

 Port aggregation: Supports GE ports, 2.5GE and 10GE port aggregation, static and dynamic aggregation

 VLAN: Supports access, truck, hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN

 QinQ: Supports port-based, VLAN-based and flow-based QinQ

 Port Mirroring: Many to one port mirroring

 Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring

 Multicast: Supports IGMP V1, V2,V3 and IGMP snooping

 QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS

 Security: Support Dot1xport authenticationmac authenticationRADIUS service; Support port-security, ip source guardIP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation

 Management: Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web managementHTTP1.1HTTPS; Syslog and alarm grading ; RMON Remote Monitoringalarm, event and history record; NTP, temperature monitoring; PingTracert and optical transceiver DDM function; Supports TFTP Client, Telnet Server, SSH Server and IPv6 management; PoE management

 Firmware update, configure backup/restore through Web GUI, FTP and TFTP





Model

DK2310M-24TP4X

Fixed ports

4*1G/2.5G/10G SFP+ slots24*10/100/1000M RJ45 PoE ports

Management port

1*Console

PoE

Complies with IEEE 802.3at, IEEE802.3af standard. Max output power per port can reach 30W(PoE+)

Support 1/2(+) 3/6(-) Endspan

Support standard & non-standard PD

Switching capacity

128Gbps

Packet forwarding rate

95Mpps

MAC address table

16K

Buffer

12M bit

Port aggregation

Support gigabit port, 2.5GE and 10GE port link aggregation

Support static and dynamic aggregation

Port features

Support IEEE802.3x flow control, Port traffic statistics, port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access, trunk and hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocal Based VLAN

QinQ

Basic QinQ (Port-based QinQ)

Flexible Q in Q(VLAN-based QinQ)

QinQ(Flow-based QinQ)

Port mirroring

Many to one (Port Mirroring)

Layer 2 ring network protocol

Support STPRSTPMSTP

Support G.8032 ERPS protocolsingle ring, sub ring and other ring

DHCP

DHCP Client

DHCP Snooping

Multicast

IGMP V1,V2,V3

IGMP snooping

IP routing protocol

RIPv1/v2;

OSPFv2;

BGP4;

BGP supports Routing recursive ECMP;
Support to view the number of neighbors and up/down state

IS-ISv4

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Policy-based QoS

Security

Support Dot1xport authenticationmac authenticationRADIUS service

Support port-security

Support ip source guardIP/Port/MAC binding
Support arp-check and ARP packet filtering for illegal users

Support port isolation

Management and maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web managementHTTP1.1HTTPS

Support Syslog and alarm grading

Support RMON Remote Monitoringalarm, event and history record

Support NTP

Support temperature monitoring

Support PingTracert

Support optical transceiver DDM function

Support TFTP Client

Support Telnet Server

Support SSH Server

Support IPv6 Management

Support PoE management

Support FTPTFTPWEB upgrading

Layer 3 function



ARP

ARP table aging

IPv4/IPv6

Static routing

ECMP

ECMP;

Support the configuration of ECMP Max next-hop;

Support capacity balanced configuration;

Route policy

IPv4 prefix-list

VRRP

virtual router redundancy protocol

Routing entry

13K

IP routing protocol

RIPv1/v2;

OSPFv2;

BGP4;

BGP supports Routing recursive ECMP;

Support to view the number of neighbors and up/down state

IS-ISv4

Dimension(mm)

440*245*44mm

Power supply

VAC input

Rated voltage range100-240V; Frequency50/60Hz

Fan

Support fan speed control

Consumption

Total power consumption≤440W

Power surge protection

6KV, IEC 61000-4-5  Level X8/20us

Ethernet ports surge protection

4KV, IEC 61000-4-5  Level 410/700us

Working temperature

0-50

Humidity

Working humidity10%-90%RH

Storage humidity5%-95%RH



















































































































Model

Description

DK2310M-24TP4X

Layer 3 managed PoE switch with 4*1G/2.5G/10G SFP+ slots + 24*10/100/1000M RJ45 PoE portsAC 100-240V 50/60Hz, total power consumption 440W
