DK2210M-8TP2S

Interface

Fiber ports

Copper RJ45 ports

2

8

Ethernet

8*10/100/1000Base-T RJ45 PoE

2*1000/2500Base-X SFP

CPU

Marvell AC5 series 1.2GHz

Size of RAM

512MB

Size of Flash

512MB

Switch chip model

Marvell AC5 series

Management port

1*RJ45 Console port (115200,8,N,1)

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Ethernet

IEEE 802.3ab 1000Base-T Ethernet

IEEE 802.3z 1000Base-X Ethernet

IEEE802.3x Flow Control and Back Pressure

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1Q VLAN

ITU-T G.8032 ERPS

IEEE 802.1X Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3ad LACP
IEEE 802.3af PoE

IEEE 802.3at PoE+

LED Indicators

P (Power indicator)

Off: the device is power off or failed

On: the device power on is normal

S (System status indicator)

Blinking: device initialization

On: device on normal operation

1-8 (Copper ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

1-8 (PoE status indicator) Yellow

Off: PoE not working

On: PoE working

9-10 (Fiber ports indicators) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameter

Input voltage

DC input 52V

Total power consumption

Full loading ≤120W (with external 120W power adaptor)

Over-current protection

Support

Layer 2 functions

Port aggregation

Support GE port aggregation

Support 2.5GE aggregation

Support static aggregation

Support LACP dynamic aggregation

Up to 64 aggregation groups and up to 8 ports per group

Port features

Support IEEE802.3x flow control

Support interface counters

Support port isolation

Port mirroring ( One-to-One, Many-to-One)

Support loop detection(Port-based; VLAN-based)

Support broadcast storm suppression

(broadcast; unknown multicast; unknown unicast)

Mac-address table management

Support static Mac-address management

Support dynamic Mac-address Management

Support filtering Mac-address

Support MAC limit based on port and VLAN

Support MAC flapping based on port and VLAN
16K Mac-address table size

VLAN

IEEE802.1Q tagged VLAN
Mac based VLAN
IP based VLAN
Protocol based VLAN
Voice VLAN, specially divide VLAN for user voice data flow
Private VLAN, divide a VLAN broadcast domain into multiple subdomains to form a double-layer VLAN structure
VLAN range: 1-4094
Support access mode/trunk mode/hybrid mode

GVRP

Normal mode

Fixed mode

Forbidden mode

QinQ

Port-based QinQ

VLAN-based QinQ
VLAN mapping

Flow-based QinQ

LLDP

LLDP (Link Layer Discovery Protocol)
Med

SPAN

Number of Sessions: 7
Many-to-one

RSPAN

Remote Switch Port Analyzer

MSTP

802.1D STP
802.1W RSTP
802.1S MSTP
BPDU Guard
Number of Single Ring Device Connections: 20

ERPS G.8032

Major ring
Sub ring
Recovery time ≤20ms
Number of Single Ring Device Connections: No limit

QoS

Support QoS Class, remarking

Support SP, WRR queue scheduling

Ingress port-based rate-limit

Egress port-based rate-limit
Egress port-queue shaper

Support policy-based QoS
Port Queue Numbers: 8

DHCPv4 Snooping

DHCP snooping trust port
DHCP snooping option-82
DHCP snooping circuit-id and remote-id customized

L2 Multicast

IGMP

IGMP v1, v2, v3

IGMP snooping

Internet Group Management Protocol Snooping
Fast Leave
Multicast Table Size: 1K

PIM-SM

Protocol Independent Multicast-Sparse Mode

Security features

ACL

IP Standard ACL

IP Extended ACL

MAC extend ACL

IPv6 ACL

Time Range

ACL apply on VLAN

ACL Entrys, include input and output

802.1x

Port access control

Mac-address access control

RADIUS server

Port-security

Port-security

IP source guard

IP Source Guard, Port-based IP/Mac Binding Access

ARP-check

Support ARP-check and ARP packet filtering for illegal users

DAI

Dynamic ARP Inspection

Anti-gateway ARP Spoofing

Prevent Gateway ARP Spoofing

Ddos

Ddos attack protection

Access control

Support Telnet/SSH/HTTP/HTTPS user access control

AAA

RADIUS authentication access switch
TACACS authentication access switch
Authorization

Reliability

Loop Detect

Loop detect, based on port or VLAN

EFM

The Ethernet in the first mile, 802.3ah

Management & Maintenance functions

Dual Stack

IPv4 and IPv6 Dual Stack Management

System Log Management

Syslog Level 7 to 0

Corresponding Debug/Info/Notice/Warning/Err/Critical/Alert

Support connecting up to 3 Servers

For IPv4 and IPv6

User Management

Support password protection, support MD5/SHA256/SHA512 algorithm

Local Management of User Privilege

Remote authorization by RADIUS or TARCAS

Enable privilege protection

User password complexity requirements

User login fail protection

User Privilege Level 0 to 15

Login Service Management

Up to 8 users online simultaneously

Access control based on IPv4 or IPv6 ACL

Firmware Management

Firmware upgraded by WEB

Firmware upgraded by CLI

Dual partition

Web Management

Web Management

Support HTTP V1.1

Support HTTPS

For IPv4 and IPv6

CLI management

Console/Telnet command line management

Fault Detection

Ping/Traceroute, For IPv4 and IPv6

Optical transceiver DDM

One click fault information collection

Cable detection

DNS

Domain Name System

NTP

Network Time Protocol, For IPv4 and IPv6

Support domain name configuration

Configuration Import /Export

FTP/TFTP based remote configuration import and export

sFlow

Sampled flow

SNMP

Version SNMPV2C/V3

MQTT

Message Queuing Telemetry Transport

RMON

Support RMON (Remote Monitoring) alarm

PoE management

Support 802.3af/802.3at

Support PD watchdog

Support PoE priority management

Support Max PoE power configuration for each port

Support alarm threshold configuration

Support reserved power configuration

Support PoE schedule

Support POE legacy mode

Dual partition management

Support dual partition switching

Application Protocol Functions

Telnet server

Support telnet server for IPv4 and IPv6

Telnet client

Support telnet client for IPv4 and IPv6

SCP (Secure Copy Protocol)

SCP client/server for IPv4 and IPv6

SFTP

sftp client/server for IPv4 and IPv6

SSH server

Support login based on user password-SSH2, support IPv4, IPv6

Support public key-based login

TACACS

Support TACACS
(the terminal access controller accesses the control system)

TFTP

Support TFTP Client

Layer 3 features

Static Route

Support VLAN interface and route port

IPv4 static routing table entry configuration

ARP dynamic learning and static configuration

IPv6 static routing table entry configuration

Neighbor discovery and static configuration

Routing prefix table size 4k for IPv4, for IPv6 divide by 4

DHCPv4 Client

Dynamic host configuration protocol for IPv4

DHCPv6 Client

Dynamic host configuration protocol for IPv6

DHCPv4 Relay

DHCP Relay for IPv4

DHCPv4 Server

DHCP Server for IPv4

Switching features

Switching capacity

26Gbps

Packet forwarding rate

19.344Mpps

MAC address table

16K

VLAN

4K

Buffer

12Mbit

Forwarding delay

<5us

Jumbo Frame

Support 10Kbytes

MDI/MDIX

Support

Watchdog

Support

Mechanical structure

Installation method

Desktop; Rack-mount optional

Dimension(W*D*H)mm

152*115*44mm

Weight

1.95 kg (including the 120W power adaptor)

Operating environment

Operating temperature

0℃~+50℃

Storage/transportation temperature

-10℃~+70℃

Relative humidity

Operation humidity: 10%-90%RH

Storage humidity: 5%-95%RH

Protection

Surge protection of power: 4KV

Surge protection of Ethernet ports: 4KV

ESD: Contact 6kV, Air 8kV

Certification

CE/RoHS/FCC

MTBF

＞100,000 hours

Warranty

3 years

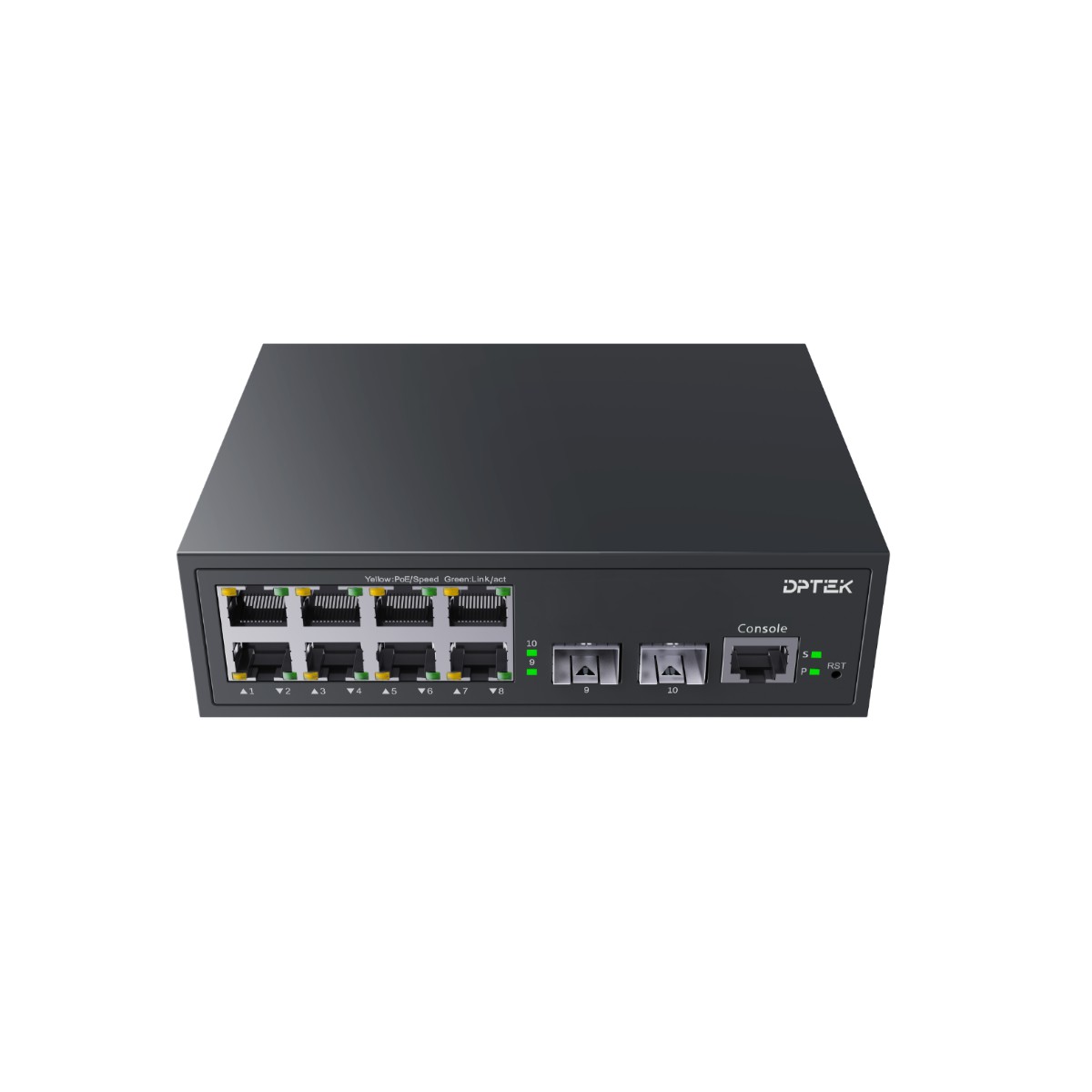

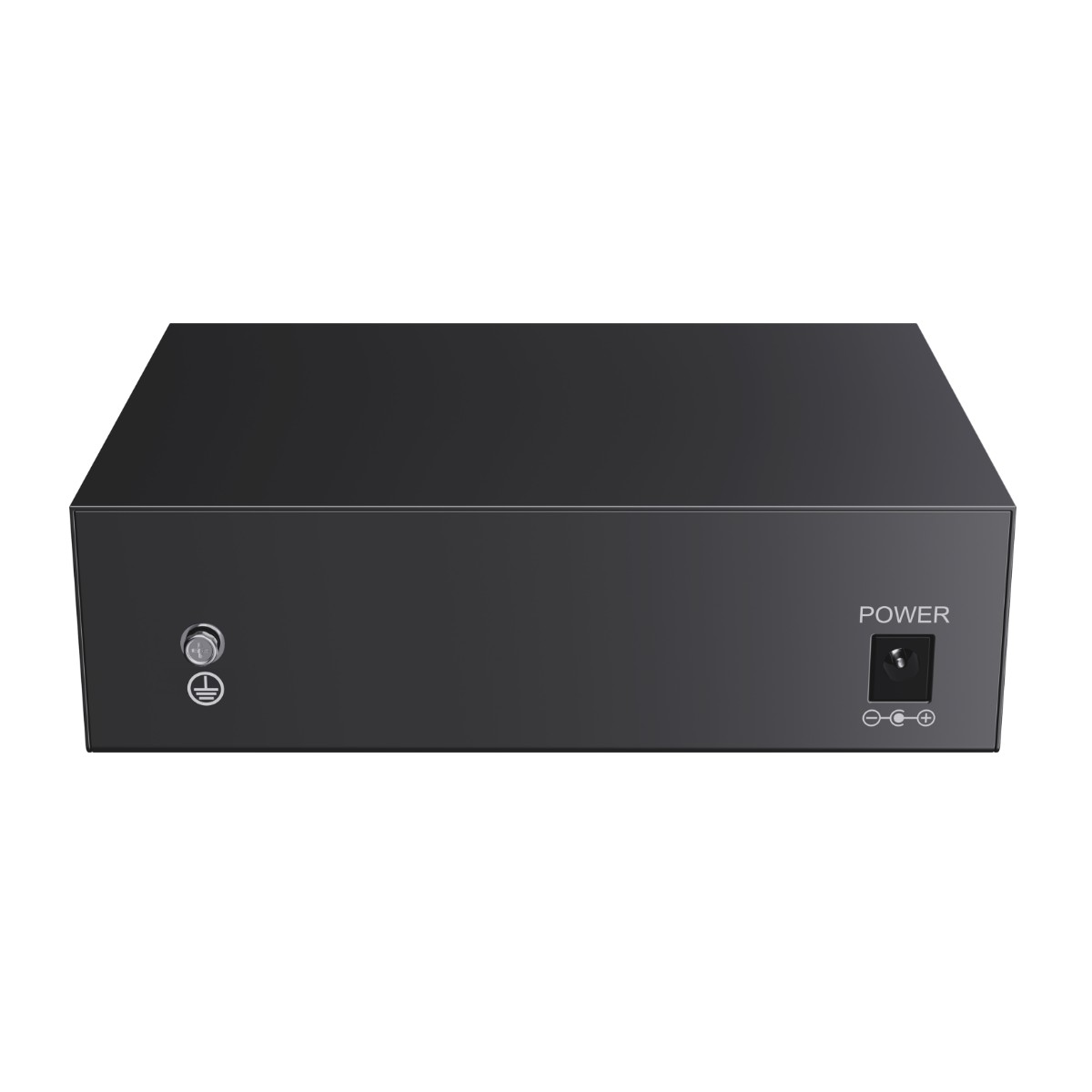

DK2210M-8TP2S

Layer 2+ managed Ethernet switch with 2*1G/2.5G SFP slots + 8*10/100/1000M RJ45 ports, DC 52V,  total power consumption 120W
