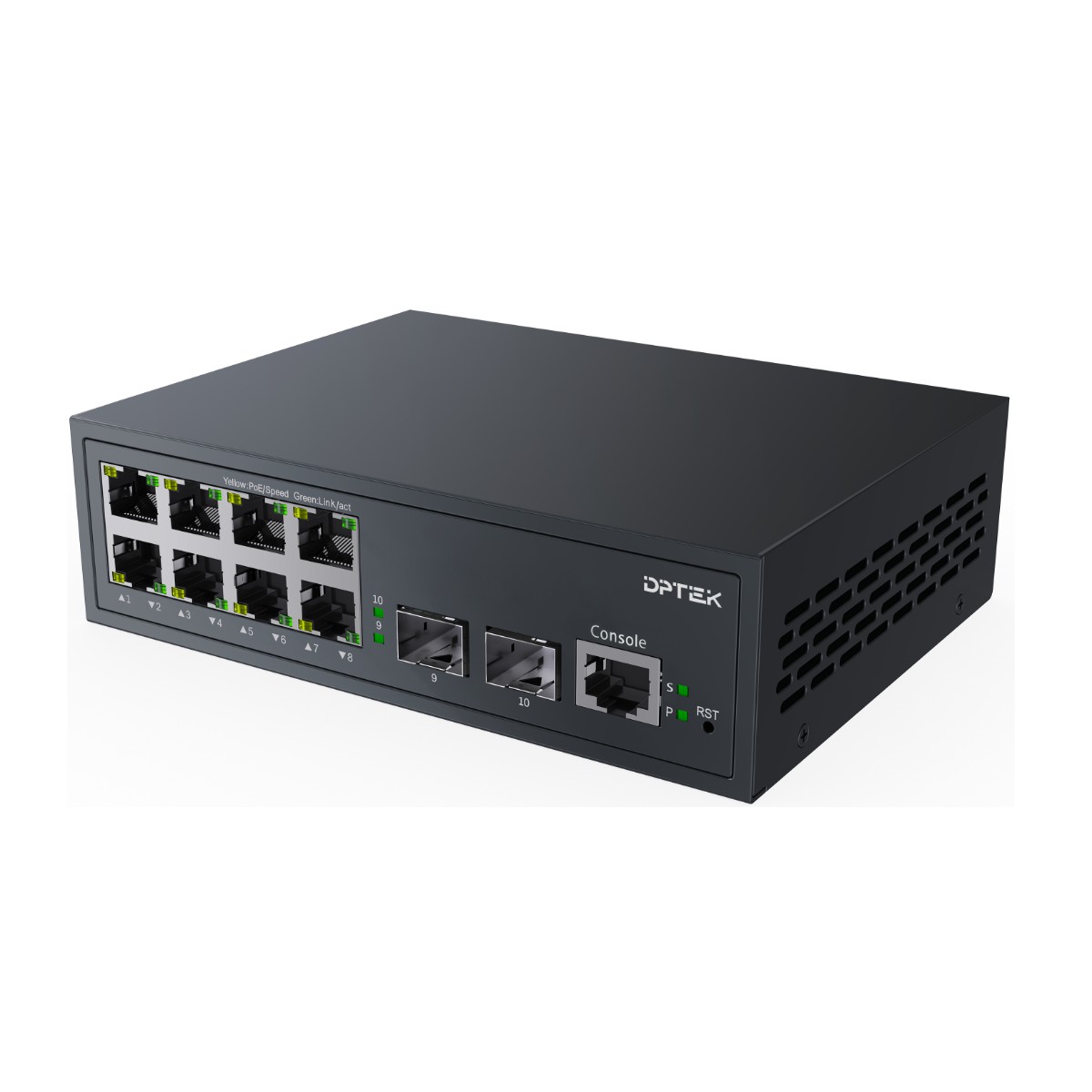

DK2210M-8T2S
2*1G/2.5G SFP + 8*10/100/1000Base-T
Layer 2+ Managed Ethernet Switch
CPU, RAM and FLASH：
Marvell AC5 series 1.2GHz CPU, RAM: 512MB 2Gbit, FLASH:512MB 4Gbit
DC input 12V
- Parameters
2*1G/2.5G SFP + 8*10/100/1000Base-T
Layer 2+ Managed Ethernet Switch
CPU, RAM and FLASH：
Marvell AC5 series 1.2GHz CPU, RAM: 512MB 2Gbit, FLASH:512MB 4Gbit
DC input 12V
Overview
DPTEK DK2210M-8T2S is a Layer 2+ full gigabit managed switch, which features 8*10/100/1000Base-T RJ45 and 2*1G/2.5G SFP ports. It supports Layer 3 static routing with a high-performance switching architecture and offers wire-speed transportation capability for delivering a cost effective Gigabit Ethernet solution to meet the converged applications for enterprise customer's networks. More and more corporations are adapting new IT technologies over the network such as voice over IP, video conference to improve productivity and save operation expenditure. The DK2210M-8T2S series provide comprehensive end to end QoS as well as flexible and rich management, security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks based on cost effective price.
Features:
- 2*1G/2.5G SFP slots uplink, 8*10/100/1000BASE-T ports downlink, 1*RJ45 console interface for switch basic management and setup
- Hardware: Marvell AC5 series 1.2GHz CPU, Marvell AC5 series switch chipsets, 512MB RAM and 512MB flash
- Layer 3 features: IPv4/IPv6 static routing, DHCPv4/ DHCPv6 client, DHCPv4 relay, DHCP relay.
- Port features: Supports port aggregation, IEEE802.3x flow control, port isolation, port mirroring, loop detection and broadcast storm suppression
- VLAN: Supports IEEE802.1Q tagged VLAN, mac based VLAN, IP based VLAN, protocol based VLAN, voice VLAN and private VLAN.
- QinQ: Supports port-based, VLAN-based and flow-based QinQ
- Supports GVRP/LLDP/SPAN/RSPAN/DHCPv4 snooping
- Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring
- Multicast: IGMP snooping, IGMP v1, v2, v3, PIM-SM
- QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Egress port-based rate-limit and policy-based QoS
- Security: Supports ACL, 802.1x, port-security, IP source guard, ARP-check, DAI, anti-gateway ARP spoofing, Ddos attack protection, telnet/SSH/HTTP/HTTPS user access control and AAA.
- Reliability: Loop detect based on port or VLAN, the Ethernet in the first mile 802.3ah
- Management: Supports IPv4/IPv6 dual stack management, system log management, user management, login service management, firmware management, web management, CLI management, fault detection, DNS, NTP, sFlow, SNMP, MQTT, RMON and dual partition management.
- Application protocol: Supports telnet server, telnet client, SCP, SFTP, SSH server, TACACS and TFTP client
Model No. | DK2210M-8T2S | ||
Interface | Fiber ports | Copper RJ45 ports | |
2 | 8 | ||
Ethernet | 8*10/100/1000Base-T RJ45, 2*1000/2500Base-X SFP | ||
CPU | Marvell AC5 series 1.2GHz | ||
Size of RAM | 512MB | ||
Size of Flash | 512MB | ||
Switch chip model | Marvell AC5 series | ||
Management port | 1*RJ45 Console port (115200,8,N,1) | ||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP | ||

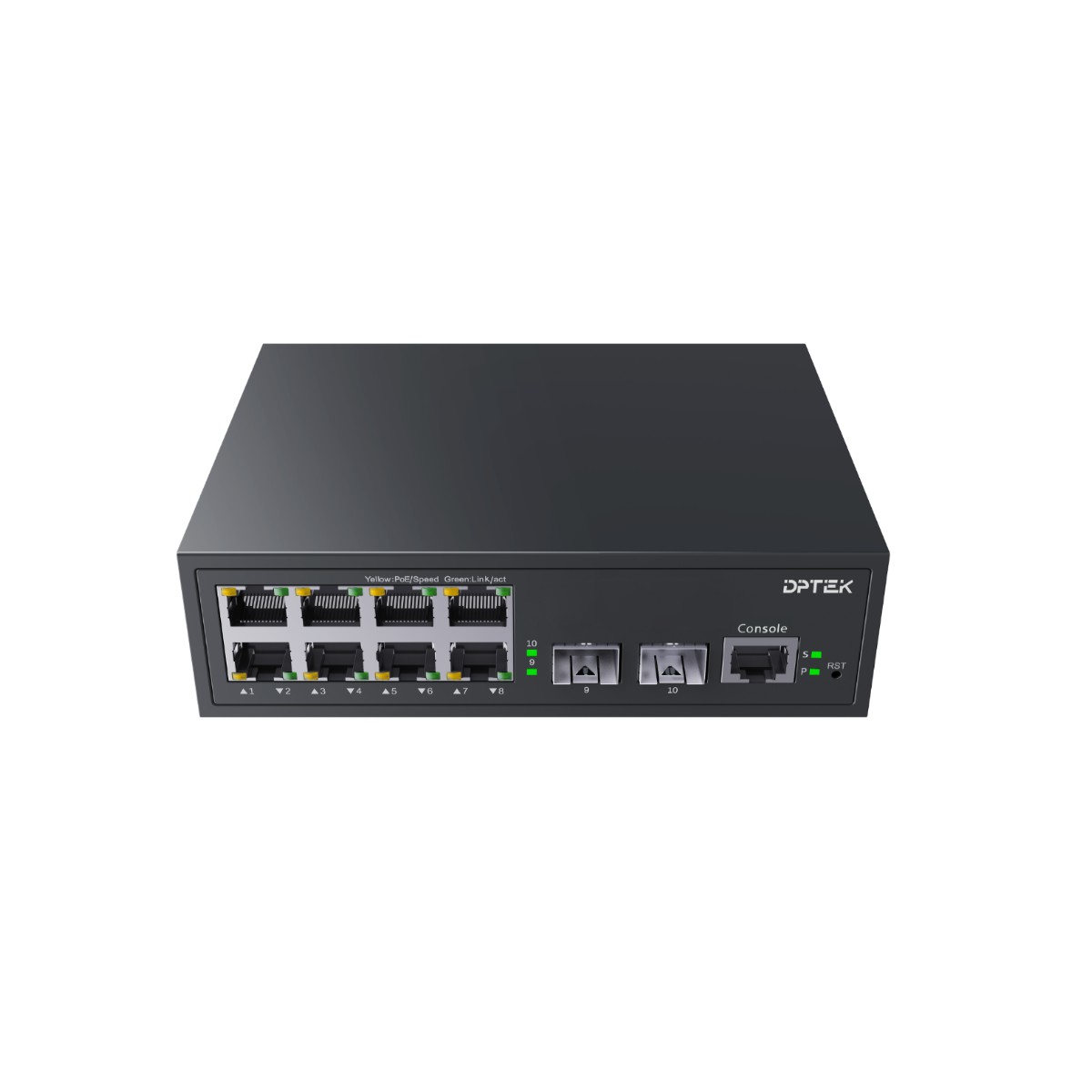

LED Indicators | |||
P (Power indicator) | Off: the device is power off or failed | On: the device power on is normal | |
S (System status indicator) | Blinking: device initialization | On: device on normal operation | |
1-8 (Copper ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
1-8 (Copper speed indicators) Yellow | Off: ports on 10/100M | ||
On: ports on 1000M | |||
9-10 (Fiber ports indicators) Green | Off: ports link down | ||
On: ports link up | |||
Blinking: data on TX/RX | |||
Power parameter | |||

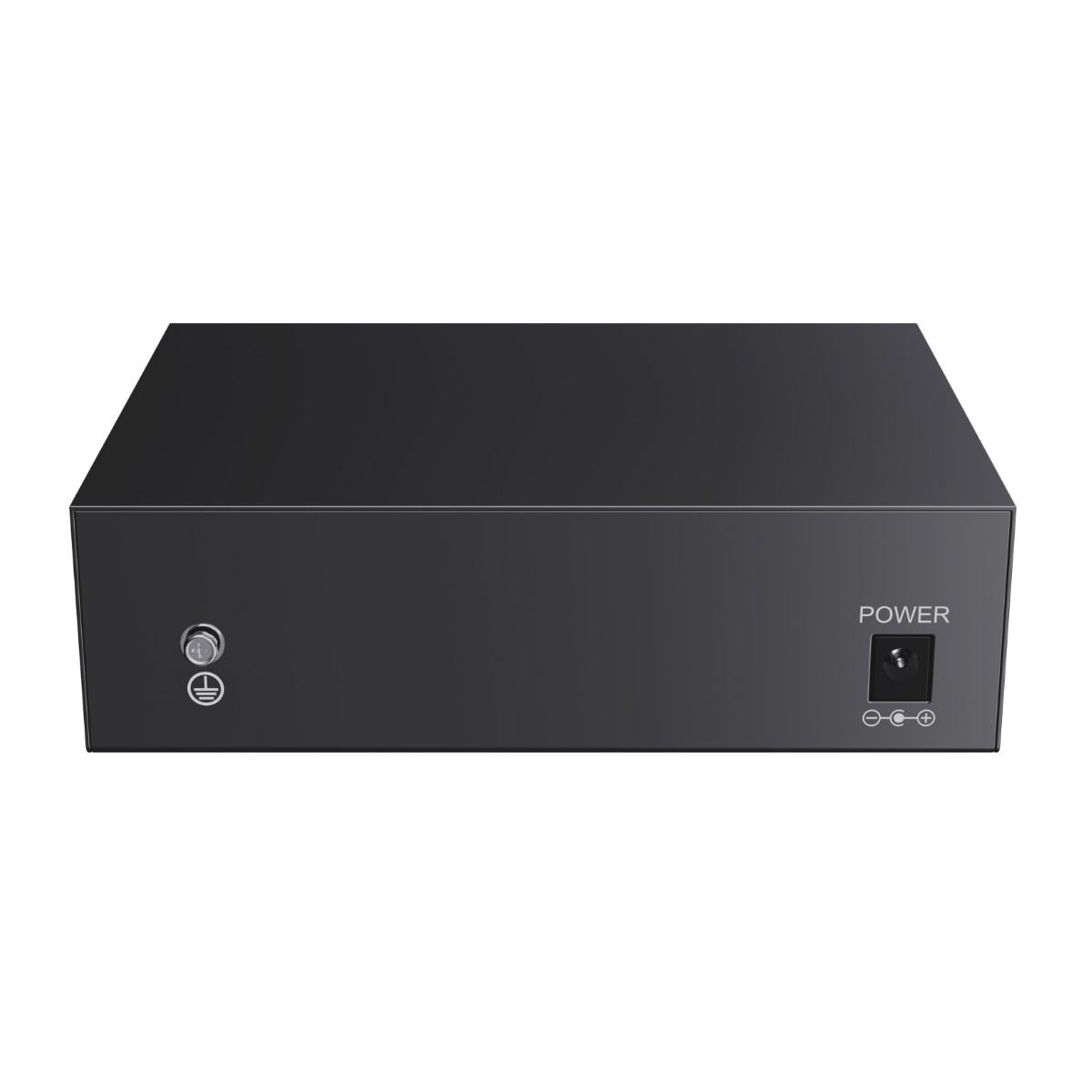

Input voltage | DC input 12V | ||
Total power consumption | Full loading ≤10W | ||
Over-current protection | Support | ||
Layer 2 functions | |||
Port aggregation | Support GE port aggregation Support 2.5GE aggregation Support static aggregation Support LACP dynamic aggregation Up to 64 aggregation groups and up to 8 ports per group | ||
Port features | Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring ( One-to-One, Many-to-One) Support loop detection(Port-based; VLAN-based) Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast) | ||
Mac-address table management | Support static Mac-address management Support dynamic Mac-address Management Support filtering Mac-address Support MAC limit based on port and VLAN Support MAC flapping based on port and VLAN | ||
VLAN | IEEE802.1Q tagged VLAN | ||
GVRP | Normal mode Fixed mode Forbidden mode | ||
QinQ | Port-based QinQ VLAN-based QinQ Flow-based QinQ | ||
LLDP | LLDP (Link Layer Discovery Protocol) | ||
SPAN | Number of Sessions: 7 | ||
RSPAN | Remote Switch Port Analyzer | ||
MSTP | 802.1D STP | ||
ERPS G.8032 | Major ring | ||
QoS | Support QoS Class, remarking Support SP, WRR queue scheduling Ingress port-based rate-limit Egress port-based rate-limit Support policy-based QoS | ||
DHCPv4 Snooping | DHCP snooping trust port | ||
L2 Multicast | |||
IGMP | IGMP v1, v2, v3 | ||
IGMP snooping | Internet Group Management Protocol Snooping | ||
PIM-SM | Protocol Independent Multicast-Sparse Mode | ||
Security features | |||
ACL | IP Standard ACL IP Extended ACL MAC extend ACL IPv6 ACL Time Range ACL apply on VLAN ACL Entrys, include input and output | ||
802.1x | Port access control Mac-address access control RADIUS server | ||
Port-security | Port-security | ||
IP source guard | IP Source Guard, Port-based IP/Mac Binding Access | ||
ARP-check | Support ARP-check and ARP packet filtering for illegal users | ||
DAI | Dynamic ARP Inspection | ||
Anti-gateway ARP Spoofing | Prevent Gateway ARP Spoofing | ||
Ddos | Ddos attack protection | ||
Access control | Support Telnet/SSH/HTTP/HTTPS user access control | ||
AAA | RADIUS authentication access switch | ||
Reliability | |||
Loop Detect | Loop detect, based on port or VLAN | ||
EFM | The Ethernet in the first mile, 802.3ah | ||
Management & Maintenance functions | |||
Dual Stack | IPv4 and IPv6 Dual Stack Management | ||
System Log Management | Syslog Level 7 to 0 Corresponding Debug/Info/Notice/Warning/Err/Critical/Alert Support connecting up to 3 Servers For IPv4 and IPv6 | ||
User Management | Support password protection, support MD5/SHA256/SHA512 algorithm Local Management of User Privilege Remote authorization by RADIUS or TARCAS Enable privilege protection User password complexity requirements User login fail protection User Privilege Level 0 to 15 | ||
Login Service Management | Up to 8 users online simultaneously Access control based on IPv4 or IPv6 ACL | ||
Firmware Management | Firmware upgraded by WEB Firmware upgraded by CLI Dual partition | ||
Web Management | Web Management Support HTTP V1.1 Support HTTPS For IPv4 and IPv6 | ||
CLI management | Console/Telnet command line management | ||
Fault Detection | Ping/Traceroute, For IPv4 and IPv6 Optical transceiver DDM One click fault information collection Cable detection | ||
DNS | Domain Name System | ||
NTP | Network Time Protocol, For IPv4 and IPv6 Support domain name configuration | ||
Configuration Import /Export | FTP/TFTP based remote configuration import and export | ||
sFlow | Sampled flow | ||
SNMP | Version SNMPV2C/V3 | ||
MQTT | Message Queuing Telemetry Transport | ||
RMON | Support RMON (Remote Monitoring) alarm | ||
Dual partition management | Support dual partition switching | ||
Application Protocol Functions | |||
Telnet server | Support telnet server for IPv4 and IPv6 | ||
Telnet client | Support telnet client for IPv4 and IPv6 | ||
SCP (Secure Copy Protocol) | SCP client/server for IPv4 and IPv6 | ||
SFTP | sftp client/server for IPv4 and IPv6 | ||
SSH server | Support login based on user password-SSH2, support IPv4, IPv6 Support public key-based login | ||
TACACS | Support TACACS (the terminal access controller accesses the control system) | ||
TFTP | Support TFTP Client | ||
Layer 3 features | |||
Static Route | Support VLAN interface and route port IPv4 static routing table entry configuration ARP dynamic learning and static configuration IPv6 static routing table entry configuration Neighbor discovery and static configuration Routing prefix table size 4k for IPv4, for IPv6 divide by 4 | ||
DHCPv4 Client | Dynamic host configuration protocol for IPv4 | ||
DHCPv6 Client | Dynamic host configuration protocol for IPv6 | ||
DHCPv4 Relay | DHCP Relay for IPv4 | ||
DHCPv4 Server | DHCP Server for IPv4 | ||
Switching features | |||
Switching capacity | 26Gbps | ||
Packet forwarding rate | 19.344Mpps | ||
MAC address table | 16K | ||
VLAN | 4K | ||
Buffer | 12Mbit | ||
Forwarding delay | <5us | ||
Jumbo Frame | Support 10Kbytes | ||
MDI/MDIX | Support | ||
Watchdog | Support | ||
Mechanical structure | |||
Installation method | Desktop; Rack-mount optional | ||
Dimension(W*D*H)mm | 152*115*44mm | ||
Weight | 0.66kg | ||
Operating environment | |||
Operating temperature | 0℃~+50℃ | ||
Storage/transportation temperature | -10℃~+70℃ | ||
Relative humidity | Operation humidity: 10%-90%RH Storage humidity: 5%-95%RH | ||
Protection | Surge protection of power: 4KV Surge protection of Ethernet ports: 4KV ESD: Contact 6kV, Air 8kV | ||
Certification | CE/RoHS/FCC | ||
MTBF | ＞100,000 hours | ||
Warranty | 3 years | ||
Model | Description |
DK2210M-8T2S | Layer 2+ managed Ethernet switch with 2*1G/2.5G SFP slots + 8*10/100/1000M RJ45 ports, External power adaptor DC 12V/1A |
