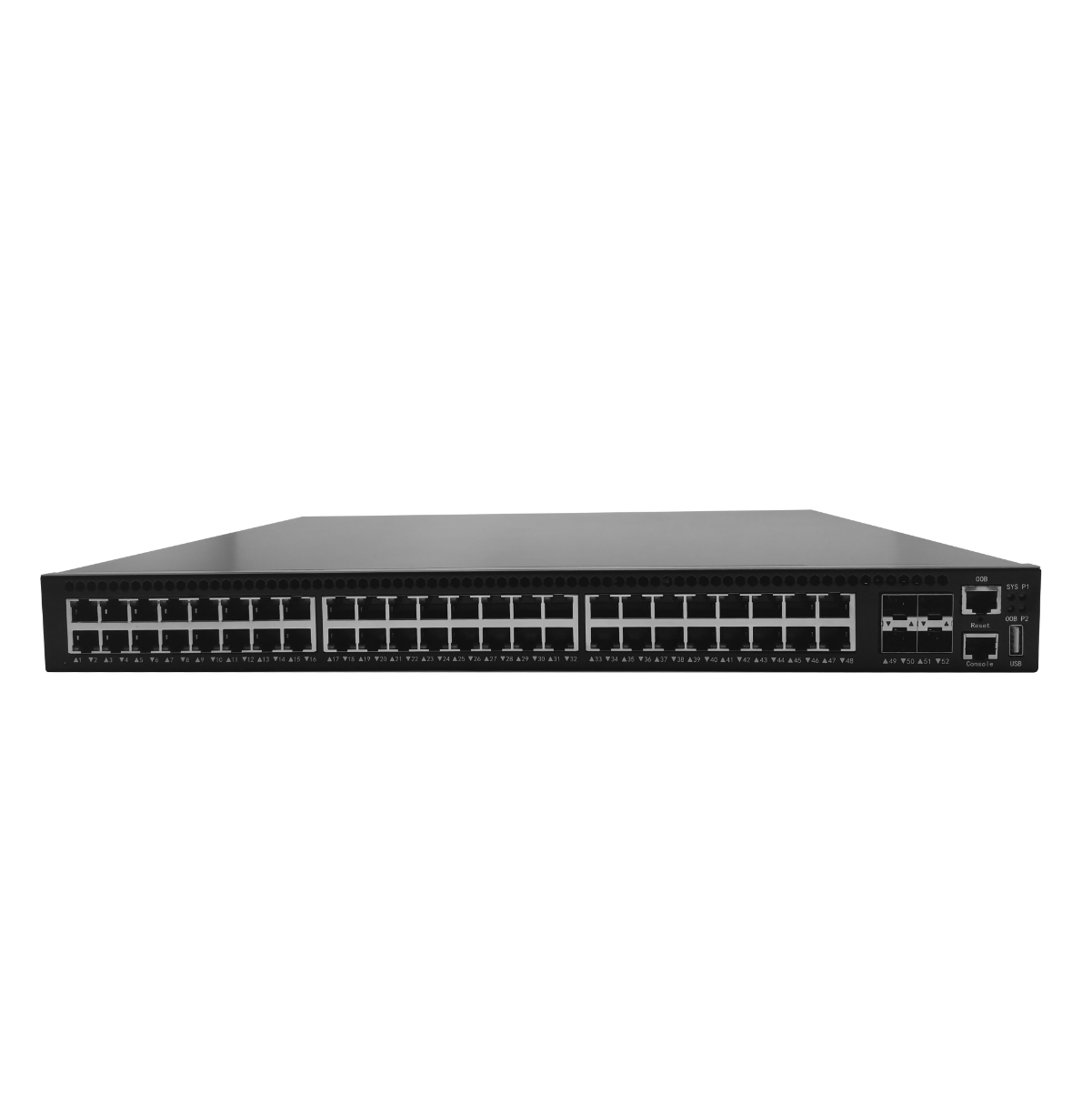

DK2210M-48TP4X-HP


    48*10/100/1000Base-T + 4*1G/2.5G/10G SFP+

    Layer 2+ Managed PoE Ethernet Switch

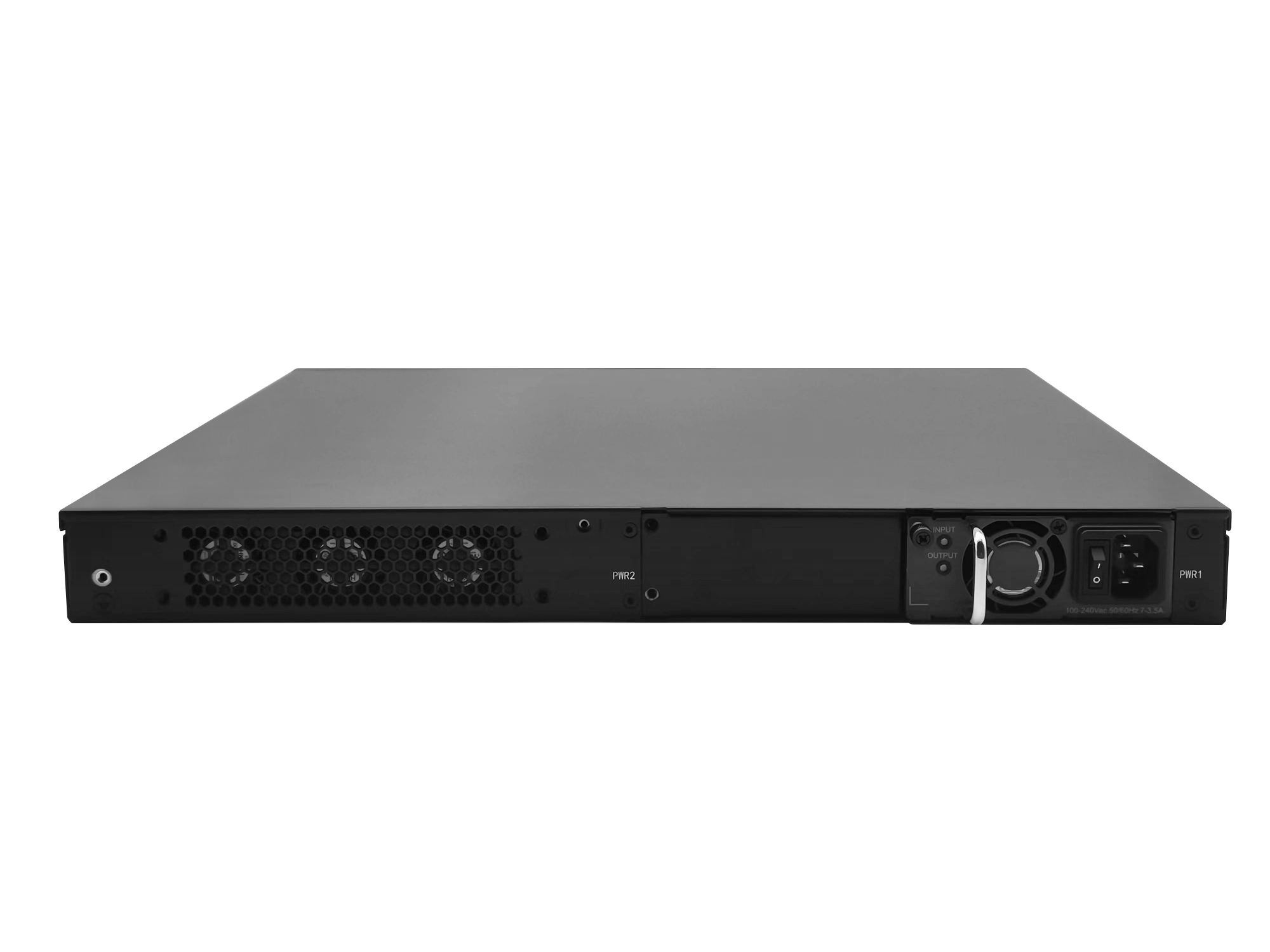

    Redundant Hot-swap Power Suppl
    y:


    Dual hot-swap AC 100-240V 500W power supplies optional
    (At least one power supply required)
    Max PoE power budget 380W+380W


  • Parameters


    48*10/100/1000Base-T + 4*1G/2.5G/10G SFP+

    Layer 2+ Managed PoE Ethernet Switch

    Redundant Hot-swap Power Suppl
    y:


    Dual hot-swap AC 100-240V 500W power supplies optional
    (At least one power supply required)
    Max PoE power budget 380W+380W


Overview



The DPTEK DK2210M-48TP4X-HP are the Layer 2+ managed Gigabit PoE switch featuring advanced hardware architecture. They support redundant hot-swap AC power supply, which will not affect the normal operation of the switch, specifically designed to handle the demands of high-tech facilities requiring the highest power integrity. The switch also provide fault detection and alarms for power and fans. The fan speed can be automatically adjusted based on temperature changes to better adapt to various environments. The DK2210M-48TP4X-HP series adopt the front-to-rear airflow to enhance the cooling efficiency. By using over-current, over-voltage, and overheating protection technologies, the DK2210M-48TP4X-HP achieve device-level and link-level reliability protection.



The series deliver full Gigabit access and unparalleled scalability to 10G performance. They provide high-density performance, Layer 3 IPv4/IPv6 static routing with 336Gbps switching capacity. The DK2210M-48TP4X-HP provides comprehensive end to end QoS as well as flexible and rich management , security settings, which can meet the high speed, secure and smart requirement for small and medium-size enterprise networks. The powerful network security features also make the DK2210M-48TP4X-HP perform effective data traffic control for ISP and enterprise VoIP, video streaming, and multicast applications. With total power consumption up to 760W(380W +380W) It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.




Features


 4*1G/2.5G/10G SFP+ ports uplink, 48*10/100/1000M RJ45 ports downlink, 1*RJ45 console port, 1*OOB port and 1* USB 2.0 port for switch basic management and setup


 Offer 500W + 500W redundant hot-swap power supply, Max PoE power budget 380W + 380W


 Complies with IEEE 802.3at, IEEE802.3af standard. Max output power consumption per port can reach 30W


 Automatic power and fan status monitoring and alarming mechanisms


 Automatic fan speed adjustment based on the change in temperature


 Self-protection mechanisms that protect power supply against over-current, over-voltage, and over-temperature conditions

 Layer 3 features: Supports IPv4/IPv6 static routing, DHCP server

 Port aggregation: Supports GE ports, 2.5GE and 10GE port aggregation, static and dynamic aggregation

 VLAN: Supports access, truck, hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN

 GVRP: Supports normal mode, fixed mode and forbidden mode

 QinQ: Supports port-based, VLAN-based and flow-based QinQ

 Port Mirroring: Many to one port mirroring

 Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring

 Multicast: Supports IGMP snooping

 QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS

 Security: Support Dot1x, port authentication, mac authentication, RADIUS service; Support port-security, ip source guard, IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation

 Management: Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web managementHTTP1.1, HTTPS; Syslog; RMON (Remote Monitoring) alarm, event and history record; NTP, temperature monitoring; Ping, Traceroute, optical transceiver DDM and copper port cable detection function; Supports TFTP Client, Telnet Server, Telnet Client, SSH Server and IPv6 management; PoE management

 Firmware update, configure backup/restore through Web GUI, FTP and TFTP




Model

DK2210M-48TP4X-HP

Fixed ports

4*1G/2.5G/10G SFP+ slots, 48*10/100/1000M RJ45 PoE ports

Console port

1*RJ45 Console

USB port

1*USB 2.0

OOB port

1*OOB

PoE

Complies with IEEE 802.3at, IEEE802.3af standard. Max output power per port can reach 30W(PoE+)

Support 1/2(+) 3/6(-) Endspan

Support Non-standard PD

Support PoE watchdog

Support PoE priority management

Support Max PoE power configuration for each port

Support alarm waterline configuration

Support reserved power configuration

Switching capacity

336Gbps

Packet forwarding rate

499.9Mpps

MAC address table

16K

Buffer

12M bit

Port aggregation

Support gigabit port, 2.5GE and 10GE port aggregation

Support static and dynamic aggregation

Port features

Support IEEE802.3x flow control, Port traffic statistics, port isolation

Support network storm suppression based on port bandwidth percentage

VLAN

Support access, trunk and hybrid mode

VLAN Classification

Mac Based VLAN

IP Based VLAN

Protocal Based VLAN

GVRP

Normal mode

Fixed mode

forbidden mode

QinQ

Basic QinQ (Port-based QinQ)

Flexible Q in Q(VLAN-based QinQ)

QinQ(Flow-based QinQ)

Port mirroring

Many to one (Port Mirroring)

Layer 2 ring network protocol

Support STPRSTPMSTP

Support G.8032 ERPS protocolsingle ring, sub ring and other ring

Loop detect

Loop detect based on ports

DHCP

DHCP Client

DHCP Snooping

DHCP server

ARP

ARP table aging

IPv4/IPv6

Static routing

Multicast

IGMP snooping

ACL

IP Standard ACL

MAC extend ACL

IP extend ACL

QoS

QoS Class, Remarking

Support SP, WRR queue scheduling

Ingress Port-based Rate-limit

Egress Port-based Rate-limit

Policy-based QoS

Security

Support Dot1xport authenticationmac authenticationRADIUS service

Support port-security

Support ip source guardIP/Port/MAC binding
Support arp-check and ARP packet filtering for illegal users

Support port isolation

Management and maintenance

Support LLDP

Support user management and login authentication

Support SNMPV1/V2C/V3

Support web managementHTTP1.1HTTPS

Support Syslog and alarm grading

Support RMON Remote Monitoringalarm, event and history record

Support NTP

Support temperature monitoring

Support PingTracerout

Support optical transceiver DDM function

Support copper port cable detection

Support TFTP Client

Support Telnet Server, Telnet Client

Support SSH Server

Support IPv6 Management

Support PoE management

Support FTPTFTPWEB upgrading

Dimension(mm)

440*300*44mm

Power supply and consumption

Power Supply slots

2

Maximum power consumption

Full loading without PoE40W
PoE power budget380W + 380W

Input voltage

AC power supply: AC 100-240V, frequency: 50/60Hz

Fan

3*Fans, support automatic fan speed adjustment

Power surge protection

6KV, IEC 61000-4-5  Level X8/20us

Ethernet ports surge protection

4KV, IEC 61000-4-5  Level 410/700us

Working temperature

0-50

Humidity

Working humidity10%-90%RH

Storage humidity5%-95%RH







































































































































Model

Description

DK2210M-48TP4X-HP

Layer 2+ managed PoE switch with 4*10G/2.5G/1G SFP+ ports and 48*10/100/1000M RJ45 PoE ports, dual hot-swap AC 100-240V 500W power supplies optional (At least one power supply required), max PoE power budget 380W+380W


















DK2210M-48TP4X-HP
