DK-MC10G-E
10/100/1000M Industrial Media converter
1*10/100/1000Base-TX RJ45 port and 1*1000Base-FX SFP port,
DC12-58V input, redundant dual power supply, Din-rail installation.
Fiber port transmission distance depending on the SFP module;
Operation temperature: -40℃～+75℃
- Parameters
10/100/1000M Industrial Media converter
1*10/100/1000Base-TX RJ45 port and 1*1000Base-FX SFP port,
DC12-58V input, redundant dual power supply, Din-rail installation.
Fiber port transmission distance depending on the SFP module;
Operation temperature: -40℃～+75℃
Overview
The DPTEK DK-MC10G-E series are unmanaged industrial grade media converter with 1-port 10/100/1000-T RJ45 and 1-port 100/1000Base-X fiber optical interfaces. They are featuring with LFP, flow control, broadcast storm restrain and fiber port 100/1000M selection function, which all can be configured by the Dip switch on the top panel.
DK-MC10G-E series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact size housing with Din-rail installation, wide operation temperature from -40℃ to 75℃ as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features

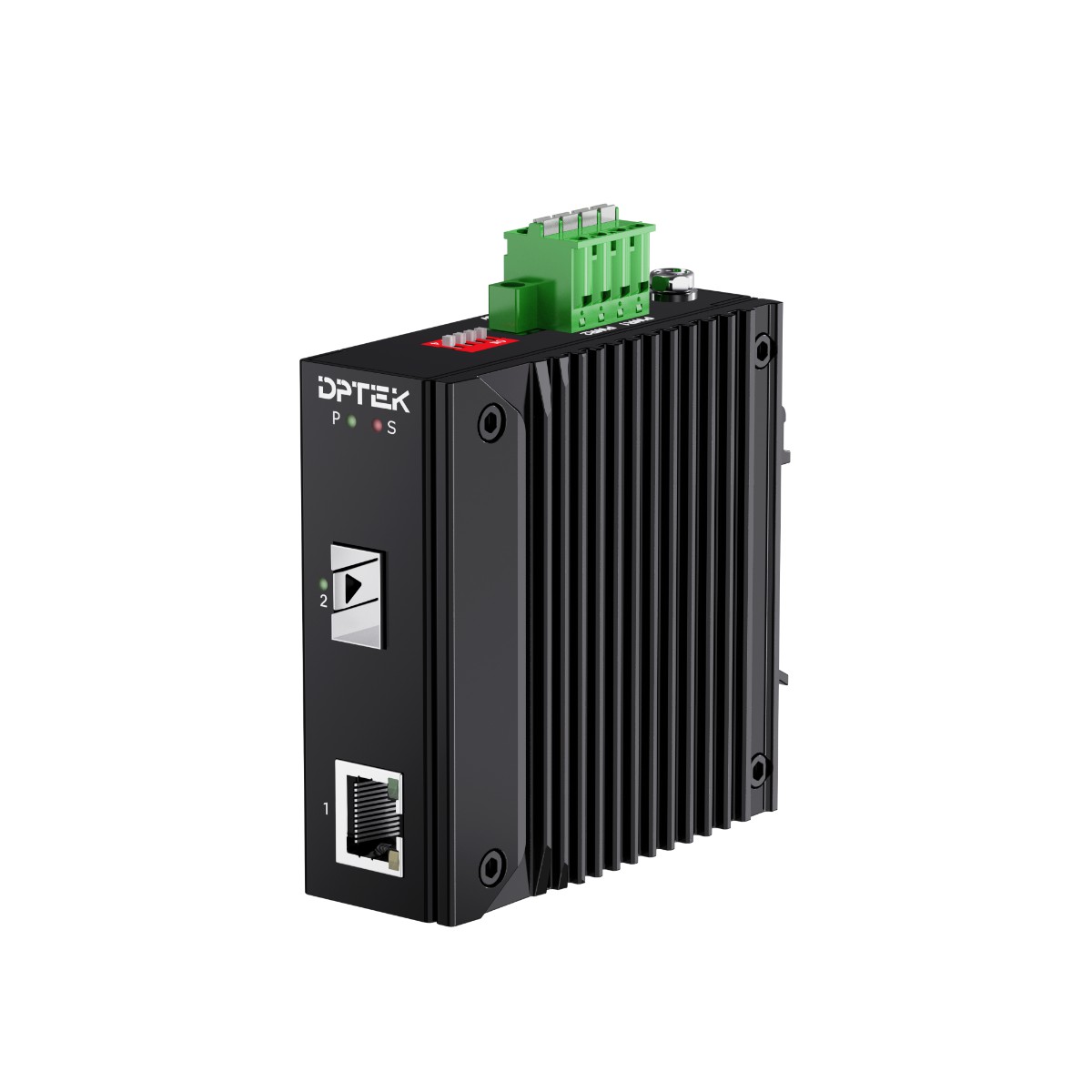

➢ 1*10/100/1000Base-T RJ45 port, 1*100/1000Base-X SFP(SC/ST/FC optional) fiber port
➢ DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
➢ Powerful Dip switch function:
1.LFP; 2. Flow control; 3. Broadcast storm restrain; 4.fiber port 100/1000M selection
➢ Support 10K Bytes Jumbo frame and 1M large buffer
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
➢ Operation temperature: -40℃ ~+75℃
Model No. | DK-MC10G-E | |||
Interface | Fiber port | Copper RJ45 port | ||
1 | 1 | |||
Ethernet | 1*10/100/1000Base-T RJ45 1*100/1000Base-X SFP (SC/ST/FC optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | |||

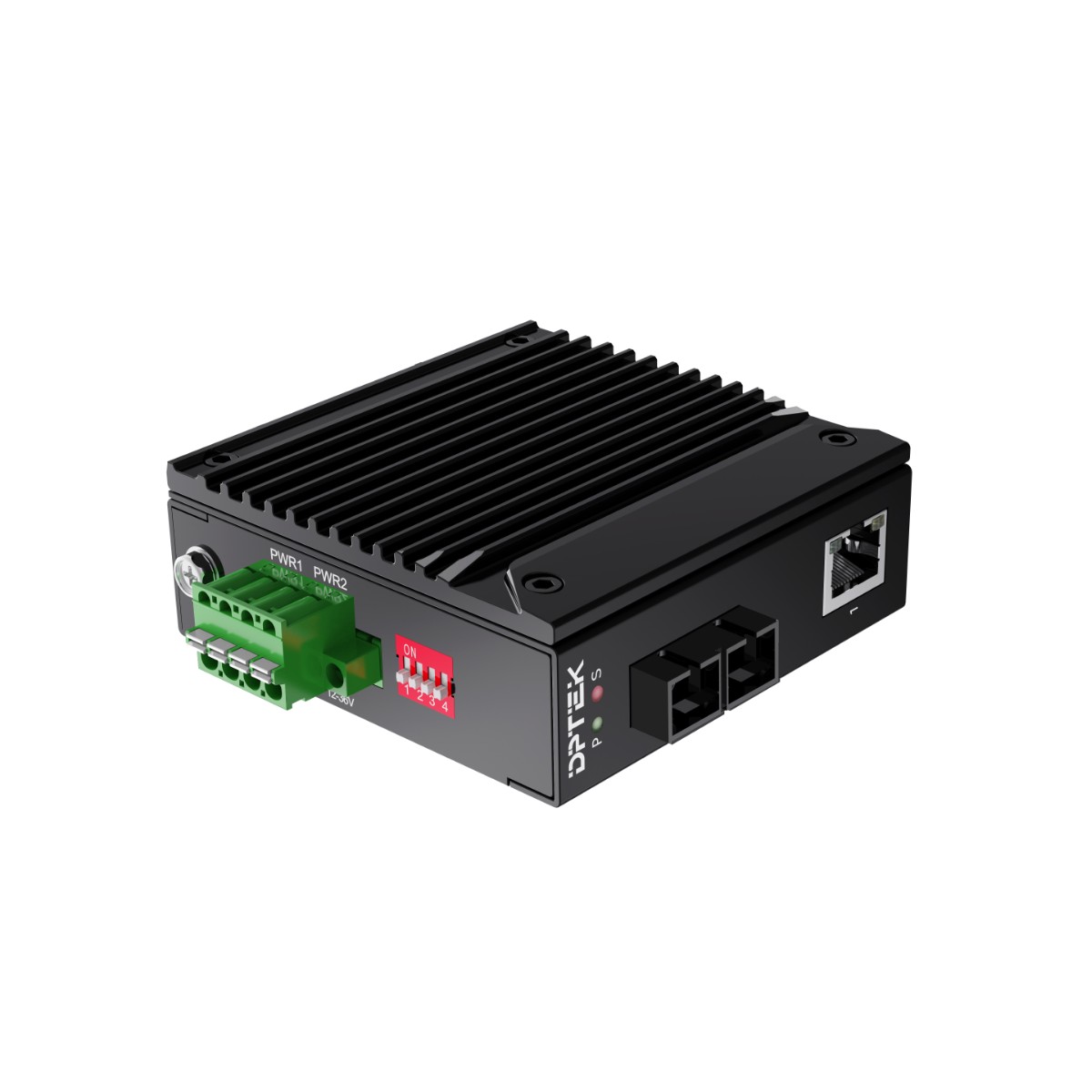

Dip Switch | 1. LFP 2. Flow control 3. Broadcast storm restrain 4. Fiber port 100/1000M selection | |||

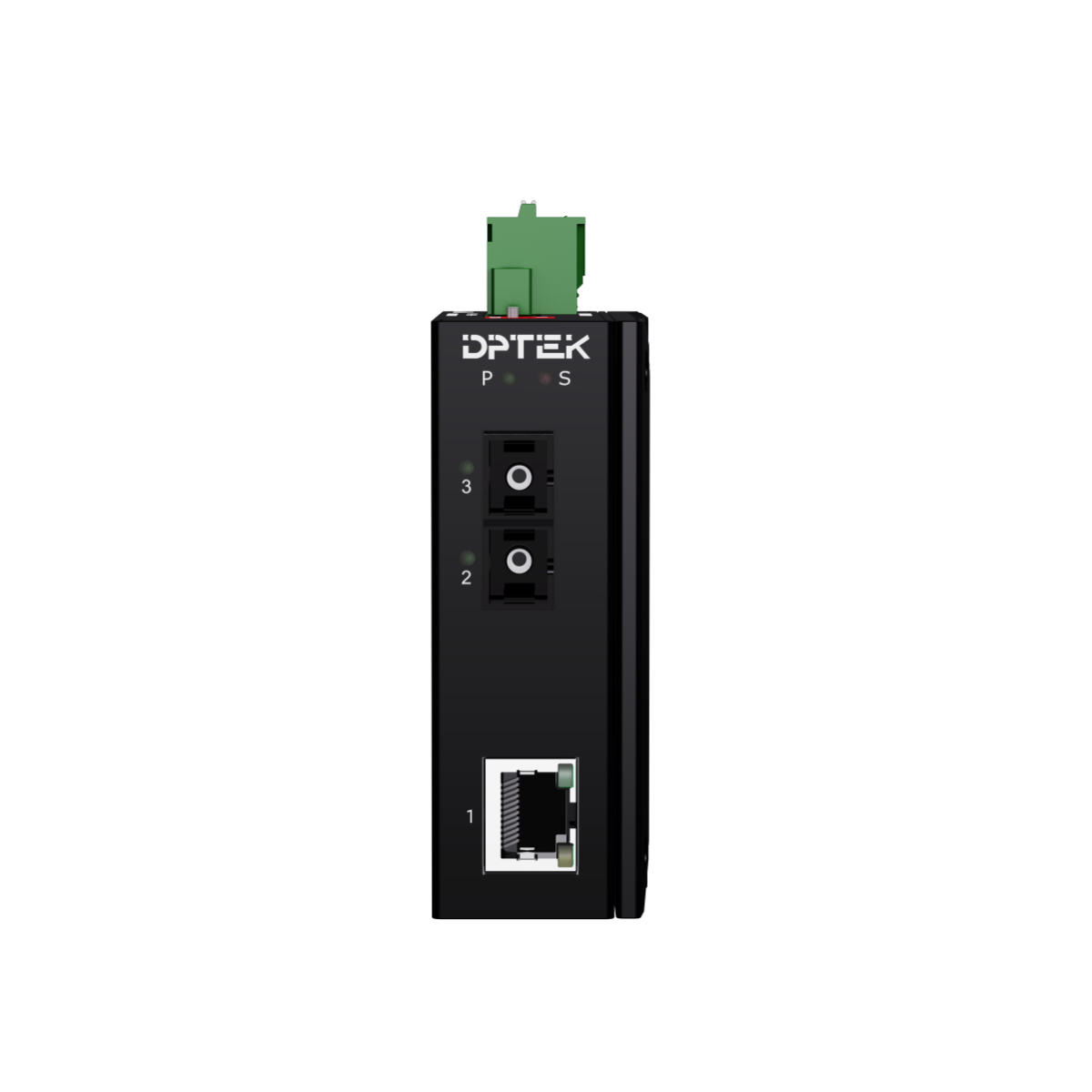

LED Indicators | P(Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S(System indicator) Red | Off: the chip is normal | |||
On: the chip read/write is unnormal | ||||
1 (Copper port) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: port speed is 10/100M | |||
On: ports link up | On: port speed is 1000M | |||
Blinking: data on TX/RX | ||||
1 ( Fiber port) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 12-58VDC, redundant power input | |||
Input current | 0.2A Max | |||
Total power consumption | Full loading ≤2W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 2G | |||
Packet forwarding rate | 2.97pps | |||
MAC address table | 8K | |||
VLAN | 4K | |||
Buffer | 1M | |||
Forwarding delay | <5us | |||
Jumbo Frame | Support 10Kbytes | |||
MDX/MIDX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||

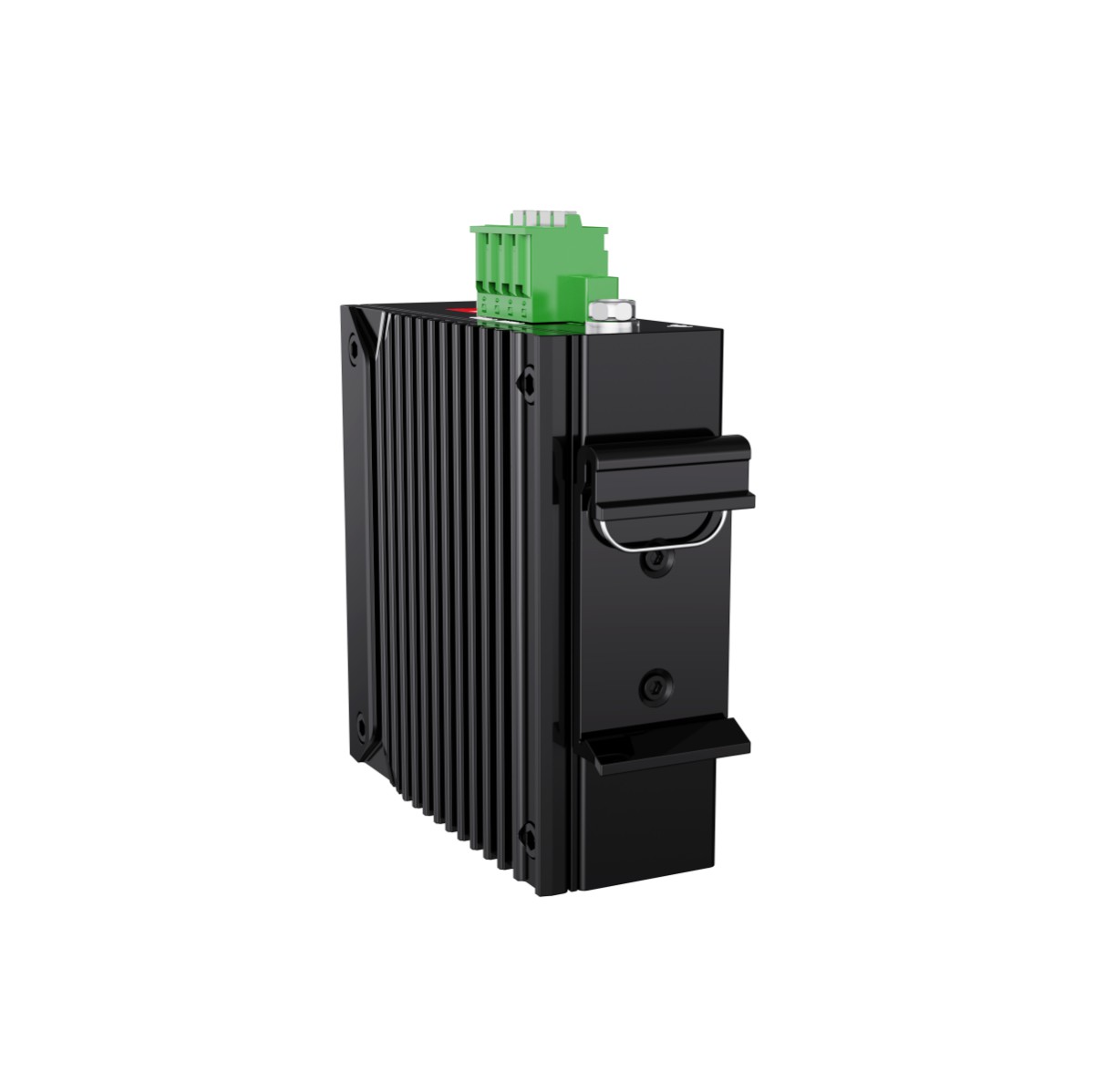

Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*85*85mm | |||
Weight | 0.2 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95%（non-condensing） | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) | ||||
DIP: IEC 61000-4-11 Level 3（10V） | ||||
ESD: IEC 61000-4-2 Level 4（8K/15K） | ||||
Shock：IEC 60068-2-27 | ||||
Free fall：IEC 60068-2-32 | ||||
Vibration：IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |
DK-MC10G-E | 10/100/1000Base-T to 1000Base-X unmanaged compact size industrial media converter with 1*10/100/1000Base-X RJ45 port and 1*100/1000Base-X SFP slot, DC12-58V input, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40℃～+75℃ |

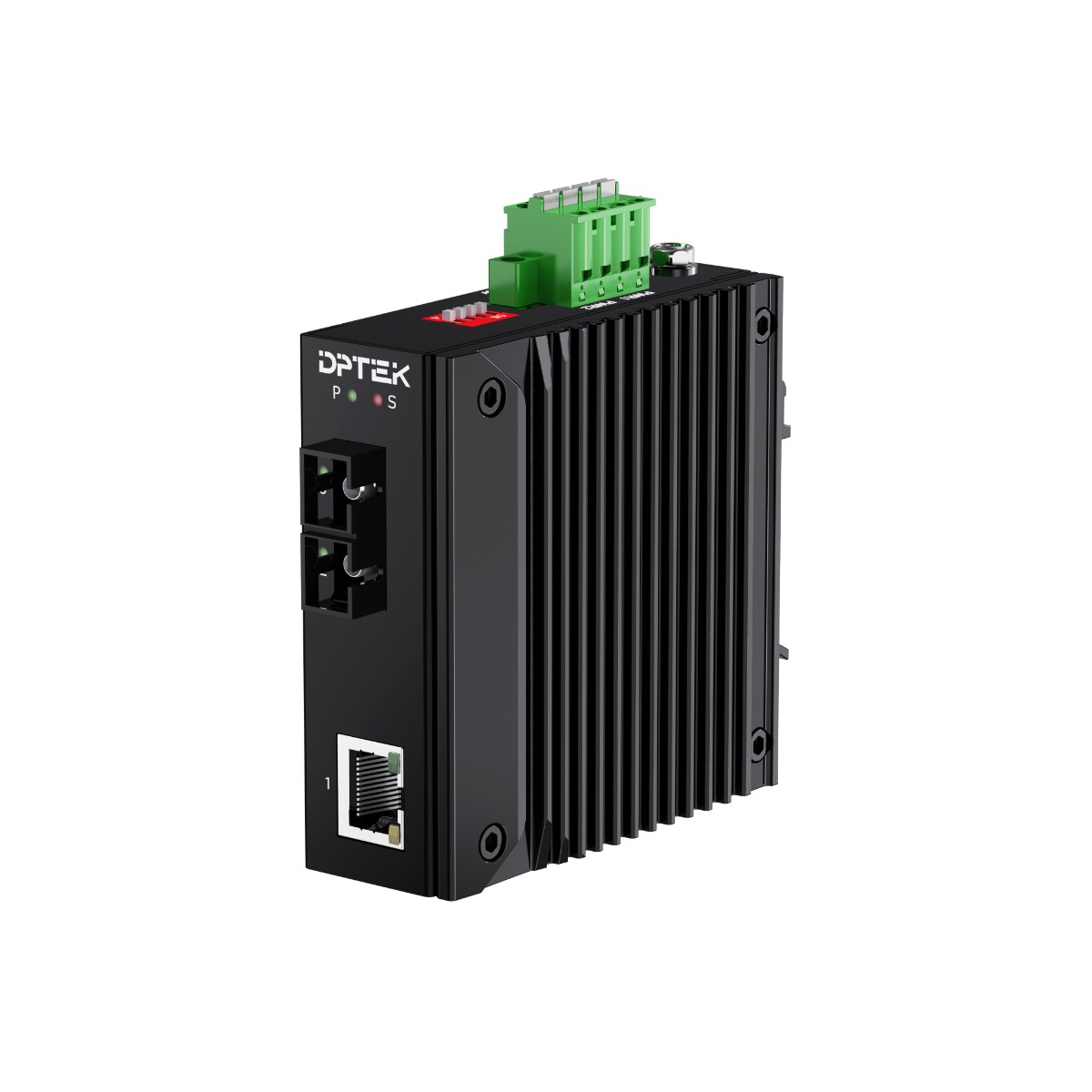

DK-MC10G-SC-E | 10/100/1000Base-T to 1000Base-X unmanaged compact size industrial media converter with 1*10/100/1000Base-X RJ45 port and 1*100/1000Base-X SC port, DC12-58V input, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40℃～+75℃ |
DK-MC10G-FC-E | 10/100/1000Base-T to 1000Base-X unmanaged compact size industrial media converter with 1*10/100/1000Base-X RJ45 port and 1*100/1000Base-X FC port, DC12-58V input, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40℃～+75℃ |
DK-MC10G-ST-E | 10/100/1000Base-T to 1000Base-X unmanaged compact size industrial media converter with 1*10/100/1000Base-X RJ45 port and 1*100/1000Base-X ST port, DC12-58V input, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40℃～+75℃ |
