DK-MC10G-2TP1S-E
Compact Industrial PoE media converter
2*10/100Base-TX RJ45 PoE to 1*100Base-FX
2*10/100/1000Base-T PoE ports and 1*100/1000Base-X SFP slot,
complies with IEEE802.3af, IEEE802.3at standard,
DC44-57V, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
- Parameters
Compact Industrial PoE media converter
2*10/100Base-TX RJ45 PoE to 1*100Base-FX
2*10/100/1000Base-T PoE ports and 1*100/1000Base-X SFP slot,
complies with IEEE802.3af, IEEE802.3at standard,
DC44-57V, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
Overview
The DPTEK DK-MC10G-2TP1S-E series are unmanaged compact industrial grade PoE media converter with 2-port 10/100/1000-T PoE and 1-port 100/1000Base-X fiber optical interface. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, they are featuring with port isolation, fiber port 100/1000M selection, 250m long distance transmission mode and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK-MC10G-2TP1S-E series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 compact fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 2*10/100/1000Base-T RJ45 PoE ports, 1*100/1000Base-X SFP(/SC/ST/FC optional) fiber port
➢ DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
➢ Powerful Dip switch function:
1.Port isolation; 2. Fiber port 100/1000M selection; 3. 250m long distance; 4.PoE watchdog
➢ Support 10K Bytes Jumbo frame and 1M large buffer
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

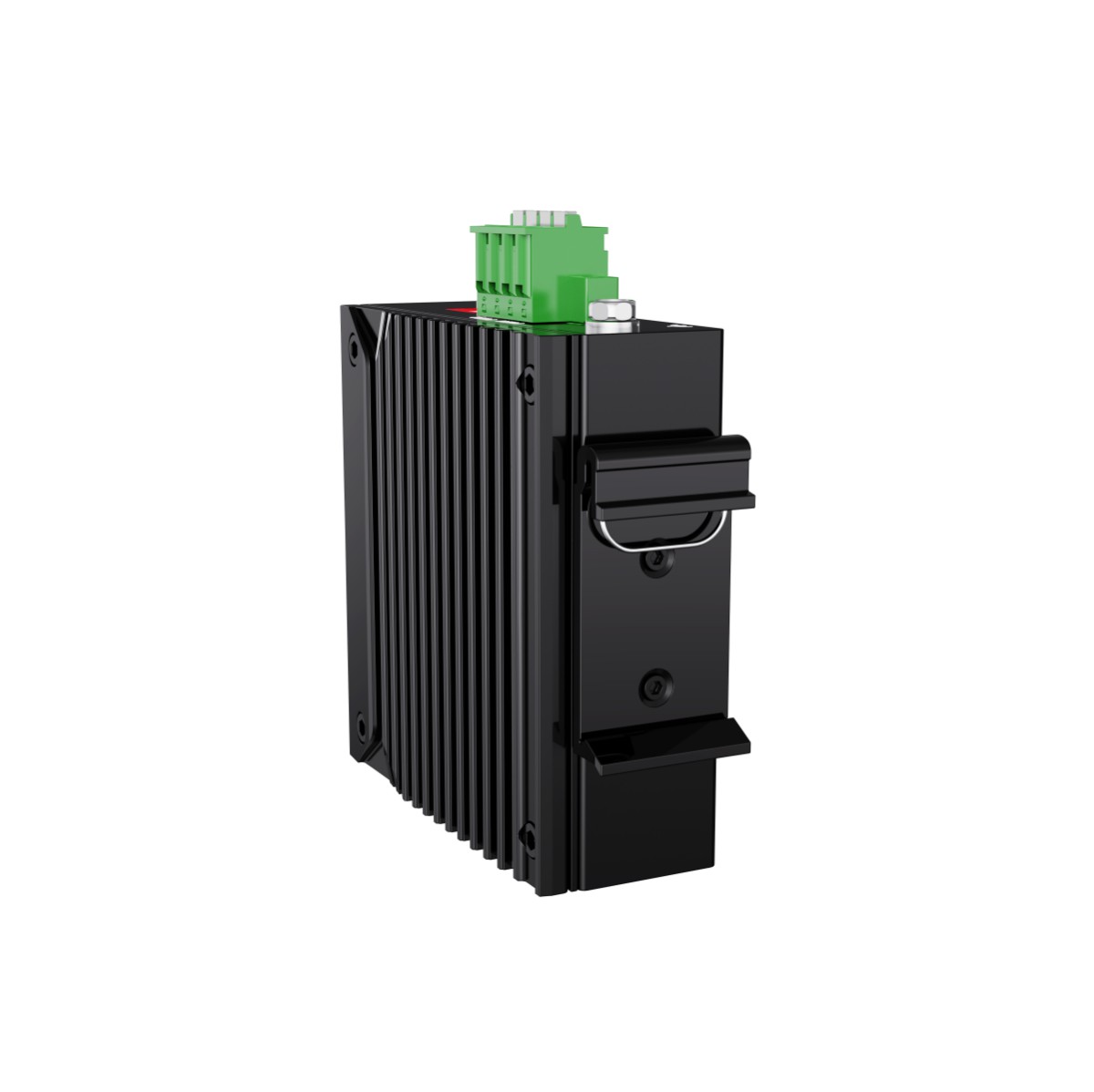

➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
➢ Operation temperature: -40°C ~+75°C
Model No. | DK-MC10G-2TP1S-E | |||
Interface | Fiber port | Copper RJ45 ports | ||
1 | 2 | |||
Ethernet | 2*10/100/1000Base-T PoE 1*100/1000Base-X SFP (SC/ST/FC optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE | |||
Dip Switch | 1. Port isolation 2. Fiber port 100/1000M selection 3. 250m long distance mode 4. PoE watchdog | |||
LED Indicators | P(Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S(PoE usage indicator) Red | Off: total PoE usage ＜rated 50% | |||
Blinking: rated 50%＜total PoE usage＜rated 90% | ||||
On: total PoE usage≥rated 90% | ||||
1-2(Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: PoE not working | |||
On: ports link up | On: PoE working | |||
Blinking: data on TX/RX | ||||
3 ( Fiber port) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 44-57VDC, redundant power input | |||
Input current | 1.5A Max | |||
Total power consumption | Full loading without PoE ≤ 2.5W PoE power budget ≤ 60W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 6G | |||
Packet forwarding rate | 8.92 Mpps | |||
MAC address table | 8K | |||
VLAN | 4K | |||
Buffer | 1M | |||
Forwarding delay | <5us | |||
Jumbo Frame | Support 10Kbytes | |||
MDX/MIDX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*85*85mm | |||
Weight | 0.21 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95%（non-condensing） | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) | ||||
DIP: IEC 61000-4-11 Level 3（10V） | ||||
ESD: IEC 61000-4-2 Level 4（8K/15K） | ||||
Shock：IEC 60068-2-27 | ||||
Free fall：IEC 60068-2-32 | ||||
Vibration：IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |

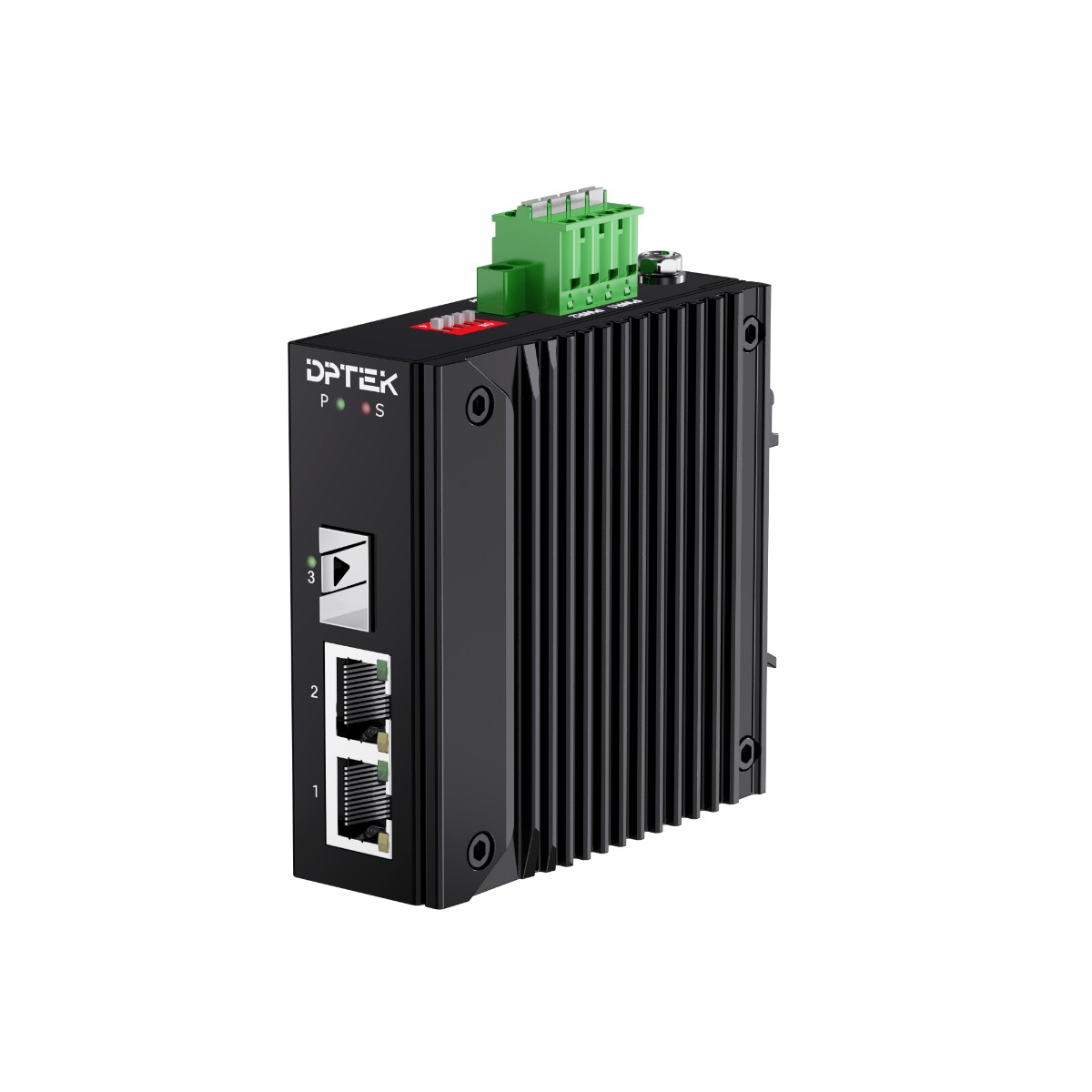

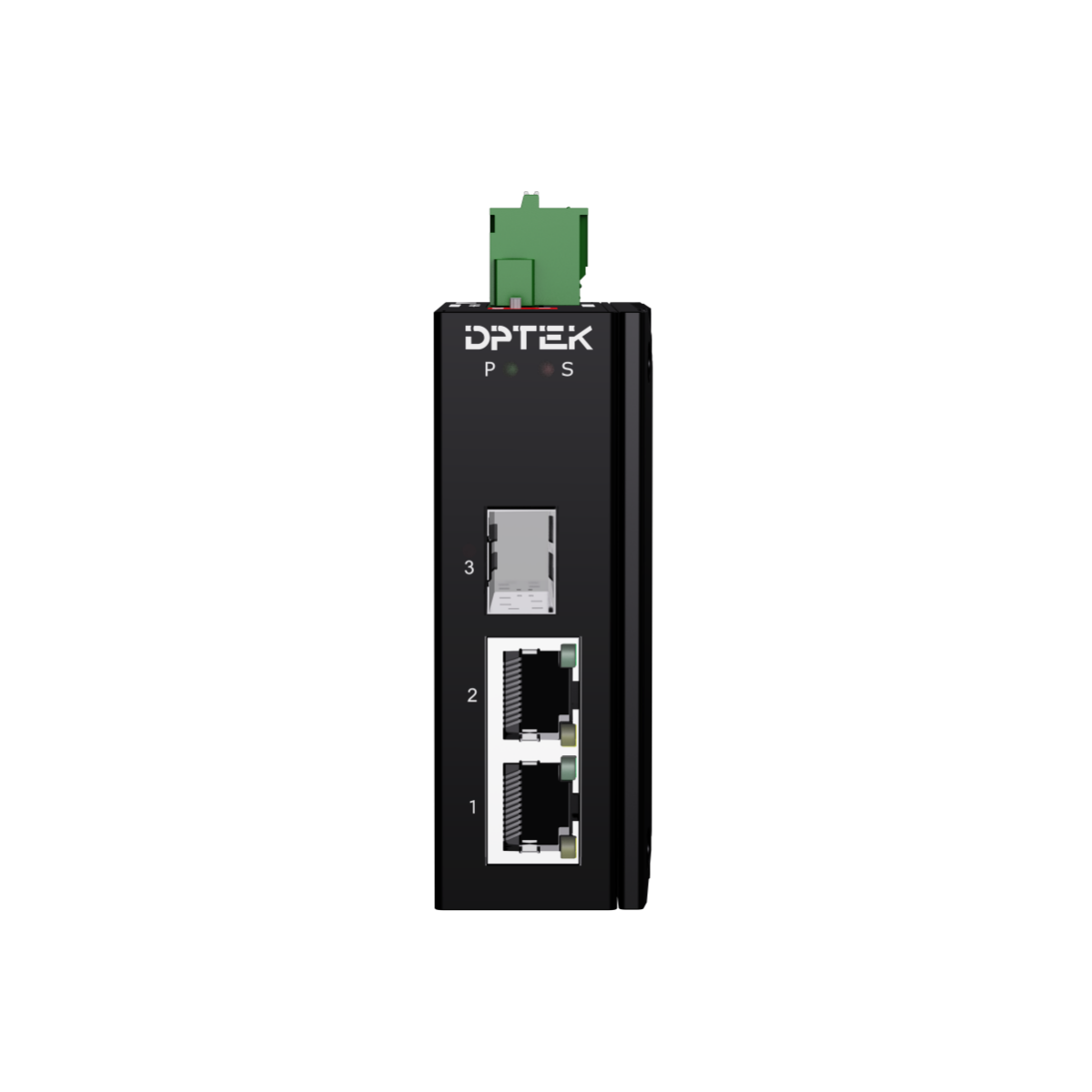

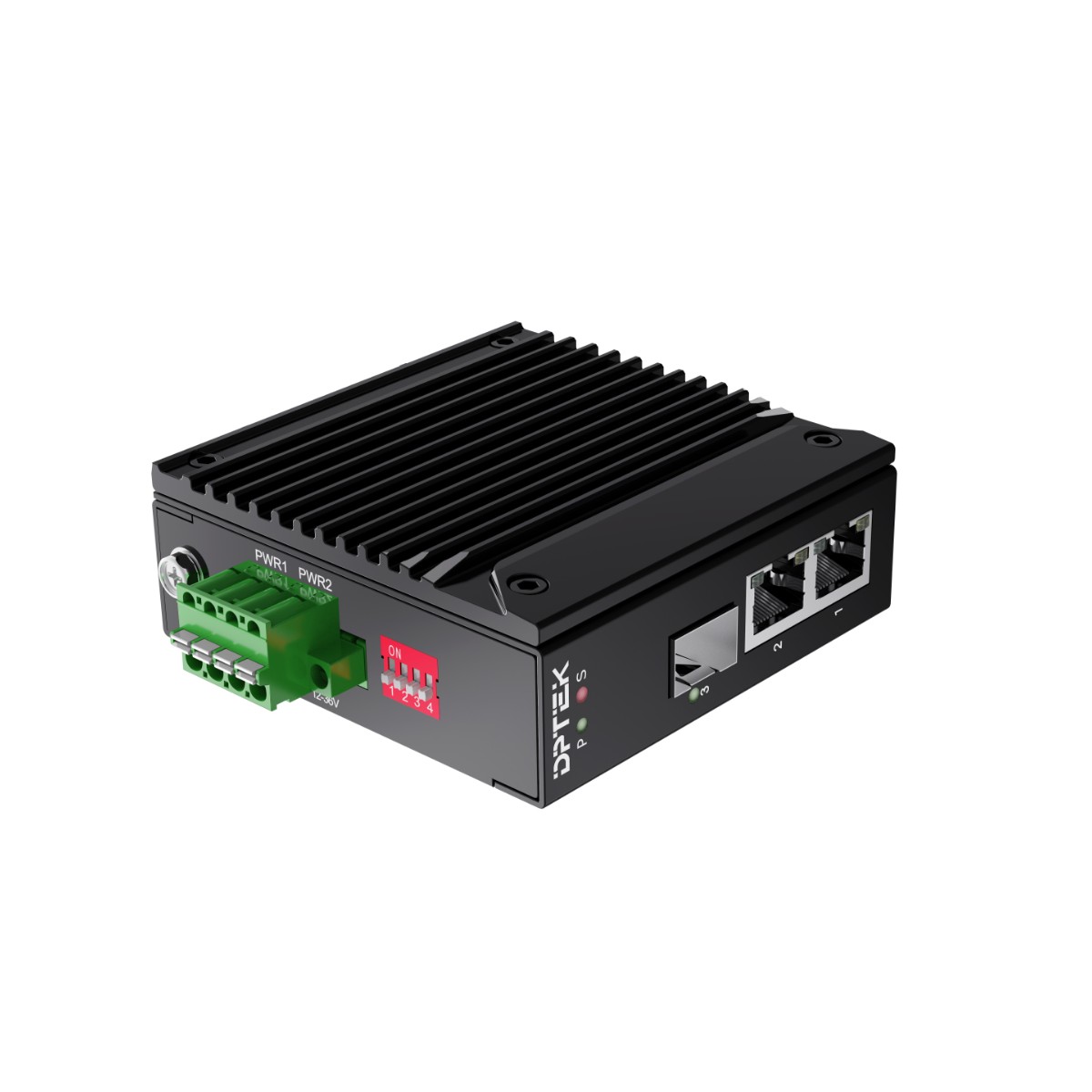

DK-MC10G-2TP1S-E | 10/100/1000Base-T to 1000Base-X unmanaged compact industrial PoE media converter with 2*10/100/1000Base-T PoE ports and 1*100/1000Base-X SFP slot, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C～+75°C |

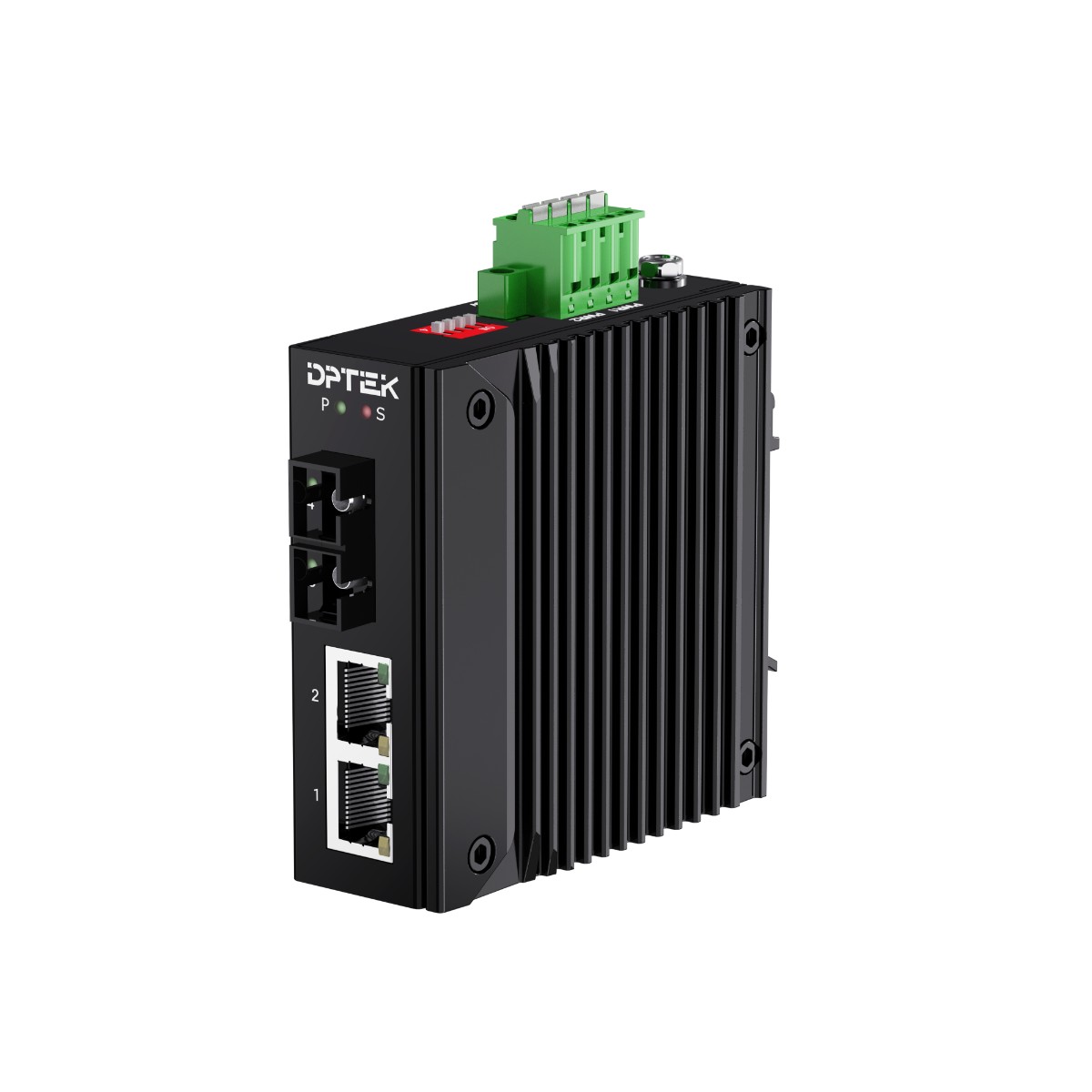

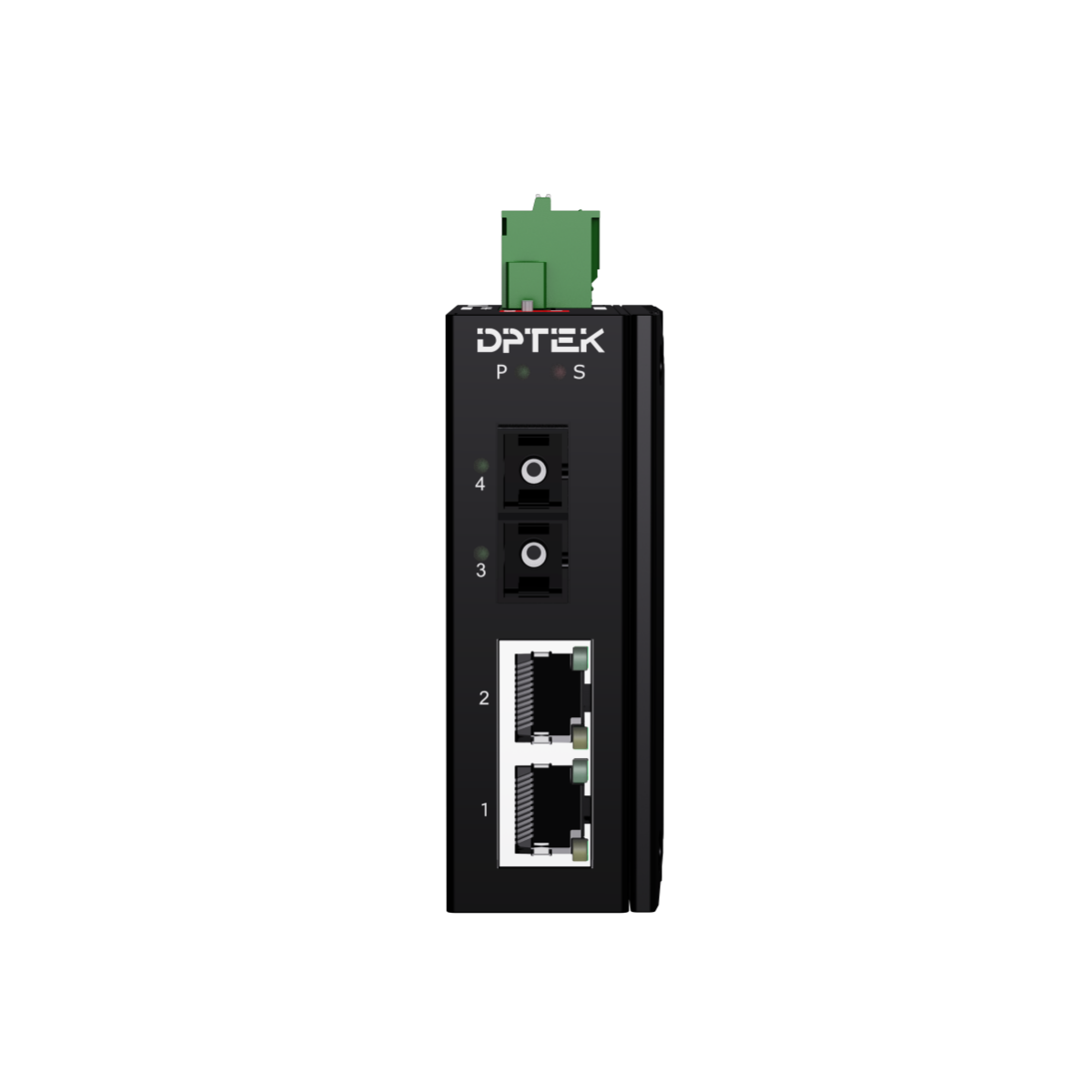

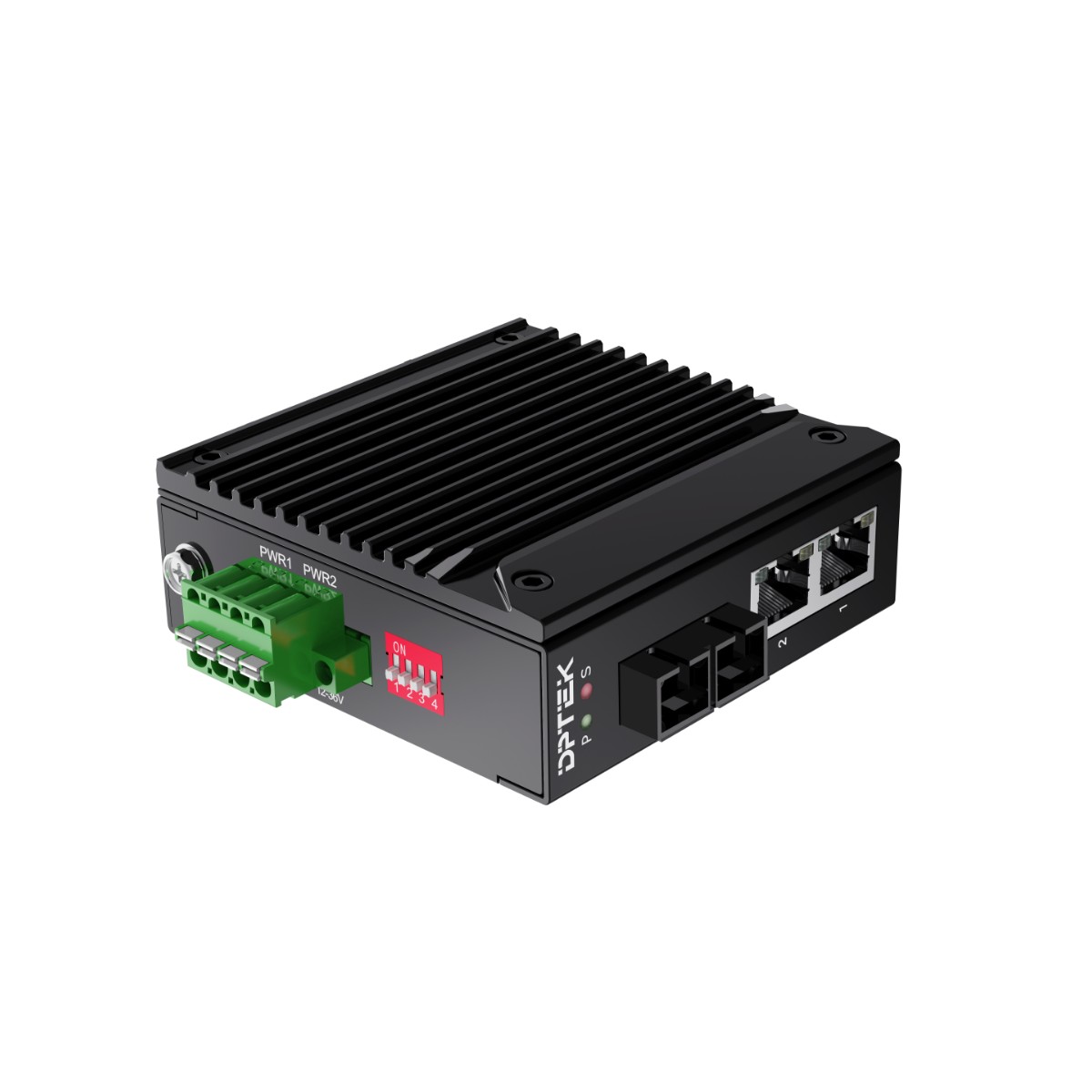

DK-MC10G-2TP1S-SC-E | 10/100/1000Base-T to 1000Base-X unmanaged compact industrial PoE media converter with 2*10/100/1000Base-T PoE ports and 1*100/1000Base-X SC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C～+75°C |
DK-MC10G-2TP1S-FC-E | 10/100/1000Base-T to 1000Base-X unmanaged compact industrial PoE media converter with 2*10/100/1000Base-T PoE ports and 1*100/1000Base-X FC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C～+75°C |
DK-MC10G-2TP1S-ST-E | 10/100/1000Base-T to 1000Base-X unmanaged compact industrial PoE media converter with 2*10/100/1000Base-T PoE ports and 1*100/1000Base-X ST port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 550m -100KM optional; Operation temperature: -40°C～+75°C |
