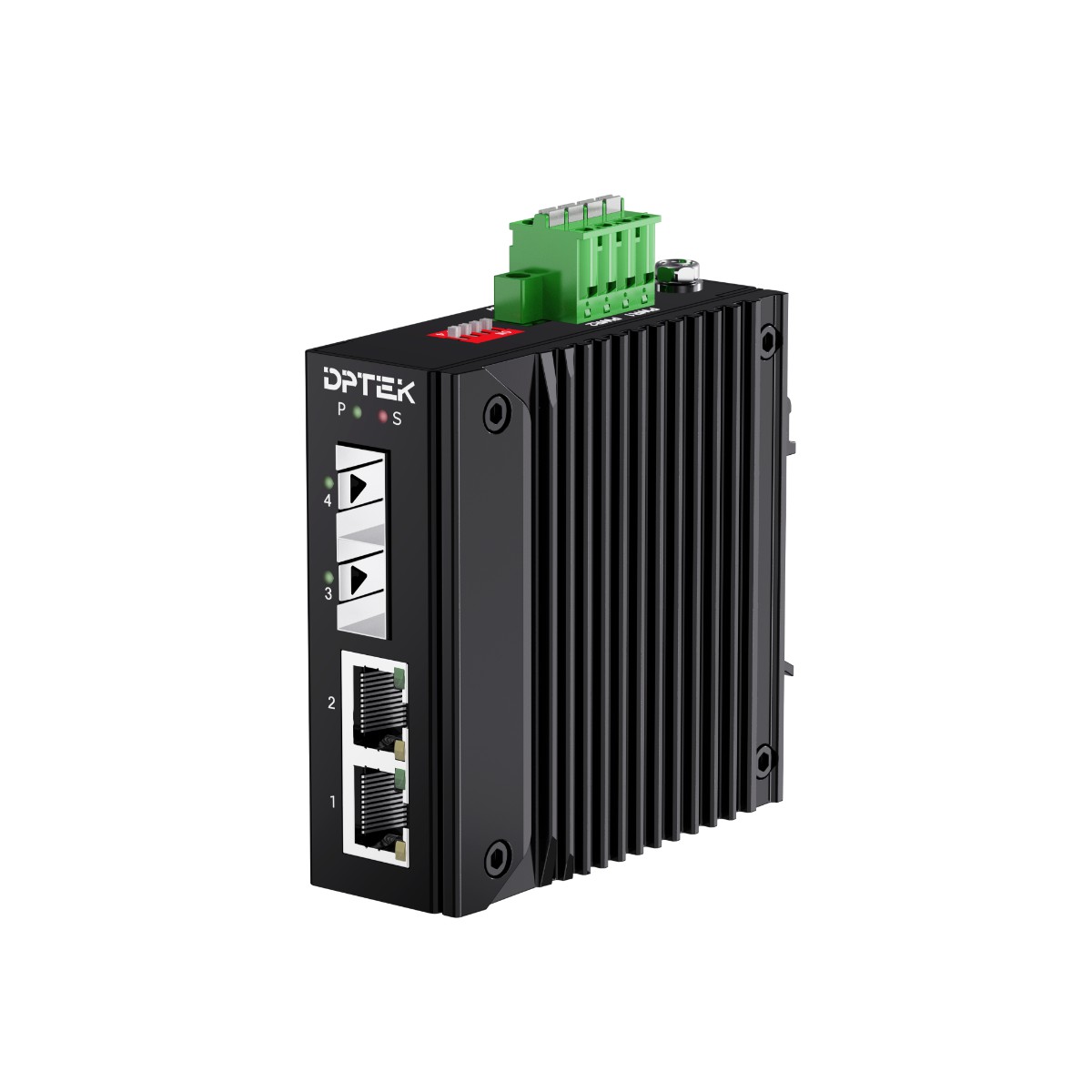

DK-MC10F-2FP2FS-E

    Compact Industrial PoE Media Converter

    2*10/100Base-TX PoE to 2*100Base-FX



    2*10/100Base-TX PoE ports and 2*100Base-FX SFP slots,

    complies with IEEE802.3af, IEEE802.3at standard,

    DC44-57V, redundant dual power supply, Din-rail installation.

    Operation temperature: -40°C~+75°C


  • Parameters

    Compact Industrial PoE Media Converter

    2*10/100Base-TX PoE to 2*100Base-FX



    2*10/100Base-TX PoE ports and 2*100Base-FX SFP slots,

    complies with IEEE802.3af, IEEE802.3at standard,

    DC44-57V, redundant dual power supply, Din-rail installation.

    Operation temperature: -40°C~+75°C


Overview



The DPTEK DK-MC10F-2FP2FS-E is the unmanaged industrial grade PoE media converter with 2-port 10/100Base-TX PoE and 2-port 100Base-FX fiber optical interfaces. It complies with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, it is featuring with fiber redundant, flow control, 250m long distance transmission mode and PoE watchdog function, which all can be configured by the Dip switch on the top panel.



DK-MC10F-2FP2FS-E is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact housing with Din-rail installation, wide operation temperature from -40°C ~+75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.




Features

 2*10/100Base-TX RJ45 PoE ports, 2*100Base-FX SFP fiber ports
 DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection

 Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard

  Powerful Dip switch function:

1.Fiber redundant;  2. Flow control;  3.250m long distance;  4.PoE watchdog

 Support 10K Bytes Jumbo frame and 1M large buffer

 Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection

 IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)

 Operation temperature: -40°C ~+75°C



Model No.

DK-MC10F-2FP2FS-E

Interface

Fiber ports

Copper RJ45 ports

2

2

Ethernet

2*10/100Base-TX PoE

2*100Base-FX SFP

Standard

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3af Power-Over-Ethernet

IEEE 802.3at Power Over Ethernet plus PSE

Dip Switch

1. Fiber redundant

2. Flow control

3. 250m long distance mode

4. PoE watchdog

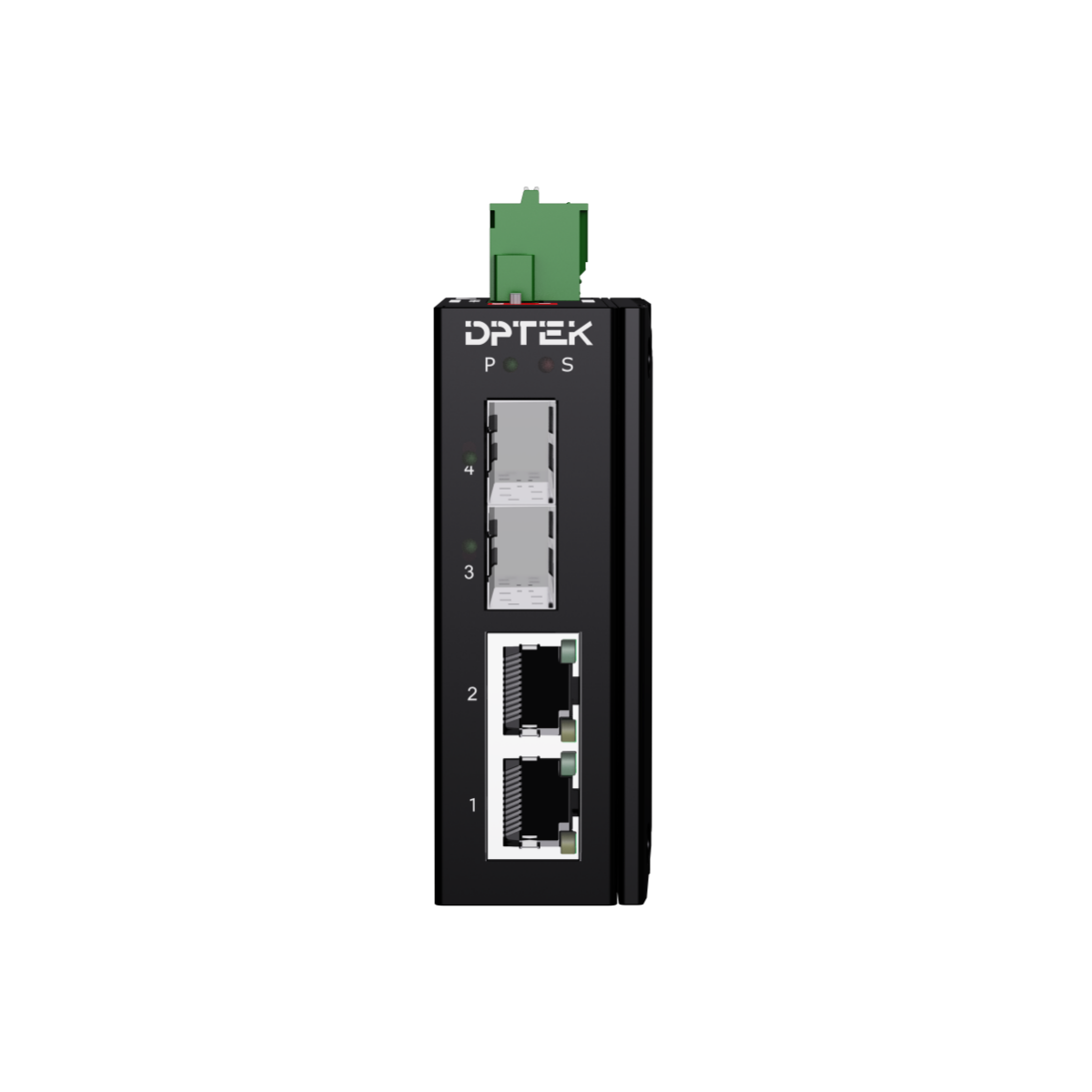

LED Indicators

P(Power indicator) Green

Off: the device is power off or failed

On: the device power on is normal

S(PoE usage indicator) Red

Off: total PoE usage rated 50%

Blinking: rated 50%total PoE usagerated 90%

On: total PoE usage≥rated 90%

1-2(Copper ports)

Green indicators

Yellow indicators

Off: ports link down

Off: PoE not working

On: ports link up

On: PoE working

Blinking: data on TX/RX

3-4 ( Fiber ports) Green

Off: ports link down

On: ports link up

Blinking: data on TX/RX

Power parameters

Input voltage

44-57VDC, redundant power input

Input current

1.5A Max

Total power consumption

Full loading without PoE  3W

PoE power budget  60W

Connector

Removable 4-pin terminal block

Reverse polarity protection

Support

Over-voltage protection

Support

Switching features

Switching capacity

0.8G

Packet forwarding rate

1.9 Mpps

MAC address table

8K

VLAN

4K

Buffer

1M

Forwarding delay

<10us

Jumbo Frame

Support 10Kbytes

MDX/MIDX

Support

Watchdog

Support

Network Topology

Star topology

Support

Bus topology

Support

Tree Topology

Support

Mechanical structure

Case protection

IP40

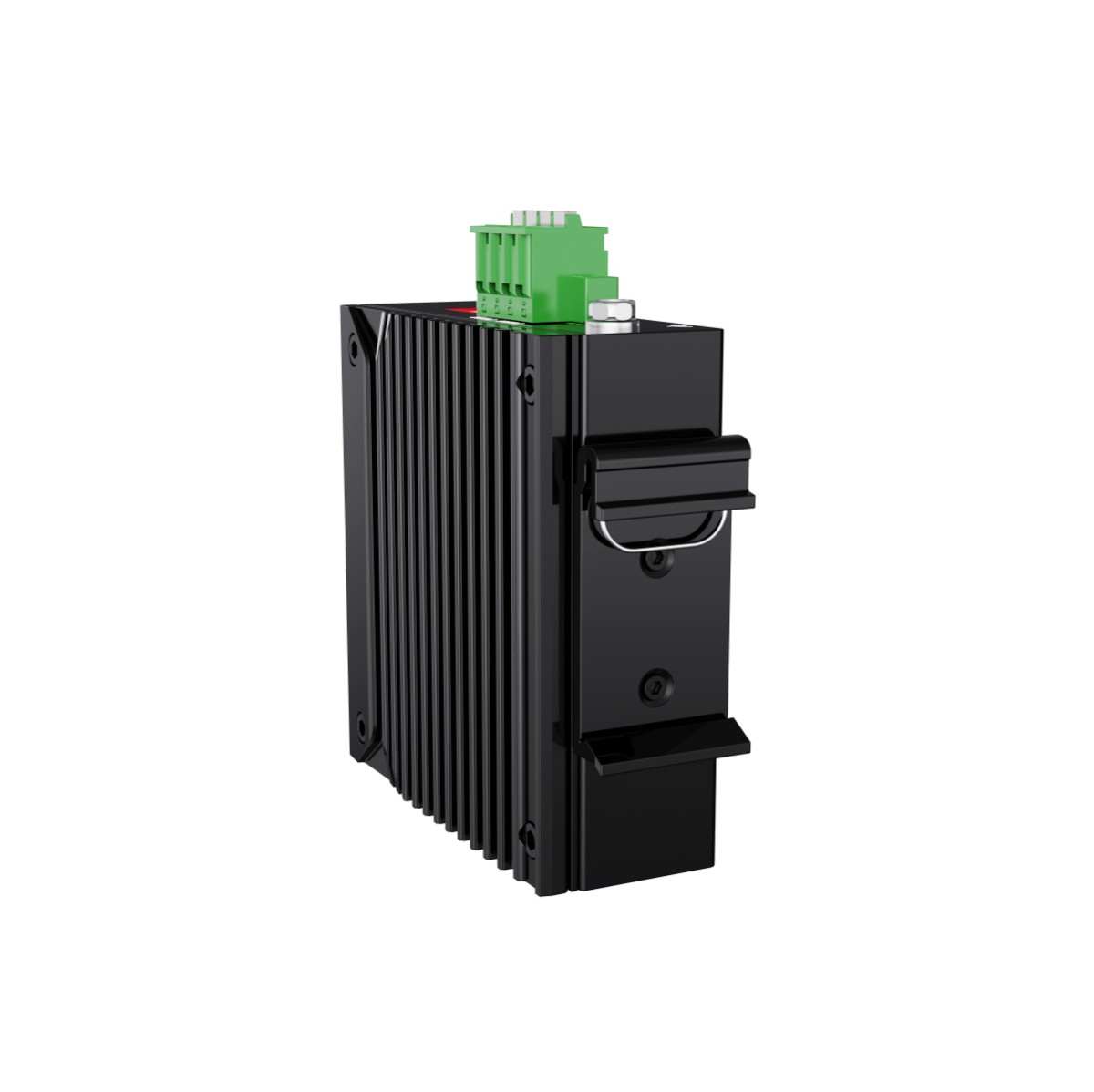

Installation method

Din-rail

Dimension(W*D*H)mm

30*85*85mm

Weight

0.22kg

Operating environment

Operating temperature

-40℃~+75℃

Storage/transportation temperature

-40℃~+85℃

Relative humidity

5%~95%non-condensing

Industrial Standard

Surge protection of power: IEC 61000-4-5  Level 3 (4KV/2KV)(8/20us)

Surge protection of Ethernet ports: IEC 61000-4-5  Level 3 (4KV/2KV)(10/700us)

DIP: IEC 61000-4-11  Level 310V

ESD: IEC 61000-4-2  Level 48K/15K

ShockIEC 60068-2-27

Free fallIEC 60068-2-32

VibrationIEC 60068-2-6

Certification

CE/FCC/RoHS

Warranty

5 years




















































































































Model

Description

DK-MC10F-2FP2FS-E

10/100Base-TX to 100Base-FX unmanaged compact industrial PoE media converter with 2*10/100Base-TX PoE ports and 2*100Base-FX SFP slots, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module;  Operation temperature: -40°C+75°C
