DK-MC10F-2FP1FS-E
Compact Industrial PoE media converter
2*10/100Base-TX RJ45 PoE to 1*100Base-FX
2*10/100Base-T PoE ports and 1*100Base-X SFP slot,
complies with IEEE802.3af, IEEE802.3at standard,
DC44-57V, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
- Parameters
Compact Industrial PoE media converter
2*10/100Base-TX RJ45 PoE to 1*100Base-FX
2*10/100Base-T PoE ports and 1*100Base-X SFP slot,
complies with IEEE802.3af, IEEE802.3at standard,
DC44-57V, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
Overview

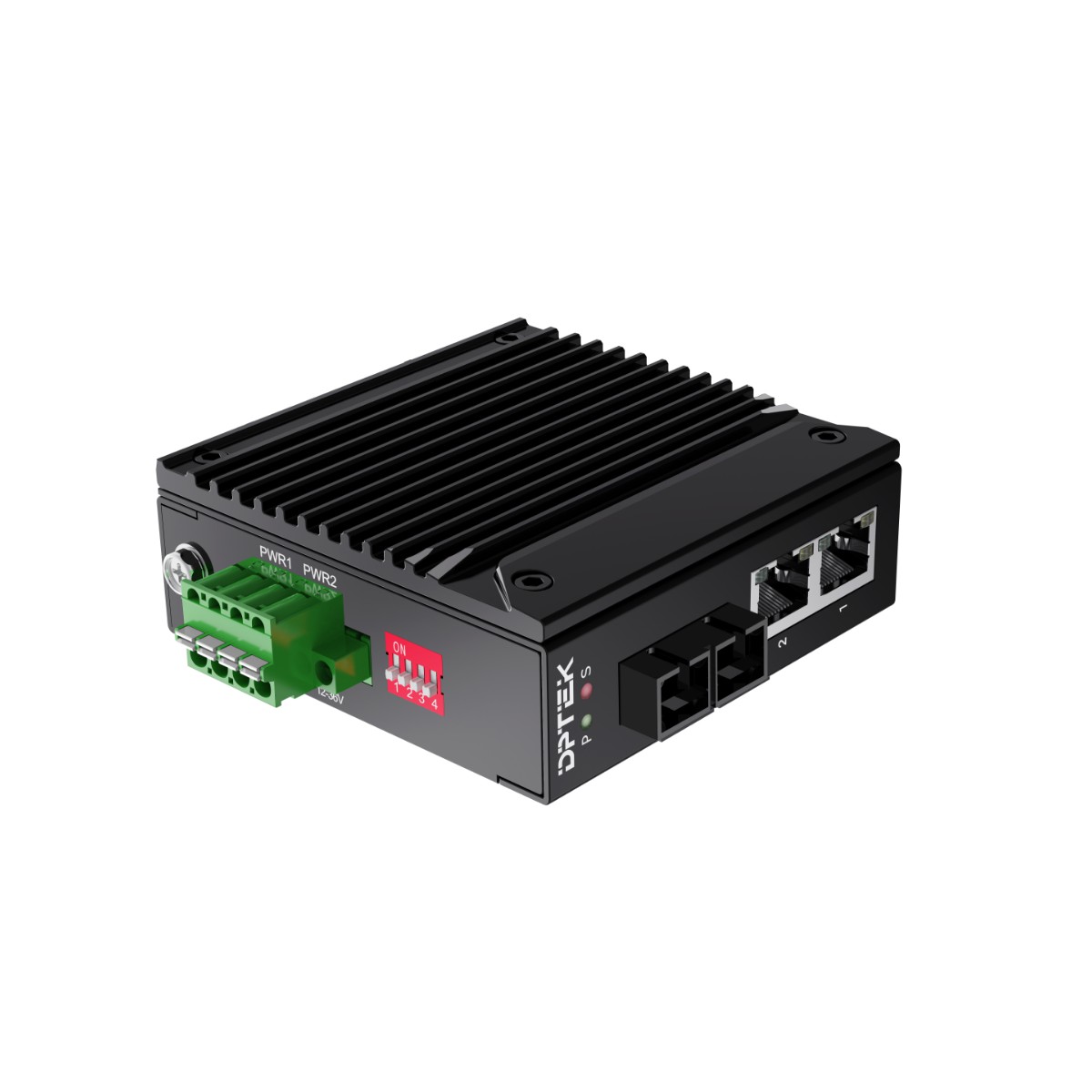

The DPTEK DK-MC10F-2FP1FS-E series are unmanaged compact industrial grade PoE media converter with 2-port 10/100Base-TX PoE and 1-port 100Base-FX fiber optical interface. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, they are featuring with port isolation, flow control, 250m long distance transmission mode and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK-MC10F-2FP1FS-E series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact housing with Din-rail installation, wide operation temperature from -40°C ~+75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 2*10/100Base-TX RJ45 PoE ports, 1*100Base-FX SFP(/SC/ST/FC optional) fiber port
➢ DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
➢ Powerful Dip switch function:
1.Port isolation; 2. Flow control; 3.250m long distance; 4.PoE watchdog
➢ Support 10K Bytes Jumbo frame and 1M large buffer
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
➢ Operation temperature: -40°C ~+75°C
Model No. | DK-MC10F-2FP1FS-E | |||
Interface | Fiber port | Copper RJ45 ports | ||
1 | 2 | |||
Ethernet | 2*10/100Base-TX PoE 1*100Base-FX SFP (SC/ST/FC optional) | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet plus PSE | |||
Dip Switch | 1. Port Isolation 2. Flow control 3. 250m long distance mode 4. PoE watchdog | |||
LED Indicators | P(Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S(PoE usage indicator) Red | Off: total PoE usage ＜rated 50% | |||
Blinking: rated 50%＜total PoE usage＜rated 90% | ||||
On: total PoE usage≥rated 90% | ||||
1-2 (Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: PoE not working | |||
On: ports link up | On: PoE working | |||
Blinking: data on TX/RX | ||||
3 ( Fiber port) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 44-57VDC, redundant power input | |||
Input current | 1.5A Max | |||
Total power consumption | Full loading without PoE ≤ 2.5W PoE power budget ≤ 60W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 0.6G | |||
Packet forwarding rate | 0.89 Mpps | |||
MAC address table | 8K | |||
VLAN | 4K | |||
Buffer | 1M | |||
Forwarding delay | <10us | |||
Jumbo Frame | Support 10Kbytes | |||
MDX/MIDX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*85*85mm | |||
Weight | 0.21 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95%（non-condensing） | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) | ||||
DIP: IEC 61000-4-11 Level 3（10V） | ||||
ESD: IEC 61000-4-2 Level 4（8K/15K） | ||||
Shock：IEC 60068-2-27 | ||||
Free fall：IEC 60068-2-32 | ||||
Vibration：IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description | |
DK-MC10F-2FP1FS-E | 10/100Base-TX to 100Base-FX unmanaged compact industrial PoE media converter with 2*10/100Base-TX PoE ports and 1*100Base-FX SFP slot, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C～+75°C | |
DK-MC10F-2FP1FS-SC-E | 10/100Base-TX to 100Base-FX unmanaged compact industrial PoE media converter with 2*10/100Base-TX PoE ports and 1*100Base-FX SC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 2KM -120KM optional; Operation temperature: -40°C～+75°C | |
DK-MC10F-2FP1FS-FC-E | 10/100Base-TX to 100Base-FX unmanaged compact industrial PoE media converter with 2*10/100Base-TX PoE ports and 1*100Base-FX FC port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 2KM -120KM optional; Operation temperature: -40°C～+75°C | |
DK-MC10F-2FP1FS-ST-E | 10/100Base-TX to 100Base-FX unmanaged compact industrial PoE media converter with 2*10/100Base-TX PoE ports and 1*100Base-FX ST port, complies with IEEE802.3af, IEEE802.3at standard, DC44-57V, redundant dual power supply, Din-rail installation; Multi-mode/Single mode/ dual fiber/single fiber, 2KM -120KM optional; Operation temperature: -40°C～+75°C | |
