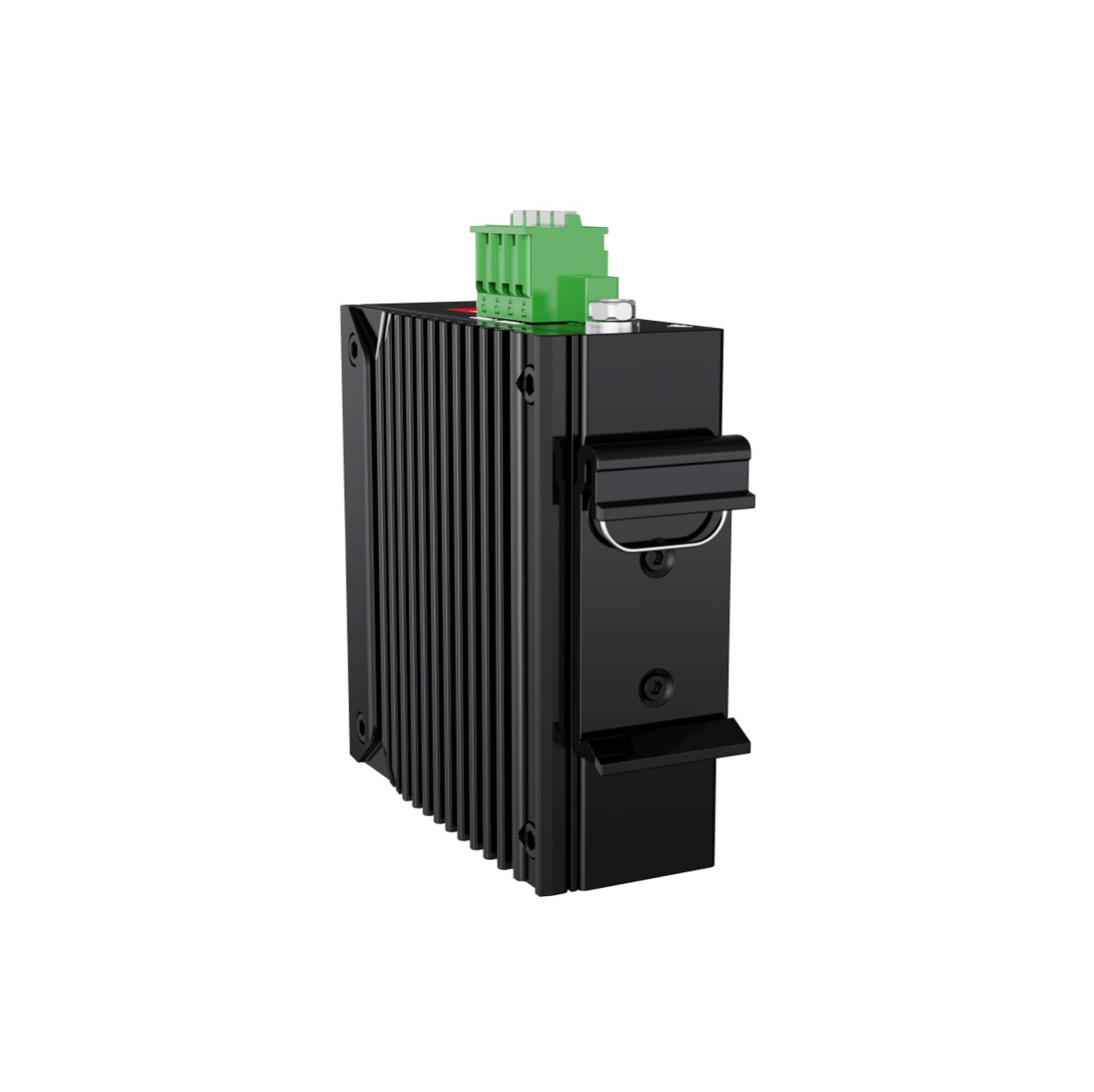

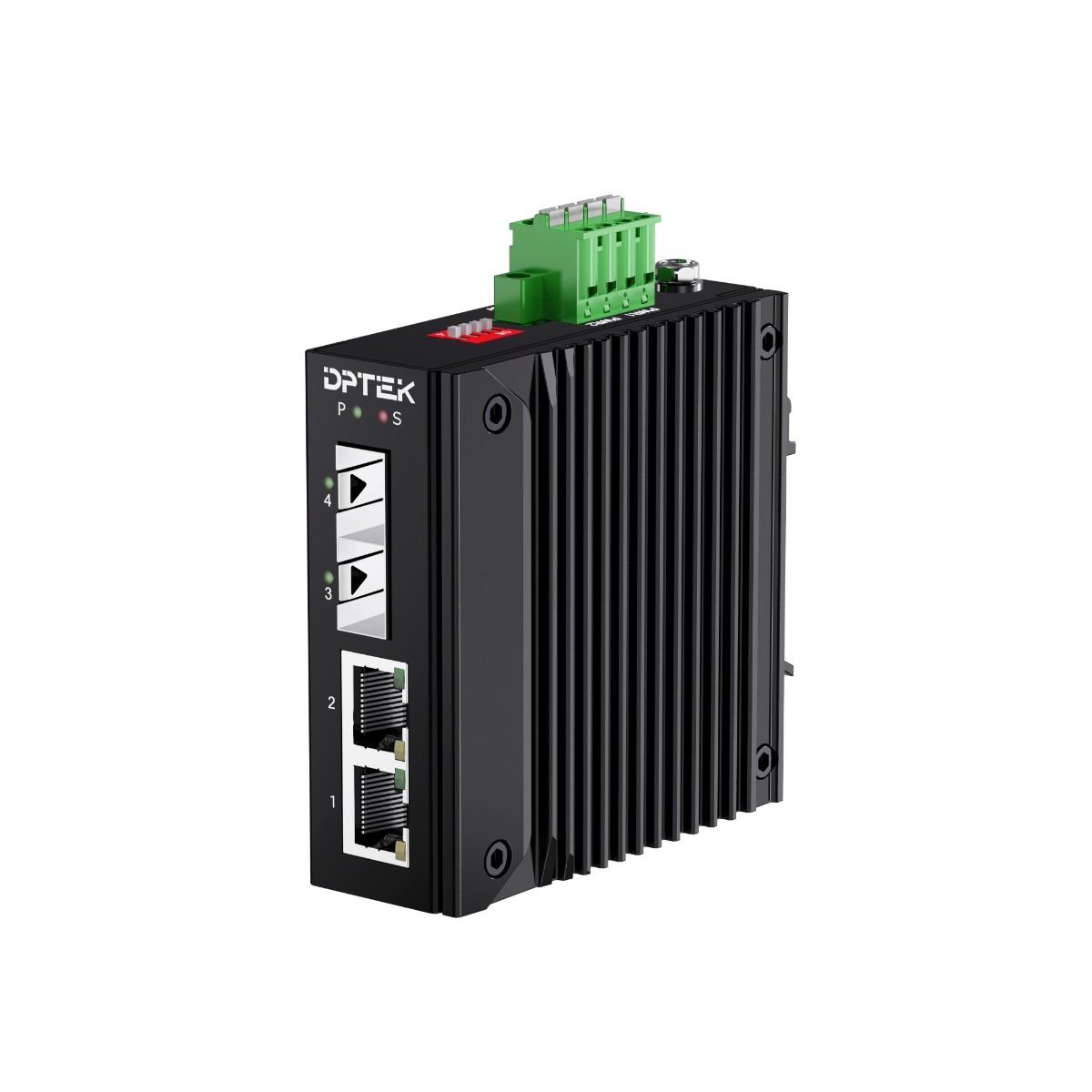

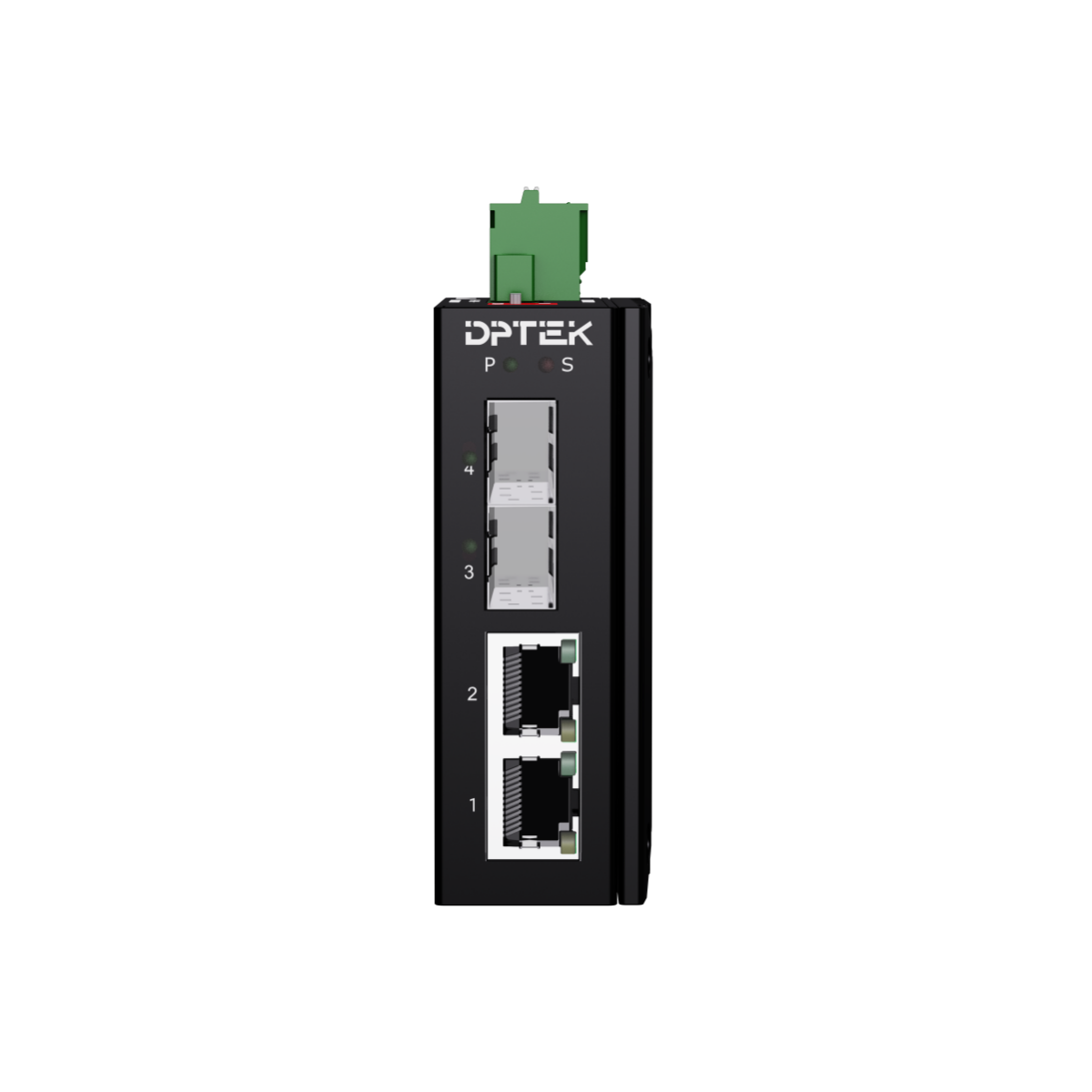

DK-MC10F-2F2FS-E
Compact Industrial Media Converter
2*10/100Base-TX to 2*100Base-FX
2*10/100Base-TX RJ45 ports and 2*100Base-FX SFP slots
DC12-58V input, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
- Parameters
Compact Industrial Media Converter
2*10/100Base-TX to 2*100Base-FX
2*10/100Base-TX RJ45 ports and 2*100Base-FX SFP slots
DC12-58V input, redundant dual power supply, Din-rail installation.
Operation temperature: -40°C～+75°C
Overview
The DPTEK DK-MC10F-2F2FS-E is the unmanaged compact industrial grade media converter with 2-port 10/100Base-TX RJ45 and 2-port 100Base-FX fiber optical interfaces. It is featuring with fiber redundant, flow control, broadcast storm restrain and 10K Bytes Jumbo frame function, which all can be configured by the Dip switch on the top panel.
DK-MC10F-2F2FS-E is also a high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, such as wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 fan-less compact housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 2*10/100Base-TX RJ45 ports, 2*100Base-FX SFP ports
➢ DC 12~58V input, redundant power supply with polarity reverse/over-voltage protection
➢ Dip switch function:
1.Fiber redundant; 2. Flow control; 3.Broadcast storm restrain; 4. 10K Bytes Jumbo frame
➢ Support 1M large buffer
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
➢ Operation temperature: -40°C ~+75°C
Model No. | DK-MC10F-2F2FS-E | |||
Interface | Fiber ports | Copper RJ45 ports | ||
2 | 2 | |||
Ethernet | 2*10/100Base-TX RJ45 2*100Base-FX SFP | |||
Standard | IEEE 802.3 10Base-T Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet | |||
Dip Switch | 1. Fiber redundant 2. Flow control 3. Broadcast storm restrain 4. 10K Bytes Jumbo frame | |||
LED Indicators | P(Power indicator) Green | Off: the device is power off or failed | ||
On: the device power on is normal | ||||
S(System indicator) Red | Off: the chip is normal | |||
On: the chip read/write is unnormal | ||||
1-2(Copper ports) | Green indicators | Yellow indicators | ||
Off: ports link down | Off: port speed is 10M | |||
On: ports link up | On: port speed is 100M | |||
Blinking: data on TX/RX | ||||
3-4 ( Fiber ports) Green | Off: ports link down | |||
On: ports link up | ||||
Blinking: data on TX/RX | ||||
Power parameters | ||||
Input voltage | 12-58VDC, redundant power input | |||
Input current | 0.3A Max | |||
Total power consumption | Full loading ≤3W | |||
Connector | Removable 4-pin terminal block | |||
Reverse polarity protection | Support | |||
Over-voltage protection | Support | |||
Switching features | ||||
Switching capacity | 0.8G | |||
Packet forwarding rate | 1.9 Mpps | |||
MAC address table | 8K | |||
VLAN | 4K | |||
Buffer | 1M | |||
Forwarding delay | <10us | |||
Jumbo Frame | Support 10Kbytes | |||
MDX/MIDX | Support | |||
Watchdog | Support | |||
Network Topology | ||||
Star topology | Support | |||
Bus topology | Support | |||
Tree Topology | Support | |||
Mechanical structure | ||||
Case protection | IP40 | |||
Installation method | Din-rail | |||
Dimension(W*D*H)mm | 30*85*85mm | |||
Weight | 0.22 kg | |||
Operating environment | ||||
Operating temperature | -40℃~+75℃ | |||
Storage/transportation temperature | -40℃~+85℃ | |||
Relative humidity | 5%~95%（non-condensing） | |||
Industrial Standard | Surge protection of power: IEC 61000-4-5 Level 3 (4KV/2KV）（8/20us) | |||
Surge protection of Ethernet ports: IEC 61000-4-5 Level 3 (4KV/2KV）（10/700us) | ||||
DIP: IEC 61000-4-11 Level 3（10V） | ||||
ESD: IEC 61000-4-2 Level 4（8K/15K） | ||||
Shock：IEC 60068-2-27 | ||||
Free fall：IEC 60068-2-32 | ||||
Vibration：IEC 60068-2-6 | ||||
Certification | CE/FCC/RoHS | |||
Warranty | 5 years | |||
Model | Description |
DK-MC10F-2F2FS-E | 10/100Base-TX to 100Base-FX unmanaged compact industrial media converter with 2*10/100Base-TX RJ45 ports and 2*100Base-FX SFP slots, DC12-58V input, redundant dual power supply, Din-rail installation. Fiber port transmission distance depending on the SFP module; Operation temperature: -40°C～+75°C |
