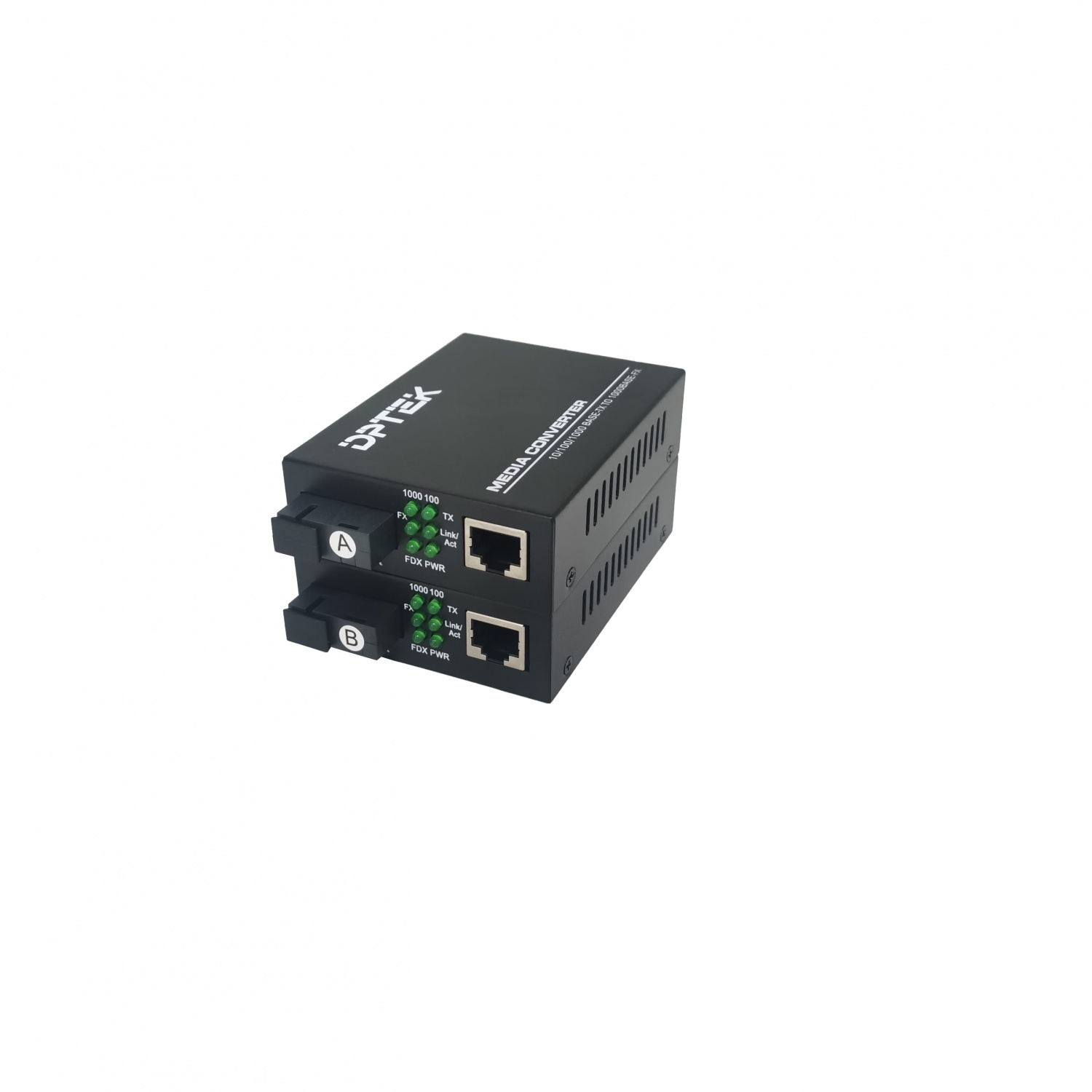

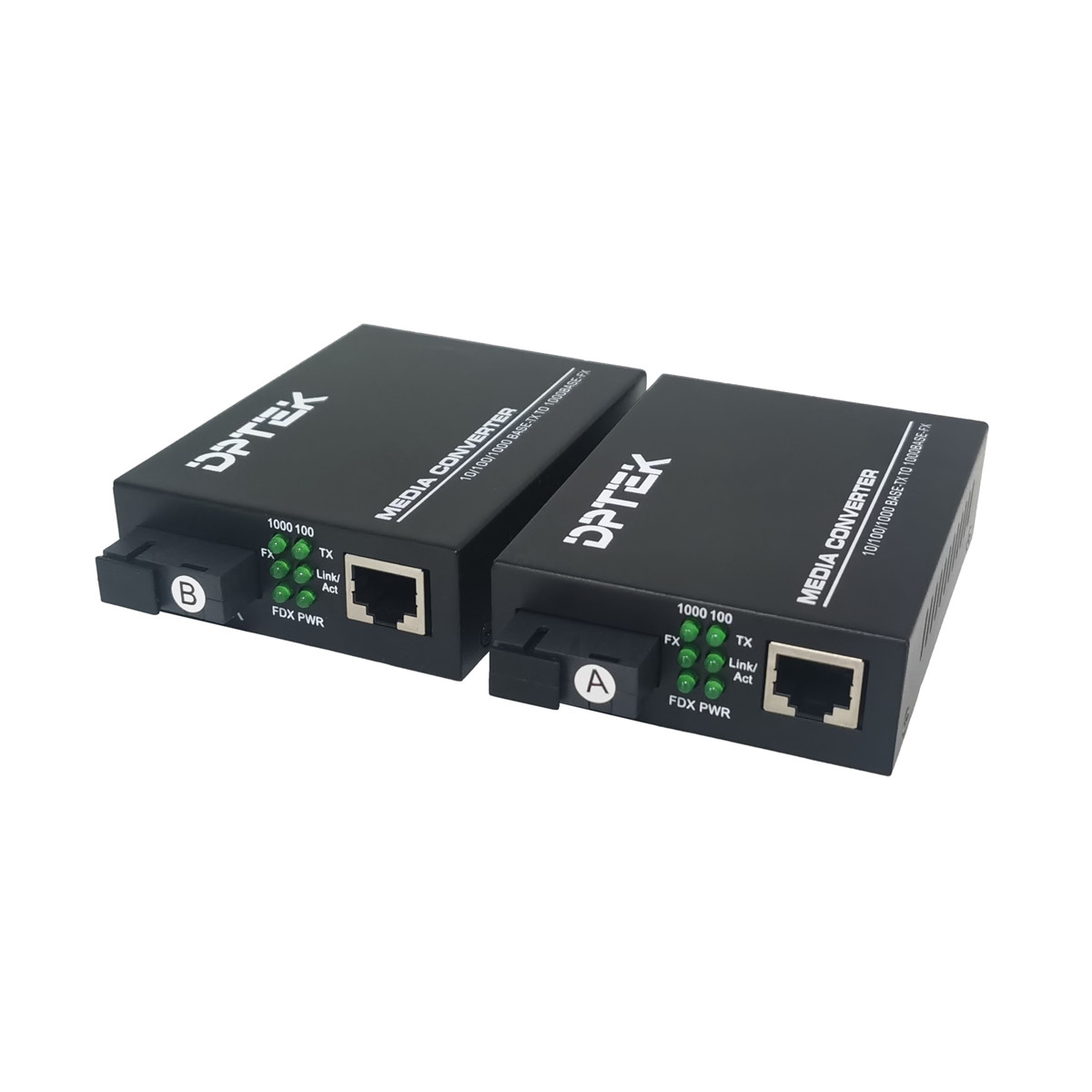

DK-MC1035-03A


    10/100/1000M Media converter



    1*1000 Base-X, 1*10/100/1000 Base-T,

    1310/1550nm, 3KM

    DC5V


  • Parameters


    10/100/1000M Media converter



    1*1000 Base-X, 1*10/100/1000 Base-T,

    1310/1550nm, 3KM

    DC5V


Overview


The DK-MC1035 series media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -20℃ ~ +70℃ wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.



Main Features



Ø Input voltage: DC5V

Ø Operating temperature:  -20℃ to +70℃

Ø Cooling mode: no fan design

Ø Forwarding mode: store and forward



Product Size







Provider Mode Ports

Fixed port

1*1000 Base-X1*10/100/1000 Base-T

Power interface

DC port

LED Indicators

PWR, Link/ACT LED

Cable type&Transmission distance

Twisted-pair

0-100mCAT5e,CAT6

Monomode optical fiber

3KM/20KM/40KM/60KM/80KM/100KM/120KM

Electrical Specifications

Input voltage

DC5V

Total Power consumption

Total power<4W

Environment

Operating temperature

-20℃~+70℃

Storage temperature

-20℃~+70℃

Relative humidity

5%~95% non-condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hours

Mechanical Dimensions

Product size

93x71x27mm

Installation Method

Desktop

Weight

0.17KG*2

Certification

Certification

CE/FCC/RoHS

Accessories

Accessories

Device, manual, power adapter(EU/US/UK/AU plug optional)





























Model

Description

DK-MC1035-03A

DK-MC1053-03B

1*1000 Base-X, 1*10/100/1000 Base-T, 1310/1550nm, 3KM



















DK-MC1035-03A
