- Parameters

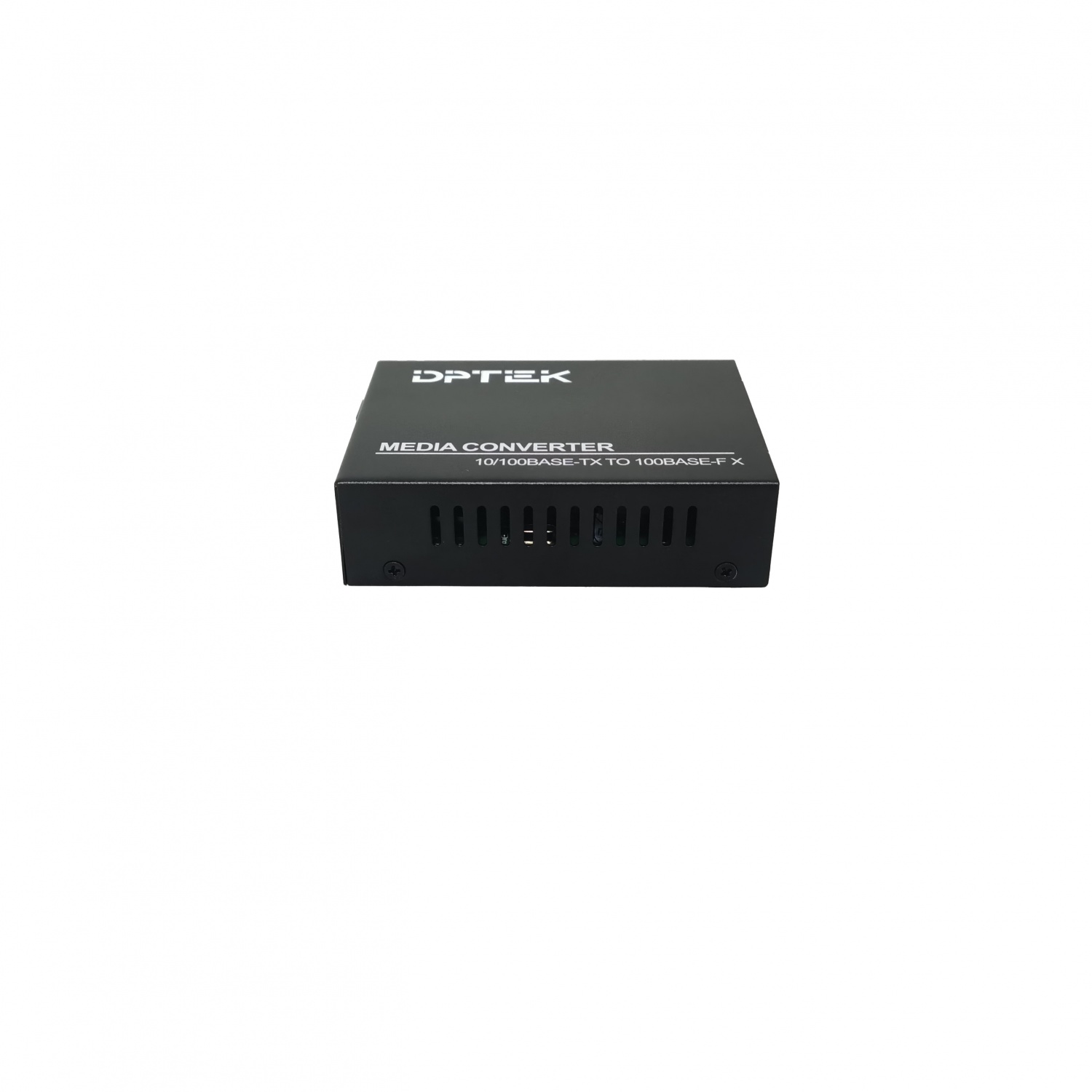

Media converter
1*100 Base-X, 1*10/100 Base-T,
1310/1550nm, 20KM
DC5V
Overview
The DK-MC0135 series media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -20℃ ~ +70℃ wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.
Main Features
Ø Input voltage: DC5V
Ø Operating temperature: -20℃ to +70℃
Ø Cooling mode: no fan design
Ø Forwarding mode: store and forward
Product Size
Provider Mode Ports | |
Fixed port | 1*100 Base-X，1*10/100 Base-T |

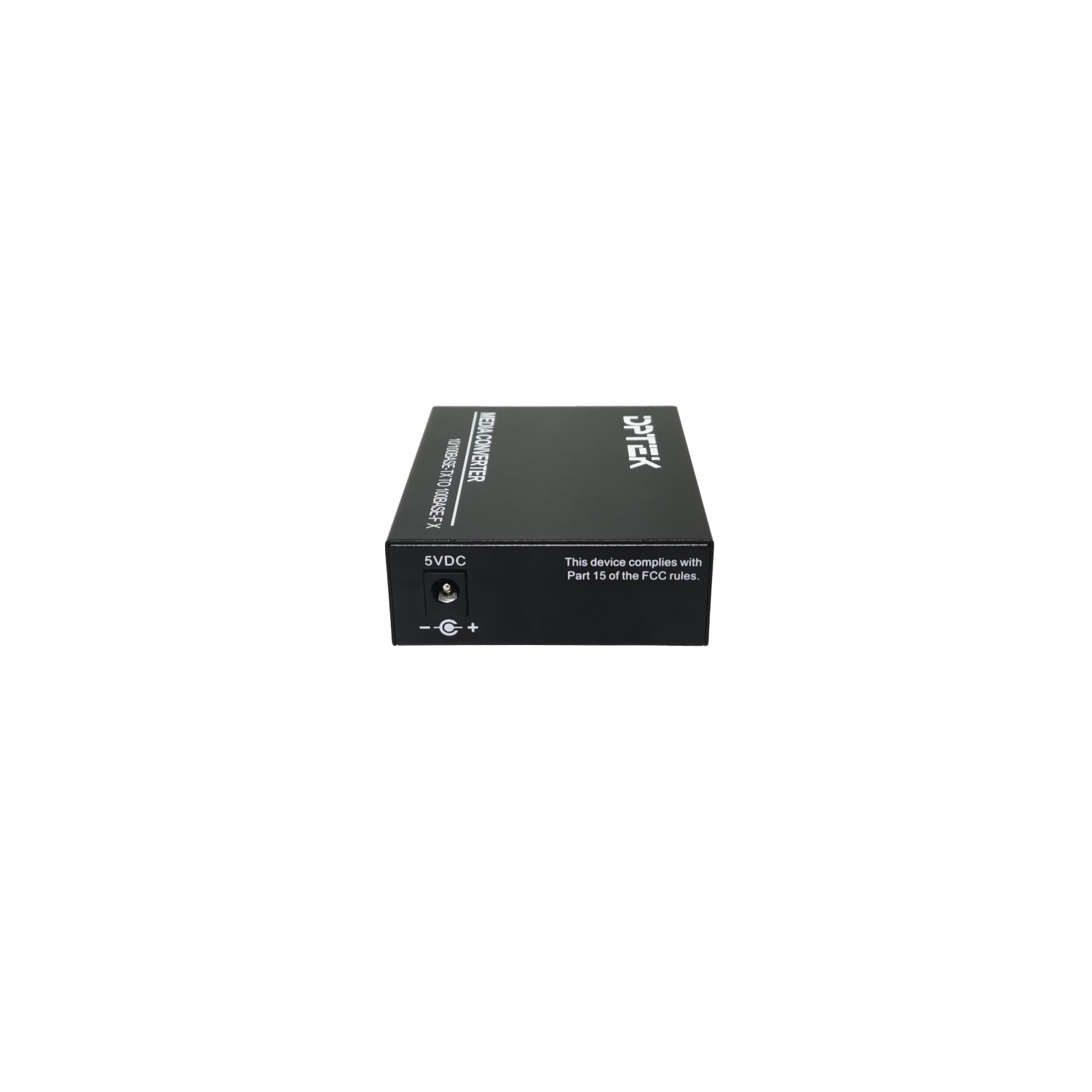

Power interface | DC port |

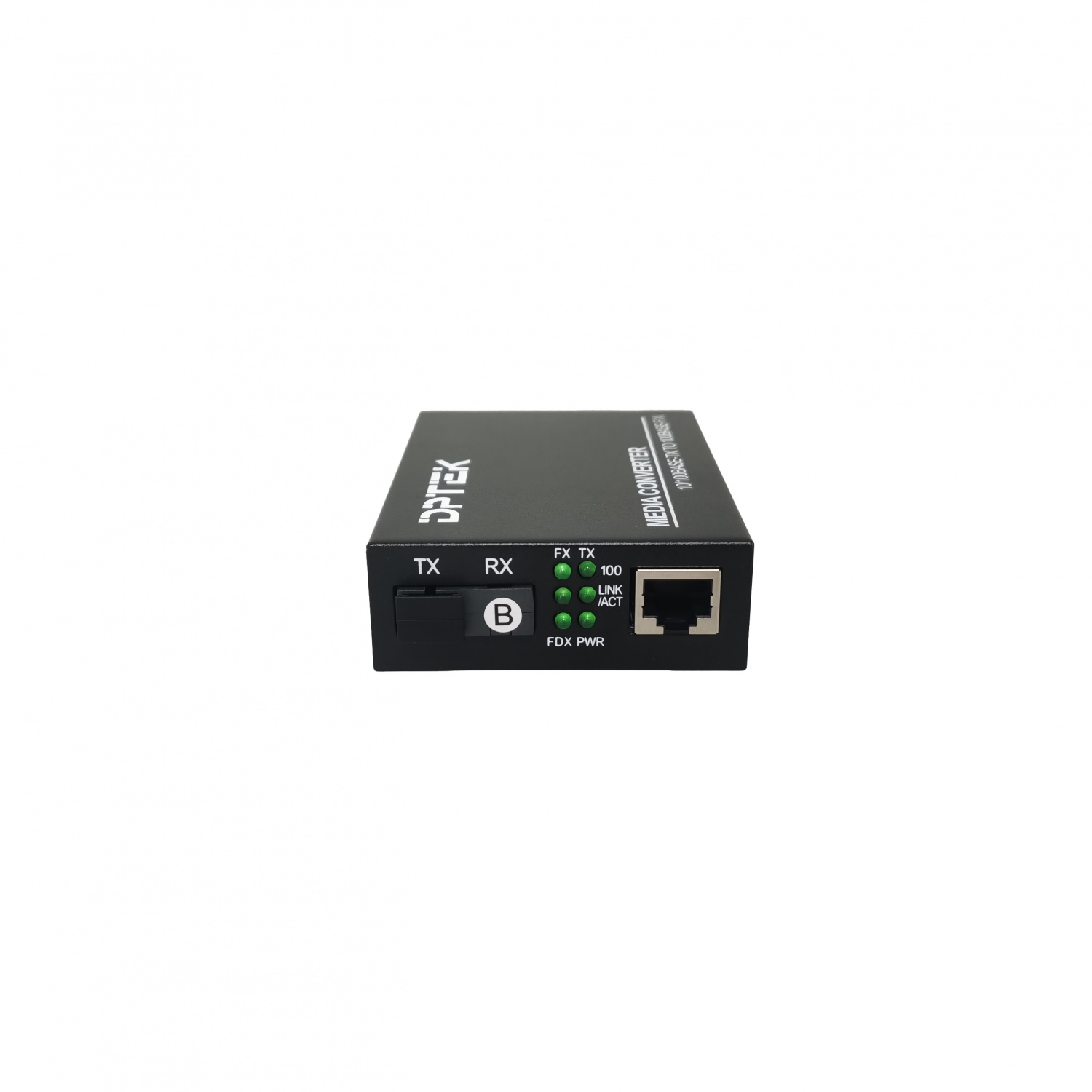

LED Indicators | PWR, Link/ACT LED |
Cable type&Transmission distance | |
Twisted-pair） | 0-100m（CAT5e,CAT6） |
Monomode optical fiber | 20KM |
Electrical Specifications | |
Input voltage | DC5V |
Total Power consumption | Total power<4W |
Environment | |
Operating temperature | -20℃~+70℃ |
Storage temperature | -20℃~+70℃ |
Relative humidity | 5%~95% non-condensing |
Thermal methods | Fanless design, natural heat dissipation |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product size | 93x71x27mm |
Installation Method | Desktop |
Weight | 0.15KG*2 |
Certification | |
Certification | CE/FCC/RoHS |
Accessories | |
Accessories | Device, manual, power adapter(EU/US/UK/AU plug optional) |
Model | Description |

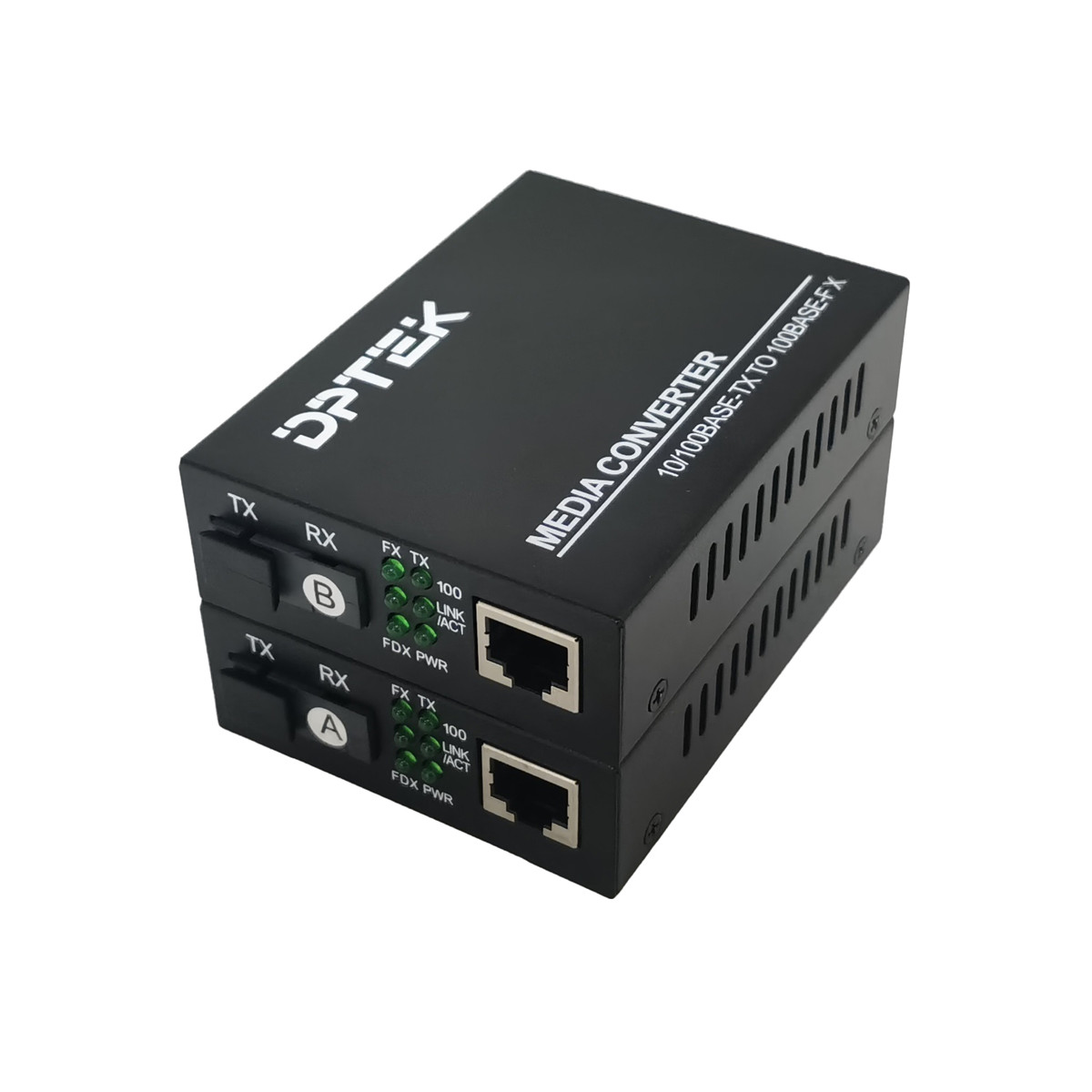

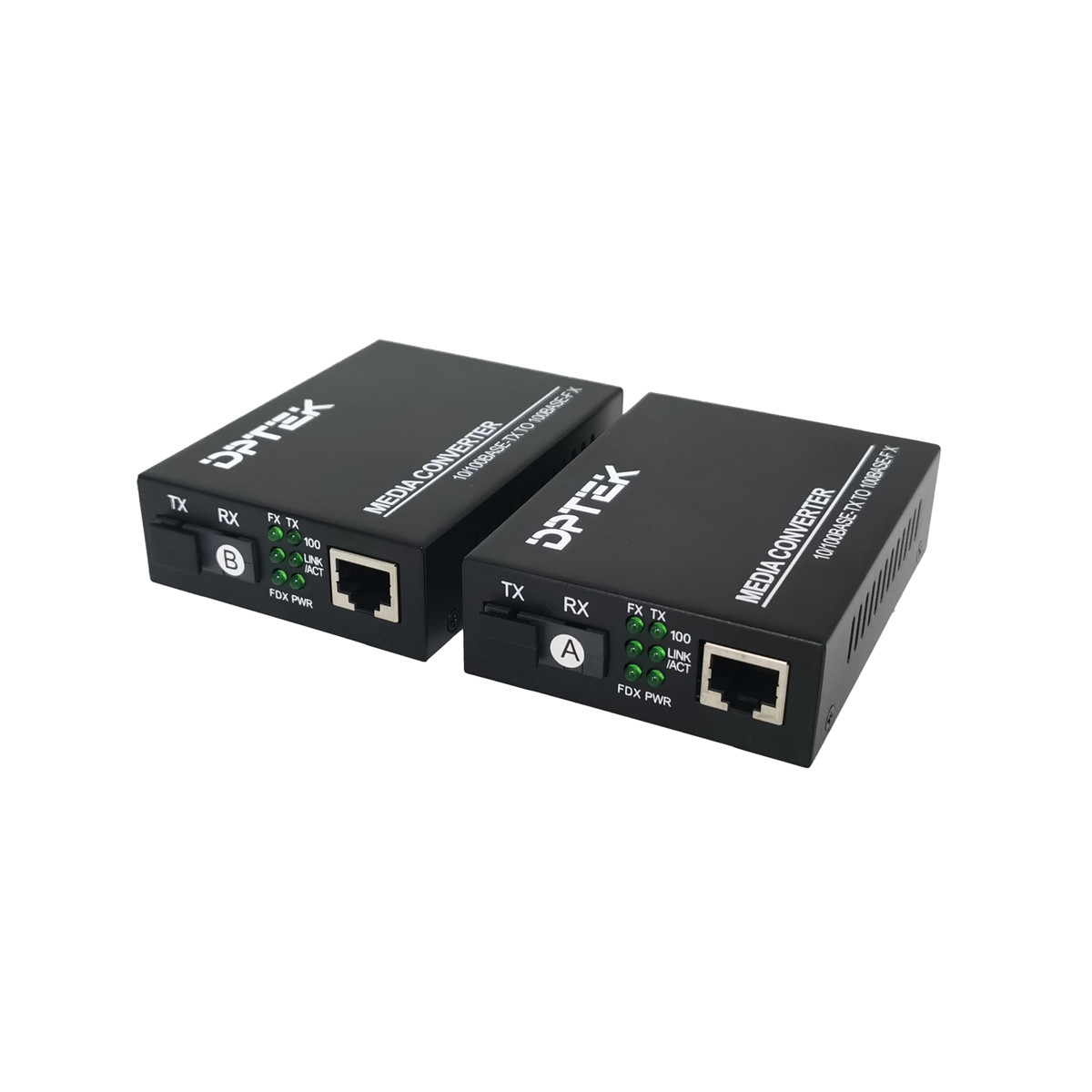

DK-MC0135-20A DK-MC0153-20B | 1*100 Base-X, 1*10/100 Base-T, 1310/1550nm, 20KM |
