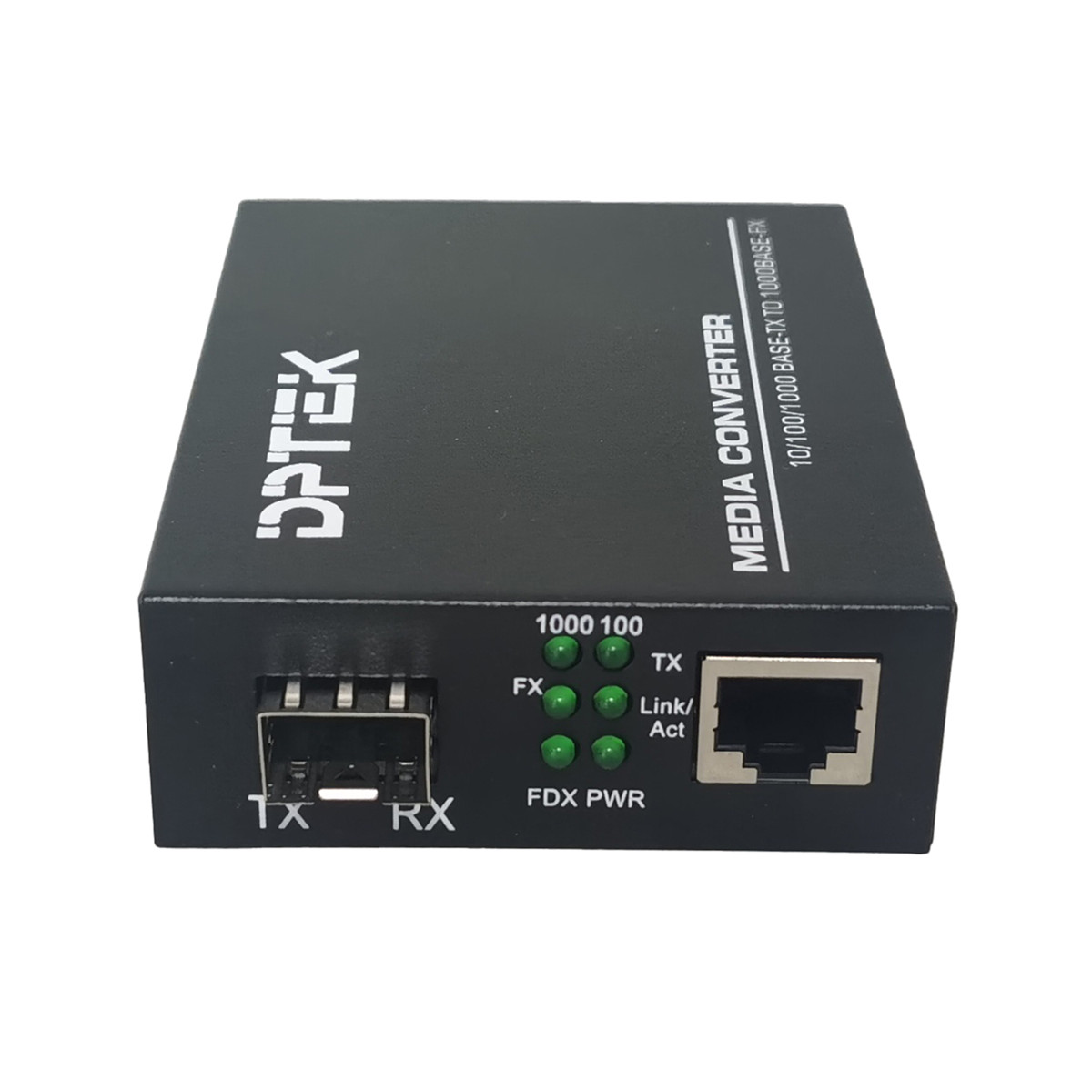

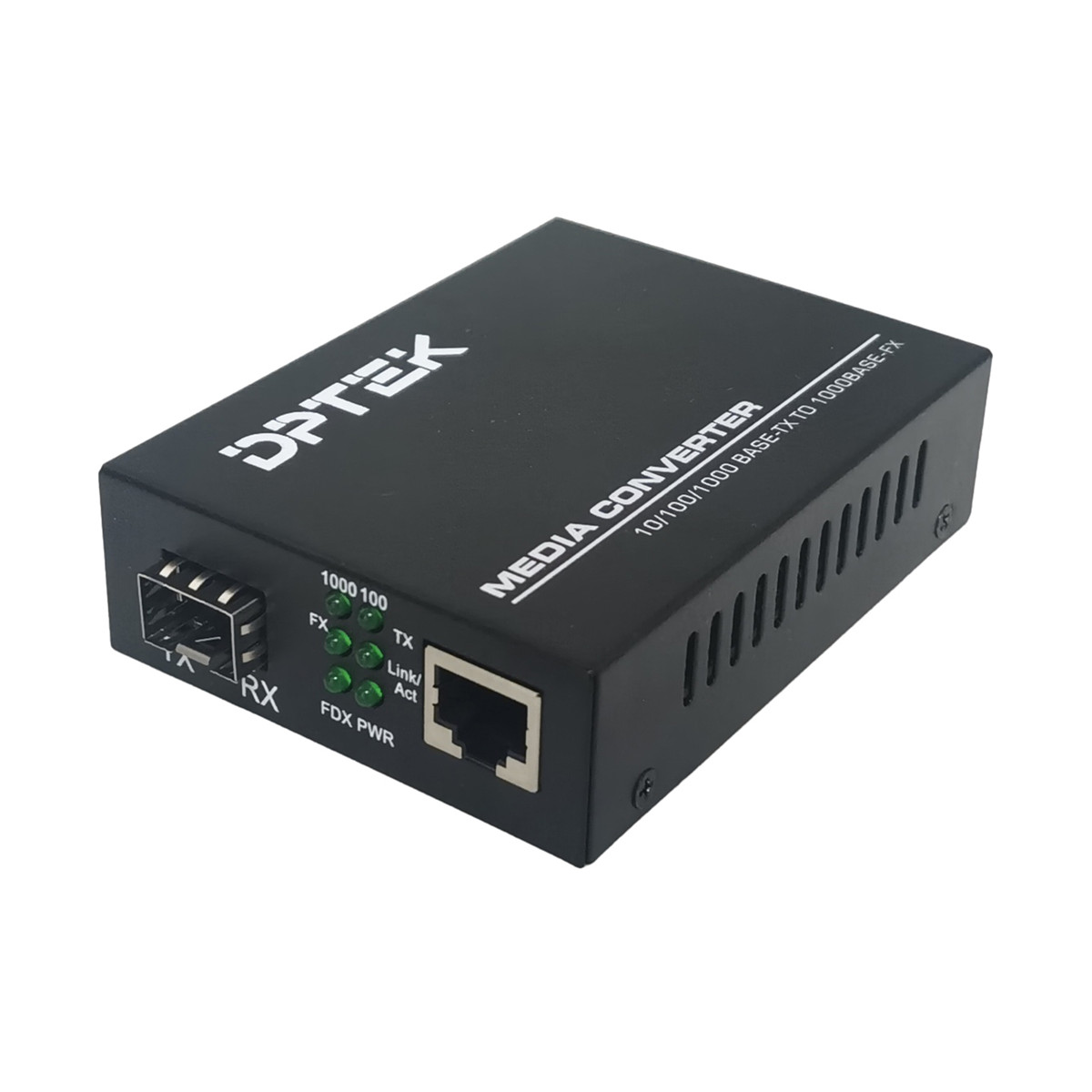

DK-MC-1G-SFP


    10/100/1000M SFP Media converter


    1*SFP Port, 1*10/100/1000 Base-T port

    DC5V




  • Parameters


    10/100/1000M SFP Media converter


    1*SFP Port, 1*10/100/1000 Base-T port

    DC5V




Overview


The DK-MC-1G-SFP media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -25℃ ~ +70℃ wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.




Main Features


Ø Input voltage: DC5V

Ø Operating temperature:  -25℃ to +70℃

Ø Cooling mode: no fan design

Ø Forwarding mode: store and forward



Product Size






Provider mode ports

Power interface:

DC

LED indicators:

Optical port:

Network ports:

Optical wavelength:

Transmission distance:

PWR, Link/ACT LED

SFP plug-in module

RJ45 port

Determined by the SFP module

Determined by the SFP module

Cable type and distance

Twisted-pair:

0-100mCAT5e,CAT6

Single-mode fiber:

20/40/60/80/100KM

Multimode optical fiber:

550m

Network topology

Star topology:

Support

Bus topology:

Support

Tree topology:

Support

Electrical specifications

Input voltage:

DC5V

Total power consumption:

Total power<4W

Layer 2 switching

Switching capacity:

6G

Packet forwarding rate:

4.46Mpps

MAC address table:

2K

Buffer:

1M

Forwarding delay:

<4us

MDX/MIDX:

Support

Environment

Operating temperature:

-25℃~+70℃

Storage temperature:

-25℃~+70℃

Relative humidity:

5%~95%non-condensing

MTBF

100,000 hours

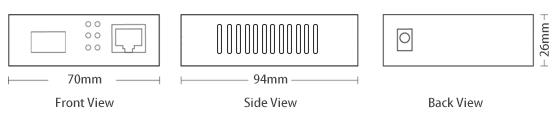

Mechanical Dimensions

Product size:

94x70x26mm

Weight:

0.2kg/pc






































Model

Description

DK-MC-1G-SFP

10/100/1000M SFP Media converter, 1*SFP Port, 1*10/100/1000 Base-T port










DK-MC-1G-SFP
