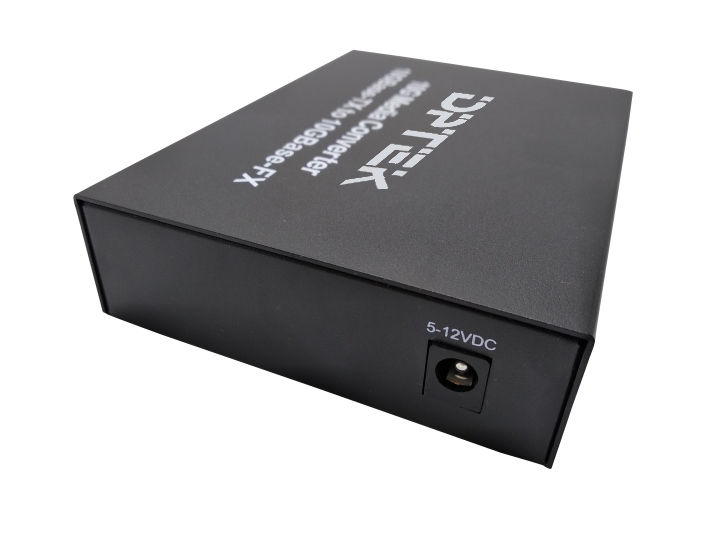

DK-MC-10G-SFP+

    10G Series Fiber Optic Media Converter



    10G fiber optic media converter with 1 Ethernet port and 1 Fiber port

    DC 12 V




  • Parameters

    10G Series Fiber Optic Media Converter



    10G fiber optic media converter with 1 Ethernet port and 1 Fiber port

    DC 12 V




Overview


The DK-MC-10G-SFP+ 10G media converter is a photoelectric converter that converts Ethernet electrical signals and photoelectric signals. It can convert short-distance 10GBase-TX twisted pair electrical signals and long-distance 10GBase-FX optical signals to each other. Different types of optical modules can be selected as needed, and the seamless connection between the optical signals of the Ethernet and the electrical signals. It not only can extend the transmission distance, but also has many advantages such as good data confidentiality, stable operation and easy maintenance.




Main Features



Ø Adopt high-performance US Marvel chip to achieve non-blocking transmission switching performance and ensure higher security and stability of data transmission;

Ø Support Ethernet port 10GbaseTto10Gbase-SR/LR/ER/ZR;

Ø The fiber port supports 3R function (equalization amplification, clock extraction, integer regeneration), and the data transmission jitter is small;

Ø Transparent transmission of data with small delay;

Ø Supports 850, 1310, 1550nm and ITU T specified CWDM/DWDM wavelengths;

Ø Support for super long frames;

Ø Support DMI function of optical module;

Ø Support Loopback and return to functional testing;

Ø Support SFP+/XFP different interface optical modules;

Ø Support 5-20V wide voltage power supply;

Ø Support built-in power supply enclosure;

Ø Support centralized power supply management of racks;

Ø Support external power supply;




               Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 10GBase-SX/LX

IEEE802.3x Flow control

IEEE802.1q VLAN

IEEE802.1p QoS

IEEE802.1d Spanning Tree

Ethernet Port

Ø Connector: RJ45

Ø Data Rate: 100/1000/10000M

Ø Distance: 100m

Ø UTP Type: UTP-5E or higher level

Fiber Port

Ø Connector: SFP+

Ø Data Rate: 10Gbps

Ø Fiber wavelength: 850nm / 1310nm / 1490nm / 1550nm

Ø Fiber type: single mode 9/125μm, multimode 50/125μm, 62.5/125μm

Ø Distance: 550m100km

Performance

Ø Processing Type: Store and Forward

Ø MAC Table Size: 2K

Ø Buffer Space: 1Mbit

Ø Transmission mode: full-duplex / half-duplex adaptive

Ø Time Delay: 20μs

Power

Ø Power type: external power supply

Ø Input Voltage: AC100V240V  50/60Hz

Ø power connector: DC socket

Ø Working Voltage: 5V4A&12V

Ø Power Consumption: 0.75W3W

Environment

Ø Storage Temperature: -4070

Ø Operating Temperature: -1055

Ø Relative Humidity: 5-95% ( no condensation)

Physical Characteristics

Ø Dimension: 117×85×21mm

Ø Weight: 0.1kg (external) body

Ø Color: Metal, Black







Model

Description

DK-MC-10G-SFP+

10G fiber optic media converter with 1 Ethernet port and 1 Fiber port

(Note: default SFP interface for fiber interface, optional LC/SC; standard 5V4A American standard power adapter, or 12V power supply)


















DK-MC-10G-SFP+
